Mikroelektronika d.o.o.

Kinetis Clicker Board

Kinetis Clicker Board

SKU: MIKROE-2330

Regular price
£47.00 exc VAT
£56.40 inc VAT
Regular price £47.00 GBP Sale price
£47.00 exc VAT
£56.40 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The Kinetis Clicker Board™ is an amazingly compact starter development kit which brings Click Board™ connectivity an NXP's Kinetis ARM Cortex-M4 microcontroller.

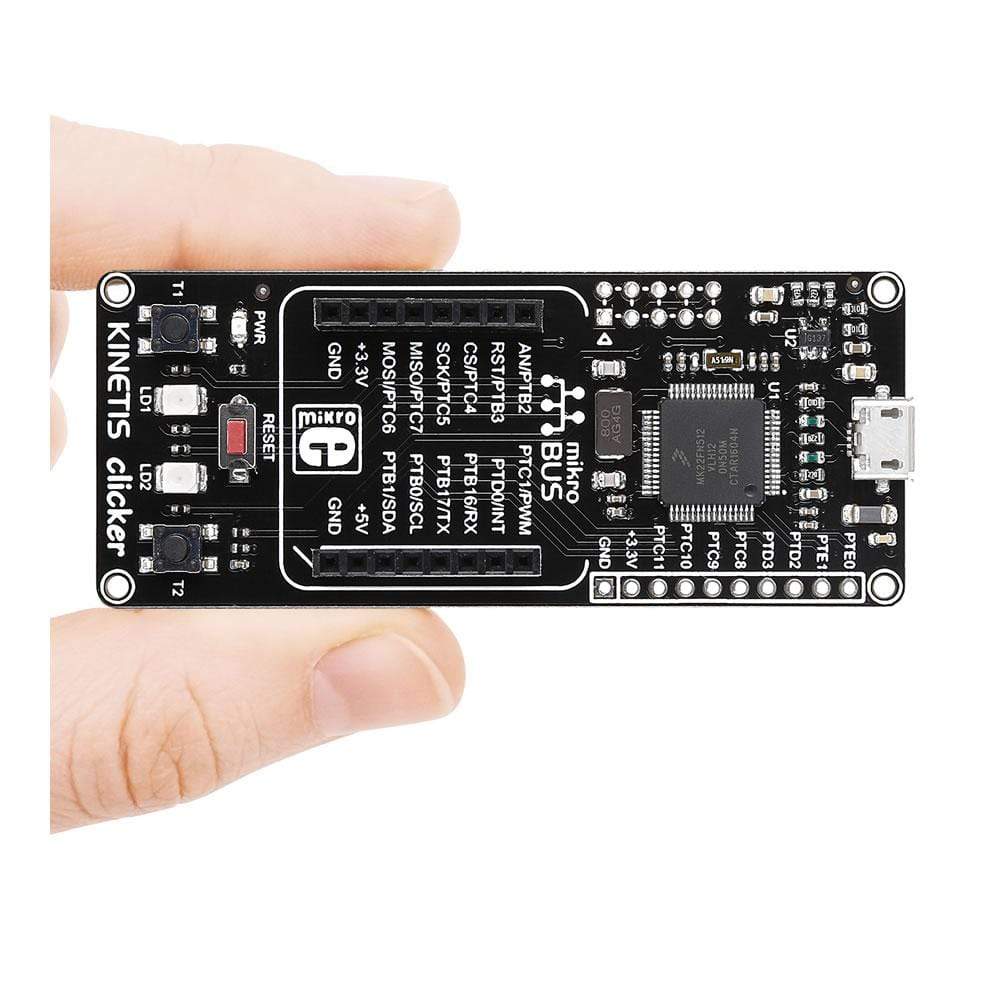

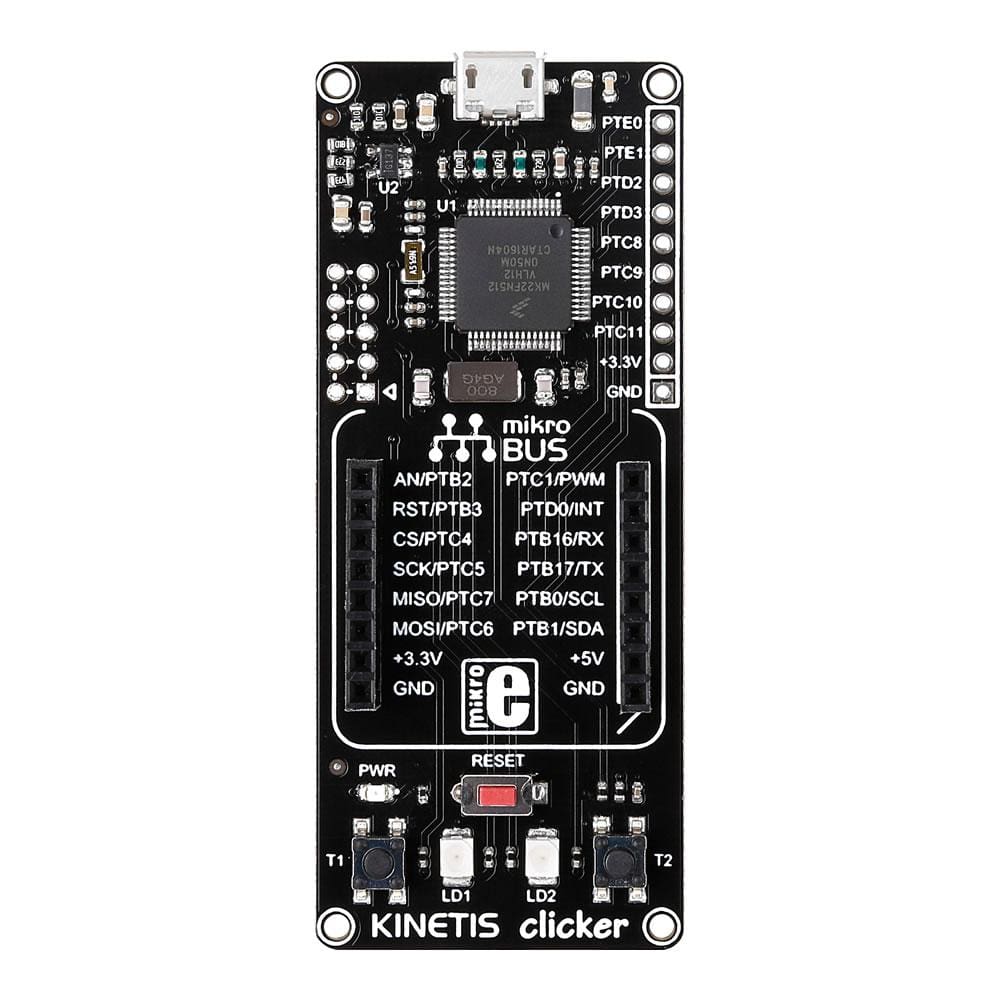

The Kinetis Clicker Board™ is an amazingly compact starter development kit which brings Click board™ connectivity an NXP's Kinetis ARM Cortex™-M4 microcontroller. The board features all you need to get started: a low power ARM Cortex™-M4 32-bit MK22FN512VLH12 microcontroller, a USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

Hundreds of possibilities with Click boards™. With mikroBUS™ socket, you can take advantage of the huge potential of Click boards™, the constantly expanding range of over 1000 add-on Click boards.

Programming. To make your prototyping experience as convenient as possible, STM32 M4 clicker is preprogrammed with a USB HID Bootloader. Just download our mikroBootloader application and you're ready to upload your firmware. On-board mikroProg for Kinetis connector enables programming through external programmer/debugger.

TECHNICAL SPECIFICATIONS

Applications

This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.

Key Features

  • MK22FN512VLH12 MCU, delivering 120 MHz of processing power, 512KB of Flash, 128 KB of RAM. Micro USB connector.
  • Two LEDs, two push buttons, and a reset button.
  • Micro USB connector.
  • mikroProg connector and headers for interfacing with external electronics.

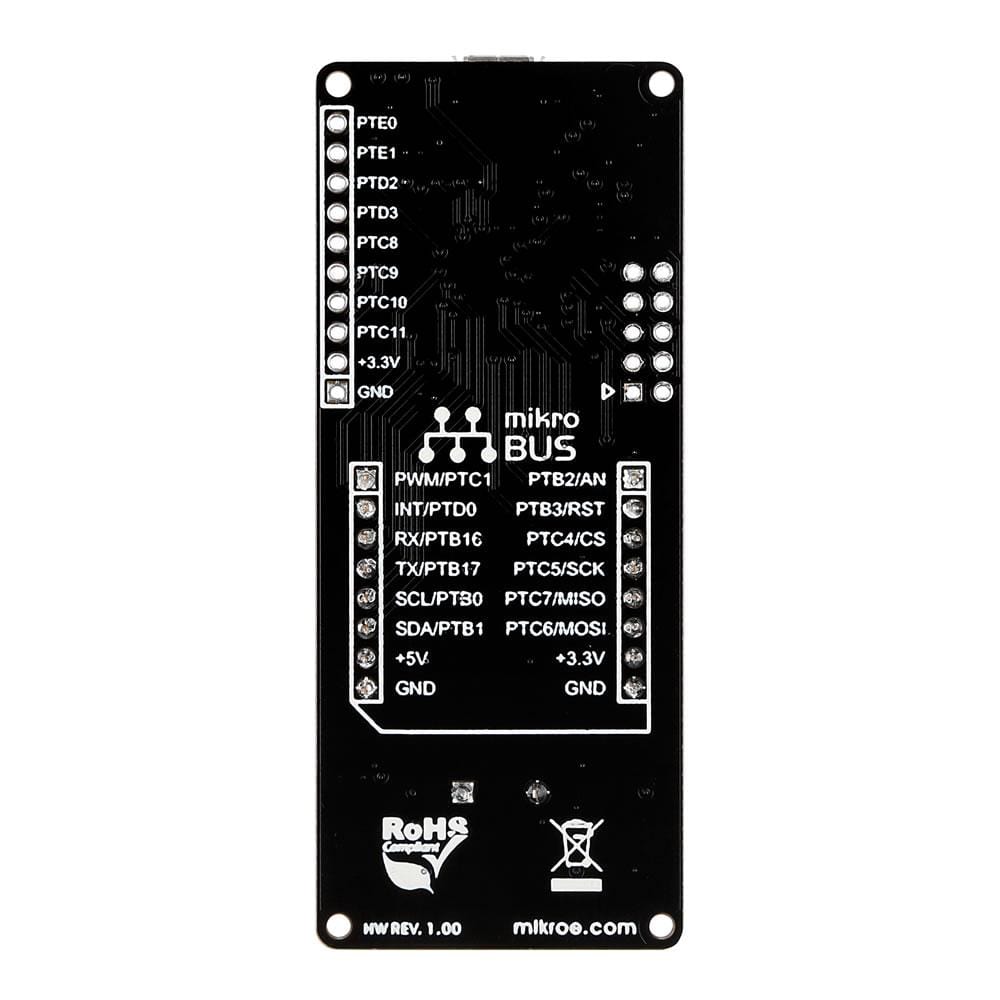

mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.

Key Benefits

  • Single mikroBUS™ socket for adding Click additional boards.
  • Small, affordable, yet powerful starter development kit.
  • Mounting holes simplify integration.
  • Compact design with clear and depictive silk screen markings.
Type Clicker
Architecture ARM (32-bit)
Programming Bootloader, External
Silicon Vendor NXP
mikroBUS No. 1
Supply Voltage USB
Category Clicker
Overview
ApplicationsThis compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas
ArchitectureARM (32-bit)
Key components
MCUMK22FN512VLH12
MCU speed150 MIPS, 120 MHZ, 1.25 MIPS/MHz
MCU memory512 KB of Flash, 128 KB of RAM
On-board modules1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button
Interfaces
ProgrammingPreprogrammed with USB HID bootloader. Also features mikroProg for Kinetis connector.
Electrical
Power supply5V (via USB)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2330
ManufacturerMikroelektronika d.o.o.
EAN8606015078250
Warranty12 months
Shipping weight0.23 kg
  • 1 × Kinetis Clicker Board

Contact us to confirm the full contents of the box.
