Mikroelektronika d.o.o.

Manometer Click Board™

Manometer Click Board™

SKU: MIKROE-2237

Regular price
£138.00 exc VAT
£165.60 inc VAT
Regular price £138.00 GBP Sale price
£138.00 exc VAT
£165.60 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

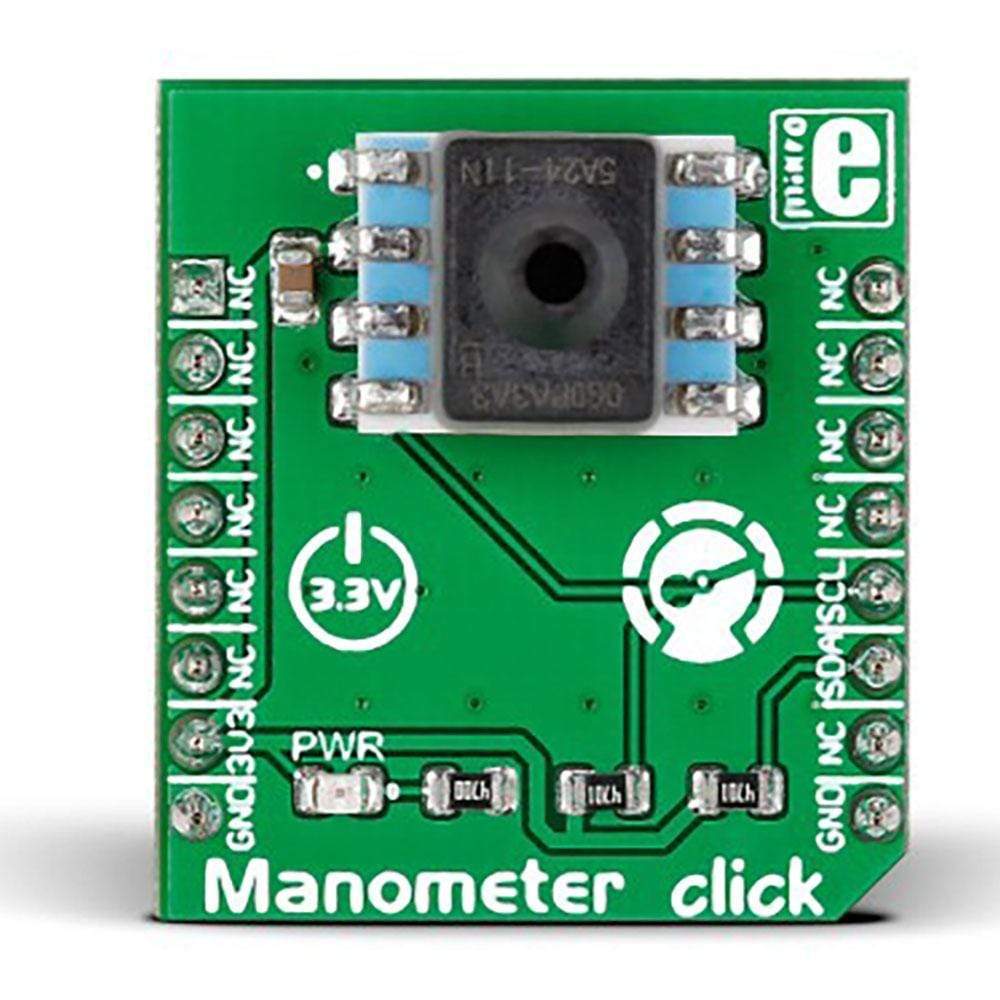

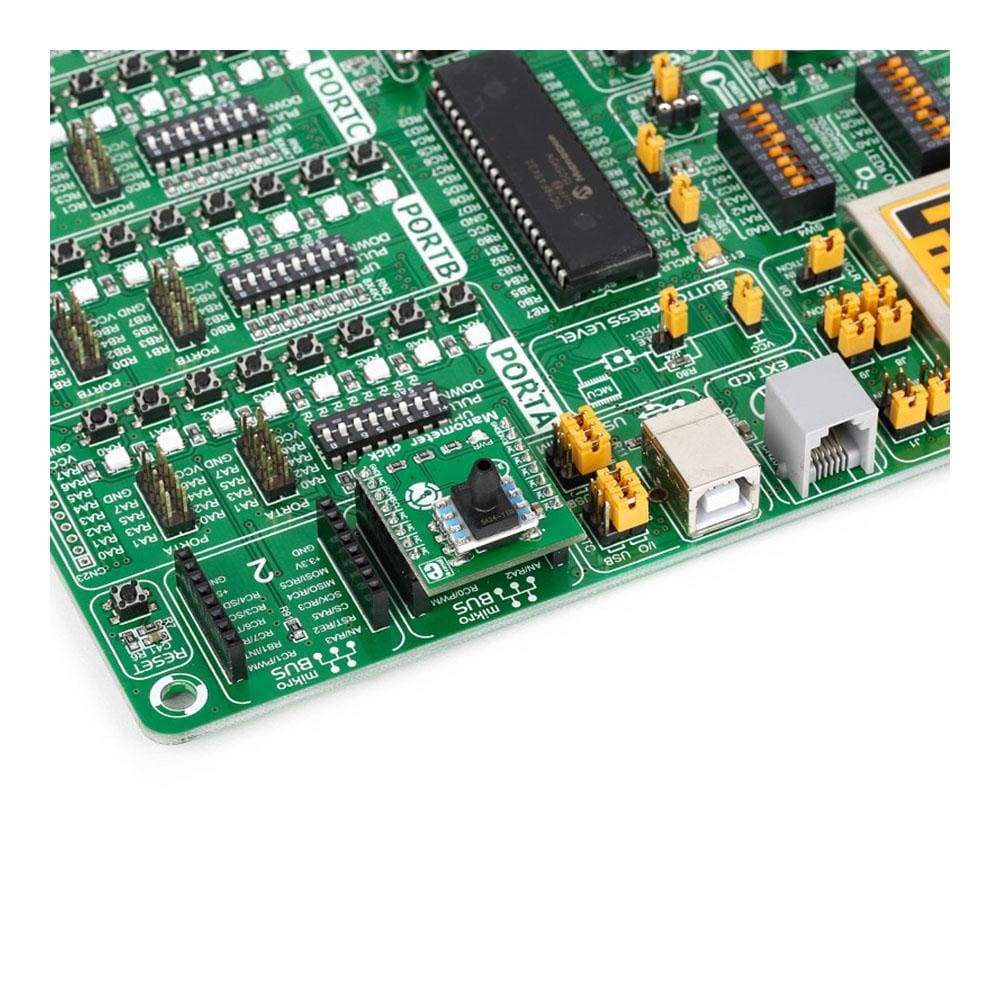

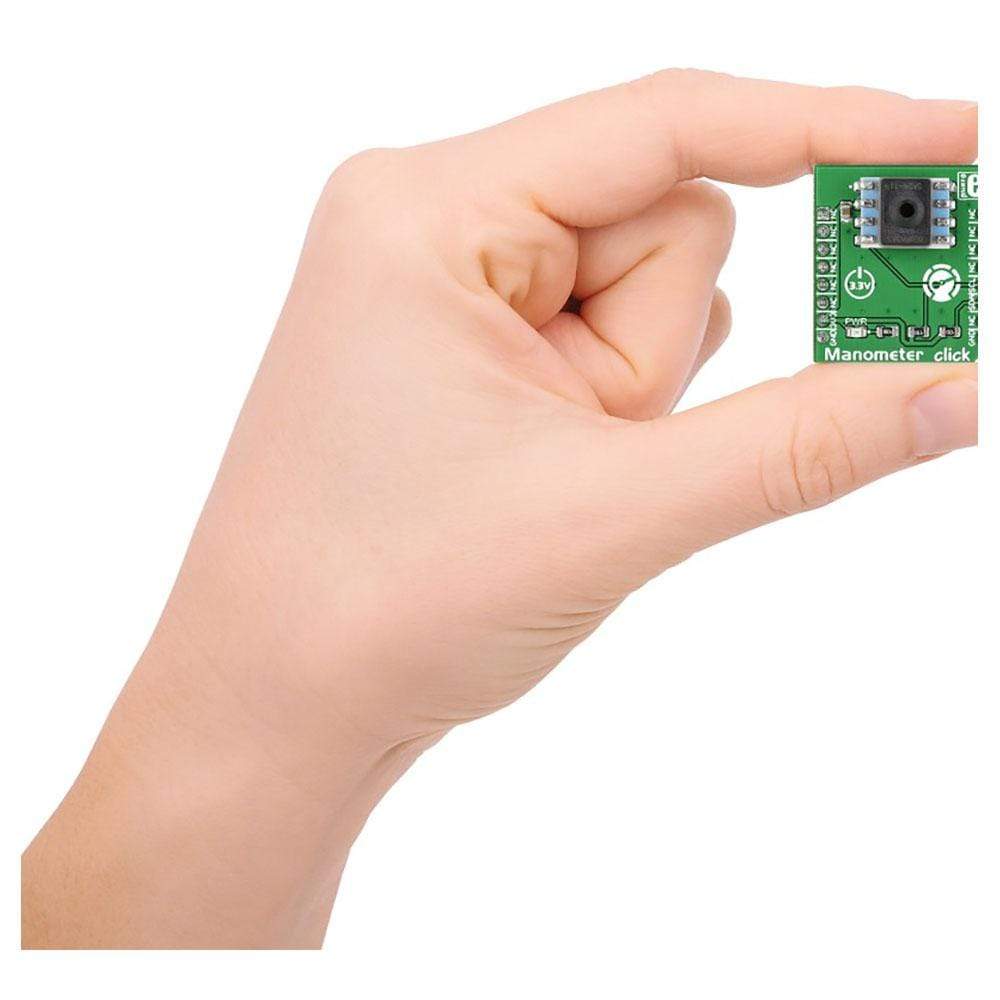

The Manometer Click Board™ carries a piezoresistive silicon pressure sensor, the HSCMAND060PA3A3 from Honeywell, an industry-leading module with extremely high accuracy of ±0.25%FSS BFSL.

The Manometer Click Board™ is designed to run on a 3.3V power supply. It communicates with the target MCU over the I2C interface.

Videos

Manometer Click Example

MikroElektronika · 1:11 · 2016

Video notes

Manometer Click carries a Honeywell HSCMAND060PA3A3 piezoresistive pressure sensor with a barbed port, read over I2C. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

The Manometer Click Board™ carries a piezoresistive silicon pressure sensor, the HSCMAND060PA3A3 from Honeywell, an industry-leading module with an extremely high accuracy of ±0.25%FSS BFSL. The click is designed to run on a 3.3V power supply. It communicates with the target MCU over I2C interface.

HSCMAND060PA3A3 FEATURES

The HSCMAND060PA3A3 has an industry-leading, extremely high accuracy of ±0.25%FSS BFSL. An absolute pressure range from 0 to 60 PSI makes it suitable for a variety applications. Beyond the measurement range, the sensor has a high burst pressure threshold, resulting in increased reliability.

FEATURES AND USAGE NOTES

The sensor on Manometer click is a highly reliable and robust unit. It's also fairly easy to use and implement. It requires no calibration and it compensates for environmental conditions by relying on its internal temperature sensor.

The HSC Series is calibrated over the temperature range of 0 °C to 50 °C (32 °F to 122 °F).

The temperature sensor can also be accessed independently through the I2C interface.

The barbed port accepts 4.93 mm (0.19") tubing which connects directly (no special extensions required).

SPECIFICATIONS

Type Pressure
Applications A highly accurate pressure sensor suitable for demanding industrial applications (robotics, automotive, aircraft, HVAC, food production, engine controls, agriculture and more)
On-board modules Honeywell HSCMAND060PA3A3
Key Features Industry-leading extremely high accuracy of ±0.25 %FSS BFSL. Pressure range from 0 mbar to 60 PSI
Interface I2C
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
Input Voltage 3.3V

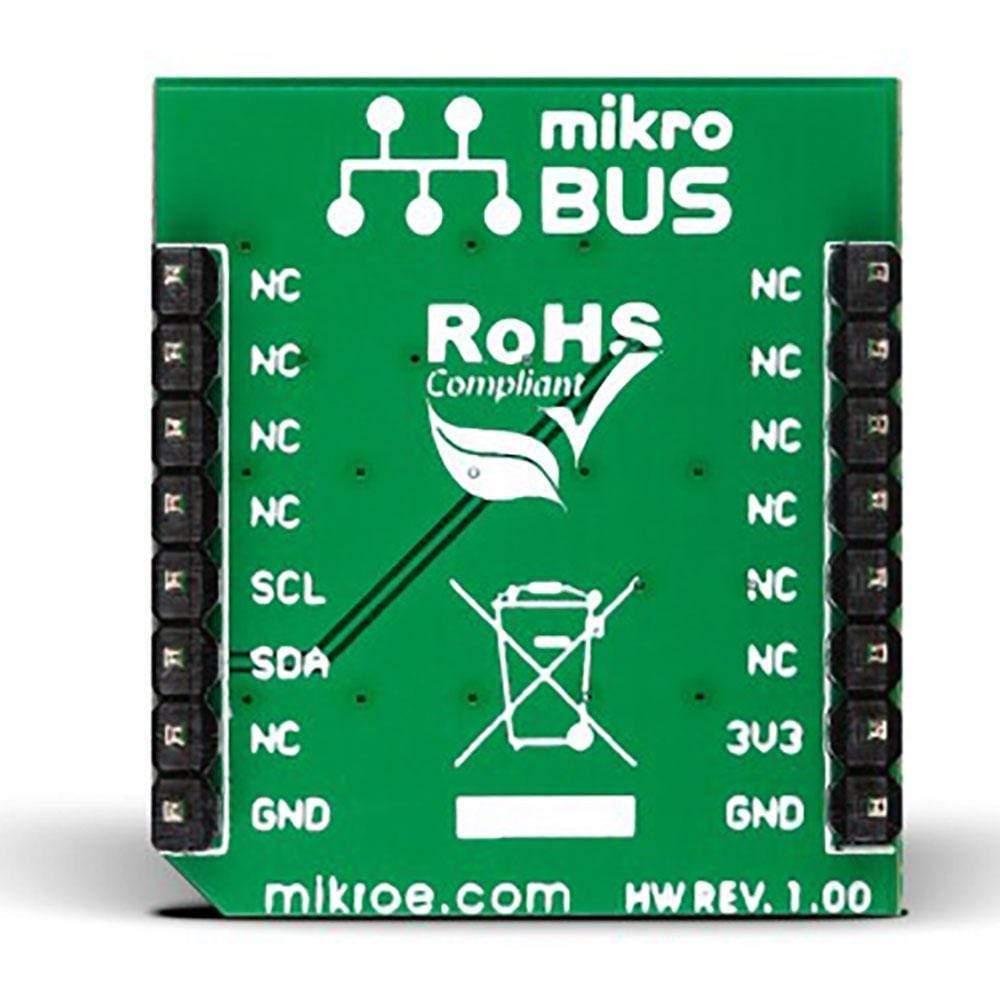

PINOUT DIAGRAM

This table shows how the pinout of the Manometer Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
NC 1 AN PWM 16 NC
NC 2 RST INT 15 NC
NC 3 CS TX 14 NC
NC 4 SCK RX 13 NC
NC 5 MISO SCL 12 SCL I2C Clock
NC 6 MOSI SDA 11 SDA I2C Data
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Overview
CategoryPressure
ApplicationsA highly accurate pressure sensor suitable for demanding industrial applications (robotics, automotive, aircraft, HVAC, food production, engine controls, agriculture and more)
Key components
On-board modulesHoneywell HSCMAND060PA3A3
Features
Key featuresIndustry-leading extremely high accuracy of ±0.25 %FSS BFSL. Pressure range from 0 mbar to 60 PSI
Interfaces
InterfaceI2C
CompatibilitymikroBUS™
Electrical
Input voltage3.3V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2237
ManufacturerMikroelektronika d.o.o.
EAN8606015078007
Warranty12 months
Shipping weight0.019 kg
  • 1 × Manometer Click Board™

Contact us to confirm the full contents of the box.
