Mikroelektronika d.o.o.

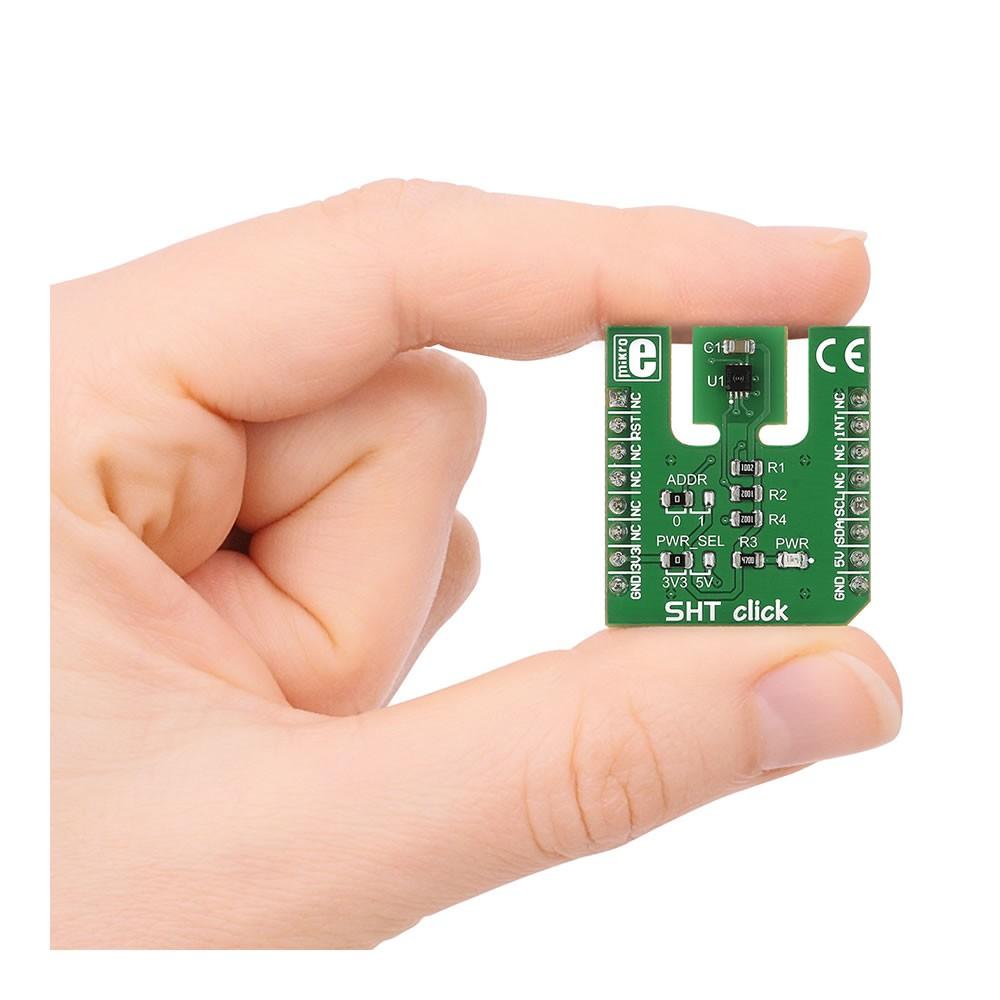

SHT Click Board™

SHT Click Board™

SKU: MIKROE-2101

Regular price
£31.00 exc VAT
£37.20 inc VAT
Regular price £31.00 GBP Sale price
£31.00 exc VAT
£37.20 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

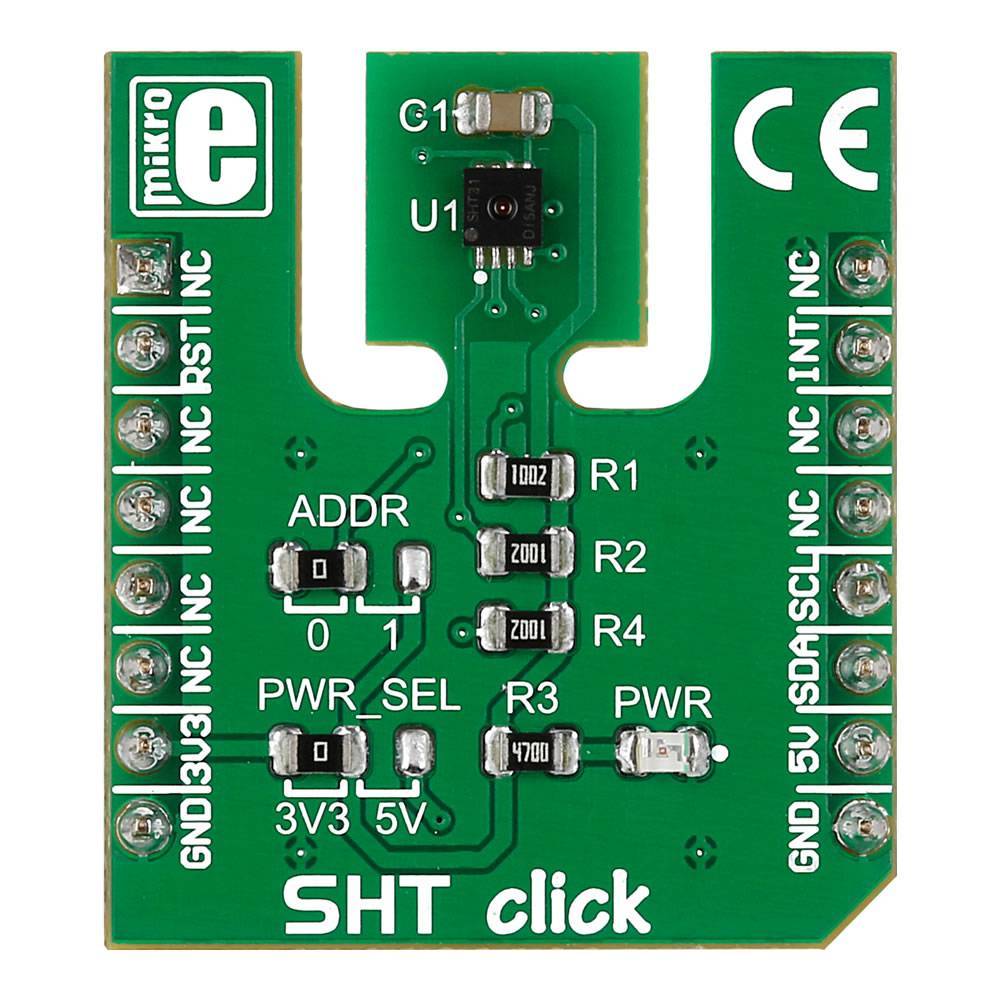

The SHT Click Board™ is a temperature and humidity sensing Click Board™ that carries Sensiron's SHT3x-DIS IC. Compared to its predecessor (SHT11), SHT3x Click Board™ has increased reliability and enhanced signal processing features with a high signal-to-noise ratio.

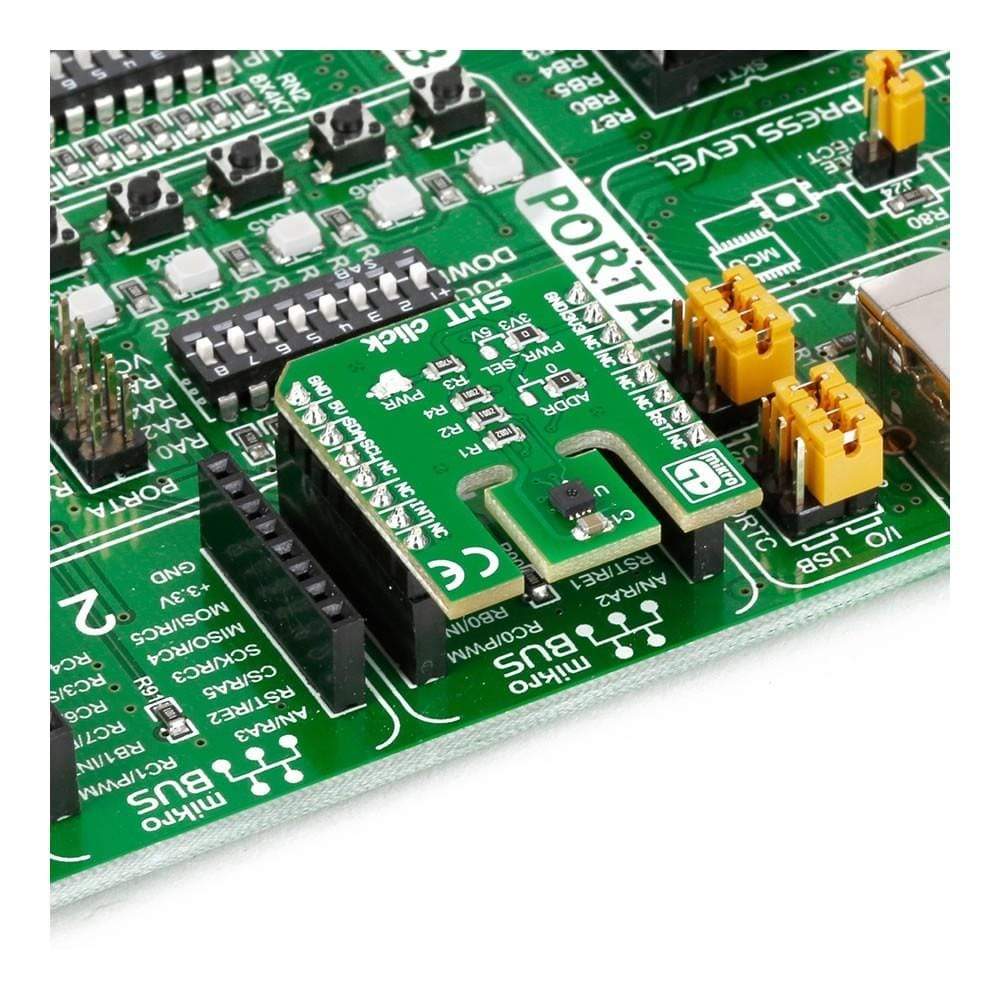

The SHT Click Board™ is a temperature and humidity sensing Click Board™ that carries Sensirons SHT3x-DIS IC. Compared to its predecessor (SHT11), SHT3x Click Board™ has increased reliability and enhanced signal processing features with a high signal-to-noise ratio. Best measurement results are achieved within a 5-60º C temperature range (0.015 resolution) and a 20%80%RH humidity range (0.01 resolution). The SHT Click Board™ outputs a fully calibrated, linearized, and temperature compensated digital output through the mikroBUS I2C interface (SCL, SDA).

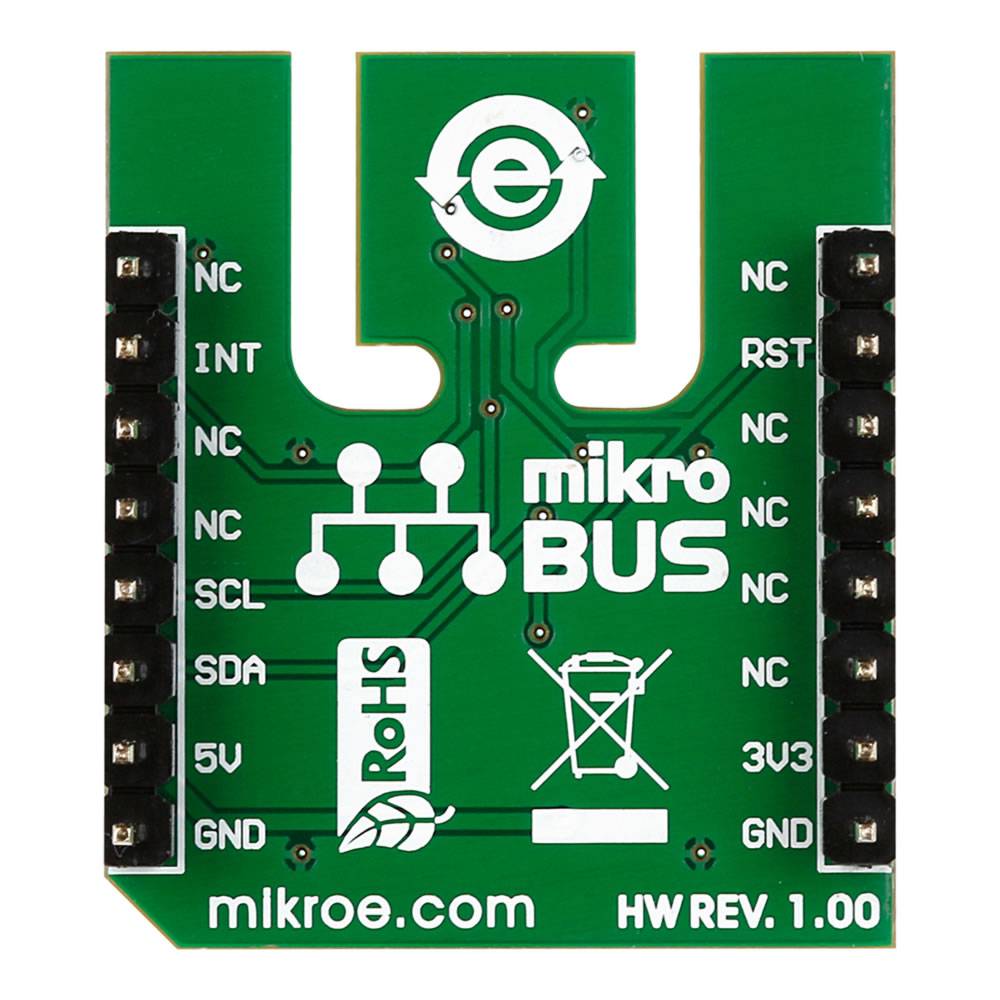

An additional INT pin is for setting up alerts for certain temperature or humidity values. Finally, a RST pin allows you to reset the sensor. Designed to use either 3.3V or 5V power supply.

Overview
CategoryTemperature & humidity
ApplicationsReliable, precise and fast humidity and temperature measurement devices
Key components
On-board modulesSensiron’s SHT3x-DIS IC
Features
Key features-0 to 100% RH, 40 to 125ºC temperature range. ±2 %RH and ±0.3ºC typical accuracy
Interfaces
InterfaceI2C, GPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2101
ManufacturerMikroelektronika d.o.o.
EAN8606015077994
Warranty12 months
Shipping weight0.018 kg
  • 1 × SHT Click Board™

Contact us to confirm the full contents of the box.
