DAC 3 Click Board™

DAC 3 Click Board™

SKU: MIKROE-2038

Regular price
£22.00 exc VAT
£26.40 inc VAT
Regular price £22.00 GBP Sale price
£22.00 exc VAT
£26.40 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

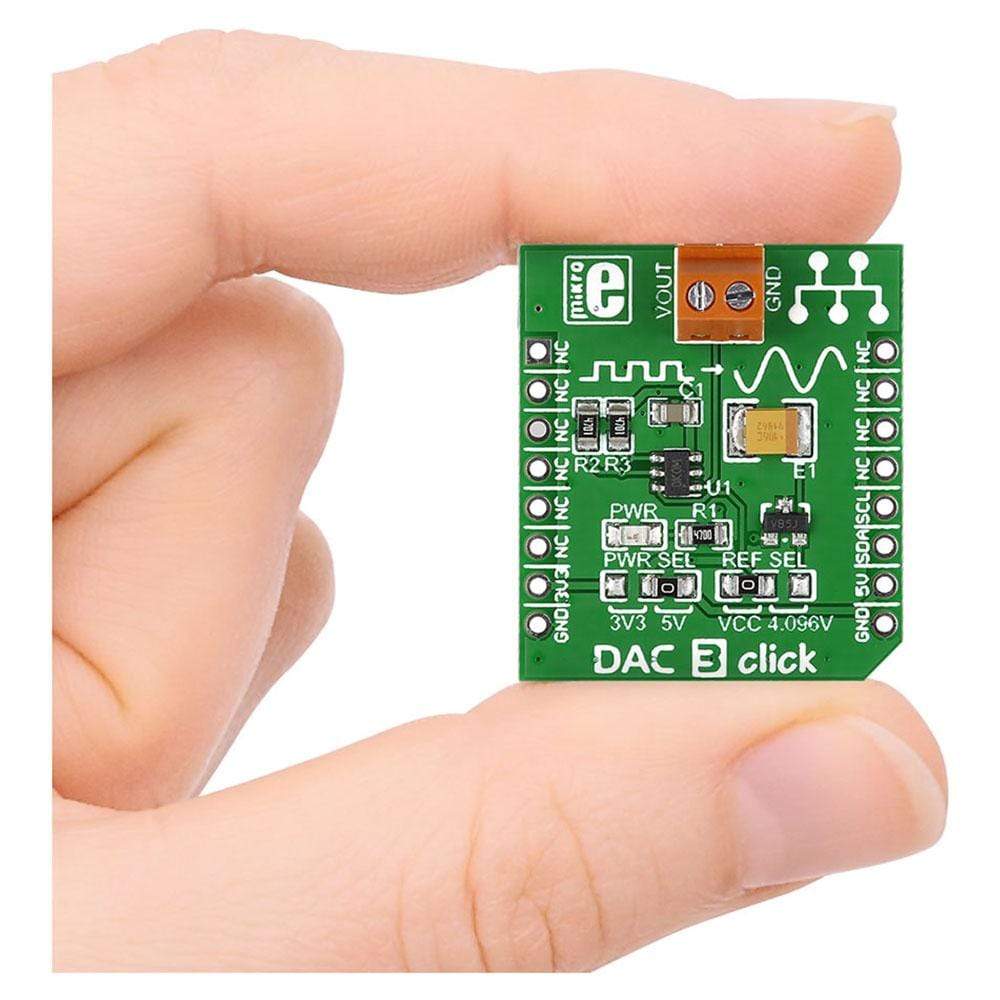

The DAC3 Click Board™ carries Microchip's MCP4726 IC, a 12-bit digital-to-analogue converter, along with voltage output screw terminals. The digital value is converted to the appropriate voltage level in the range between GND and Reference.

Videos

DAC 3 Click Example

MikroElektronika · 1:20 · 2016

Video notes

DAC 3 Click carries Microchip's MCP4726 12-bit DAC with onboard EEPROM, controlled over I2C. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

The DAC3 Click Board™ carries Microchips MCP4726 IC, a 12-bit digital-to-analog converter, along with voltage output screw terminals. The digital value is converted to the appropriate voltage level in the range between GND and REFERENCE (VCC or 4.096V), which is proportional to the received 12-bit number. The MCP4726 also integrates EEPROM for storing DAC register and configuration bit values. The board communicates with the target board MCU through the mikroBUS I2C interface (SCL, SDA pins). Standard (100 kHz), fast (400 kHz) and highspeed (3.4 MHz) I2C modes are available. Uses either a 3.3V or a 5V power supply.

Overview
CategoryDAC
ApplicationsSet point or offset trimming, sensor calibration, PC peripherals, motor control
Key components
On-board modulesMicrochip’s MCP4726 IC
Features
Key features12-bit DAC. Selectable VREF
Interfaces
InterfaceI2C
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2038
ManufacturerMikroelektronika d.o.o.
EAN8606015077420
Warranty12 months
Shipping weight0.025 kg
  • 1 × DAC 3 Click Board™

Contact us to confirm the full contents of the box.
