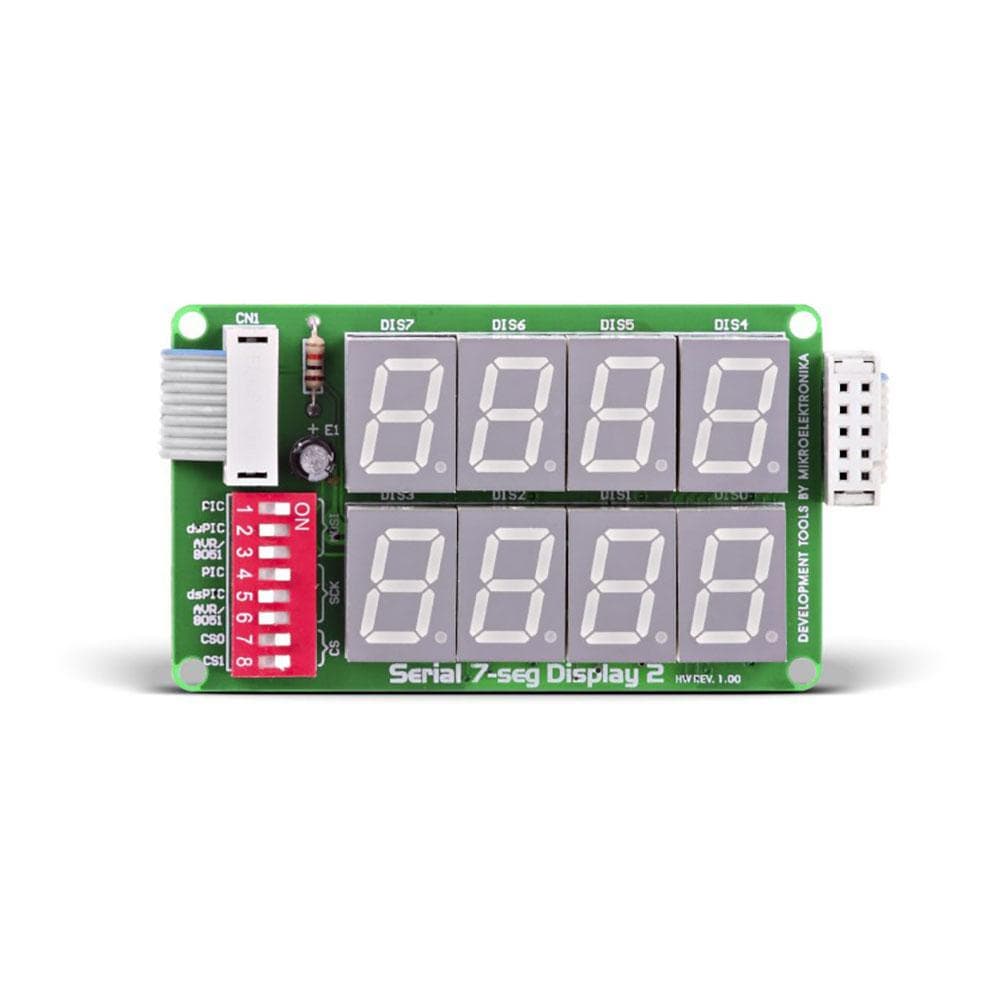

Serial 7-seg Display 2 Board

Serial 7-seg Display 2 Board

Two Rows of 4, 7-Segment Red LEDs

SKU: MIKROE-202

Regular price
£26.00 exc VAT
£31.20 inc VAT
Regular price Sale price
£26.00 exc VAT
£31.20 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The Serial 7-seg Display 2 Board enables you to use a 7-segment LED display. It features an on-board SPI interface, LED display driver MAX7219 and 8 common-cathode LED displays. The board is connected to a device via an onboard IDC10 connector.

The Serial 7-Segment Display 2 Board highlights eight, red 7-segment digits displayed as two rows of four digits each.

Add eight 7-segment displays to the design using the Serial 7-Seg Display 2 Board. The on-board MAX7219 serial I/O common-cathode display driver can be used an interface between the microcontrollers and 7-segment LED displays of up to 8 digits by means of a 4-wire serial SPI interface. This display driver comprises of a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers and 8x8 static RAM. The Serial 7-seg Display 2 Board is equipped with a flat cable with IDC10 female header connector on the end. This header connector design makes it compatible with all MikroElektronika development boards.

Active Device : MAX7219 | Maxim

The Maxim MAX7219 is a compact, serially interfaced, common-cathode display driver that interfaces microcontrollers to 7-segment numeric LED displays. It has a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers and 8x8 static RAM that stores each digit. It has a 150

Overview
ApplicationsBoard enables you to easily add eight 7-segment digits to your device, while saving microcontrolller pins and processing power
Product typeLED Segment
Key components
On-board modulesMAX7219 display driver
Features
Key featuresSerially interfaced, 8-digit LED display driver. Easy adjustment of connector pinout using DIP switches. Flat cable with IDC10 female header connector
Key benefitsIDC10 connector enables easy connection with peripheral devices. Compatible with all mikroE development boards
Interfaces
InterfaceSPI
CompatibilityIDC10
Electrical
Power supply5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-202
ManufacturerMikroelektronika d.o.o.
EAN8606015072197
Warranty12 months
Shipping weight0.044 kg
  • 1 × Serial 7-seg Display 2 Board

Contact us to confirm the full contents of the box.
