Overview

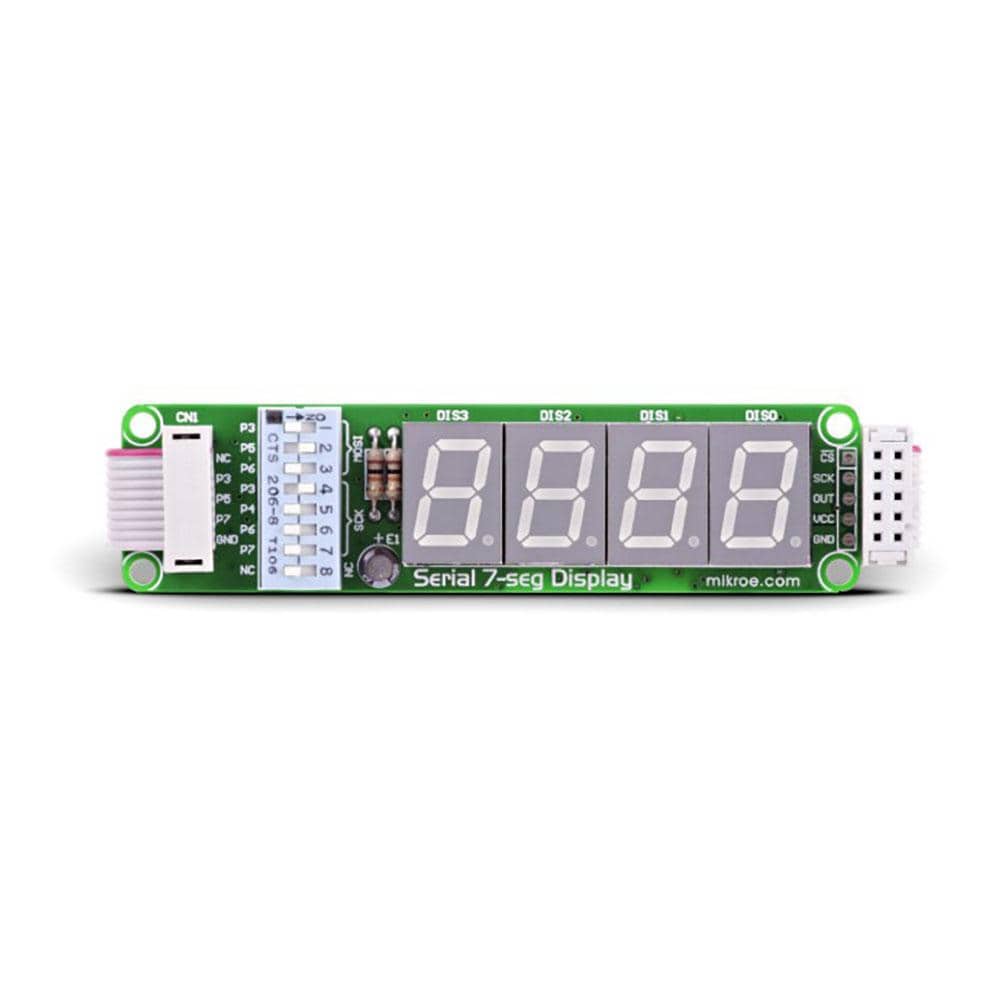

The Serial 7-seg Display Board features an onboard SPI interfaced, LED display driver MAX7219 and 4 common-cathode LED displays. The board is connected to a prototype device via an IDC10 connector and comes with examples.
This display board is an ideal choice for applications that require a four 7-segment digit display while saving microcontroller pins and processing power. Such applications include bar graph displays, industrial controllers, led matrix displays, panel meters, and so on.
The Serial 7-seg Display Board features a compact, serial input/output common-cathode display driver MAX7219 used to interface MCUs to 7-segment numeric LED displays via SPI interface. The chip includes a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers and 8x8 static RAM for storing digits. Display drivers are connected to 4 common-cathode LED displays.
The board is equipped with a flat cable ending with IDC10 female header connector, which is compatible with all mikroElektronika development boards. It features four 7-segment digits arranged in a single row.
How to Connect the Serial 7-seg Display Board?
The additional board is connected to a development system via an IDC10 connector on the board and a 2x5 connector on one of the development system's ports. It is necessary to define in the program, to be loaded into the microcontroller, which port will be used for SPI communication.
The position of SMD jumpers depends on the development system in use. These jumpers are placed in the position marked PIC by default. It means that the board is ready to be used with PIC development systems. If you want to use it with AVR/8051 development systems, it is necessary to unsolder jumpers from the PIC position and resolder them in the AVR/8051 position.
The Serial 7-Seg Display additional board is powered with the 5V power supply from the development system it is connected to.
Displaying Digits
Displaying digits is enabled by the time-division multiplexing. All the operations related to multiplexing and displaying digits are performed by using the MAX7219 circuit provided on the additional board.
The time-division multiplexing of a 7-segment display is based on fast turning the display segments on/off in such a manner that one gets an impression that all eight digits are active at the same time. The MAX7219 circuit feeds digit segments with a signal via pins marked SEGxx, whereas pins marked DIGx are used to select one of four displays to show the appropriate number.
