Overview

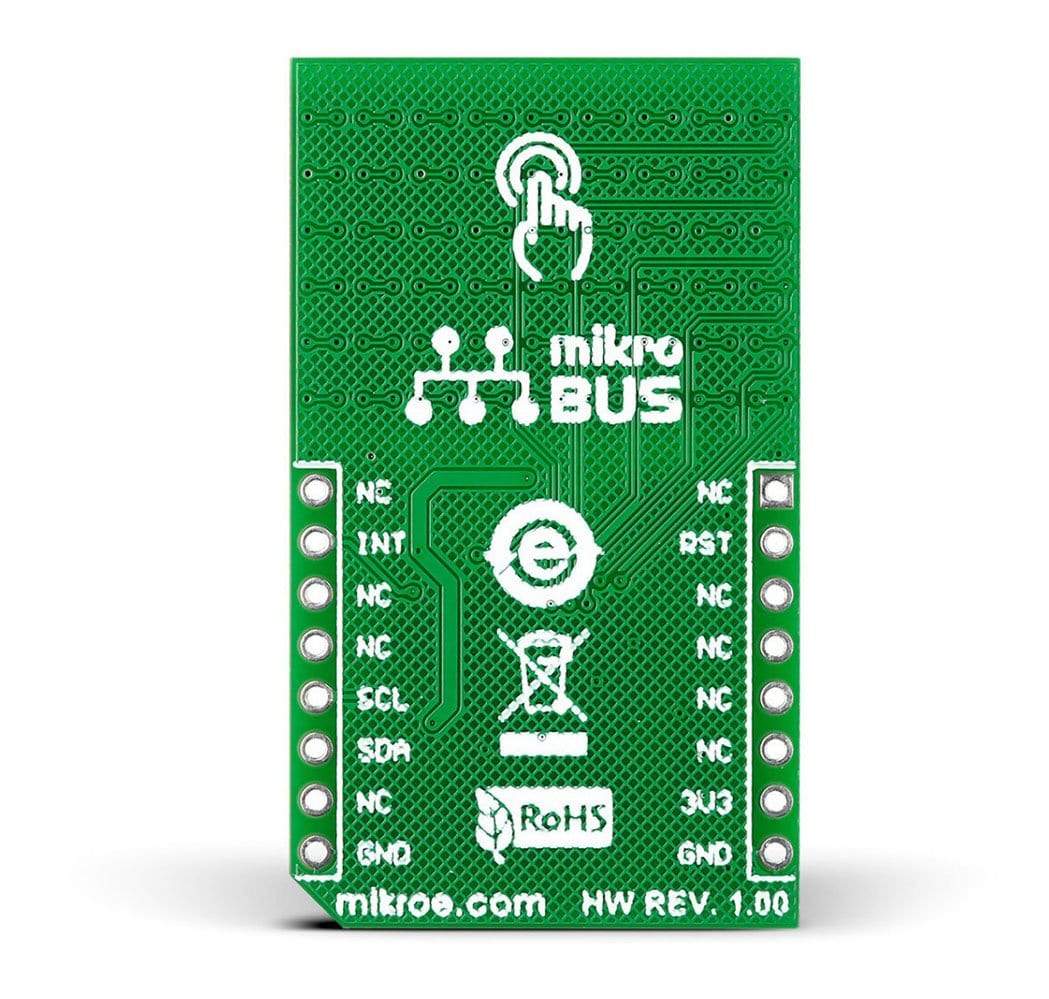

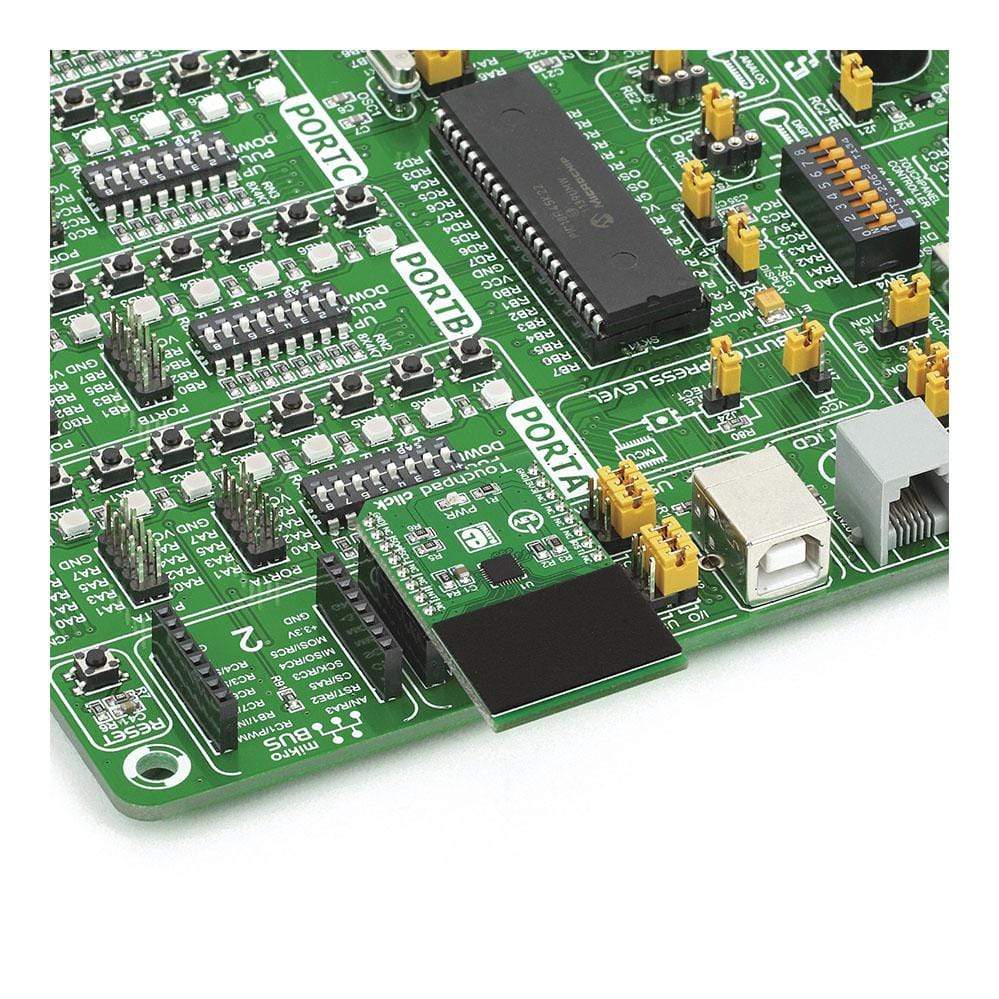

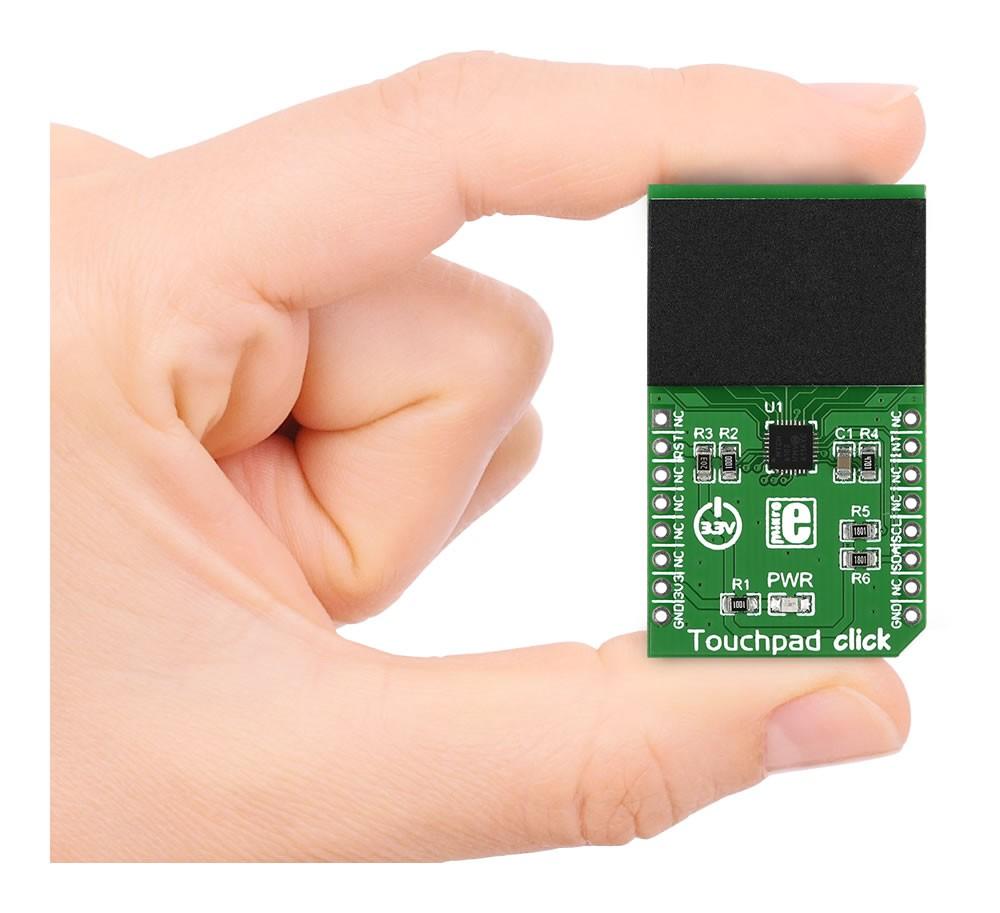

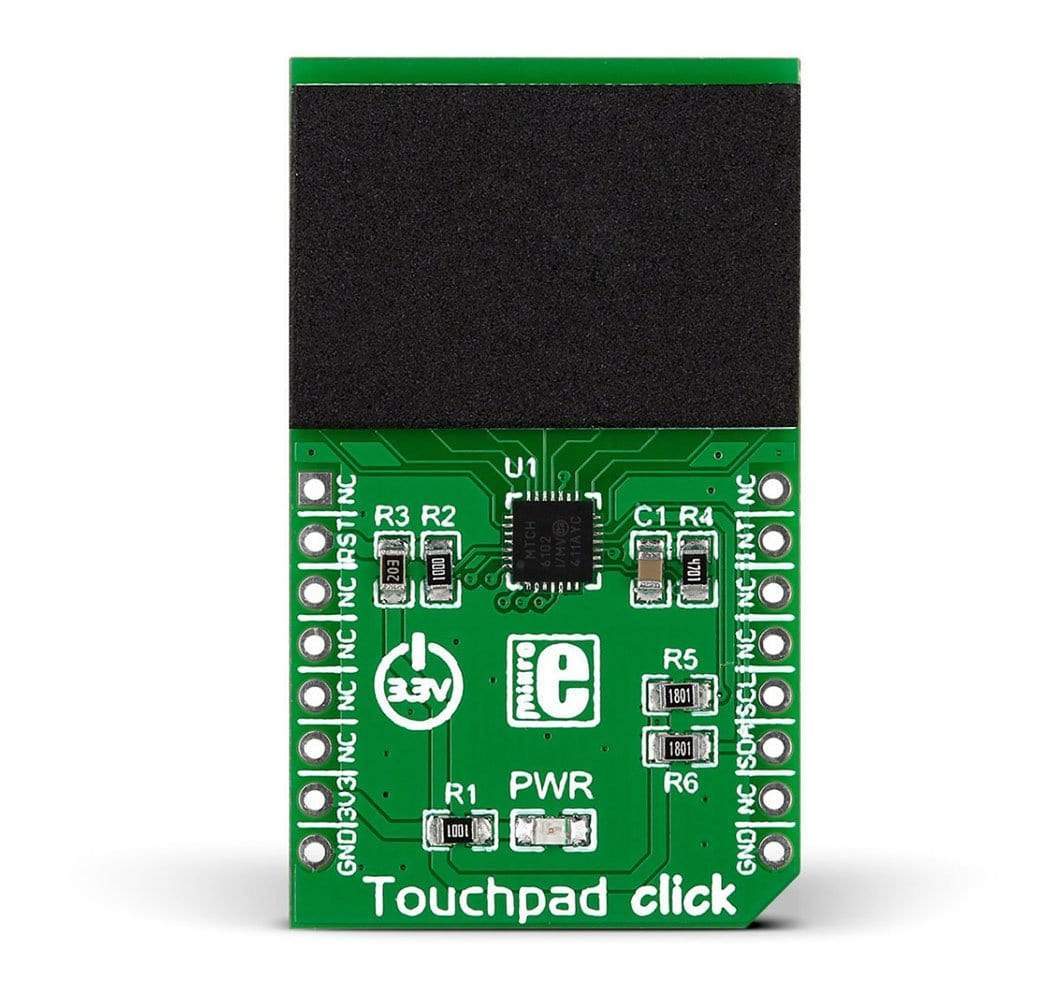

The TouchPad Click Board™ is a capacitive touch input device driven by Microchip’s low-powered MTCH6102 controller. The touchpad surface is covered with a sheet of black plastic to demonstrate the chip’s support for cover layers (up to 3mm for plastic, 5mm for glass).
IC/Module: MTCH6102 Capacitive Touch Controller
The MTCH6102 is a low-power projected capacitive touch controller that supports taps, doubletaps, swipes and scrolling gestures using up to 15 channels. It has a small capacitive surface covered with a thin matte plastic layer that demonstrates cover layer support. This cost-effective application provides a flexible touch-sensing solution to optimize common constraints of size, power and cost.
Communication Interface: I2C
Touchpad Click Board™ uses a standard register-based read/write I2C protocol, similar to many other devices such as temperature sensors and serial EEPROMs, for communication with the target board microcontroller. The sensor also provides an open-collector active-low Interrupt pin (INT) that will be asserted any time new data is available.
Power Management
MTCH6102 aboard touchpad Click Board™ also includes power-saving features, such as a configurable sleep/idle frame rates, as well as a separate standby (<500nA) and active (<12 uA) mode.
| Overview | |
|---|---|
| Category | Capacitive |
| Applications | Ideal for interfaces on size-constrained designs, such as wearables, touchpads on remote controls and similar |
| Key components | |
| On-board modules | Microchip’s low-powered MTCH6102 controller |
| Features | |
| Key features | Supports taps, doubletaps, swipes and scrolling gestures. Several power saving modes |
| Interfaces | |
| Interface | I2C, GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | M (42.9 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1995 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015077314 |
| Warranty | 12 months |
| Shipping weight | 0.026 kg |
-
