Mikroelektronika d.o.o.
SKU: MIKROE-198Digital Potentiometer Board
Digital Potentiometer Board
Couldn't load pickup availability

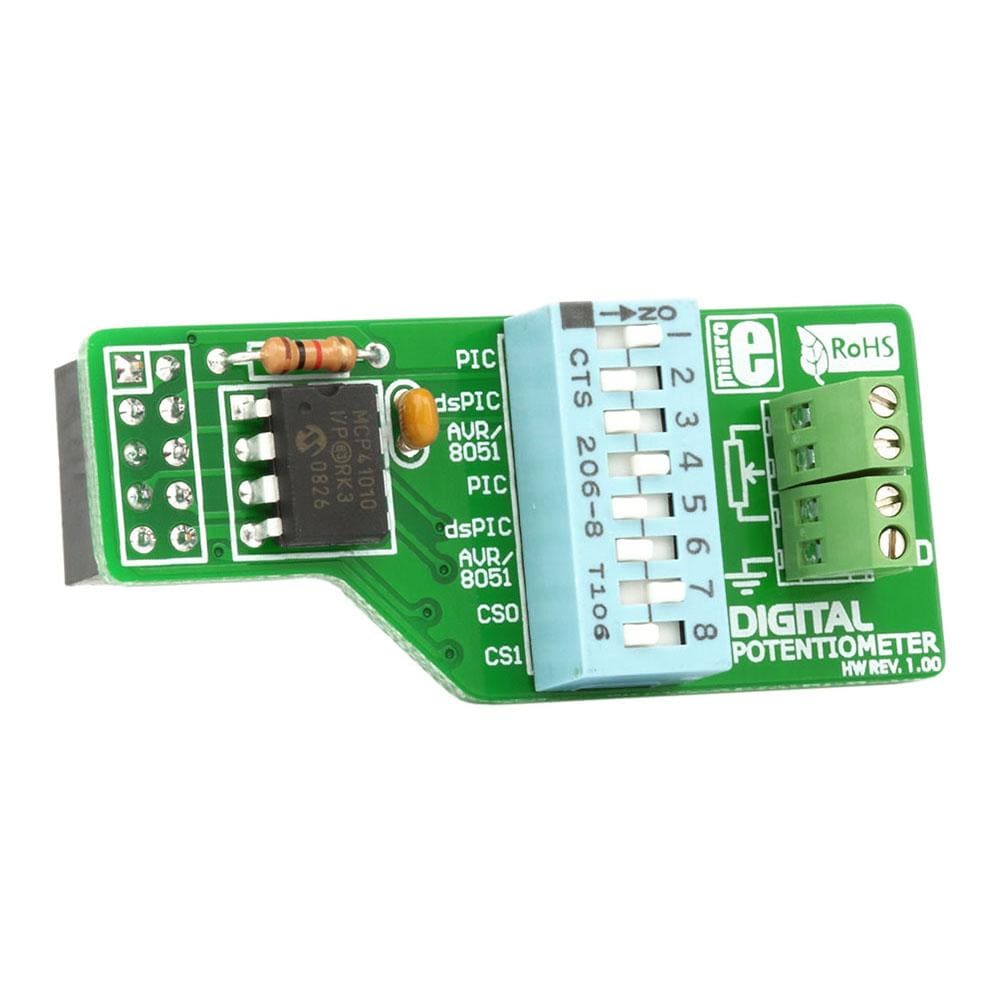

The Digital Potentiometer Board includes an SPI Interfaced single-channel digital potentiometer MCP41010. The board enables you to set potentiometer values from 0 to 10 kΩ. It comes with many simple and ready-to-use examples.
The Digital Potentiometer Board features a single-channel digital potentiometer MCP41010 with 8-bit resolution (256 wiper steps) and industry-standard SPI serial interface. The wiper position varies linearly and is controlled via the SPI interface. The resistance value of the digital potentiometer goes up to 10 kohm. It features outstanding AC/DC characteristics and consumes less than 1 µA during static operation.
Digital Potentiometer Board
