Magneto 2 Click Board™
Magneto 2 Click Board™
SKU: MIKROE-1938
Couldn't load pickup availability
Overview

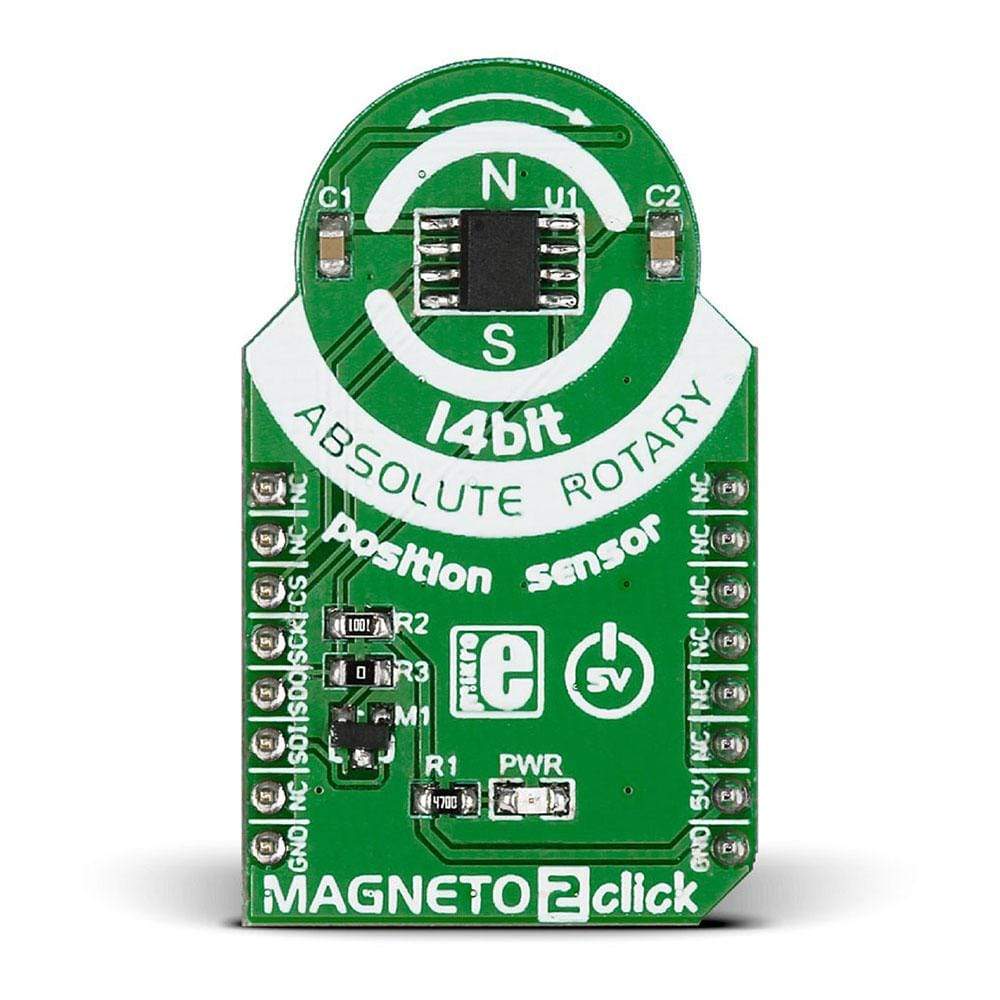

The Magneto 2 Click Board™ is a MikroBUS add-on board with Melexis's MLX90316 monolithic rotary position sensor.
Sensing flux density with the IC surface of the MLX90316 allows the Click Board™ to decode the absolute rotary (angular) position from 0 to 360 degrees.
In combination with the correct library, the magnetic flux density of a small magnet (diametral magnetisation) rotating above the IC can be measured in a non-contacting way.The sensor enables the design of novel generation of non-contacting rotary position sensors that are frequently required for both automotive and industrial applications.
The Magneto 2 Click Board™ communicates with the target MCU through the mikroBUSSPI bus. The board is designed to use a 5V power supply only.
| Overview | |
|---|---|
| Category | Motion |
| Applications | Absolute Rotary Position Sensor, Pedal Position Sensor, Float-Level sensor, and Throttle Position Sensor |
| Key components | |
| On-board modules | Melexis's MLX90316 monolithic rotary position sensor |
| Features | |
| Key features | Triaxis® Hall Technology, Programmable Angular Range up to 360 Degrees |
| Interfaces | |
| Interface | SPI |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 5V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1938 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015078632 |
| Warranty | 12 months |
| Shipping weight | 0.018 kg |
-
