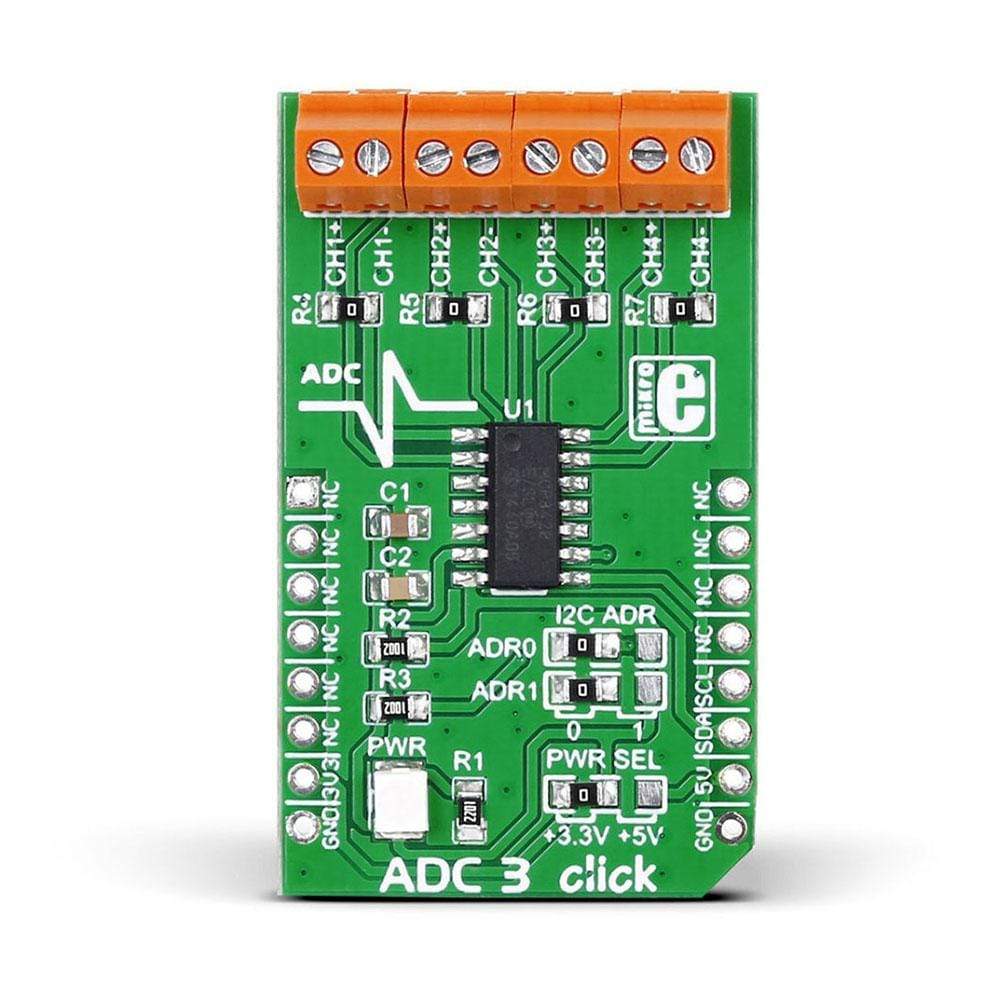

ADC 3 Click Board™
ADC 3 Click Board™
SKU: MIKROE-1894
Couldn't load pickup availability
Key Features
Overview
Introducing the ADAC 3 Click Board - the perfect solution for your ADC and DAC needs. With its low-power 8-bit CMOS data acquisition device from NXP Semiconductors, this compact add-on board offers four analogue inputs, one analogue output, and a convenient serial I2C interface.
The ADAC 3 Click Board also features precise 8-bit analogue-to-digital and 8-bit digital-to-analogue conversion. With the ability to select your desired reference voltage value, this Click board is versatile and suitable for various control, monitoring, or measurement applications. Simplify your software development with our mikroSDK-compliant library.
IC/Module: Microchips MCP3428 16-bit multichannel ADC
MCP3428 is a four channel analog-to-digital converter with programmable data rate options. Offering up to 16 bits of resolution and up to 240 samples per second (SPS), MCP3428 communicates using the two-wire I2C compatible serial interface. It is an ideal choice for varied high-accuracy, high-speed data conversion applications.
Resolution or Speed
Depending on whether the users primary concern is high resolution or high speed, the user can choose from different modes once the signal is ready for processing. At 16 bits, the chip can output conversion results at 15 SPS. At 14 bits, the chip can output conversion results at 60 SPS. Maximum conversion speed is achieved in 12-bit mode,
| Overview | |
|---|---|
| Category | ADC |
| Applications | Especially suitable for applications where high sample rate is required |
| Key components | |
| On-board modules | Microchip’s MCP3428 16-bit multichannel analog-to-digital converter |
| Features | |
| Key features | Sample rate up to 240 SPS. Four channel 16-bit ADC |
| Interfaces | |
| Interface | I2C |

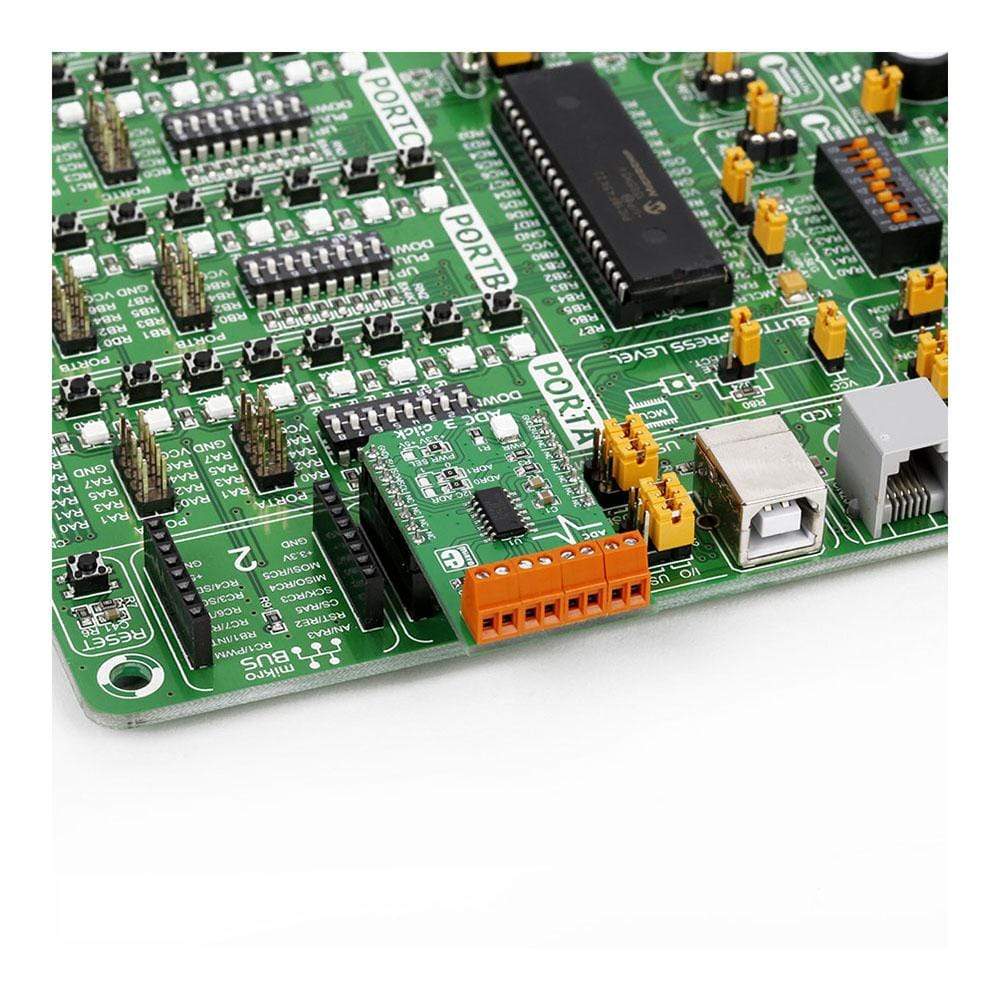

| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |

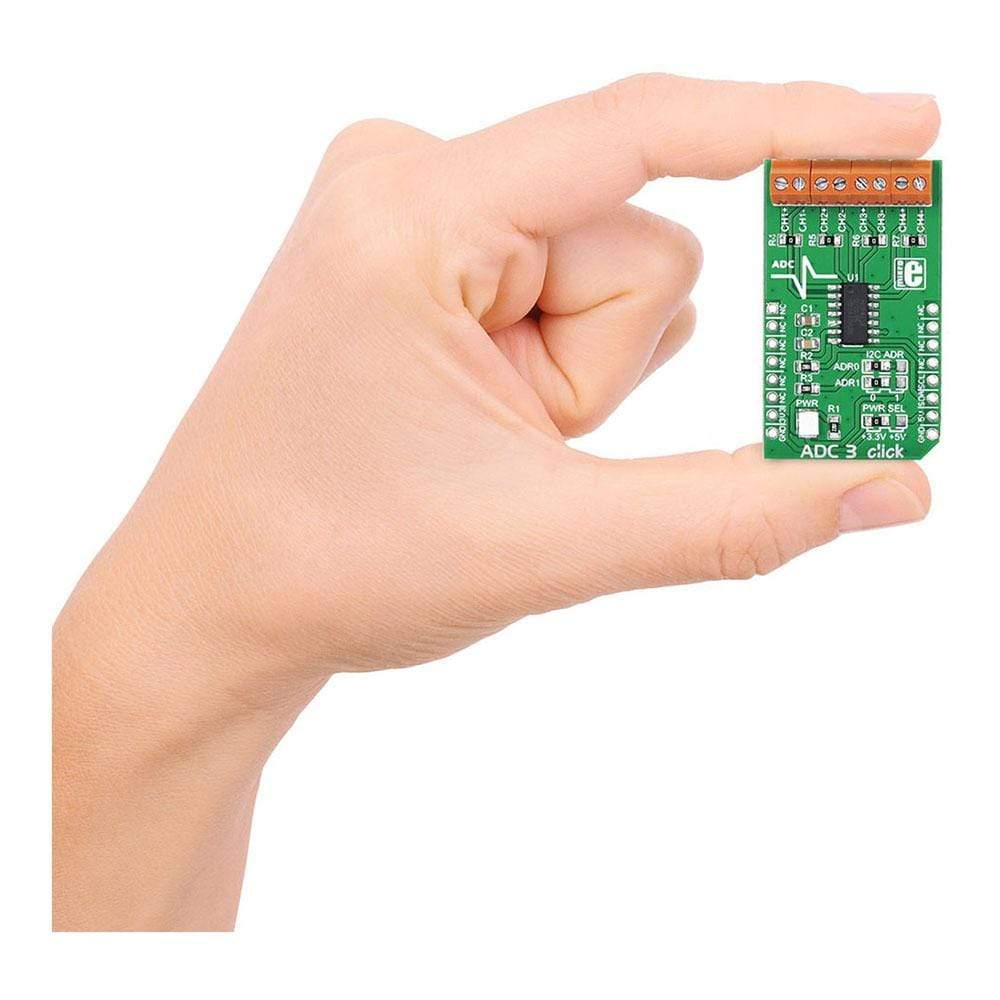

| Click board size | M (42.9 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1894 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015077000 |
| Warranty | 12 months |
| Shipping weight | 0.028 kg |
-
1 ×
ADC 3 Click Board™
Contact us to confirm the full contents of the box.
