Overview

The 4x4 Key Click Board™ carries a 16 button keypad. The design of the board — inputs are read by a pair of connected 8-bit parallel in serial-out shift registers — allows for multiple key presses at the same time.

Videos

4x4 Key Click Example

MikroElektronika · 0:39 · 2015

Video notes

4x4 Key Click has a 16-button keypad read through two shift registers, so several keys can be pressed at once. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

How Does The 4x4 Key Click Board™ Work?

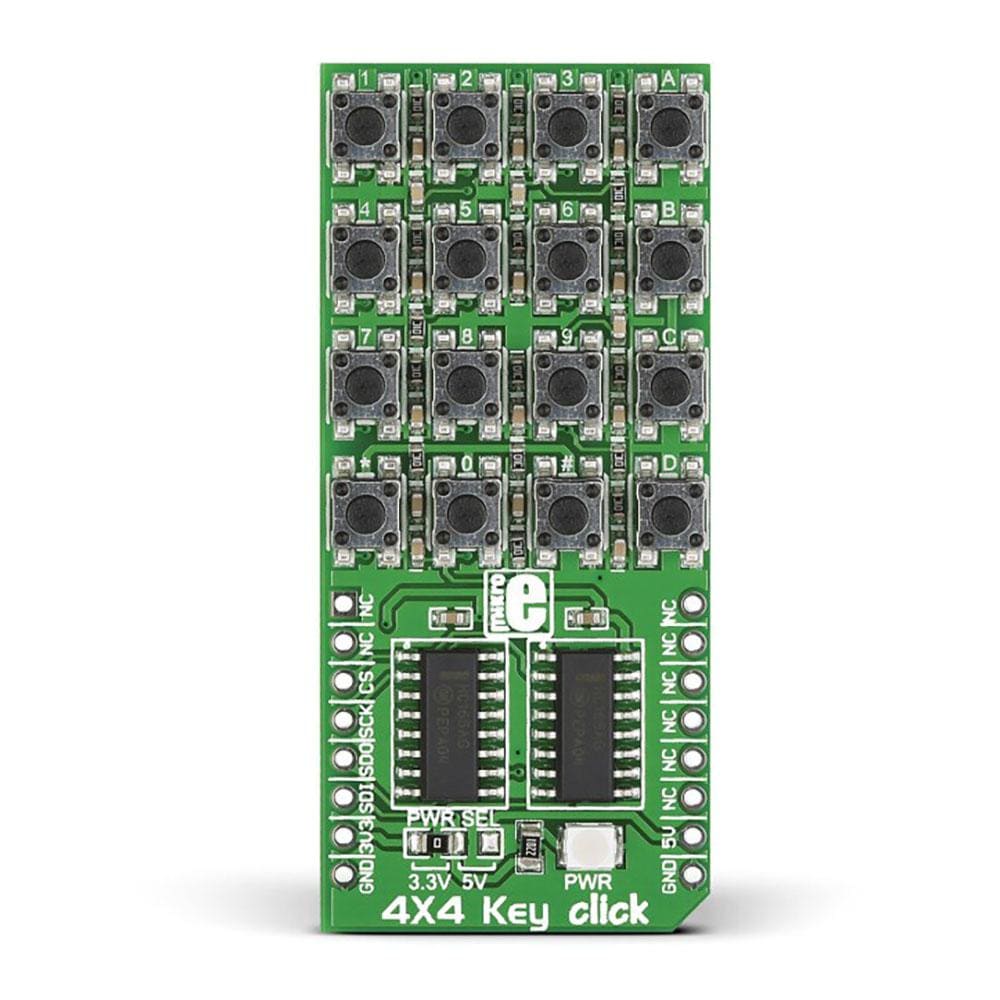

Inputs are read by a pair of connected 8-bit parallel-in serial-out shift registers — allows for multiple key presses at the same time. For ease of use, each button has silkscreen markings. The right-most column is marked with letters A-D, the other 12 buttons are marked like a telephone keypad. The board is designed to use either a 3.3V or 5V power supply.

Overview
CategoryPushbutton/Switches
ApplicationsA variety of Human machine interface applications
Key components
On-board modules16 button keypad
Features
Key featuresInputs are read by a pair of connected 8-bit parallel-in serial-out shift registers
Interfaces
InterfaceSPI
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1889
ManufacturerMikroelektronika d.o.o.
EAN8606015077642
Warranty12 months
Shipping weight0.03 kg
  • 1 × 4x4 Key Click Board™

Contact us to confirm the full contents of the box.
