Mikroelektronika d.o.o.

GNSS 2 Click Board™

GNSS 2 Click Board™

SKU: MIKROE-1887

Regular price
£49.00 exc VAT
£58.80 inc VAT
Regular price £25.00 GBP Sale price
£49.00 exc VAT
£58.80 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

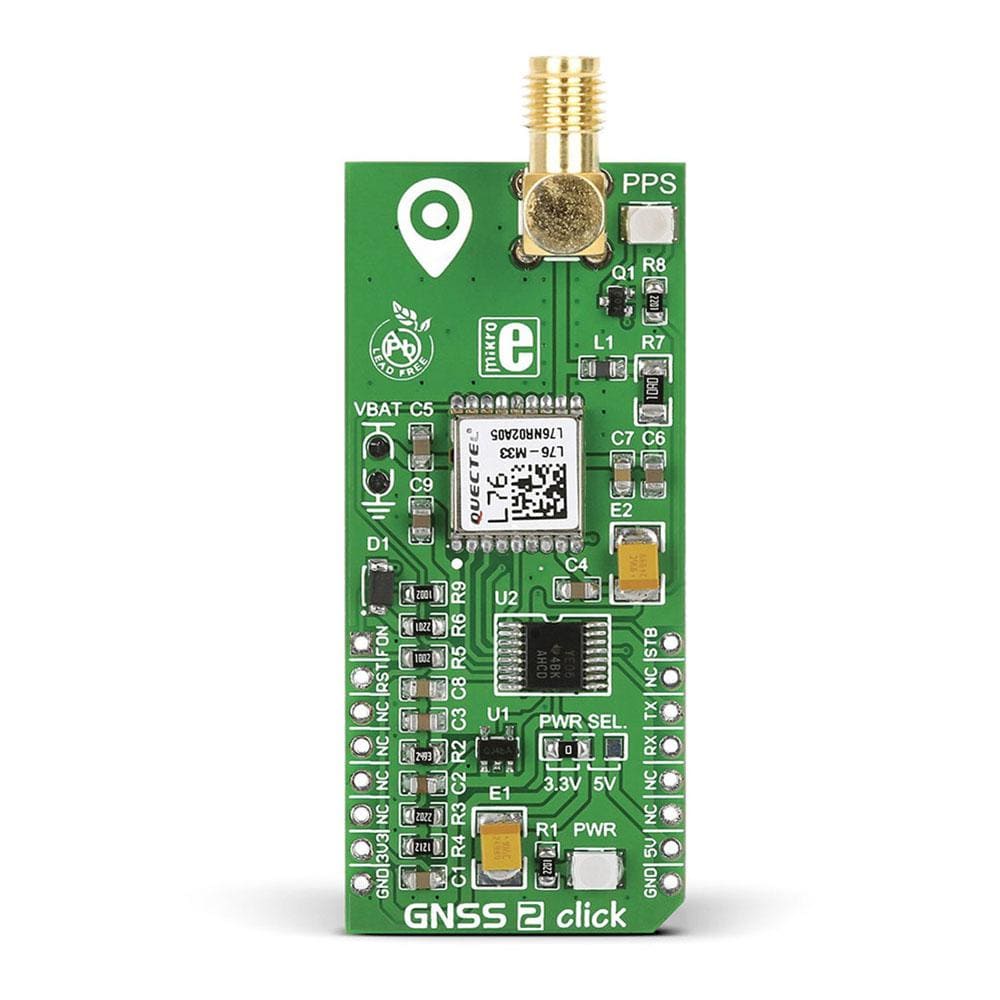

The GNSS 2 Click Board™ carries Quectel's L76 module and an SMA antenna connector. GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems.

Videos

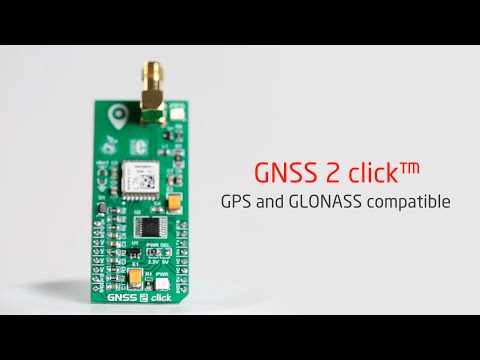

GNSS 2 Click Example

MikroElektronika · 0:37 · 2015

Video notes

GNSS 2 Click carries Quectel's L76 GPS and GLONASS module with an SMA antenna connector. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

The GNSS 2 Click Board™ is based on Quectels L76 module and an SMA antenna connector. GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems.

The L76 module integrates performance-enhancing Quectel technologies. It can automatically predict satellite orbits from data stored in its internal flash (EASY technology) and it can adaptively adjust its on/off time to balance between positioning accuracy and power consumption (AlwaysLocate technology). GNSS2 Click Board™ also features a voltage translator. Using the on-board jumper you can switch both the power supply and logic levels from 3.3V to 5V.

Overview
CategoryGPS+GNSS
ApplicationsNavigation devices based on GPS and GLONASS global positioning systems
Key components
On-board modulesQuectel’s L76 module and an SMA antenna connector
Features
Key features99 acquisition/33 tracking channels, up to 210PRN channels.
Interfaces
InterfaceUART, GPIO

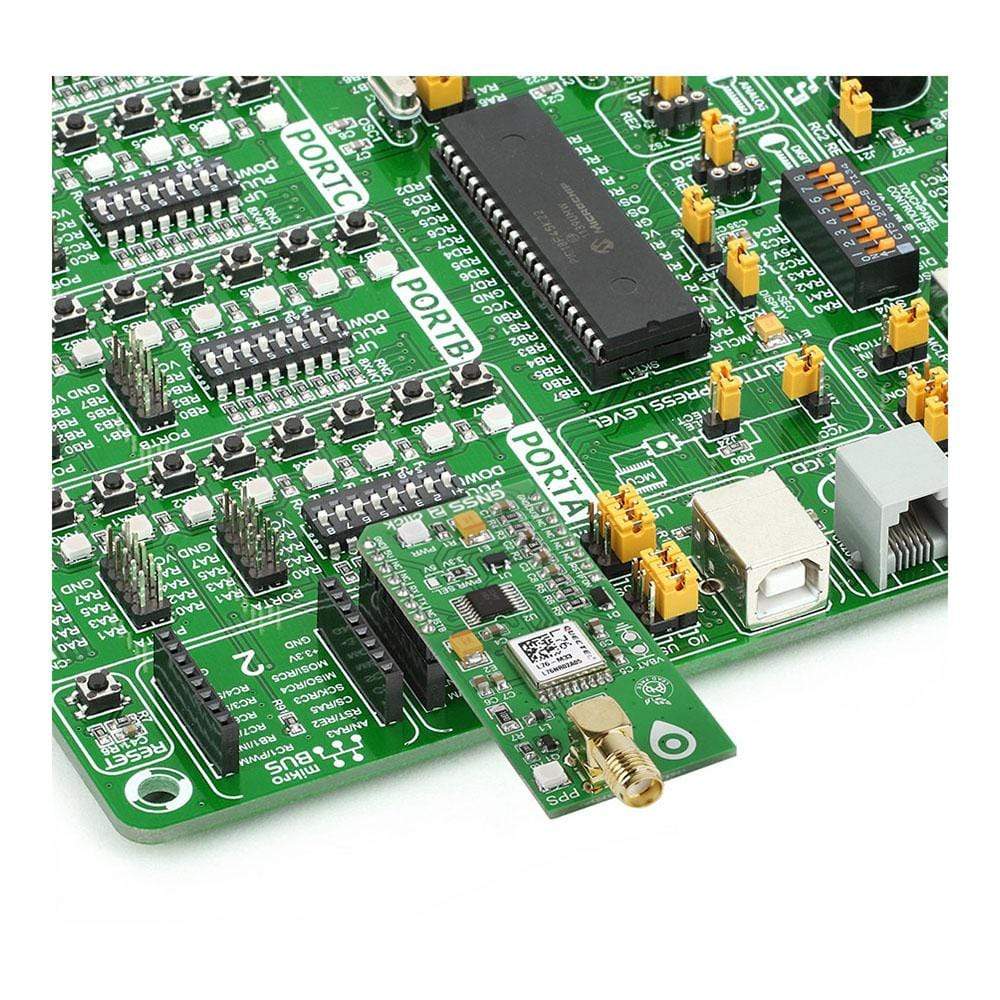

CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Performance
Sensitivity-165dBm@Tracking, -148dBm@Acquisition. External battery connector
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1887
ManufacturerMikroelektronika d.o.o.
EAN8606015077635
Warranty12 months
Shipping weight0.03 kg
  • 1 × GNSS 2 Click Board™

Contact us to confirm the full contents of the box.
