SKU: MIKROE-1675STM32 M4 Clicker Board
STM32 M4 Clicker Board
Couldn't load pickup availability

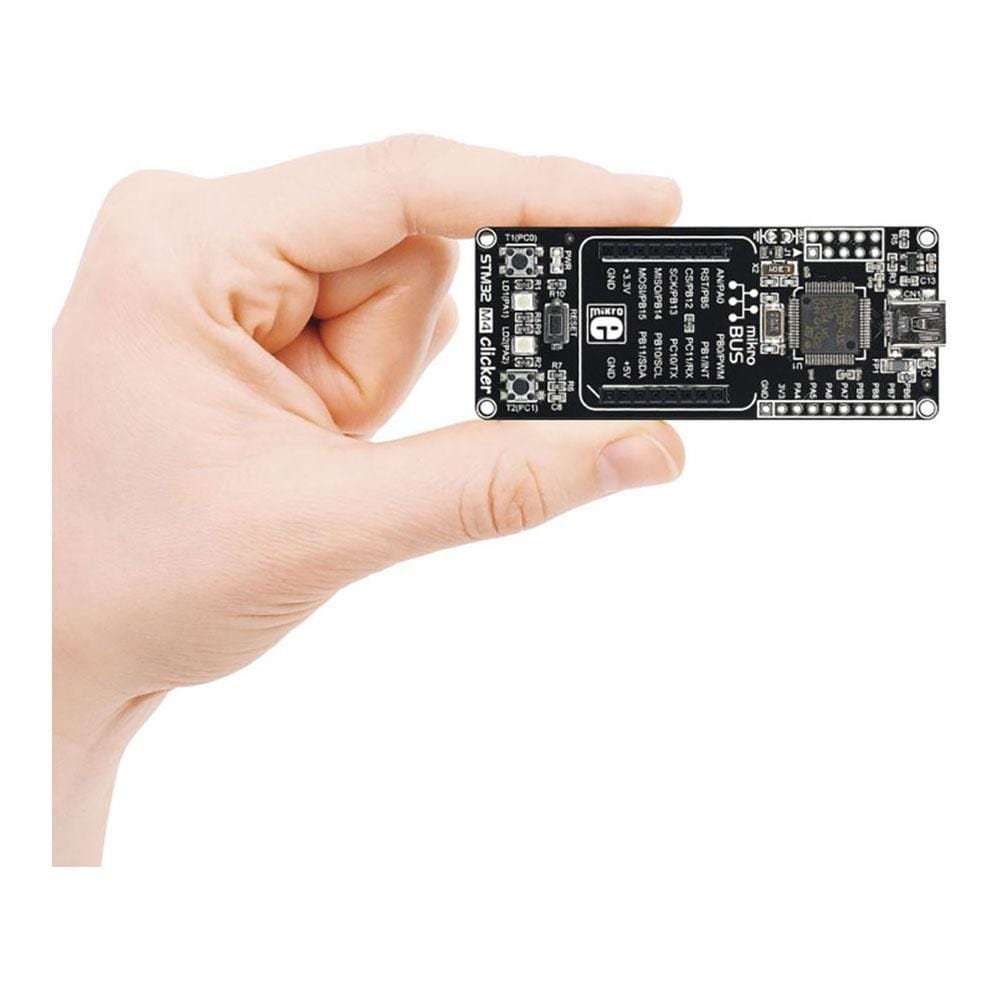

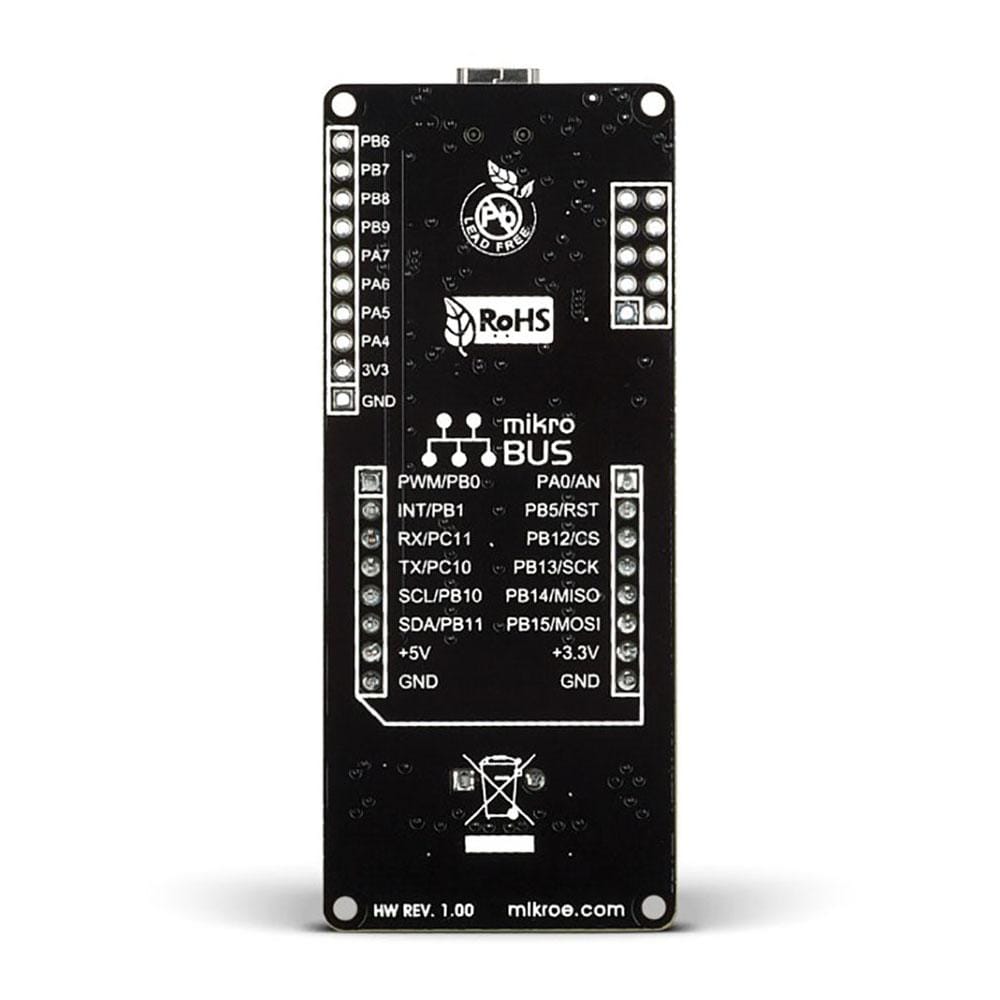

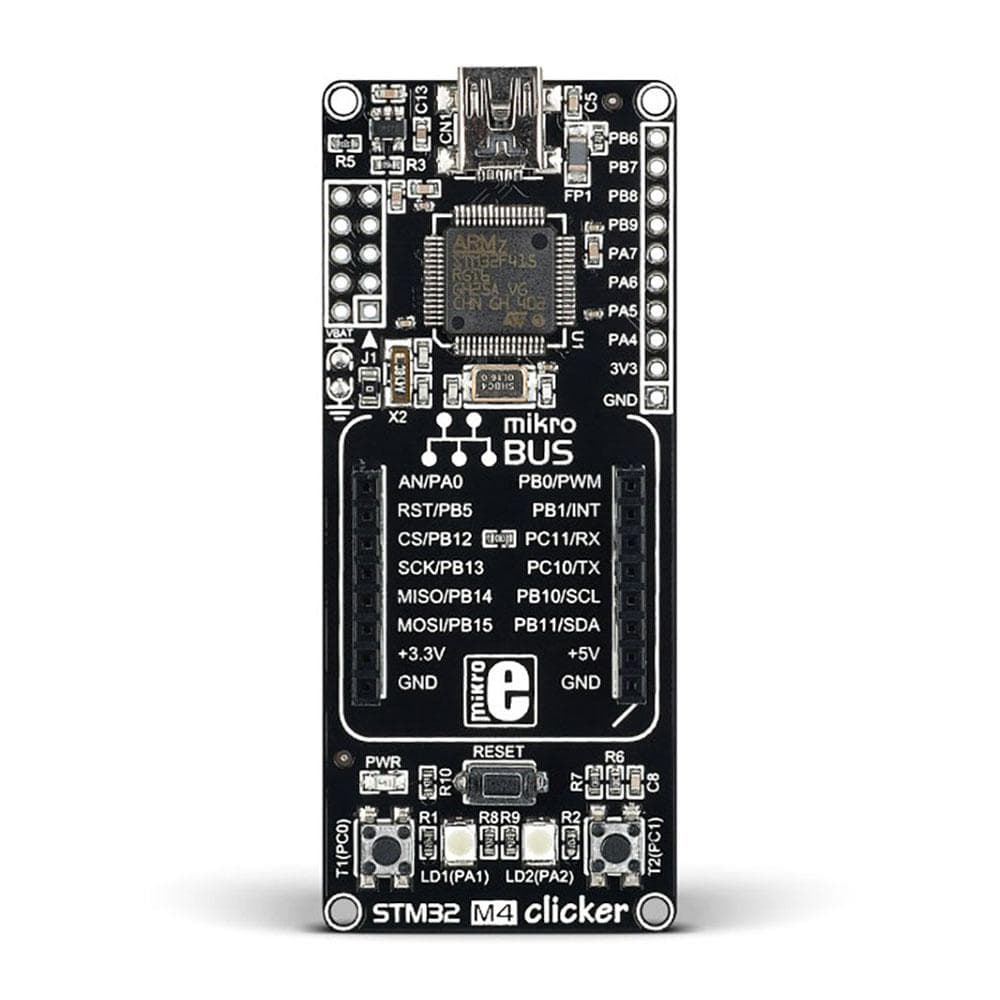

The STM32 M4 Clicker Board™ is an amazingly compact starter development kit that brings an innovative mikroBUS host socket to your favourite microcontroller. The board features all you need to get started: a 32-bit STM32F415RGmicrocontroller, USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
Hundreds of possibilities with Click boards™. With mikroBUS™ socket, you can take advantage of the huge potential of Click boards™, and choose from 1203 available Click boards™.
Programming. To make your prototyping experience as convenient as possible, the STM32 M4 Clicker Board™ is preprogrammed with a USB HID bootloader. Just download our USB HID Bootloader application and you’re ready to upload your firmware. On-board ARM Cortex JTAG/SWD connector enables programming through external programmer/debugger.
Technical Specifications
Applications
The STM32 M4 Clicker Board™ is compact board brings flexibility of add-on Click boards™ to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
Key Features
- 32-bit ARM® Cortex®-M4 STM32F415RG MCU operating at up to 168 MHz, 1024 KB of Flash memory, and and 192 KB of SRAM.
- USB /mini B connector. Two LEDs, two push buttons, and a reset button.
- mikroProg connector and headers for interfacing with external electronics.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
Key Benefits
- Single mikroBUS™ socket for adding Click boards.
- Small, affordable, yet powerful starter development kit.
- Mounting holes simplify integration.
- Compact design with clear and depictive silk screen markings.
| Type | Clicker |
| Architecture | ARM (32-bit) |
| Programming | Bootloader, External |
| Silicon Vendor | STM |
| mikroBUS No. | 1 |
| Supply Voltage | USB |
| Category | Clicker |
