XBee Click Board™
XBee Click Board™
SKU: MIKROE-1599
Couldn't load pickup availability
Overview
Introduce wireless functionality to end-point devices in ZigBee mesh networks using the XBee Click Board™ from MikroE. Intended to provide low-cost wireless connectivity to electronic devices, this Click Board™ features the Digi International

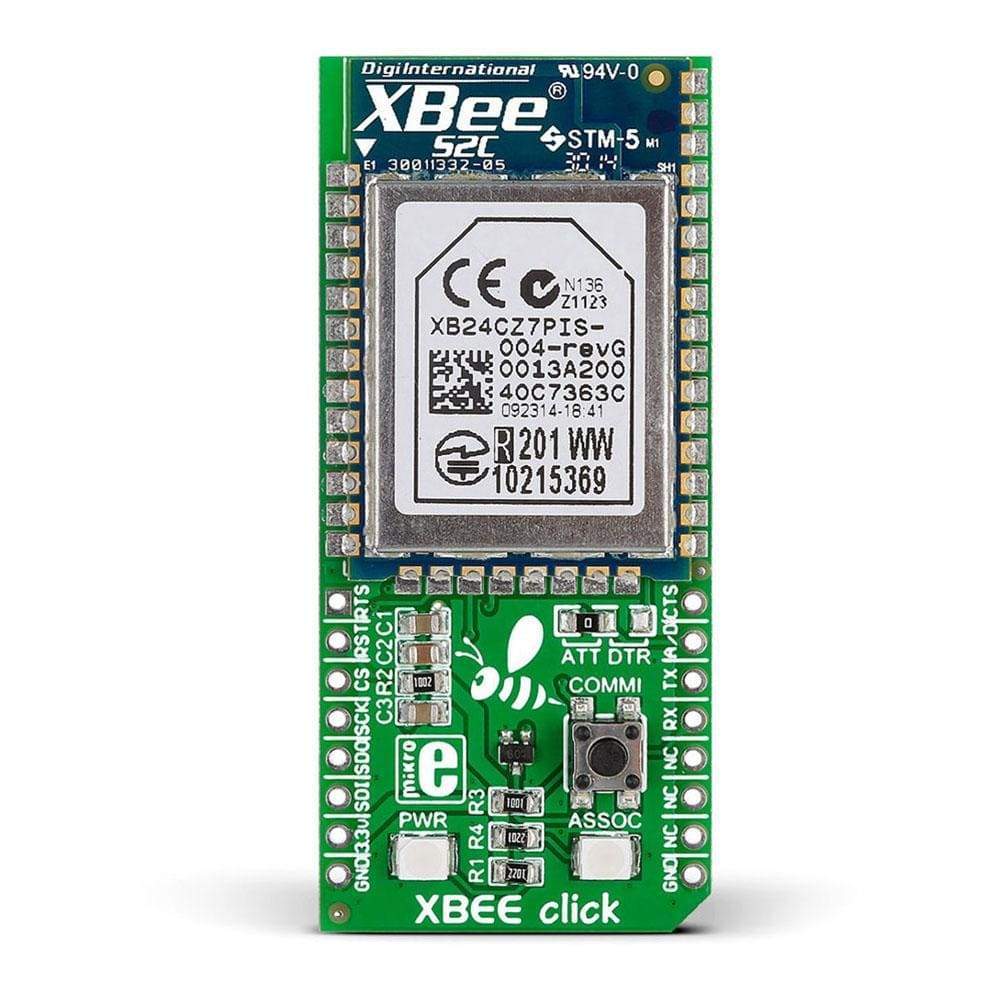

IC/Module: XB24CZ7PIS-004 RF Module
XB24CZ7PIS-004 is an embedded network-compatible RF module that operates at 2.4-2.5GHz band with a range of up to 60 metres indoor and up to 1.2 km outdoors (line of sight). It aids in easy deployment with a commissioning button and an associated LED. Using this, the user can issue simple configuration commands with subsequent button presses (joining or leaving networks, self-identification, restoring default values etc.).
.
Simple Deployment
XBEE Click Board™ has a commission button to issue simple configuration commands from the field. This push button enables the user to send simple commands to configure how the node relates to the network. It interprets the input depending on how many times the button is pressed in a row.
ATT/DTR jumper
XBEE Click Board™ allows user to choose UART or SPI line for data transmission. Depending on the communication line selected, user can set the interrupt feature by using the ATT/DTR jumper. ATT is for SPI; DTR for UART.
| Overview | |
|---|---|
| Category | ZigBee |
| Applications | ZigBee is a low-power networking solution for applications that don’t require high data rates, which can be anything from smart homes and building automation, to industrial control |
| Key components | |
| On-board modules | Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International |
| Features | |
| Key features | Indoor range 60 meters; line-of-sight range up to 1.2km. 2.4-2.5 GHz frequency band, RF data rate up to 250 Kbps |
| Interfaces | |
| Interface | UART, GPIO, SPI |

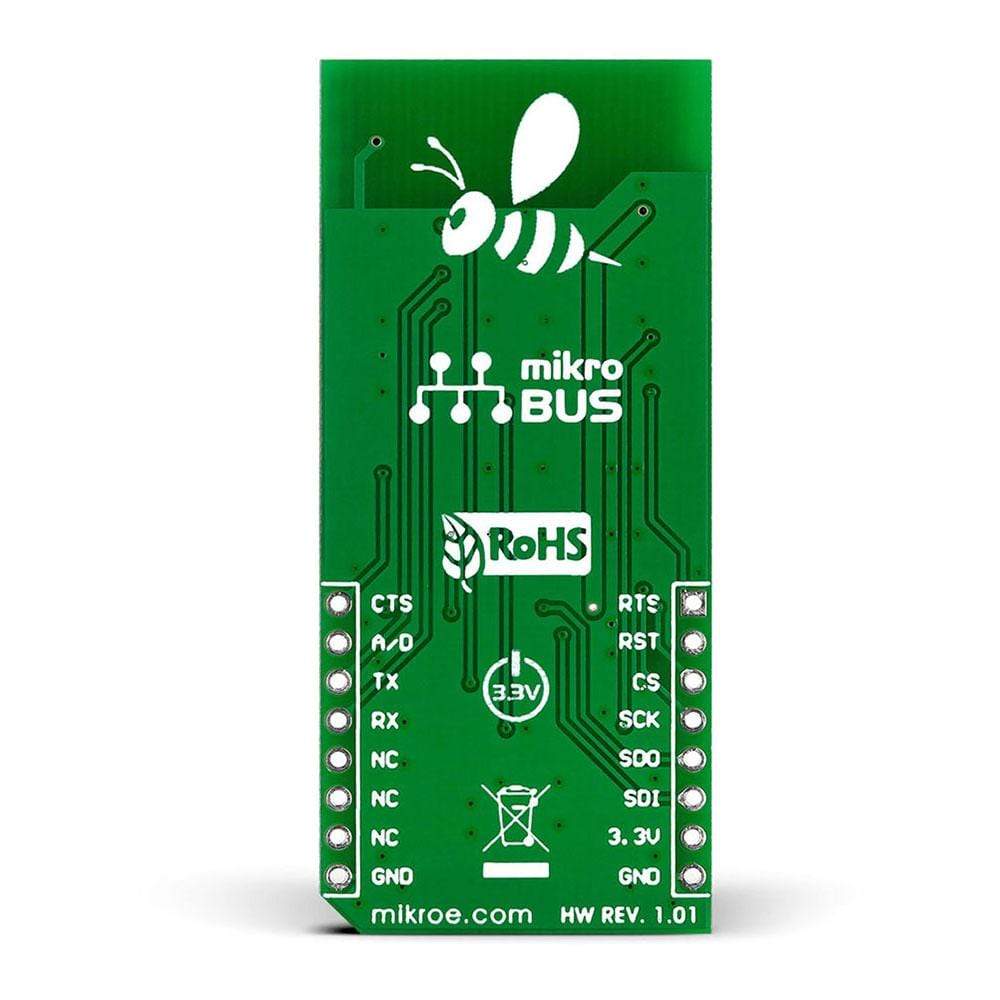

| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | L (57.15 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1599 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015075334 |
| Warranty | 12 months |
| Shipping weight | 0.029 kg |
-
1 ×
XBee Click Board™
Contact us to confirm the full contents of the box.
