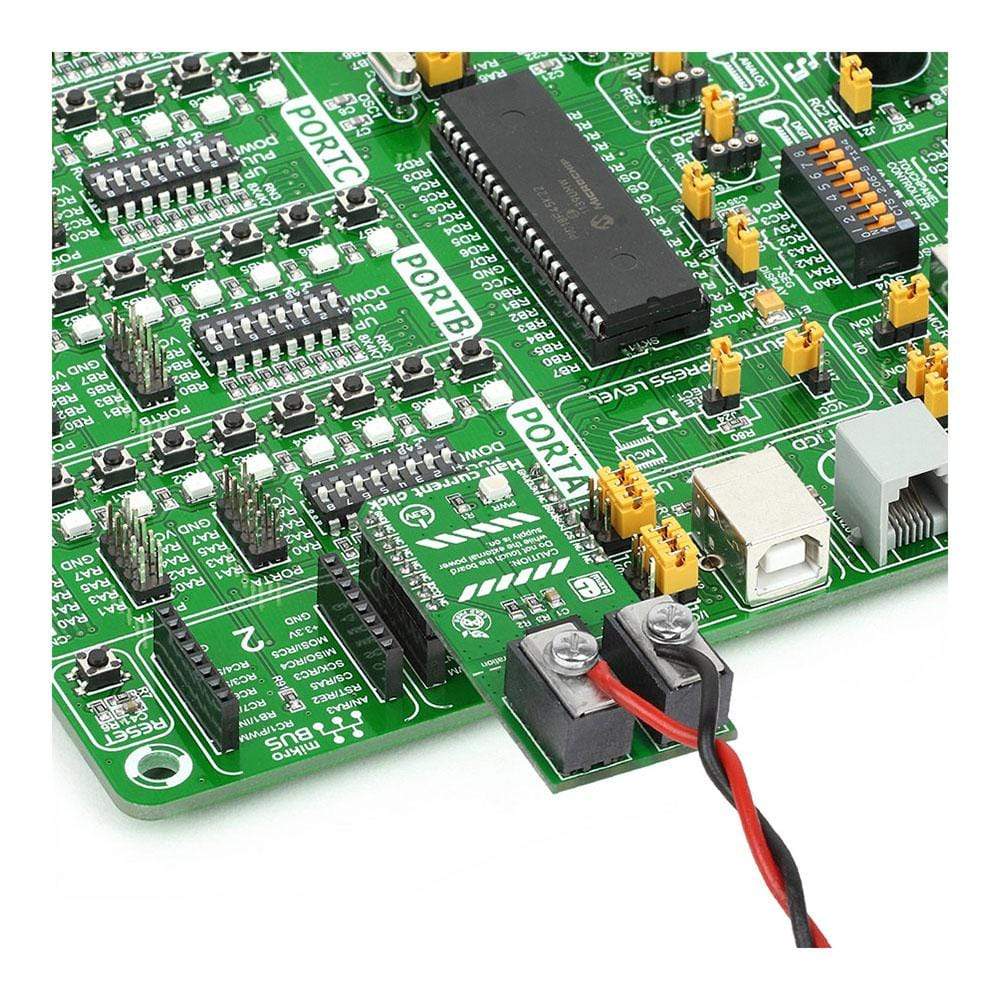

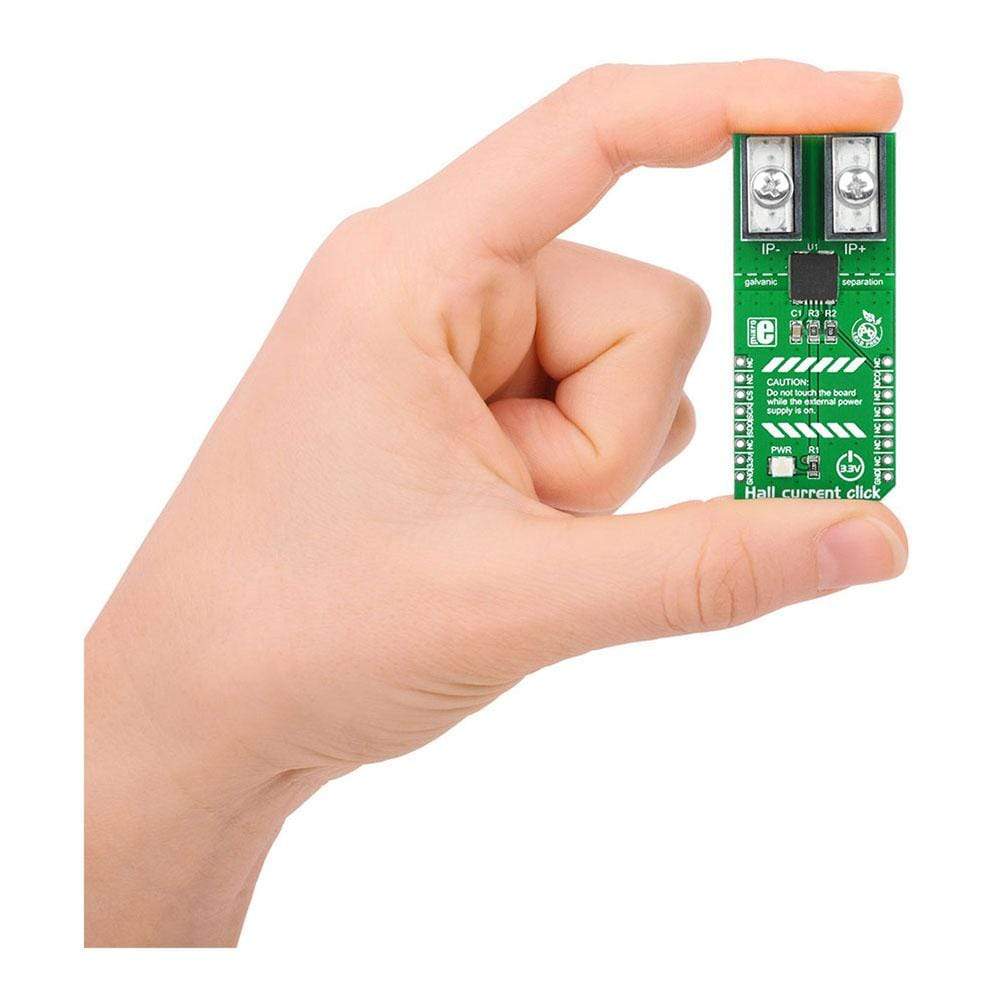

The Hall Current Click Board™ is a measurement add-on board intended to measure the current utilizing the Hall Effect. The board features a high-precision galvanically isolated TLI4970-D050T4 magnetic digital current sensor in a tiny footprint. The Hall current Click Board™ is equipped with two EXTreme ZPower connectors (IP- and IP+) to connect a conducting wire. Split the conducting wire and connect the ends to the two connectors. The current rail is galvanically isolated from the interface to the microcontroller to keep the surrounding circuitry safe. The sensor detects the strength of the current, then sends the measurement data to the target MCU through MikroBUS SPI (SDO, SCK and CS) lines.
The Hall Current Click Board™ is based on the contact-free measurement principle, which causes no additional power loss and makes it perfectly suited for high-efficiency systems. It is designed to use a 3.3V power supply only. The board is an ideal choice for photovoltaic and general-purpose inverters, power supplies (SMPS), battery chargers, lighting applications, and electrical drives.
Hall Current Click Board
Frequently Asked Questions

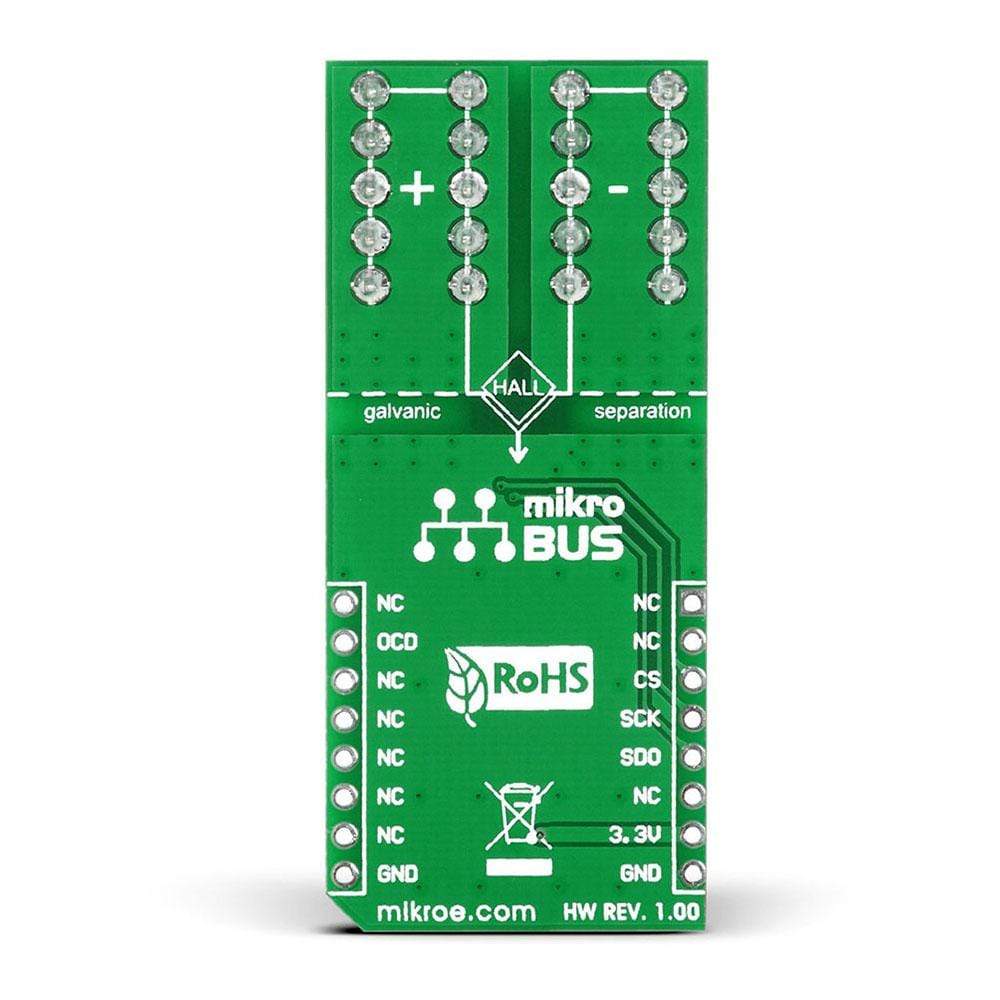

The Hall Current Click Board™ is a high precision current sensor. It carries a galvanically isolated TLI4970-D050T4 miniature magnetic digital current sensor that utilizes the Hall effect to measure electric current. The board carries two EXTreme ZPower connectors (IP- and IP+) to connect the conductor. The current rail is galvanically isolated from the interface to the microcontroller. The sensor readings are sent to the target board through the mikroBUS SPI (SDO, SCK, and CS) lines. The board uses a 3.3V power supply only. Use caution when working with current and the Hall Current Click Board™.
DO NOT TOUCH THE BOARD WHILE THE EXTERNAL POWER SUPPLY IS ON!
Note: The Hall Current Click Board™ has exposed pins/pads. To stay safe take precaution when applying high voltage to the click. The click is to be used by trained personnel only when applying high voltage.
IC/Module: TLI4970-D050T4 Magnetic Current Sensor
TLI4970-D050T4 is a fully digital, high precision, coreless current sensor that uses the Hall Effect to measure electric current. This miniature contact-free current sensor has an AC & DC measurement range up to.
