Overview

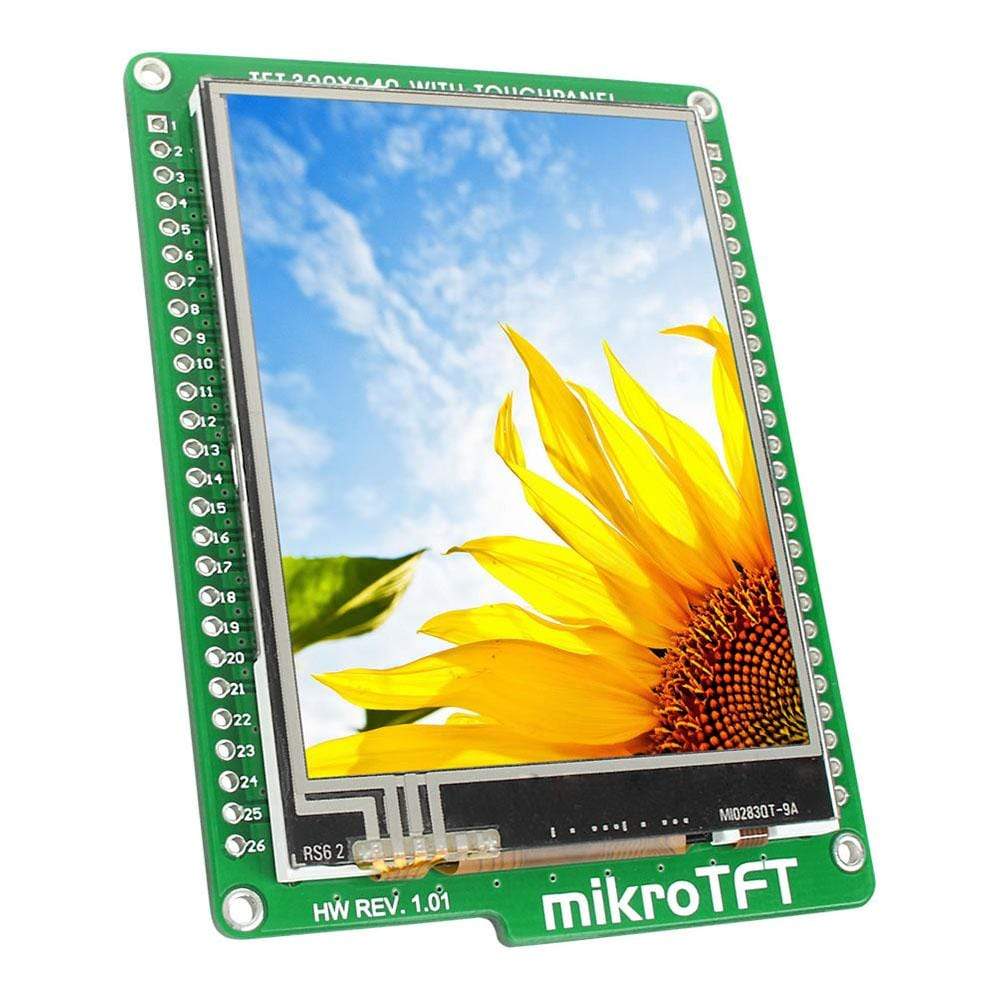

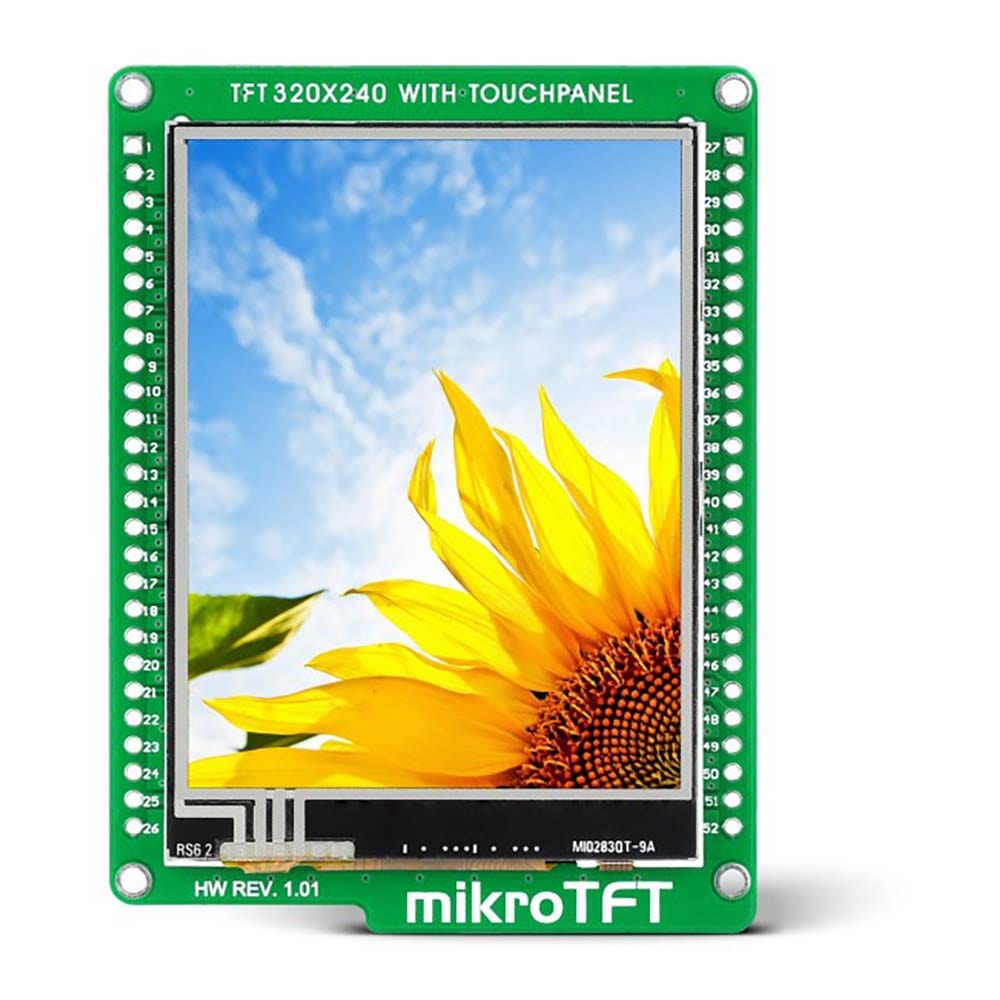

The MikroTFT is a TFT LCD touchscreen board featuring MI0283QT-9A 2.8" TFT colour display with 320 x 240 pixel resolution. Powered by ILI9341 display controller, the display offers exceptional graphics with each pixel capable of displaying 262K RGB colours. A resistive touch panel over the TFT display allows it to be used as an input device.
The MikroTFT is provided with two 1x26 side headers to ensure easy connection with other development boards and devices. It can be integrated into device or can be used as a development tool. Whichever solution the user chooses, the user is capable of retaining the same front panel and same integration. Furthermore, mounting holes ('
The mikroTFT is a breakout board for MI0283QT-9A 2.8" TFT color display with 320 x 240 pixel resolution, driven by ILI9341 display controller. TFT display is covered with a resistive touch panel which can be used as an input device. For further connectivity two 1x26 side headers are provided. Mounting holes (ø 2.29 mm) located in each corner simplify integration. Board is designed in the same form factor as mikromedia boards. This allows you to easily switch from mikroTFT to mikromedia, and vice-versa, while retaining most of the integration features.
ILI9341 Display Controller
ILI9341 is a 262,144-colour single-chip SOC driver for a-TFT liquid crystal display. Featuring a resolution of 240RGBx320 dots, ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface and 3-/4-line serial peripheral interface (SPI). ILI9341 supports full colour, 8-colour display mode and sleep mode for precise power control, making it an ideal option for portable products like smart phones, MP3, etc. that require long battery life.
MI0283QT-9A TFT Colour Display
MI0283QT-9A is a 320x240-pixel 2.8" TFT colour display, recommended for high resolution colour graphics.
| Overview | |
|---|---|
| Category | TFT |
| Applications | This display is ideal for Human-To-machine interfaces, mobile phones, PDA devices, status monitors and home automation devices |
| Product type | TFT |
| Key components | |
| Graphics controller | ILI9341 |
| On-board modules | MI0283QT-9A 2.8" TFT, ILI9341 display controller |
| Features | |
| Integration | Mounting holes |
| Key features | A-TFT LCD driver with on-chip full display |
| Key benefits | Easily switch from mikroTFT to mikromedia, and vice-versa, while retaining most of the integration features |
| Interfaces | |
| Interface | GPIO |
| Compatibility | Breadboard (PROTO) |
| Electrical | |
| Power supply | 3.3V |
| Display | |
| Display size | 2.8" |
| Resolution | 320x240px |
| Touch screen | Resistive |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Additional specifications | |
| RAM | 172,800 bytes. Power saving mode. 8 data lines and 5 control lines. Capable of displaying 262K RGB colors. Display contains 4-wire resistive touch panel |
| Ordering information | |
| Part number (SKU) | MIKROE-1439 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074665 |
| Warranty | 12 months |
| Shipping weight | 0.05 kg |
-
