MINI-M4 for Stellaris MCU Board
Couldn't load pickup availability

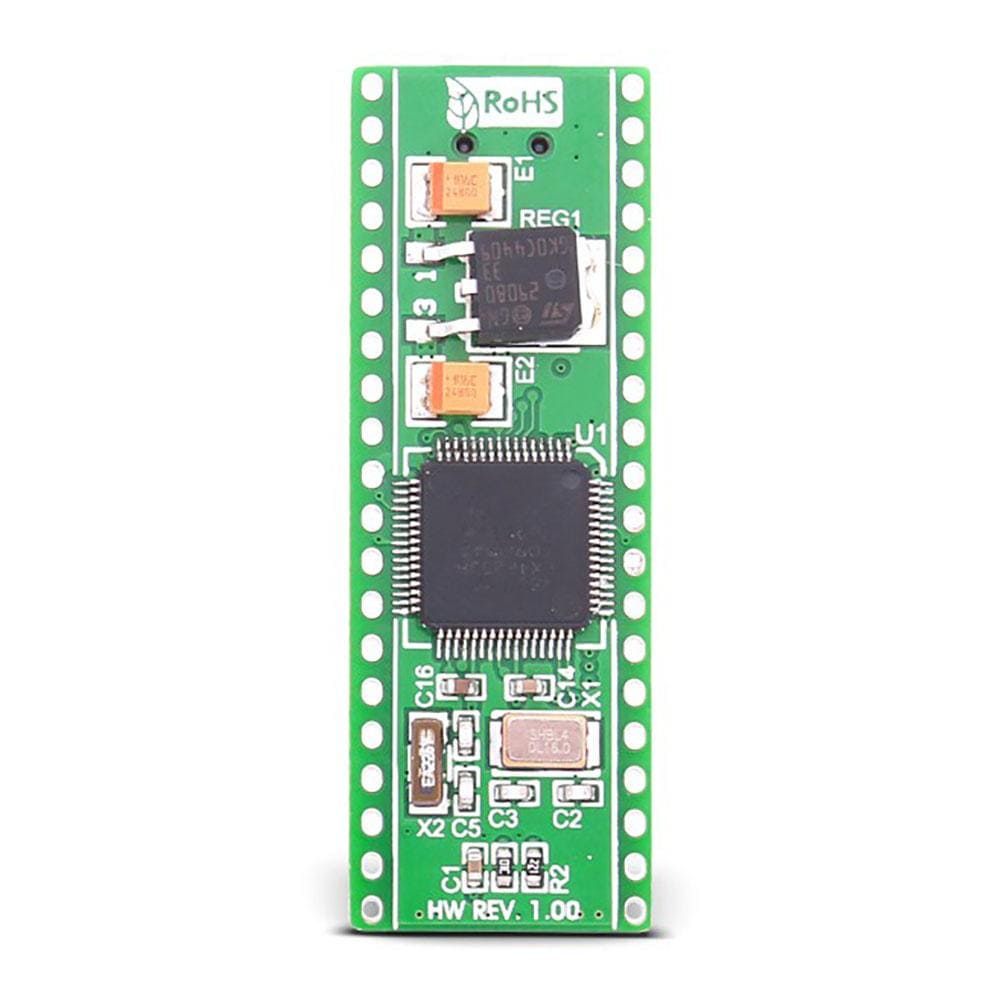

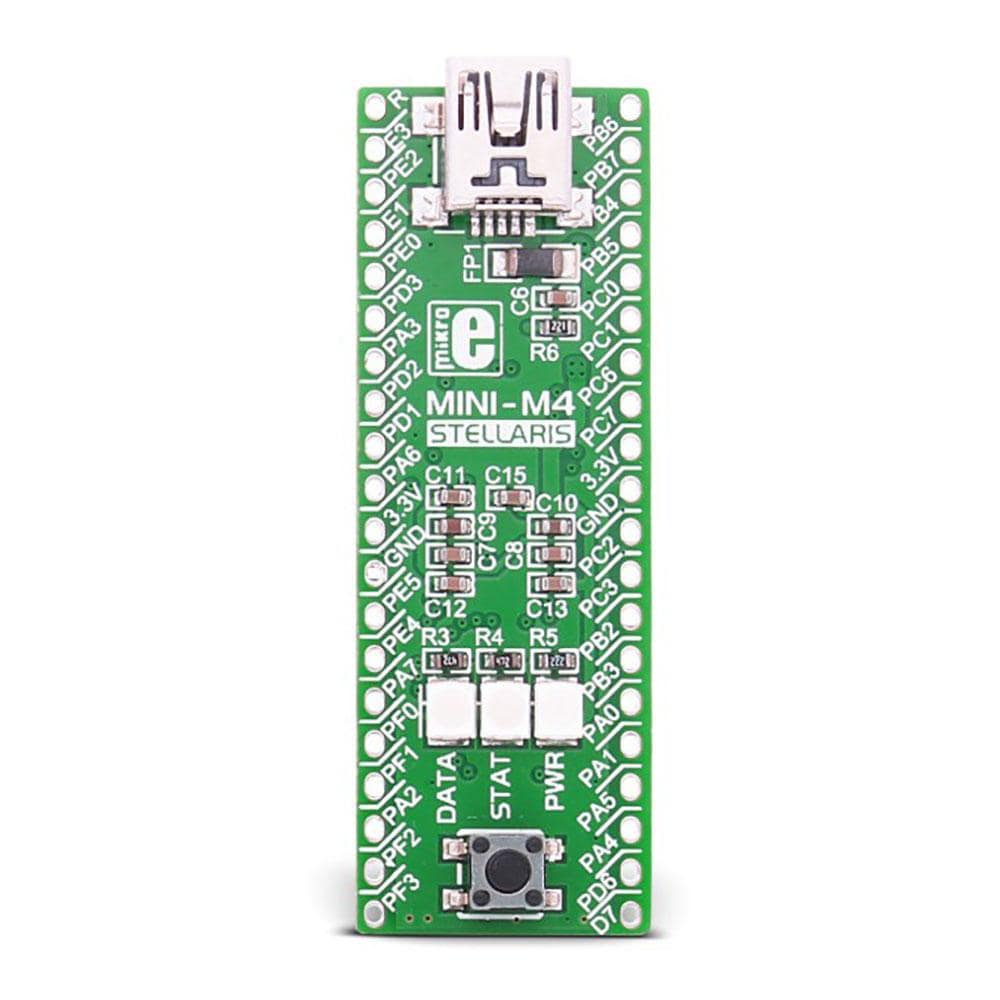

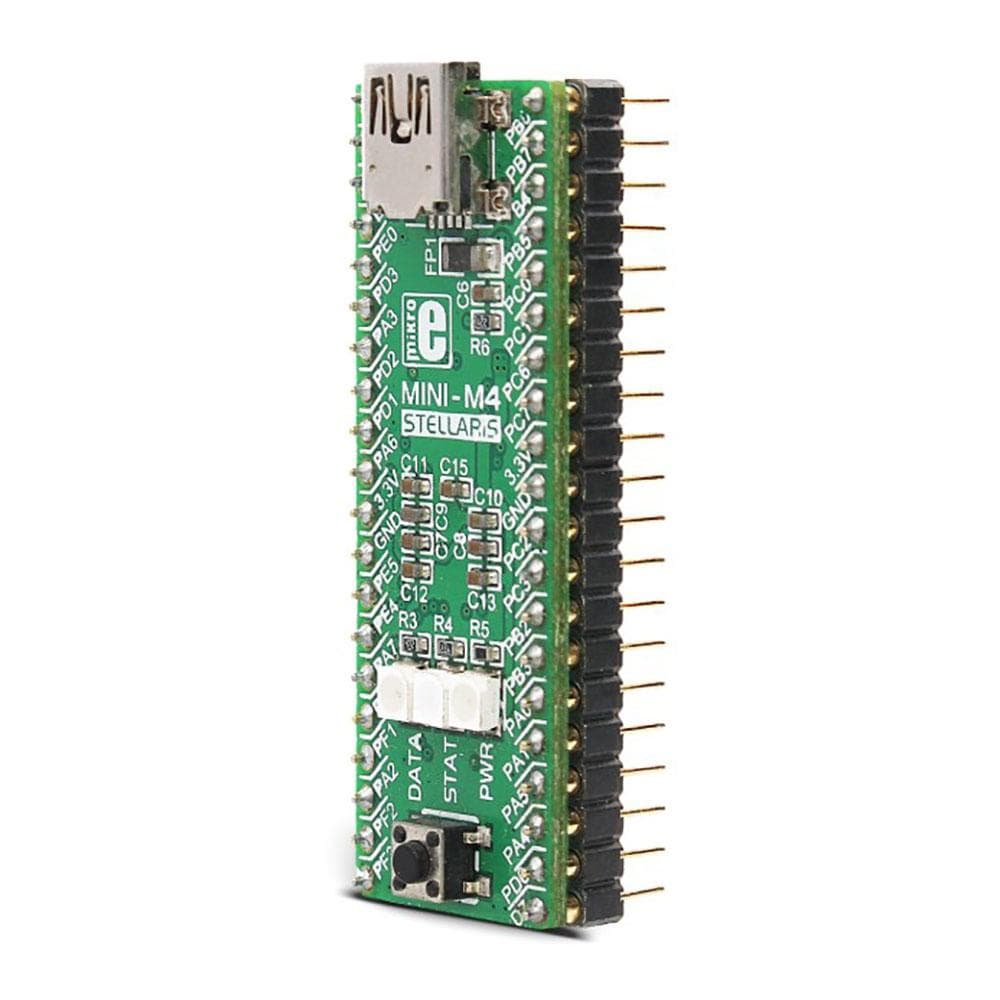

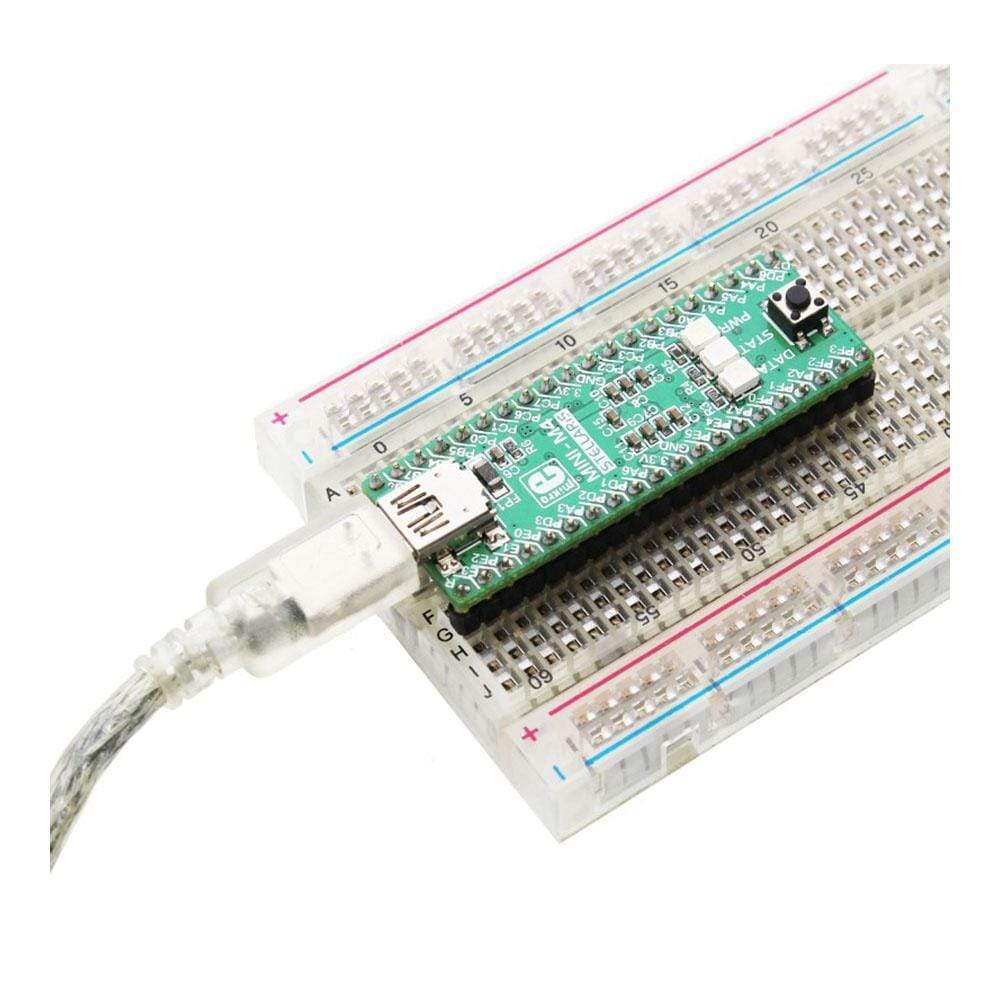

The MINI-M4 for Stellaris is a small ARM Cortex-M4 development board containing the LX4F230H5QR microcontroller. It is pin-compatible with PIC16F887 and PIC18(L)F45K20 microcontrollers and it perfectly fits into a standard DIP40 socket. The board is equipped with a 16MHz SMD crystal oscillator and 32.768KHz crystal which can be used for the internal RTCC module. It has a Reset button and three signal LEDs.
The board comes pre-programmed with a fast USB HID bootloader, so no external programmers are needed for development. It operates on a 3.3V power supply. The onboard voltage regulator allows the board to be powered directly from the USB cable.
Technical Specifications
Applications
The MINI-M4 for Stellaris board can be used as a DIP40 substitute for PIC16 and PIC18 microcontrollers working on 3.3V, thus adding exponentially more power to your target device.
Key Features
- LX4F230H5QR, ARM 32-bit Cortex™-M4 CPU with FPU
- 256KB Flash, 32KB SRAM
- Two quadrature encoder interfaces, frequency up to 80MHz, and 16 PWM outputs
- USB 2.0 On-The-Go support Signal LEDs, Crystal oscillator and Reset Button on board
- Supports CAN communication
Operating Voltage
The MINI-M4 for Stellaris operates on 3.3V power supply only. A dedicated voltage regulator enables the board to be powered directly from on-board USB connector.
Key Benefits
- Pin compatible with PIC16F887 and PIC18(L)F45K20
- Comes preprogrammed with USB bootloader
- Perfectly fits into DIP40 socket
- Fully supported in mikroE ARM compilers
| Type | MINI |
| Architecture | ARM (32-bit) |
| Programming | Bootloader |
| Silicon Vendor | Texas Instruments |
| Supply Voltage | USB |
MINI-M4 for Stellaris MCU Board
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
