Serial Ethernet Board

Serial Ethernet Board

SKU: MIKROE-124

Regular price
£25.95 exc VAT
£31.14 inc VAT
Regular price Sale price
£25.95 exc VAT
£31.14 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

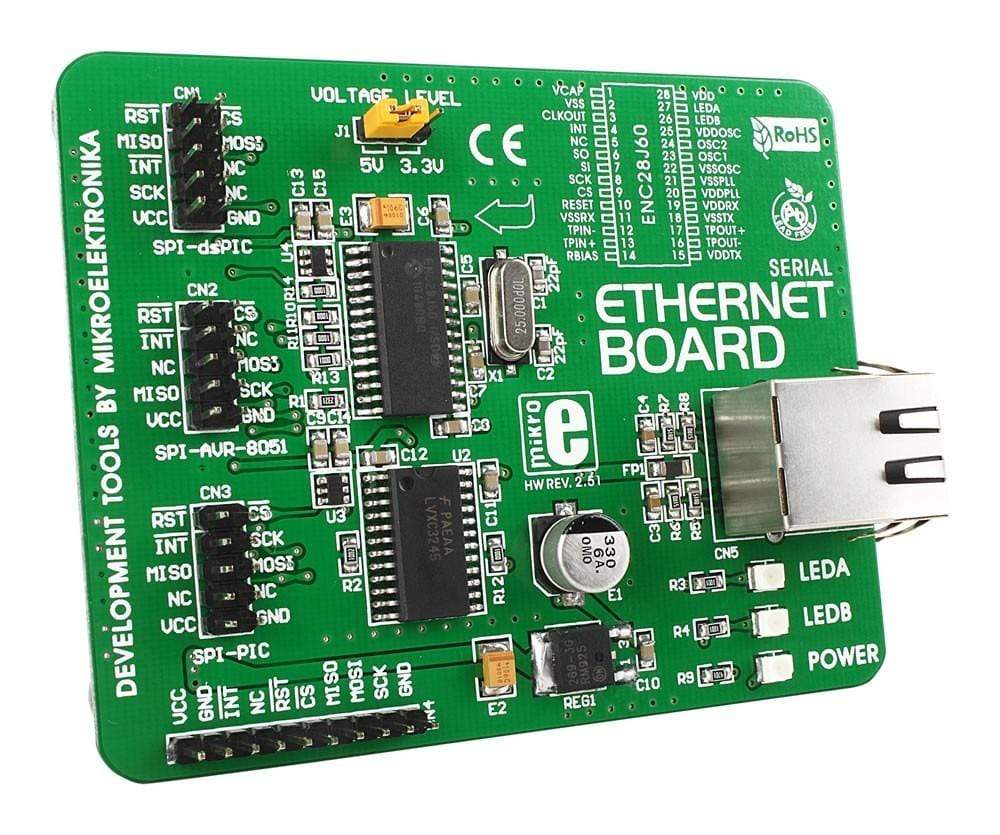

The Serial Ethernet Board is based on the Microchip ENC28J60, a 28-pin, 10BASE-T stand alone Ethernet Controller with an on-board MAC & PHY, 8 Kbytes of Buffer RAM and SPI serial interface.

IC/Module: ENC28J60 Stand-Alone Ethernet Controller

ENC28J60 is a stand-alone Ethernet controller based on IEEE 802.3 specifications. It consists of an SPI interface that communicates between the host controller and the module. It has a dual port RAM buffer for received and transmitted data packets.

MAC and 10Base-T PHY

Serial Ethernet Board features integrated MAC (Medium Access Controller) and 10Base-T PHY (Physical Layer). MAC supports unicast, multicast and broadcast packets, and implements IEEE 802.3 compliant MAC logic. PHY features a loopback mode and has two programmable LED outputs for LINK, TX, RX, collision and full/half-duplex status.

Power Supply Selection

ENC28J60 aboard Serial Ethernet Board is designed to use a 3.3V power supply voltage, but can be used with 5V devices as well. The input pins CS, SCK, SI and RESET are 5V tolerant, and can receive data from the microcontroller. The jumper J1 enables the user to set the voltage level of communication lines and power supply of the microcontroller connected to the board.

Ordering information
Part number (SKU)MIKROE-124
ManufacturerMikroelektronika d.o.o.
EAN8606015072098
Warranty12 months
Shipping weight0.1 kg
  • 1 × Serial Ethernet Board

Contact us to confirm the full contents of the box.
