EasyTFT Board
EasyTFT Board
SKU: MIKROE-1142
Couldn't load pickup availability
Overview

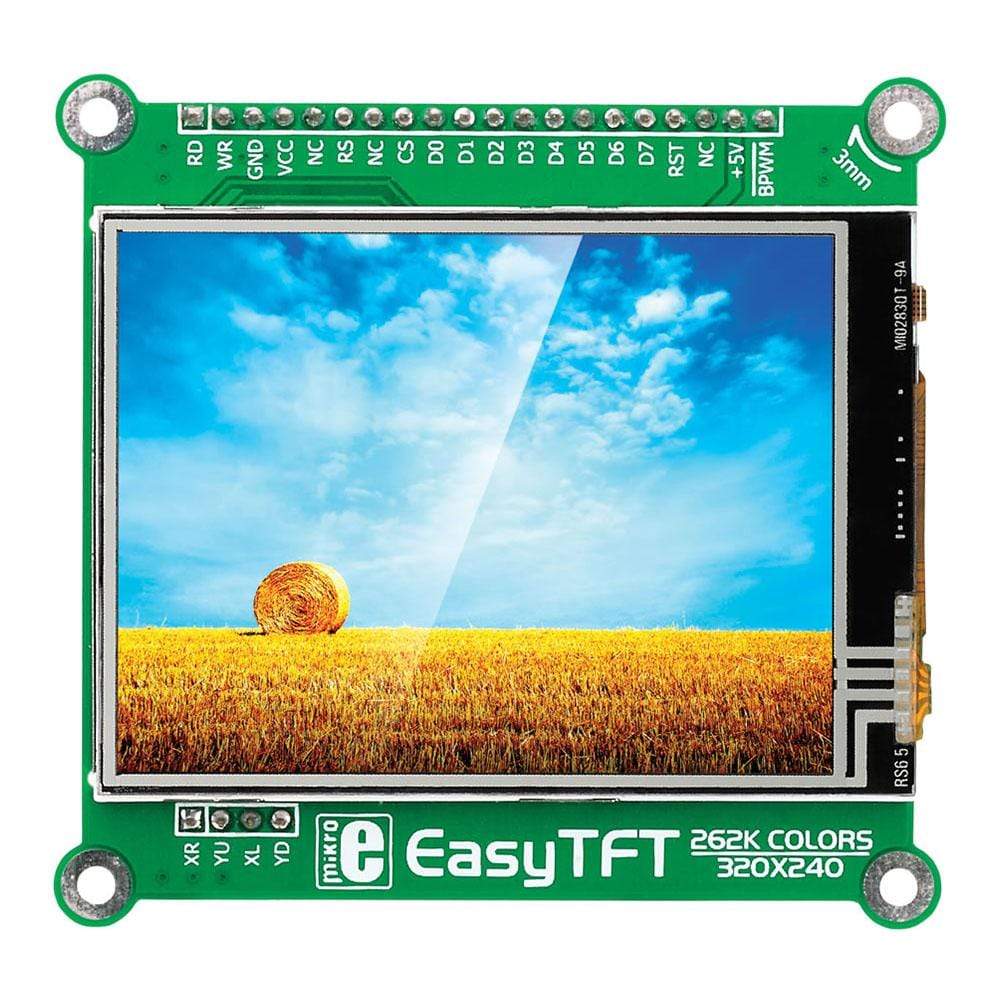

The EasyTFT Board is a perfect choice for users or mikroElektronika boards who want to upgrade their GLCD with a TFT display. It features a connector compatible with GLCD 128x64 connectors, as well as touch panel connectors.
GLCD with TFT display. It features connector compatible with GLCD 128x64 connectors, as well as touch panel connectors. Board also contains TFT Color Display MI0283QT-9A with 320x240px resolution, which is driven by ILI9341 display controller, capable of showing advanced graphical content. It also features a Touch Screen and therefore can be used as input device. Board contains mounting holes for easier integration into your designs.
| Overview | |
|---|---|
| Category | TFT |
| Applications | This display is ideal for Human-To-machine interfaces, mobile phones, PDA devices, status monitors and home automation devices |
| Product type | TFT |
| Key components | |
| Graphics controller | ILI9341 |
| On-board modules | MI0283QT-9A TFT screen, ILI9341 display controller |
| Features | |
| Integration | Mouting holes |
| Key features | TFT LCD driver with on-chip full display |
| Key benefits | Compatible with 7th generation Easy boards. Pin compatible replacement for GLCD 128x64 display. |
| Interfaces | |
| Interface | GPIO |
| Compatibility | Breadboard (PROTO) |
| Electrical | |
| Power supply | 3.3V or 5V |
| Display | |
| Display size | 2.8" |
| Resolution | 320x240px |
| Touch screen | Resistive |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Additional specifications | |
| RAM | 172,800 bytes. Power saving mode. Capable of displaying 262K RGB colors. QVGA |
| Ordering information | |
| Part number (SKU) | MIKROE-1142 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015073835 |
| Warranty | 12 months |
| Shipping weight | 0.044 kg |
-
1 ×
EasyTFT Board
Contact us to confirm the full contents of the box.
