Mikroelektronika d.o.o.

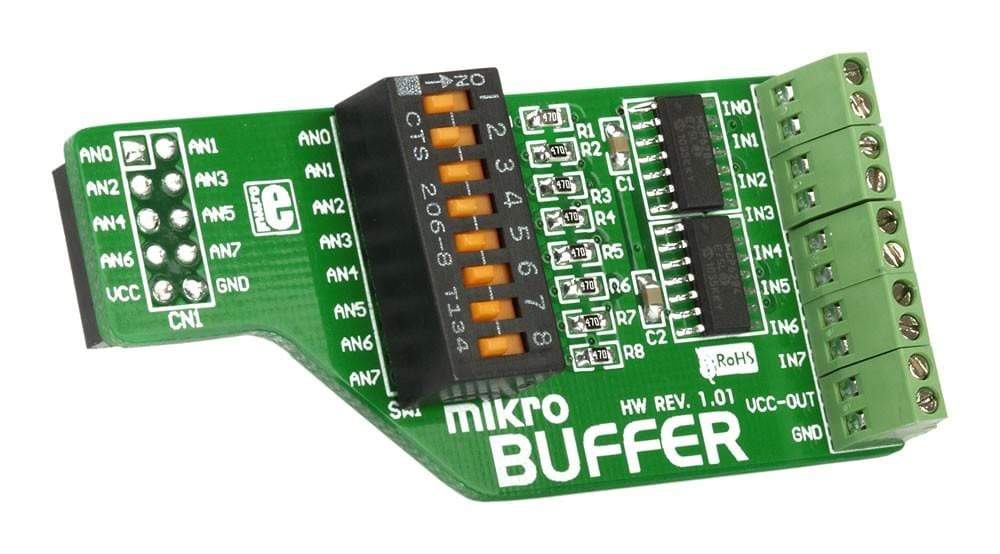

MikroBuffer Board

MikroBuffer Board

SKU: MIKROE-323

Regular price
£3.95 exc VAT
£4.74 inc VAT
Regular price Sale price
£3.95 exc VAT
£4.74 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The MikroBuffer Board is an accessory board that lets the user buffer the analogue signals connected to prototype device inputs. This device amplifies an analogue voltage signal by using a unity gain operational amplifier. It comprises two MCP6284 operational amplifiers that are put together featuring 8 inputs. This additional board comes equipped with an IDC10 female header. Compatible with MikroElektronika development boards, and DIP switches for selecting input lines, the IDC10 connector CN1 gets the MikroBuffer board easily connected to a microcontroller. The amplified signal then gets delivered to the microcontroller analogue inputs.

This economical, low power consuming MikroBuffer Board makes use of CN2, CN3, CN4, and CN5 connectors for establishing a connection with the analogue signal generating device.

The mikroBuffer Board features two MCP6284 operational amplifiers with total of 8 inputs that are specifically designed for low-cost, low-power and general-purpose applications. low-power supply voltage, low quiescent current and wide bandwidth make this board ideal for battery-powered applications. Board features IDC10 female header compatible with mikroElektronika development boards, and DIP switches for selecting input lines.

Ordering information
Part number (SKU)MIKROE-323
ManufacturerMikroelektronika d.o.o.
EAN8606015071565
Warranty12 months
Shipping weight0.1 kg
  • 1 × MikroBuffer Board

Contact us to confirm the full contents of the box.
