MAX232 Board

MAX232 Board

SKU: MIKROE-222

Regular price
£9.48 exc VAT
£11.38 inc VAT
Regular price Sale price
£9.48 exc VAT
£11.38 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

Introduce RS232 connectivity to the device using the highly-economic MAX232 Board. It is an interface add-on board designed to connect the built-in MAX232 circuit to a prototype board. An essential for establishing RS232 communication, the MAX232 chip is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels. Each receiver converts TIA/EIA-232-F inputs 1.0-'

IC/Module: MAX232N Dual EIA-232 Drivers/Receivers

The integrated MAX232N is a dual EIA-232 driver/receiver that operates from a single 5-V power supply and converts a serial signal from TTL to RS232C standard and vice versa through a built-in voltage generator. The two RS232 drivers interface standard logic level to RS232 levels while the two receivers interface RS232 levels to standard logic levels.

Two Connectors

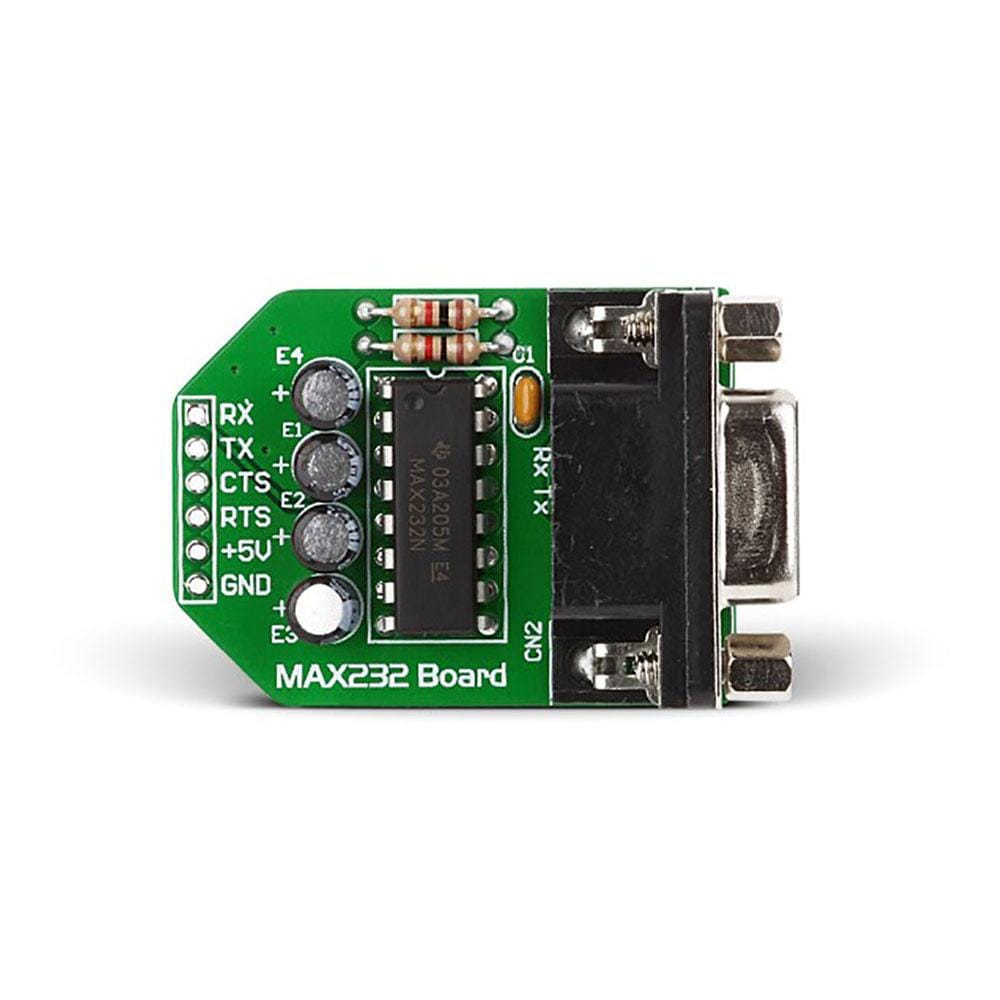

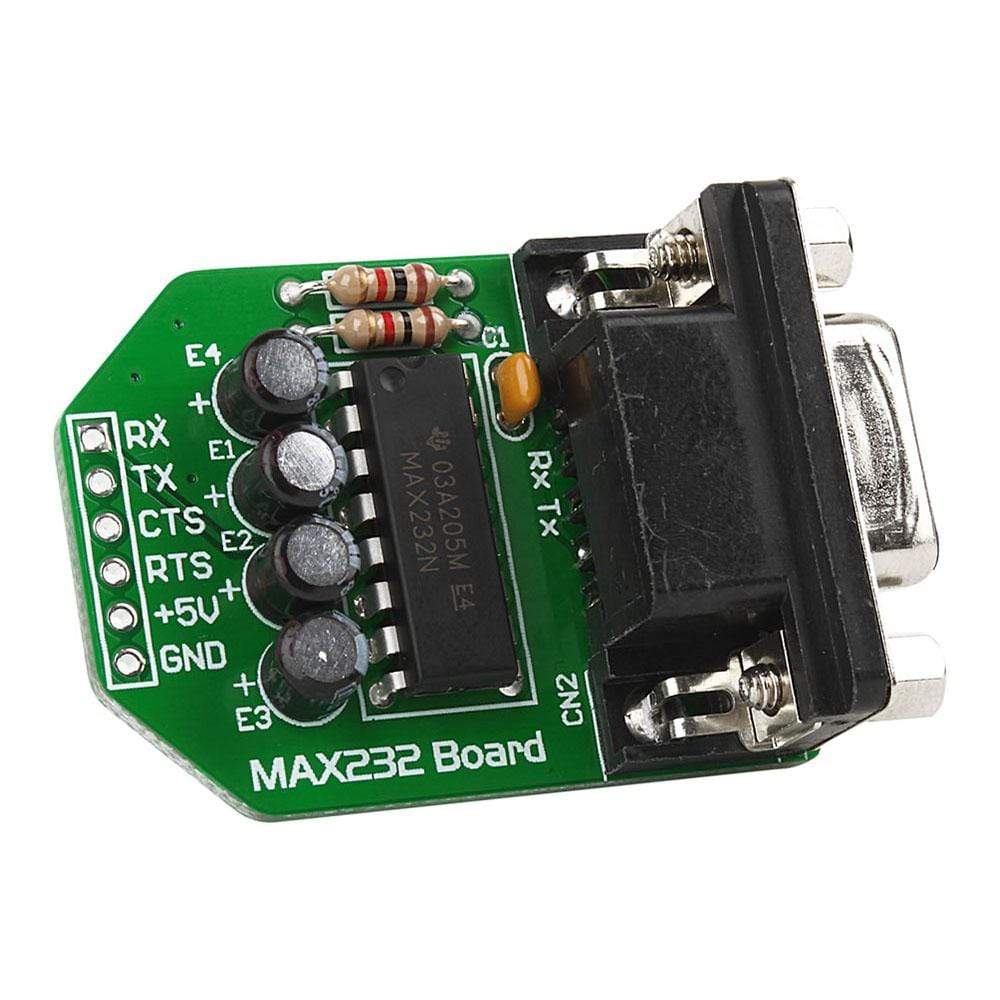

The MAX232 Board features two connectors: a female connector DB9 and a 6-pin connector. While the former enables connection with devices that use RS232 standard (typically a PC), the latter allows for connection with microcontroller pins intended for serial communication (USART).

Overview
CategoryRS232
ApplicationsMAX3232 Board is used in RS232 communication with modems, printers, PC applications, and various devices that use UART communication protocol
Key components
On-board modulesDual RS3232 Driver/Receiver MAX232N
Main ICMAX232N (Texas Instruments)
Features
Key featuresOperates Up To 120 kbit/s, Operates From a Single 5-V Power Supply
Key benefitsAffordable solution for adding RS232 connectivity to your device
Interfaces
InterfaceUART
CompatibilityBreadboard (PROTO)
Electrical
Power supply5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-222
ManufacturerMikroelektronika d.o.o.
EAN8606015071282
Warranty12 months
Shipping weight0.016 kg
  • 1 × MAX232 Board

Contact us to confirm the full contents of the box.
