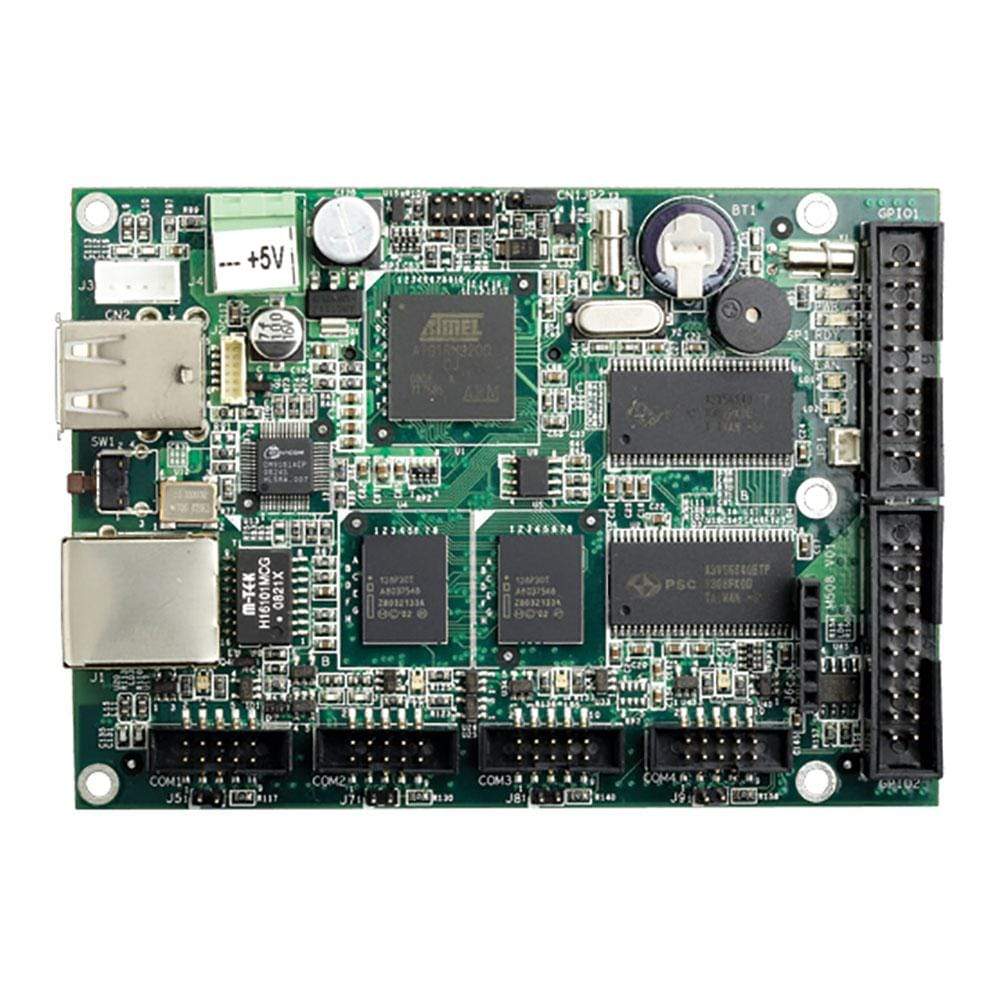

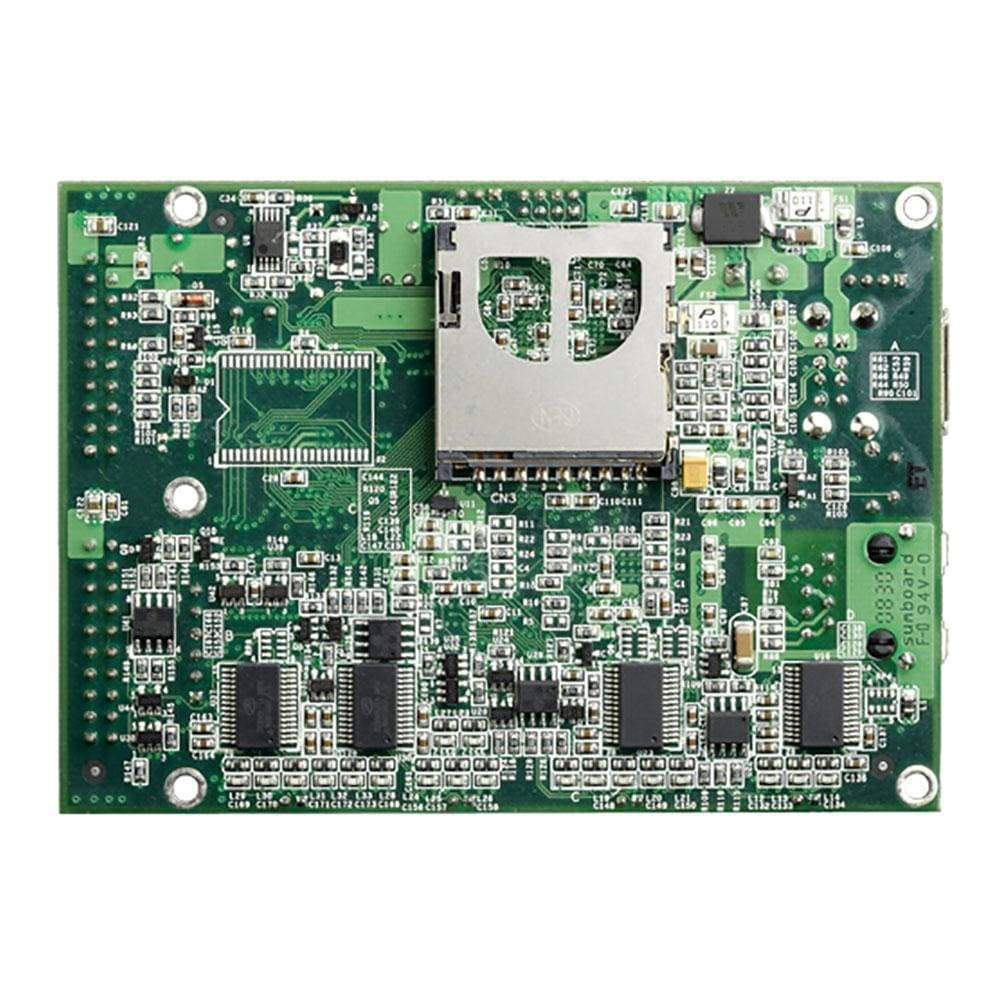

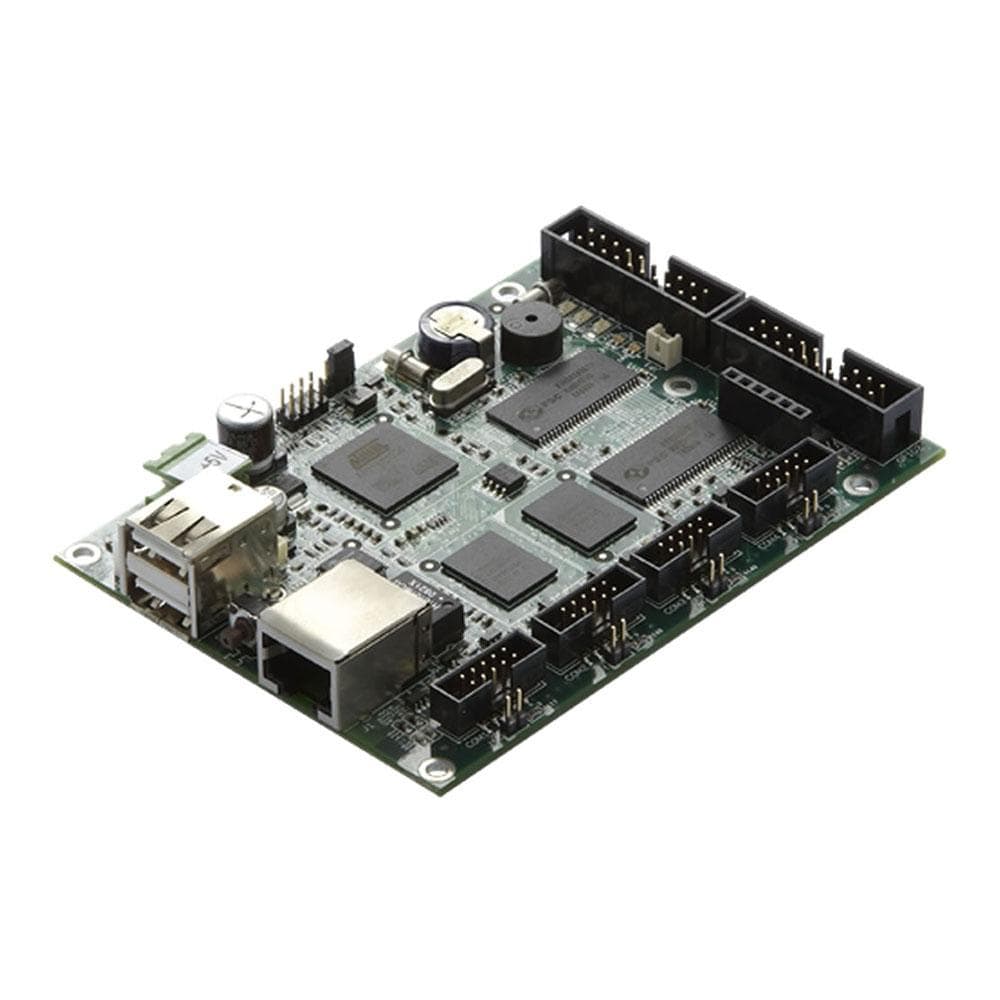

Users can operate the M-508 the same way as they do on a normal Linux desktop. The M-508 comes equipped with one Ethernet, four RS-232/485 ports, two USB 2.0 host ports, plus one SD memory card slot and 32x GPIOs in an incredible small package measuring only 105x 75 mm. RS-232C/RS-485 PortsThe M-508 provides four 921.6Kbps RS-232/485 TTY ports. Port 1, 2, 3 support standard RS-232/485. Port 4 supports RS-232/422/485. Port 2 also features full RS-232 supporting for modem connection. 32 CMOS-level GPIOsThe M-508 comes with 32x CMOS-level digital I/Os. Each I/O pin can be individually programmed as input or output.
Artila M-508 SBC
