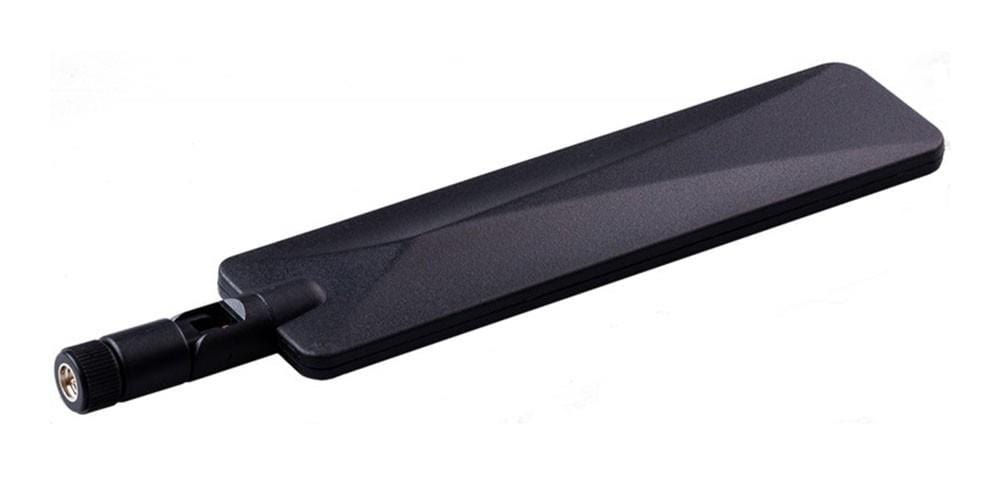

LTE Flat Rotation Antenna

LTE Flat Rotation Antenna

Directional Antenna for 3G/4G Applications

SKU: MIKROE-3370

Regular price
£19.30 exc VAT
£23.16 inc VAT
Regular price £17.88 GBP Sale price
£19.30 exc VAT
£23.16 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

This multi-band LTE Flat Rotation Antenna with adjustable angle is an excellent choice for all 3G/4G LTE-based Click Boards™ from our offer, as well as other devices that require excellent throughput on all major cellular bands worldwide. The antenna has a distinctive flat surface with an SMA male connector on its end, which allows it to be mounted directly on the Click Board™ or the female SMA module connector. The antenna position can be adjusted in 45° increments (0°/45°/90°).

  • Frequency range: 700 - 2700 MHz
  • Impedance: 50Ω
  • VSW Ratio: <2.0:1
  • Gain: 5dB
  • Polarization: Vertical
  • Radiation: Omni
  • Max Input Power: 50W
  • Antenna Length: 196mm
  • Antenna Width: 38mm
  • Connector Type: SMA male
  • Storage Temperature: -30⁰C to +75⁰C
Performance
Frequency range700 - 2700 MHz
Compliance
Country of originSerbia
RoHSCompliant
Additional specifications
Impedance50Ω
Ordering information
Part number (SKU)MIKROE-3370
ManufacturerMikroelektronika d.o.o.
EAN8606018714544
Warranty12 months
Shipping weight0.045 kg
  • 1 × LTE Flat Rotation Antenna

Contact us to confirm the full contents of the box.
