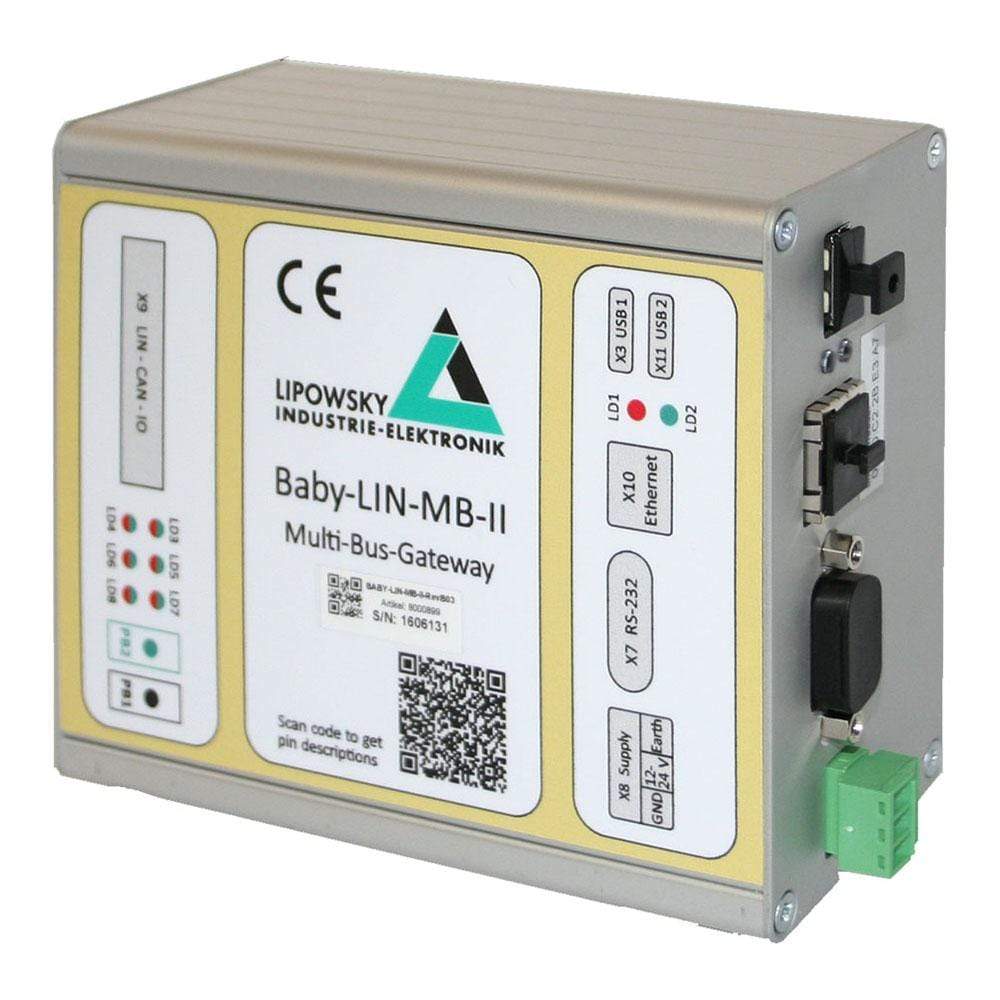

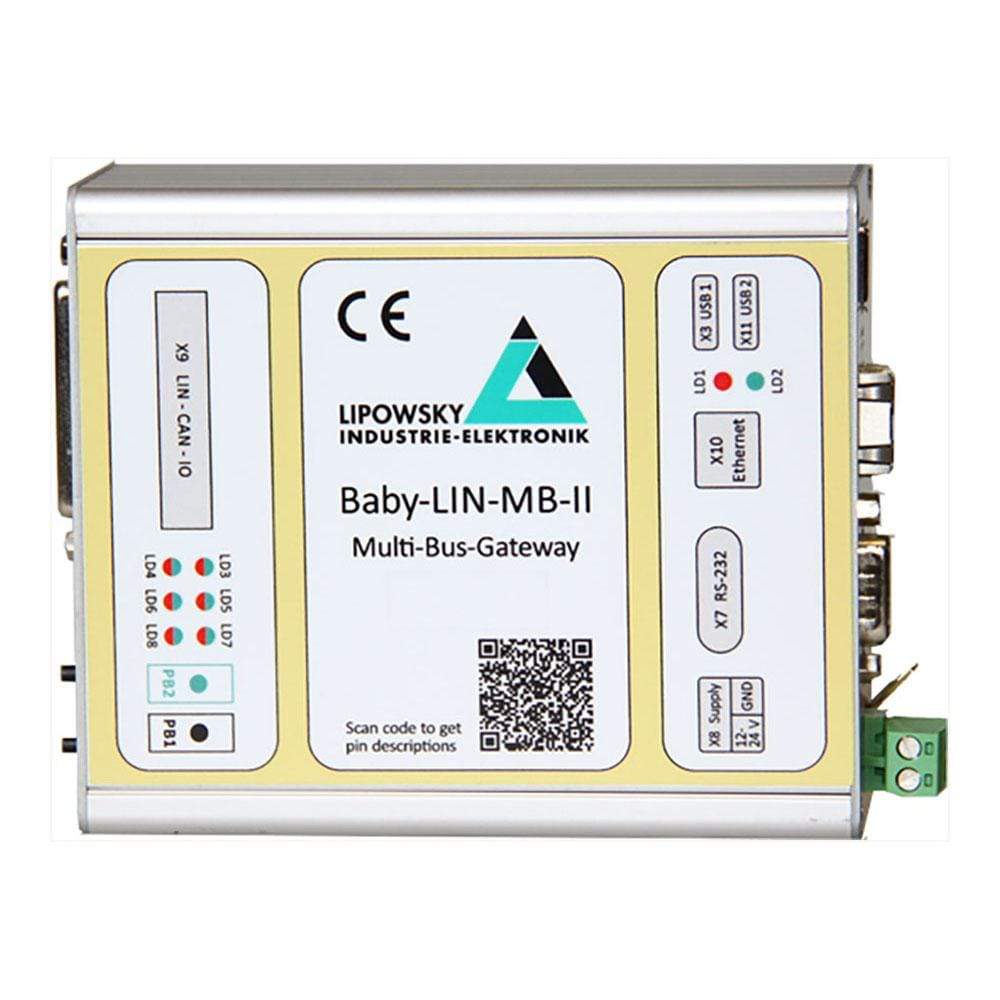

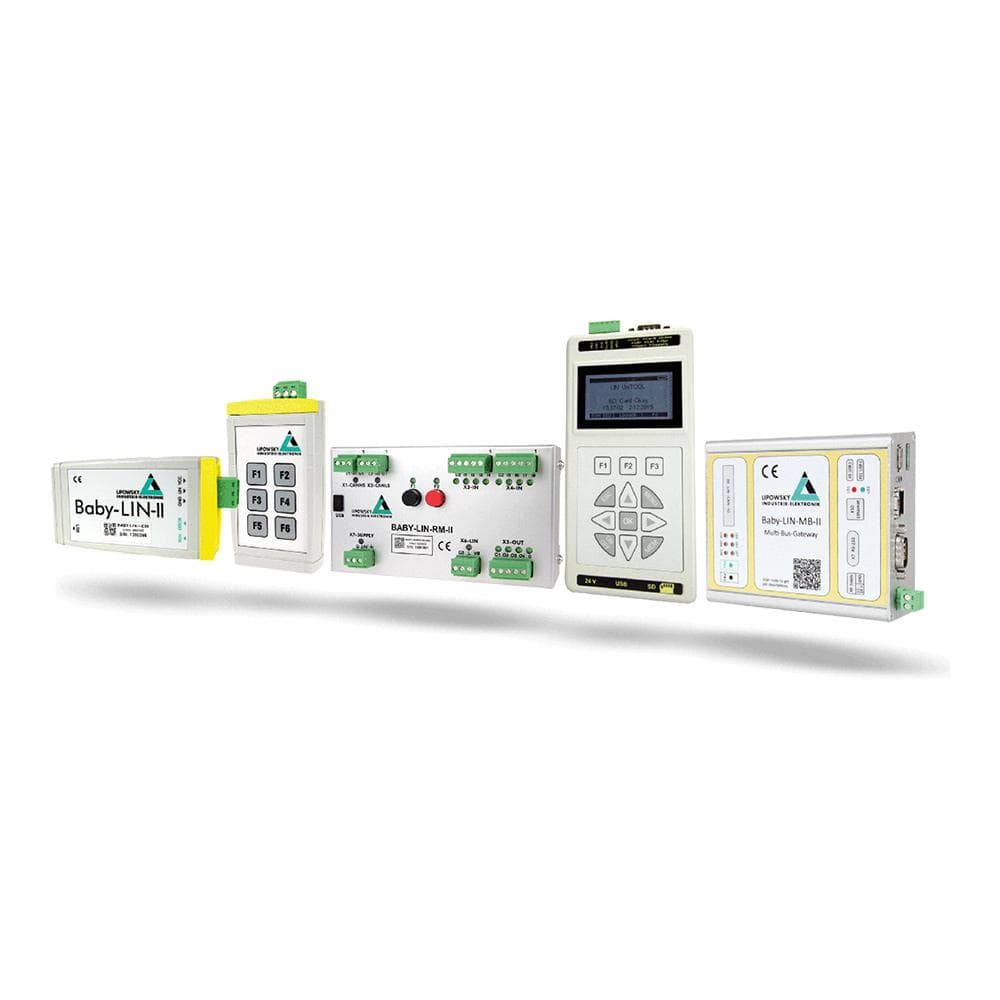

Lipowsky Baby-LIN-MB II CAN/LIN Bus Simulator

Lipowsky Baby-LIN-MB II CAN/LIN Bus Simulator

Product Description

Features

• Linux based system allows for easy adaption of network protocols and remote support options.

• Multi SDF capable, you can switch between different LIN bus configurations by just loading another SDF form the internal flash drive.

• Connection to PLC or host system via ethernet connection or RS-232.

• SDF files or firmware updates are installed on the device by using an USB stick.

• Base version integrated LIN1, LIN2, CAN-High-Speed, RS-232, LAN interface hardware.

• Base version supports LIN1 interface (including SDF-V3), LIN2and CAN support can be activated by separate sold activation keys.

• 2 internal MIF module slots for extension, MIF-LIN-02 module with 2 LIN interfaces allows a total of 6 LIN lines in one device.

• Digital input and digital output available.

• Secure shut down due to integrated USV (15 seconds hold-up time).

• Optional compatibility adapter converts new Sub-D-25 connector pinning to 2 * Sub-D-9 connector pinning of Baby-LIN-MB.

Technical Function

• Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2, as well as CAN high-speed, RS-232 and LAN interface

• LIN interface with 2 MIF-LIN-02 modules and a total of 6 LIN channels

• Input and output with 24V signal for synchronisation purposes

• Integrated UPS with 15 seconds bridging time

• Galvanically isolated LIN and CAN bus interface

• MicroSD card up to 32 GB

• On-board voltages from 8 - 28V

Application Areas

• Application of network protocols and remote maintenance functions for Industry 4.0

• Control of different interfaces via multi SDF capability and 6 LIN bus configurations

• Can be used for PLC coupling, restbus simulation, control unit test, automatic test systems and EOL applications

• Enables gateway functions between LIN and CAN buses

• Stand-alone mode with freely programmable command sequences possible

• Data logging function possible at 100% bus workload

• Remote maintenance for Industry 4.0 through integrated website, SDF upload, log file download, parameter change and firmware update, all possible from anywhere

Software

• Tested with
  • Windows XP
  • Windows Vista
  • Windows 7 (32/64 Bit)
  • Windows 8 (32/64 Bit)
  • Windows 10 (32/64 Bit)
  • Library available for custom applications.
  • Windows (x86 & x64)
  • PC-based Linux (x86 & x64)
  • ARM-based Linux (x86 & x64), especially for the RaspberryPi
  • Native programming e.g. in C/C++ as well as programming in .NET languages, Python, VB6 and LabView using wrappers.
