SKU: LB-MX-BNC-01LinkBone 8x8 BNC Matrix

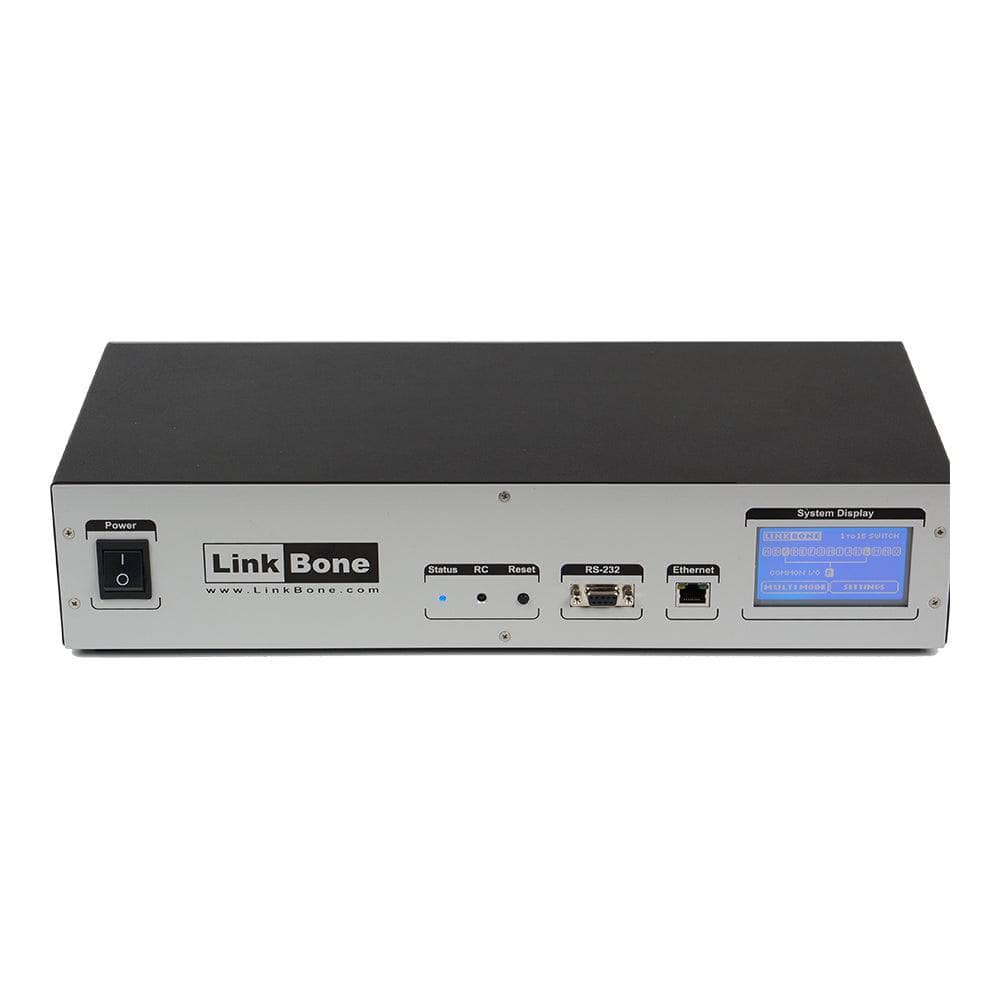

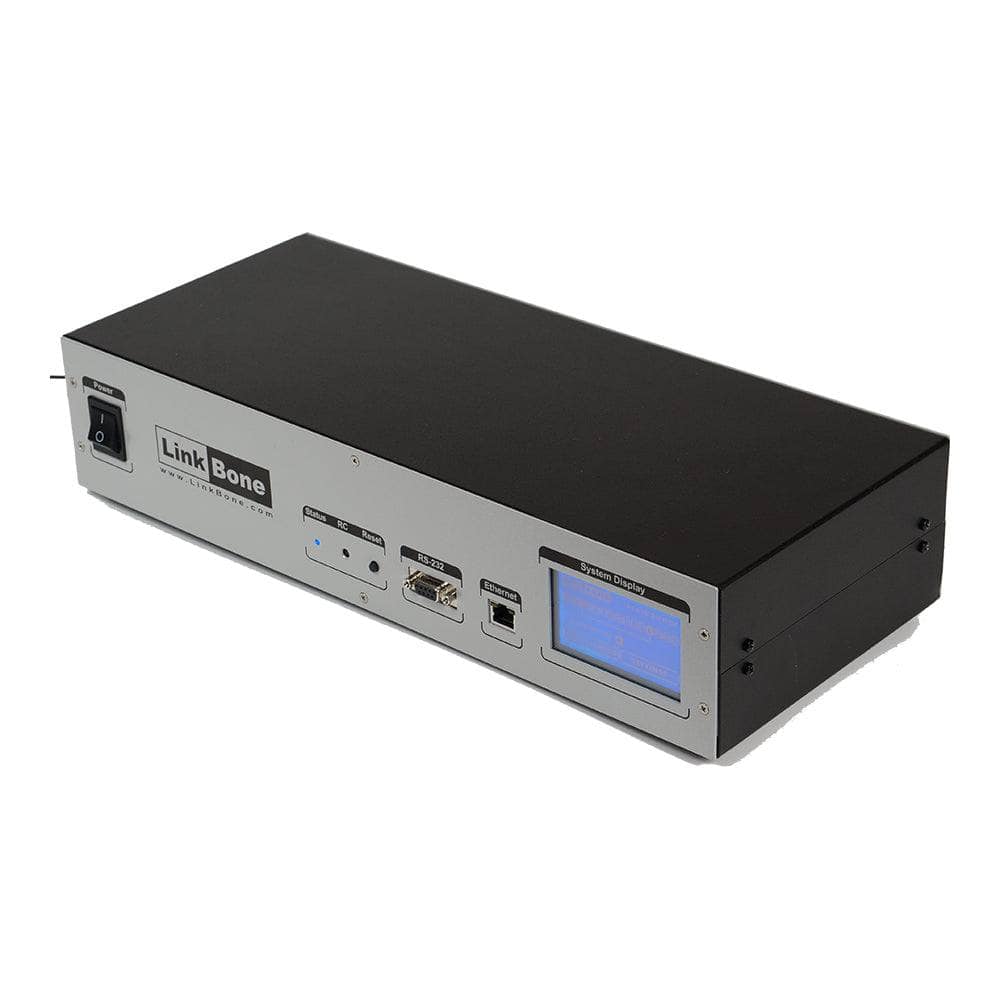

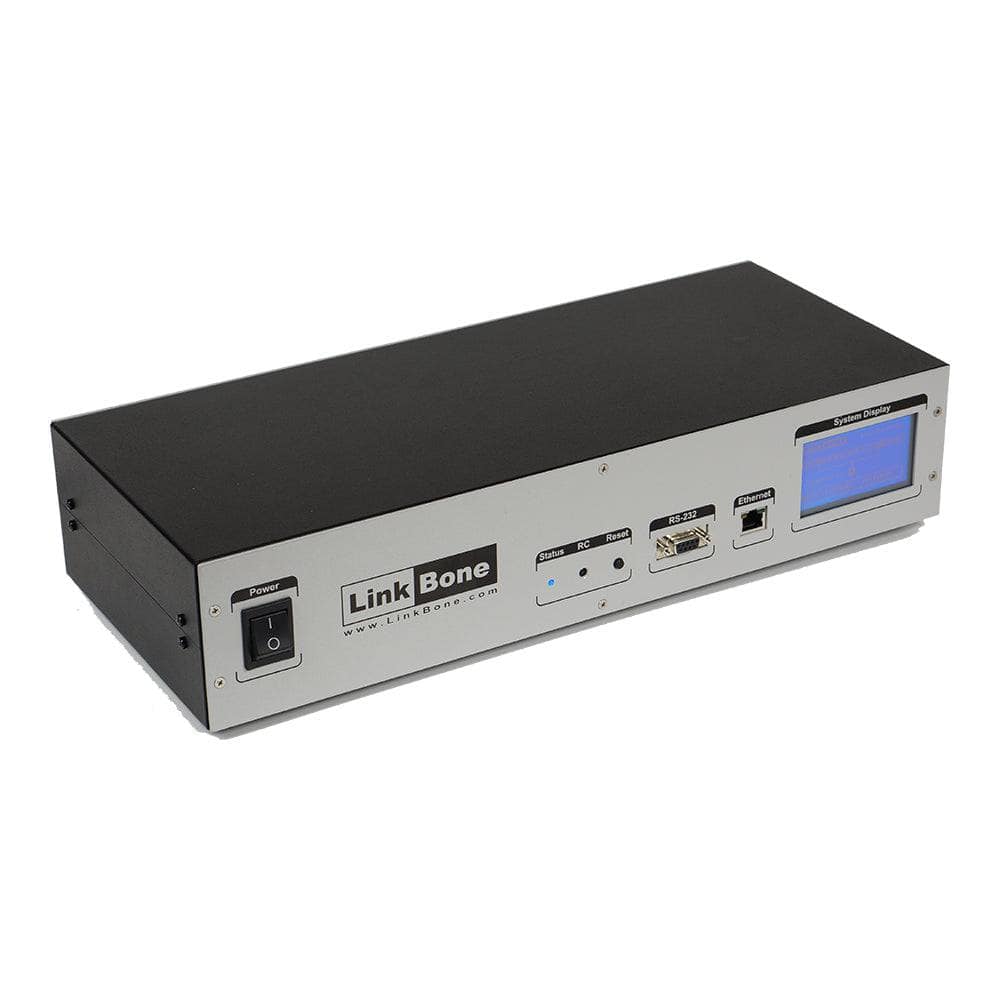

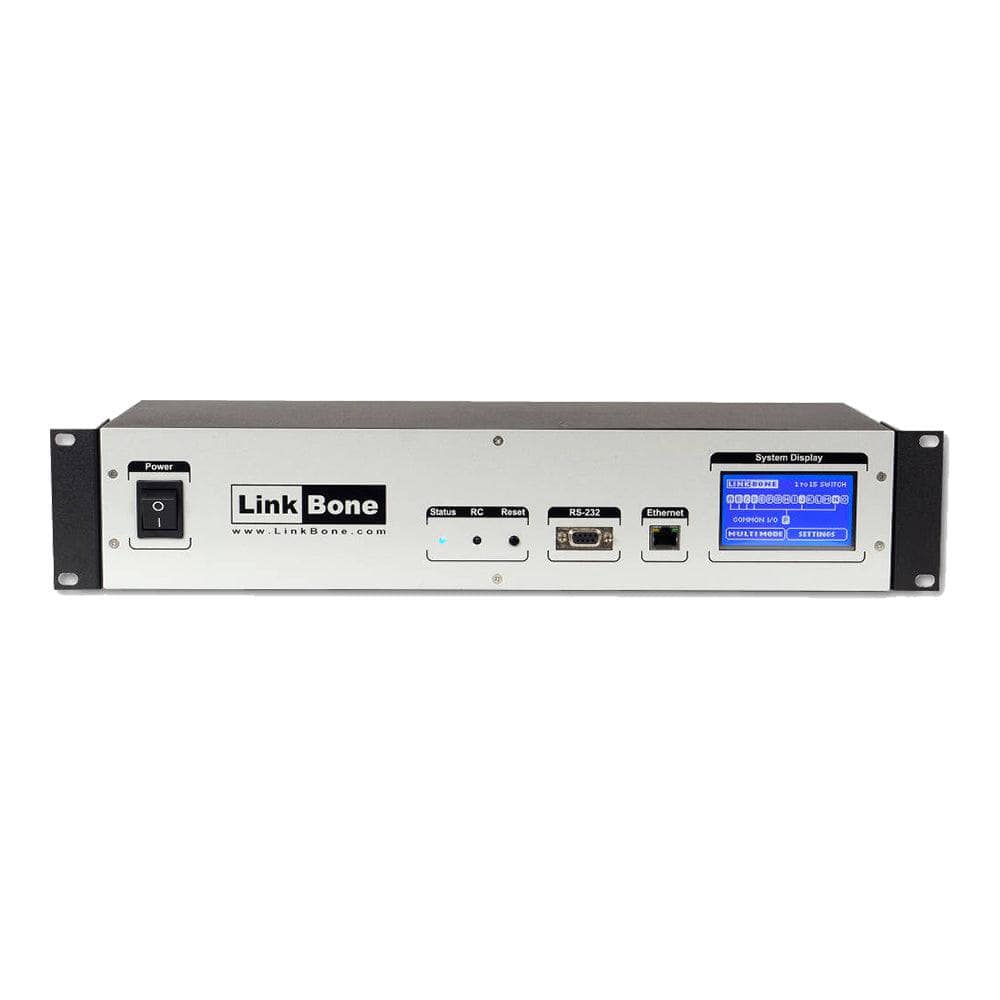

LinkBone 8x8 BNC Matrix
Couldn't load pickup availability
Key Features
- BNC Connectors for Inputs and Outputs
- Bandwidth: DC to 50MHz
- Voltage Range: +/- 24V, 1.5A Load per Port
- Remote Control for easy Selection
The LinkBone 8×8 Matrix allows switching analogue or digital signals between any of eight ports to any eight ports on the other side of the matrix. Each matrix switch state is controlled independently. All lines route electrical signals bidirectionally between ports.
The LinkBone 8×8 Matrix allows switching analogue or digital signals between any of eight ports to any eight ports on the other side of the matrix. Each matrix switch state is controlled independently. All lines route electrical signals bidirectionally between ports
Switch Configuration
The Switch Position and Operating Mode can be changed using the following Methods:

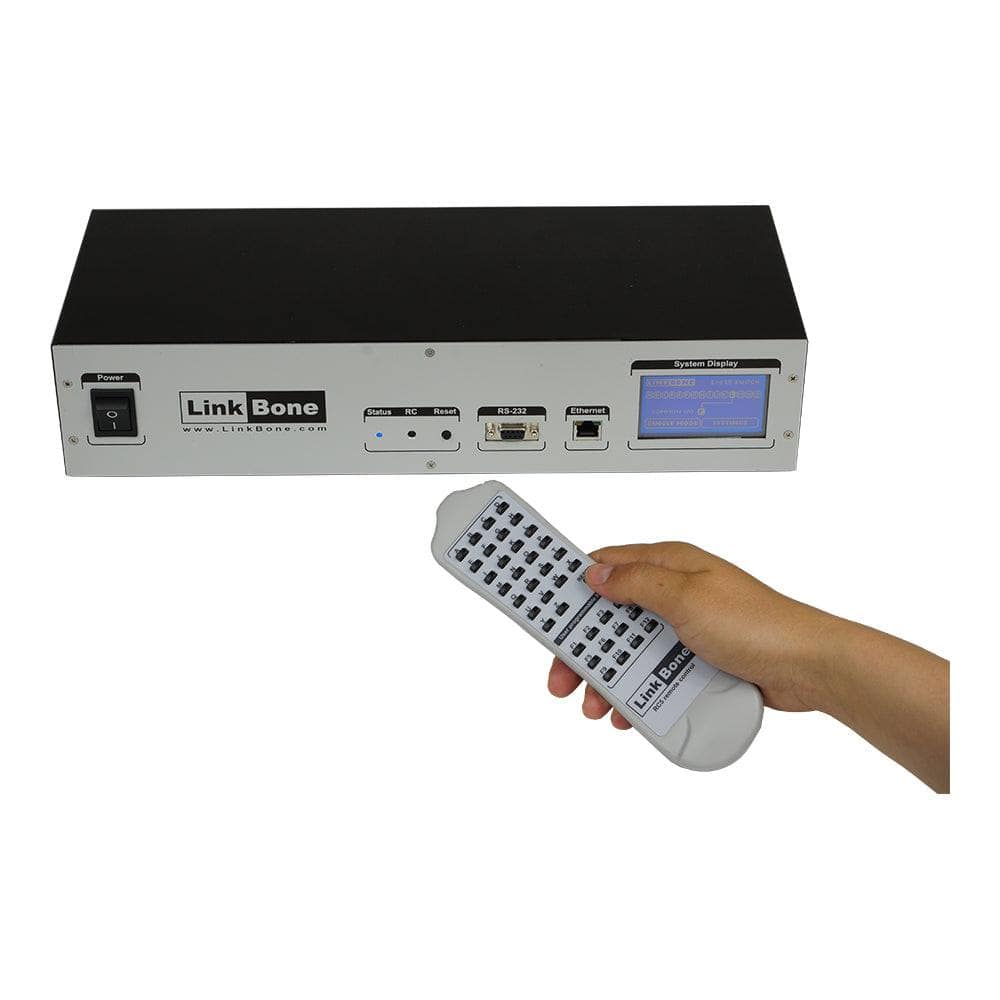

Infrared Remote Control
The LinkBone Matrix Switch comes with an Infrared remote control. This makes it easy for the user to select the switch position quickly.
Built-in Webpage via Ethernet Interface
The LinkBone Matrix Switch can also be controlled remotely from its built-in web server. This allows the switch position to be selected from anywhere in the world via the webpage or Telnet commands from automated controllers
RS-232 Interface
As an alternative, the built-in RS-232 interface can also be used, making it suitable to be connected to PLC controllers etc.
Applications
The LinkBone Matrix Switch is a perfect choice for Test Automation Measurement. The BNC switch can be used in various applications. From video and audio to more complex signals with high amplitudes and frequencies.
