It allows USB signals to be accessed via header pins, making monitoring the USB signals much easier. The accessible signals are: GND D Data D- Data PowerVCC () The USB bridge is also supplied with a standard USB cable (Type A plus to Type B plug). Although designed to be used with ZeroPlus logic/protocol analysers, the USB Bridge can be used with any logic analyser.

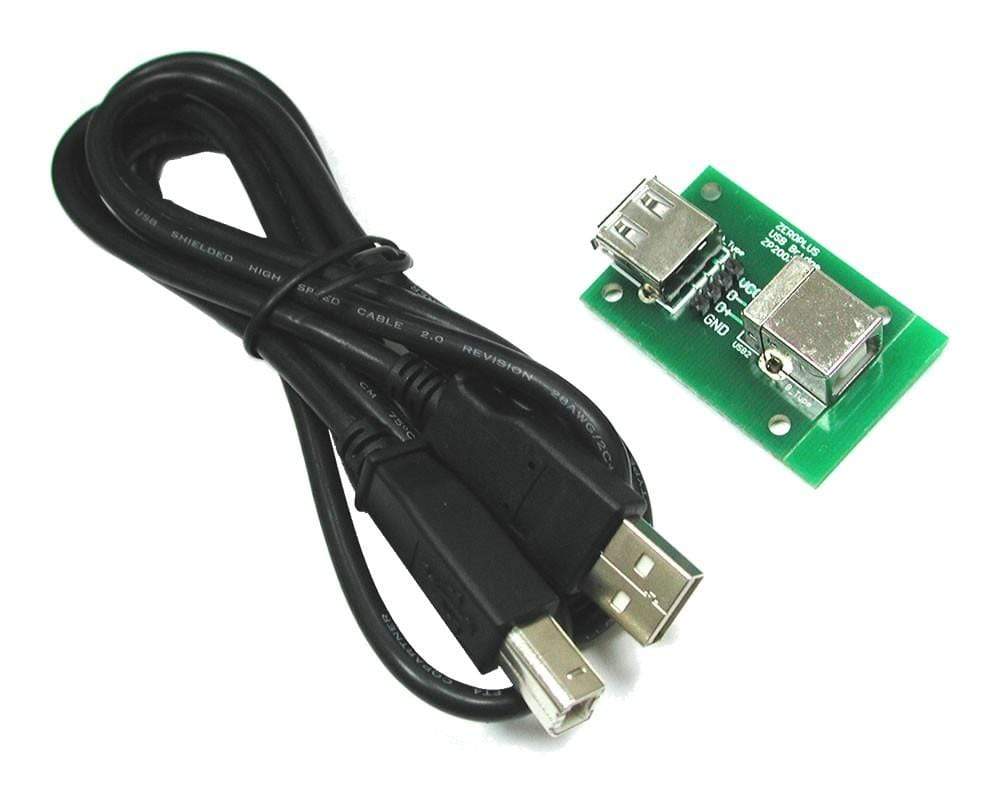

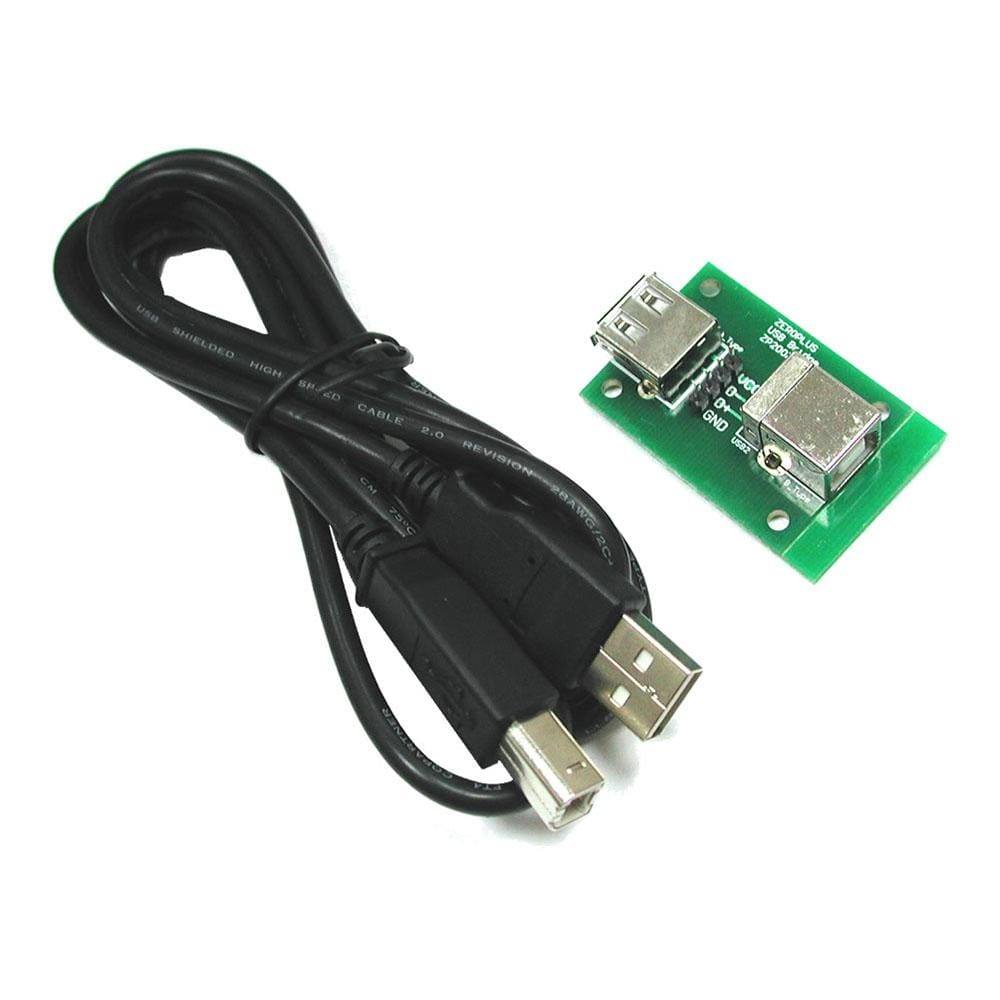

ZeroPlus LAP-USB-KIT USB Breakout Adapter
