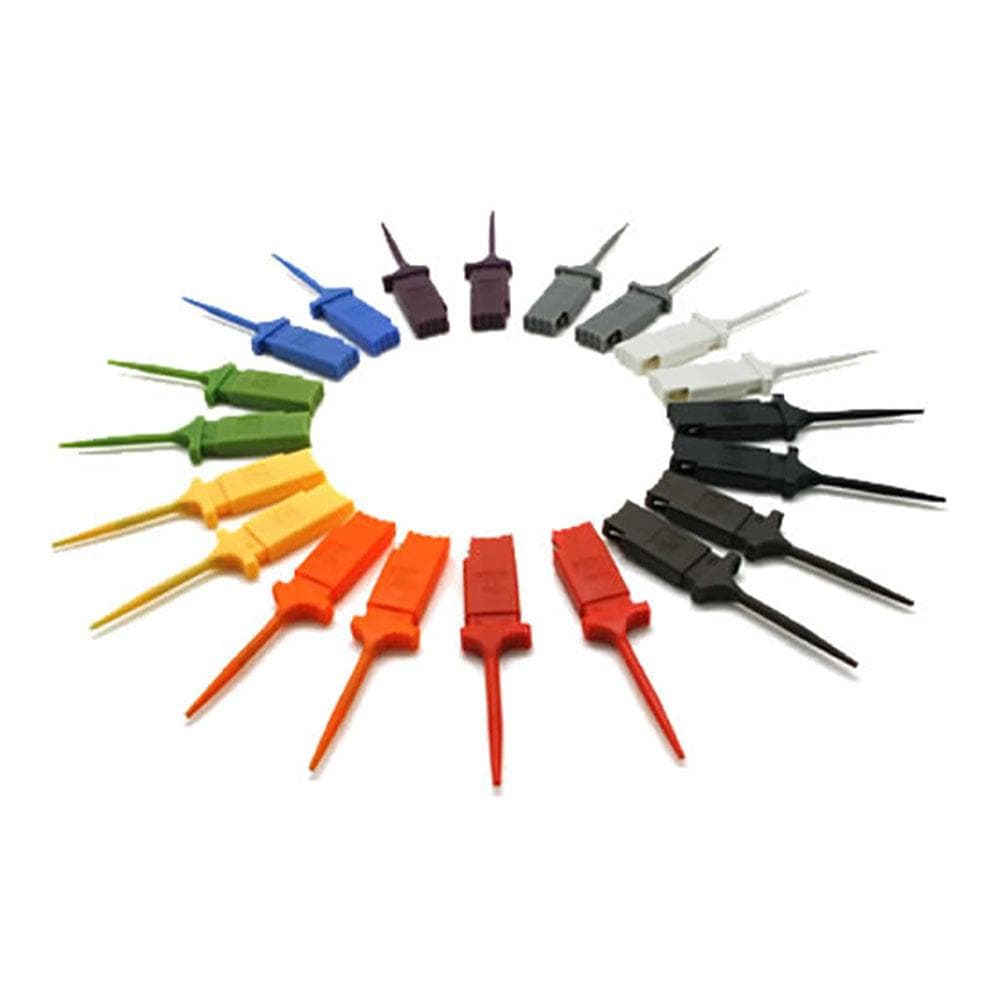

ZeroPlus LAP-PROBE-20 Test Grabbers
ZeroPlus LAP-PROBE-20 Test Grabbers
SKU: LAP-PROBE-20
Couldn't load pickup availability
Key Features
Overview
Professional Test Grabbers for Precision Logic Analysis
The ZeroPlus LAP-PROBE-20 Test Grabbers represent a complete set of 20 high-quality test probes engineered specifically for logic analyzers and digital test equipment. These professional-grade grabber probes provide the reliable signal acquisition essential for electronic design engineers working on embedded systems, protocol analysis, and digital circuit debugging.
Superior Signal Integrity
Each test grabber features optimized impedance characteristics and minimal capacitive loading to ensure accurate signal capture without compromising the device under test. The probes maintain signal integrity at high frequencies whilst providing the mechanical reliability required for professional laboratory and field environments.
Hands-Free Testing Capability
Unlike traditional needle probes, these grabber-style probes secure firmly to test points, component pins, and wire connections, enabling hands-free operation during complex multi-channel logic analysis sessions. The spring-loaded mechanism ensures consistent electrical contact whilst protecting delicate components from damage.
This comprehensive set of 20 test grabbers complements the ZeroPlus logic analyzer family, including the LAP-F1 and LAP-C series, providing engineers with the complete probing solution for professional digital system validation and troubleshooting.
Downloads
Why Engineers Choose The ZeroPlus LAP-PROBE-20 Test Grabbers
Signal Integrity Assurance
Enhanced Productivity
Long-Term Reliability
| General Information | |
|---|---|
Part Number (SKU) |
LAP-PROBE-20
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.1 kg
|
| Other | |
EAN |
5055383606528
|
Questions and Answers
-
Can These Grabbers Connect to Fine-pitch Components and Small Test Points?
The grabbers have a wider contact surface for hooking onto leads and pins. For extremely fine-pitch components, use specialised micro-grabber probes.
-
What Voltage Levels Can These Probes Safely Handle?
ZeroPlus doesn't publish voltage or ESD ratings for the LAP-PROBE-20 grabbers. Check the input voltage range of your logic analyser, and ask us if you need help matching it to your target.
-
How Do These Grabbers Compare to Traditional Needle Probes?
Needle probes need manual positioning. The grabbers clip onto the pin or lead, so you don't need to hold them in place. That avoids measurement errors from probe movement and suits multi-channel analysis sessions.
-
What Maintenance Is Required for These Test Grabbers?
Very little. Keep the contacts clean with isopropyl alcohol and check for mechanical wear.
-
Can These Probes Be Used with Other Manufacturers' Logic Analyzers?
ZeroPlus doesn't state compatibility with other manufacturers' logic analysers. The pack is sold for ZeroPlus equipment, so check that the clips suit your analyser's probe leads before buying.
-
Are These Test Grabbers Compatible with All ZeroPlus Logic Analyzer Models?
ZeroPlus lists the 20-piece grabber pack for its LAP-C and LAP-B series. For the LAP-C Pro, the LAP-F1 and other models, ask us to confirm before buying.
-
What Is the Maximum Frequency These Probes Can Accurately Capture?
ZeroPlus doesn't publish a bandwidth figure for the grabbers. The usable capture rate depends on your logic analyser's input bandwidth and your probe wiring.
-
How Much Capacitive Loading Do These Probes Add to the Circuit Under Test?
ZeroPlus doesn't publish capacitance figures for the grabbers. Check the input capacitance of your logic analyser's probes, as the grabbers add to the load on the circuit under test.
