IrDA 2 Board

Overview

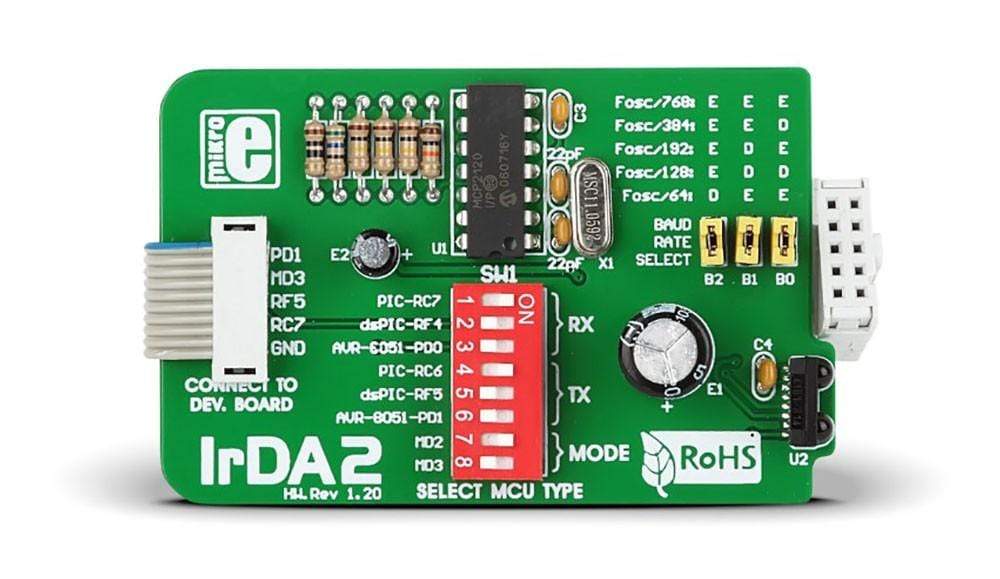

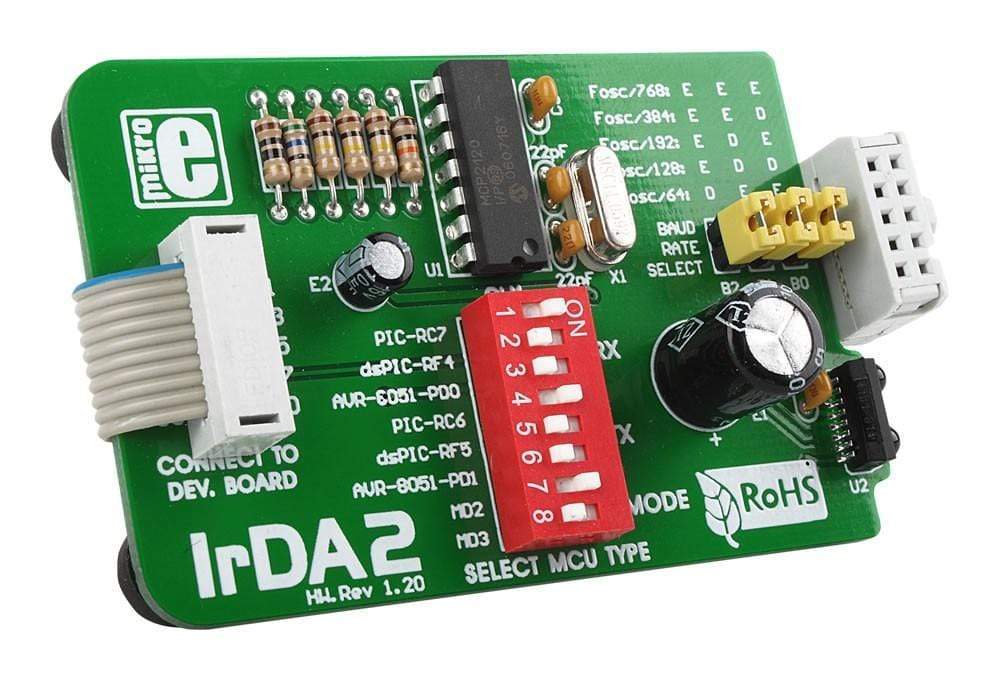

Introduce an easy and compact solution for adding infrared communication functionality to the user design by using the IrDA2 Board. This board comes integrated with an MCP2120 infrared encoder/decoder connected with the external crystal as well as TFDU4101 infrared transceiver module. The IR encoder/decoder is placed between the UART and infrared optical transceiver and performs modulation/demodulation in accordance with the IrDA standard. The infrared transceiver is module compliant to the latest IrDA physical layer standard, supporting IrDA speeds up to 115.2 kbit/s. High on performance and low cost, the IrDA2 Board encodes the data received from a standard UART and outputs as electrical pulses to the IR transceiver. This IR transceiver also receives data which it outputs as electrical pulses that the MCP2120 decodes and then transmits the data through the MCP2120 UART communication interface. The user can configure pins to be used for RX/TX and set the MODE pin of the MCP2120 using the DIP switches. The IrDA2 Board is designed to use both 3.3V and 5V power supplies.

It is an ideal choice for wireless infrared data communication with PC or other devices, remote controllers for home appliances and so on.
