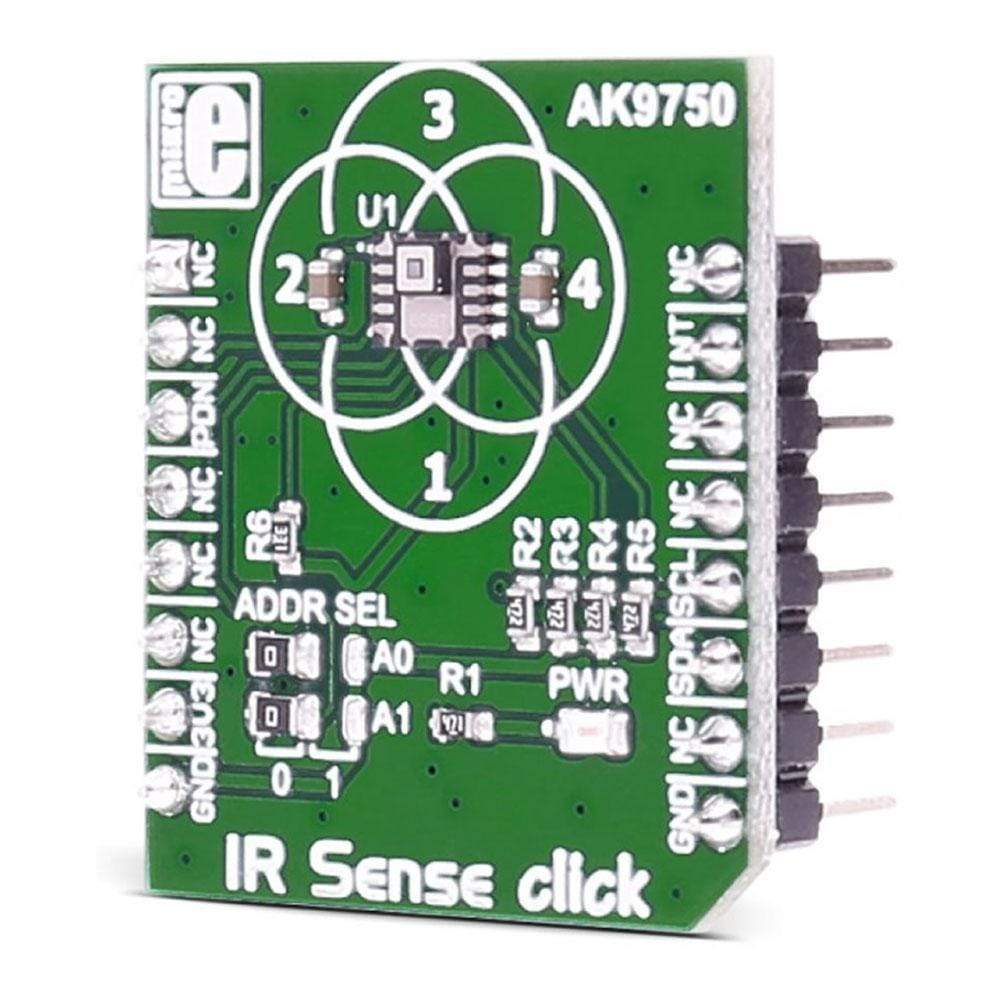

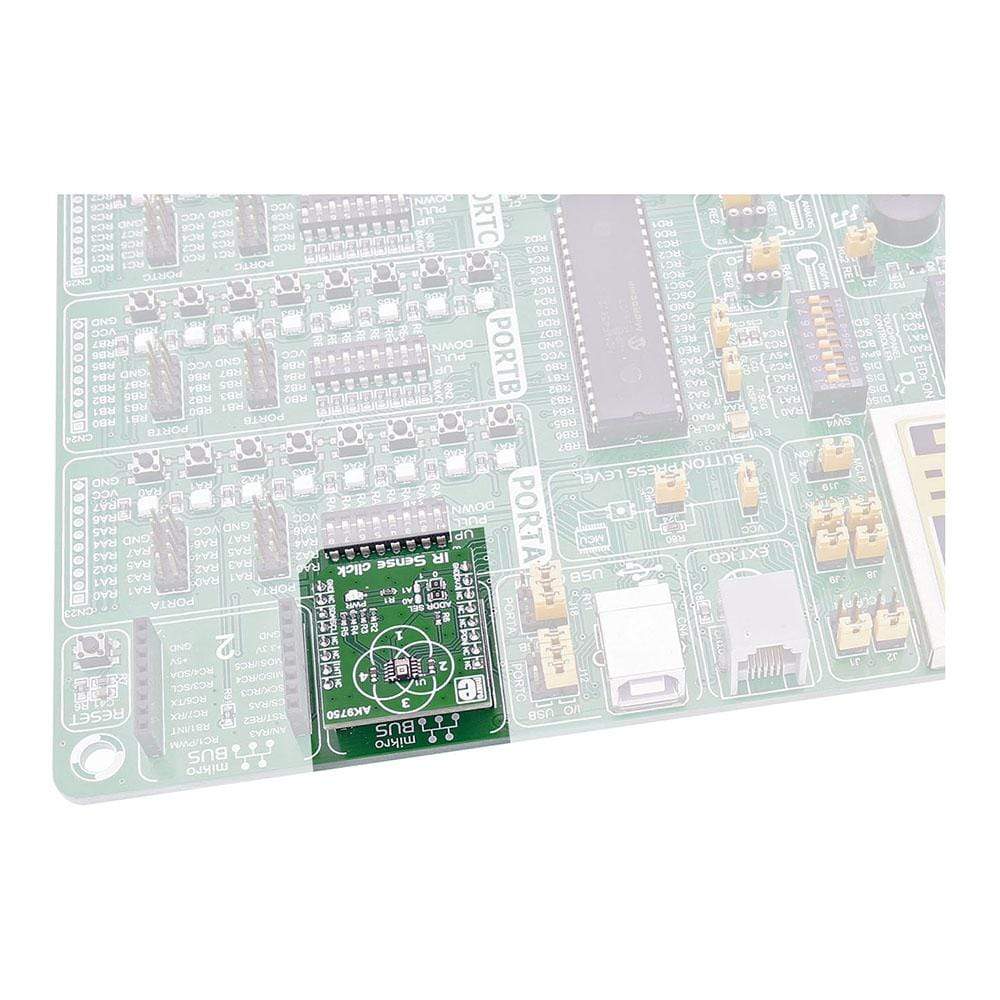

Overview
The IR Sense Click Board™ utilises the AK9750 quantum-type IR sensor. The Click Board™ is designed to run on a 3.3V power supply.
It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the MikroBUS line.
The IR Sense Click Board™ carries the AK9750 quantum-type IR sensor. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.
The IR Sense Click Board™ detects the temperature of objects and people in motion. It can also detect a human body that remains still. So, it distinguishes heat regardless of the fact whether or not an object is moving.
AK9750 FEATURES
The AK9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.
An integral analog-to-digital converter provides 16-bits data outputs. Additional integrated features include a field of view limiter and an optical filter.
How Does The IR Sense Click Board™ Work?
The IR sensors are arranged as shown. Each sensor detects the diagonal area, as indicated in the image below:

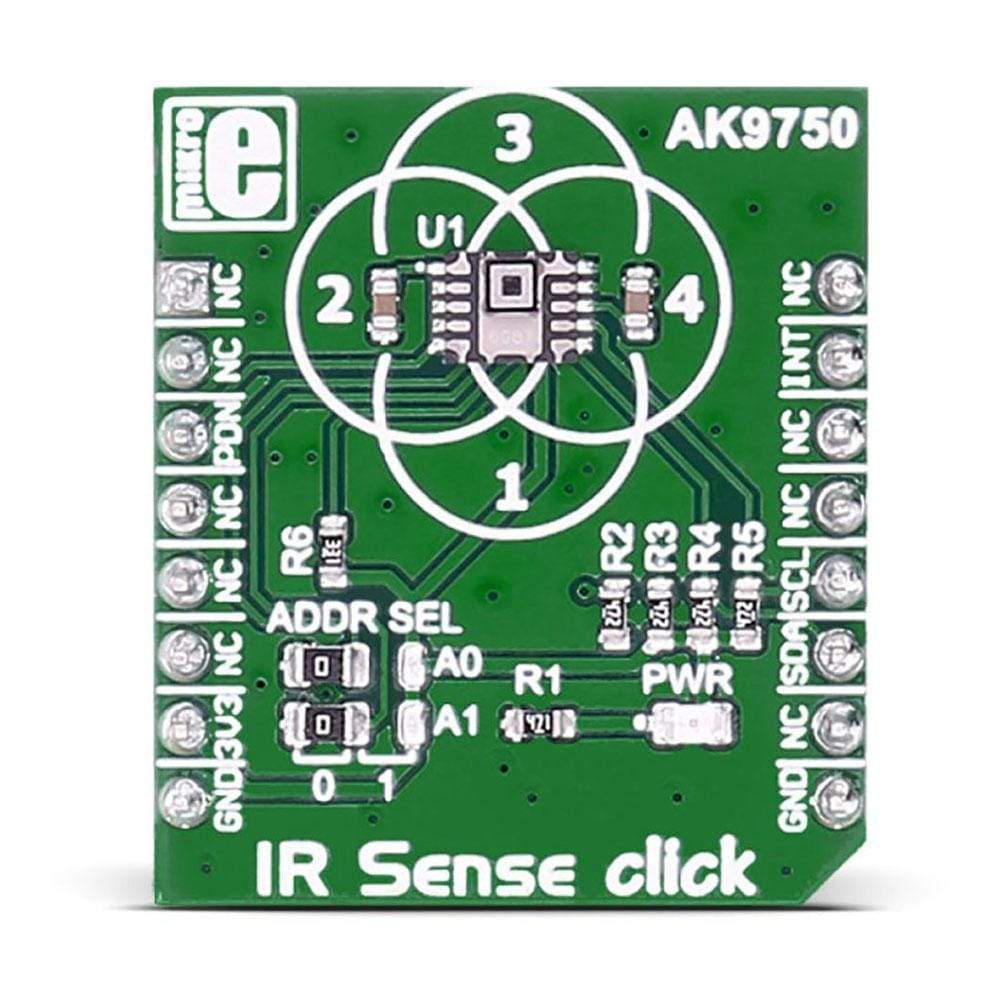

The observable area of the four sensors is as you see it on the silk of the IR Sense Click Board™.
SPECIFICATIONS
| Type | Temperature & humidity |
| Applications | Detecting heat with the four IR sensors |
| On-board modules | AK9750 IR sensor |
| Key Features | Low current consumption: Max. 1µA in Power down Mode; Integrated temperature sensor, 16-bits Digital Outputs to I2C bus |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V |

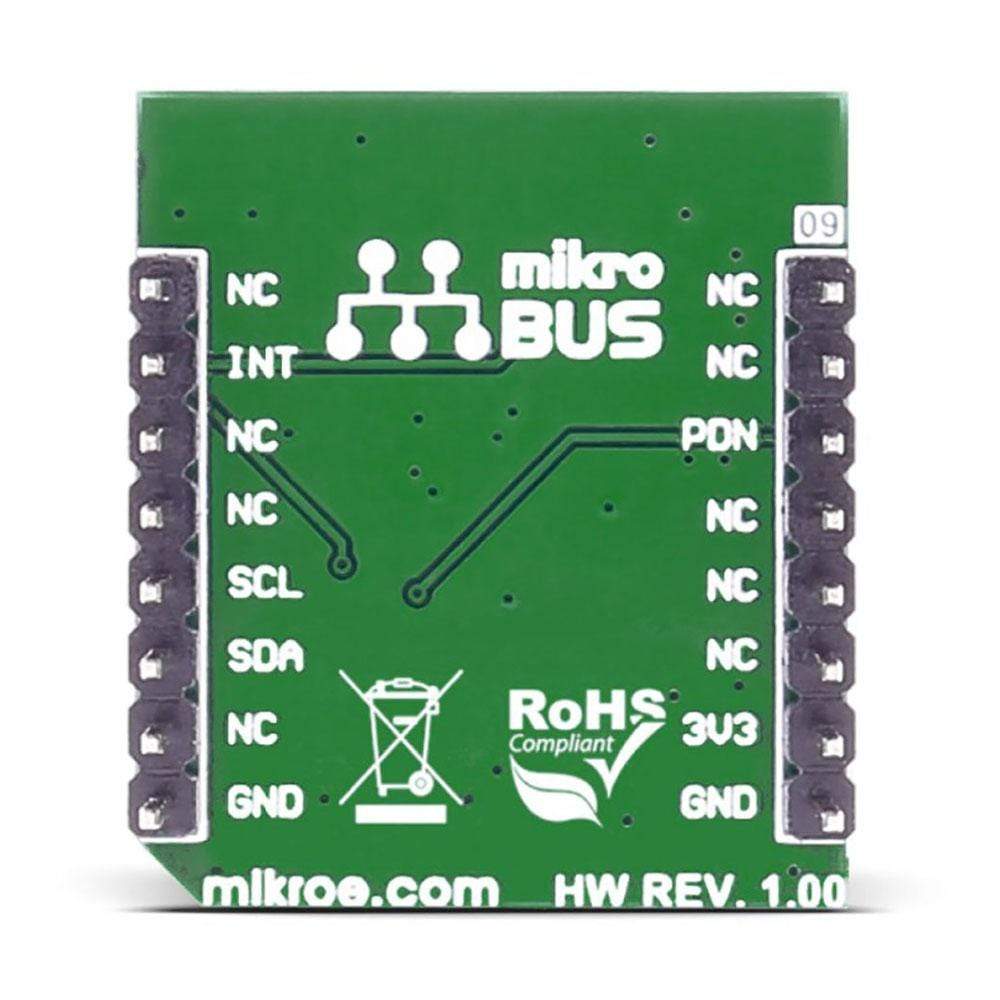

PINOUT DIAGRAM
This table shows how the pinout on the IR Sense Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin | ![]() |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| ALR | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | INT | Interrupt | |
| Power down pin | PDN | 3 | CS | TX | 14 | NC | |
| NC | 4 | SCK | RX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | SCL I2C line | |
| NC | 6 | MOSI | SDA | 11 | SDA | SDA I2C line | |
| Power supply | +3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
JUMPERS AND SETTINGS
| Designator | Name | Default Position | Default Option | Description |
|---|---|---|---|---|
| A0 | A0 | Left | 0 | Selection of I2C address bit 0 |
| A1 | A1 | Left | 1 | Selection of I2C address bit 1 |
| Overview | |
|---|---|
| Category | Temperature & humidity |
| Applications | Detecting heat with the four IR sensors |
| Key components | |
| On-board modules | AK9750 IR sensor |
| Interfaces | |
| Interface | I2C |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Additional specifications | |
| Low current consumption | Max. 1µA in Power down Mode; Integrated temperature sensor, 16-bits Digital Outputs to I2C bus |
| Ordering information | |
| Part number (SKU) | MIKROE-2677 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606018711024 |
| Warranty | 12 months |
| Shipping weight | 0.017 kg |
-
1 ×
IR Sense Click Board™
Contact us to confirm the full contents of the box.
