Heart Rate 4 Click Board
Heart Rate 4 Click Board
Couldn't load pickup availability
The Heart Rate 4 Click Board™ is based on the Maxim MAX30101 high-sensitivity pulse oximeter and a heart-rate sensor. The Click Board™ is designed to run on either a 3.3V or 5V power supply.
It communicates with the target MCU over the I2C interface, with additional functionality provided by the INT pin on the MikroBUSline.

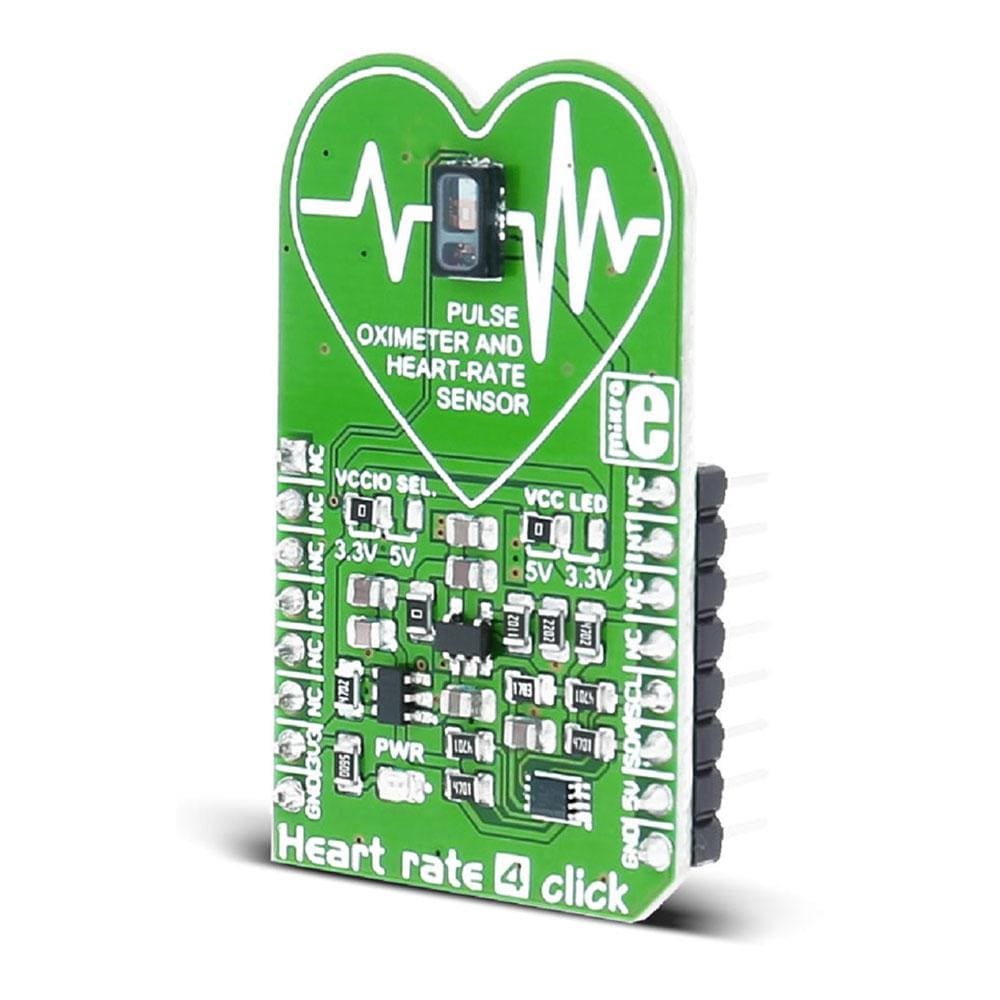

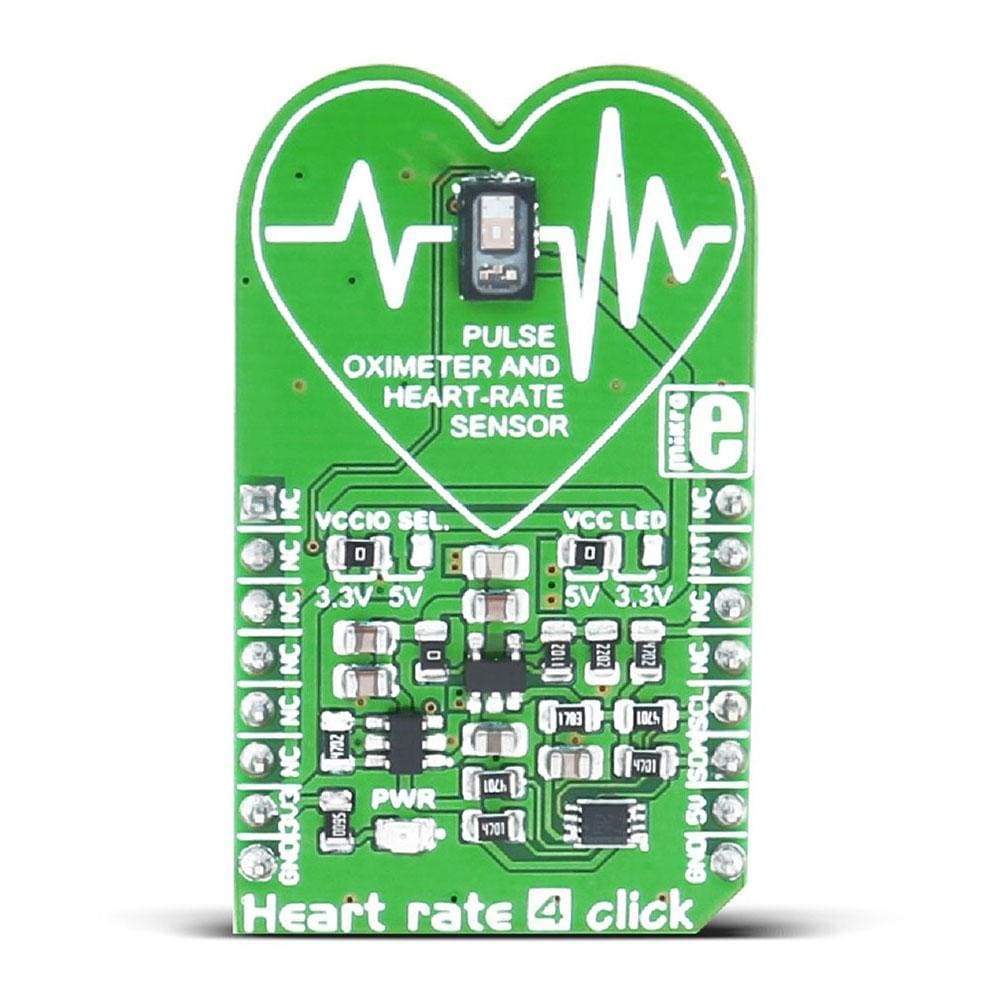

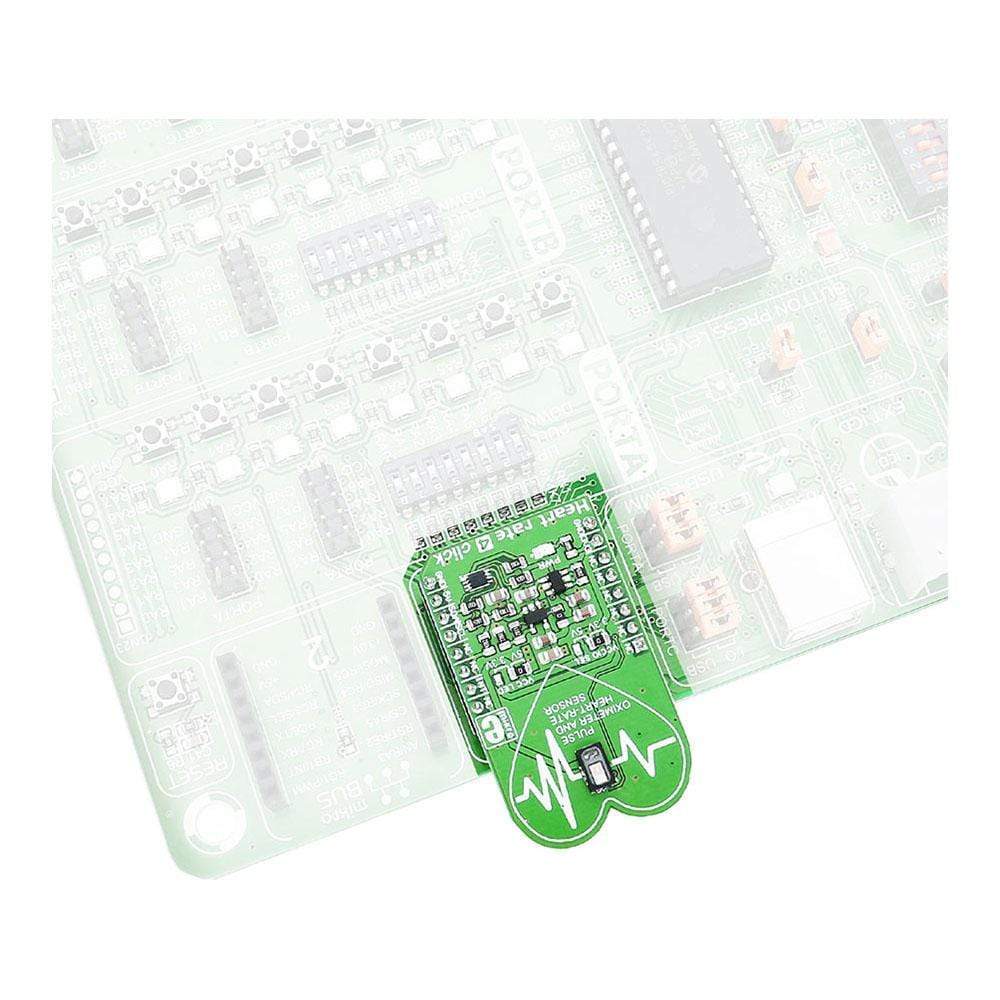

The Heart Rate 4 Click Board™ carries the MAX30101 high-sensitivity pulse oximeter and heart-rate sensor from Maxim Integrated. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over I2C interface, with additional functionality provided by INT pin on the mikroBUS™ line.
MAX30101 SENSOR FEATURES
The MAX30101 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.
The MAX30101 integrates red, green, and IR (infrared) LED drivers to modulate LED pulses for SpO2 and HR measurements. The LED current can be programmed from 0 to 50mA with proper supply voltage.
The device includes a proximity function to save power and reduce visible light emission when the user's finger is not on the sensor.
The MAX30101 has an on-chip temperature sensor for calibrating the temperature dependence of the SpO2 subsystem. The temperature sensor has an inherent resolution 0.0625°C.
PULSE OXIMETRY OR SPO2
Oxygen-saturated blood absorbs light differently than unsaturated blood. Pulse oximeters measure the oxygen saturation in one's blood. Or to put it more precisely the percentage of hemoglobin molecules in blood that is saturated with oxygen.
In a healthy adult, this readings go from 94% to 100%.
How Does The Heart Rate 4 Click Board™ Work?
Since oxygen-saturated blood absorbs more infrared light than red light, and unsaturated blood absorbs more red light than infrared light, the SpO2 readings are calculated by the comparison of the amount of these two types of light.
It is best to use your finger for measurement.
THE SAME SENSOR AS HEXIWEAR
Did you know that this click carries the same sensor as Hexiwear?
When you place your wrist or fingertip over the slit on Hexiwear, the MAX30101 sensor measures the light absorbance of pulsing blood through a photodetector and derives heart-rate info. Current firmware version is able to show rough estimates.
MIKROPLOT
You can use the MikroPlot visualization tool (Windows) to generate a graph from the data sent from the MCU.
A UART-USB connection is required.
SPECIFICATIONS
| Type | Biometrics,Heart Rate |
| Applications | wearable devices, fitness assistant devices, biomedical devices, etc. |
| On-board modules | MAX30101 high-sensitivity pulse oximeter and heart-rate sensor |
| Key Features | Pulse oximetry or SpO2, low power consumption, programmable sample rate |
| Interface | GPIO,I2C |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

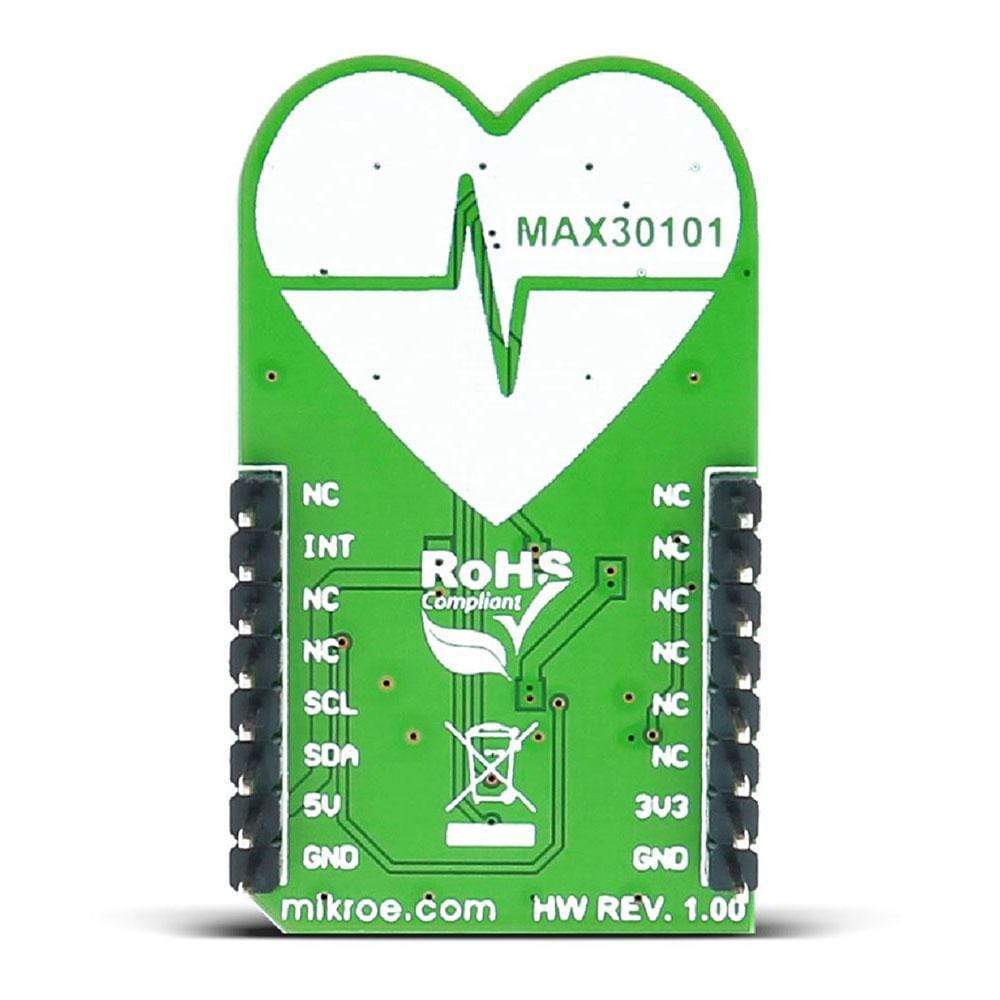

PINOUT DIAGRAM
This table shows how the pinout on the Heart Rate 4 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | INT1 | Active-Low Interrupt (Open-Drain) | |
| NC | 3 | CS | TX | 14 | NC | ||
| NC | 4 | SCK | RX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL1 | 2C Clock Input | |
| NC | 6 | MOSI | SDA | 11 | SDA1 | I2C Clock Data, Bidirectional (Open-Drain) | |
| Power supply | +3.3V | 7 | 3.3V | 5V | 10 | +5V | Power supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
JUMPERS AND SETTINGS
| Designator | Name | Default Position | Default Option | Description |
|---|---|---|---|---|
| J2A | VLED | LEFT | 5V | With this jumper we determine the LED diodes supplied with 3.3V or 5V. |
Software Support
Code examples for the Heart Rate 4 Click Board™, written for MikroElektronika hardware and compilers are available on Libstock.
CODE SNIPPET
This code snippet initializes the system and display, initializes the board and sets I2C registers. New data from the sensor is collected in a endless loop, via polling and sent via UART to MikroPlot when we are in active heart rate mode.
01 void main( void )
02 {
03 system_init();
04 display_init();
05 hr4_init();
06 hr4_set_registers();
07
08 TFT_Set_Font( &HandelGothic_BT21x22_Regular, CL_RED, FO_HORIZONTAL );
09 TFT_Write_Text( "Use MikroPlot Graph Generator", 10, 100 );
10 TFT_Set_Font( &HandelGothic_BT21x22_Regular, CL_BLUE, FO_HORIZONTAL );
11 TFT_Write_Text( "Place Finger On Sensor", 19, 170 );
12
13 while ( true )
14 {
15 // Clearing the interrupt by reading the Interrupt Status 1
16 if ( hr4_is_new_fifo_data_ready() & 0x1 ) read_f = true;
17
18 if ( read_f ) // If INT was emitted
19 {
20 read_f = 0;
21
22 if ( !start_f ) // First start
23 {
24 start_f = true;
25 InitTimer1(); // Initializing Timer 1
26 LOG("STARTrn"); // Sending START command to uPlot
27 }
28
29 red_sample = hr4_read_red(); // Read RED sensor data
30
31 LongToStr(miliseconds_counter , txt_milis);
32 LongToStr(red_sample , txt_val);
33 Ltrim(txt_val);
34 Ltrim(txt_milis);
35
36 // If sample pulse amplitude is under threshold value ( proximity mode )
37 if ( red_sample > 0 && red_sample < 32000 )
38 {
39 stop_f = true;
40 if ( !no_finger_f )
41 {
42 TFT_Rectangle( 19, 170, 310, 200 );
43 TFT_Write_Text( "Place Finger On Sensor", 19, 170 );
44 }
45
46 no_finger_f = true;
47 }
48
49 // If finger is detected ( we are in active heart rate mode )
50 else if( red_sample != 0)
51 {
52 stop_f = false;
53
54 if ( no_finger_f )
55 {
56 TFT_Rectangle( 19, 170, 310, 200 );
57 TFT_Write_Text( "Generating Graph...", 19, 170 );
58 }
59
60 no_finger_f = false;
61
62 // Sending data to MikroPlot in format:[pulse_value, milis] via UART
63 LOG(txt_val);
64 LOG(",");
65 LOG(txt_milis);
66 LOG("rn");
67 }
68 }
69 }
70 }
