Overview
Powered by USB Interface. Plug and Play Device.
Automatically Measurement Function. Easy for Operation;
Change the Voltage/Time Division Gear with a Single Hand.
No Need to Operate on the Computer;
Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
Light Weight and Ergonomic
DVM Function, Real-time Display the Voltage Measurement Results;
20MHz Bandwidth. Meet the Requirements of Measurement;
Different Kinds of Language Available.
20 Types of Auto Measurement Function, Pass/Fail Function;
Downloads
User Manuals
- Details

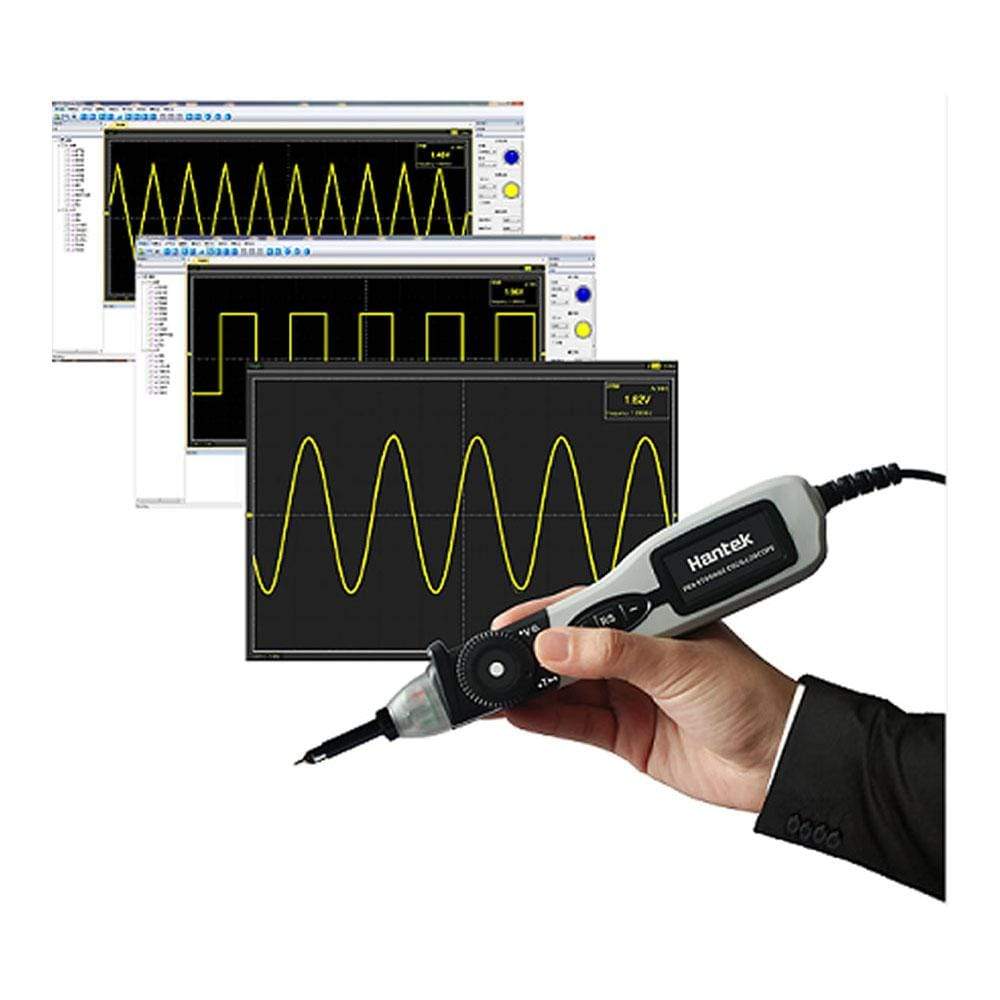

Hantek PSO-2020 USB Handheld Oscilloscope
|
Channel |
1 |
|
Bandwidth |
20MHz |
|
Input Impedence |
1MΩ |
|
Input Sensitivity |
20mV/div to 50V/div |
|
Input Coupling |
DC/AC/GND |
|
Vertical Accuracy |
±3% |
|
Resolution |
8 bits |
|
Memory Depth |
Maximum 1M/CH |
|
Max. Measurement Voltage |
±50V(Without any attenuation) |
|
Input Protection |
100V (DC+AC Peak) |
|
Horizontal |
|
|
Max. Sample Rate |
96MSa/s |
|
Time Base Range |
1ns/div to 5000s/div(Step by 1-2-5) |
|
Trigger |
|
|
Trigger Source |
CH1 |
|
Trigger Type |
Edge Trigger |
|
Cursor and Measurement |
|
|
Voltage Measurement |
Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, |
|
Time Measurement |
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
|
Math |
+,- , x,÷, FFT |
|
Voltage Range |
20mV to 20V/div @ x 1 probe |
|
Others |
|
|
FFT |
Rectangular, Hanning, Hamming, Blackman |
|
Auto Set |
Yes |
|
Interface |
USB 2.0 |
|
Power Supply |
USB Power Supply |
|
Volume |
200x120x 35(mm) |
| Acquisition | |
|---|---|
| Bandwidth | 20 MHz |
| Analogue channels | 1 |
| Sample rate | 96 MSa/s |
| Memory depth | 1 Mpts per channel (maximum) |
| Vertical resolution | 8 bits |
| Inputs | |
| Input impedance | 1 MΩ |
| Maximum input voltage | ±50 V (without attenuation) |
| Interfaces | |
| Interfaces | USB 2.0 |
| Power source | USB powered |
| Software | |
| Software | Windows NT, 2000, XP, 7, 8 |
| Physical | |
| Dimensions | 200 x 120 x 35 mm |
| Ordering information | |
| Part number (SKU) | PSO-2020 |
| Manufacturer | Hantek Electronic Co Ltd |
| EAN | 5055383611003 |
| Warranty | 12 months |
-
