Overview

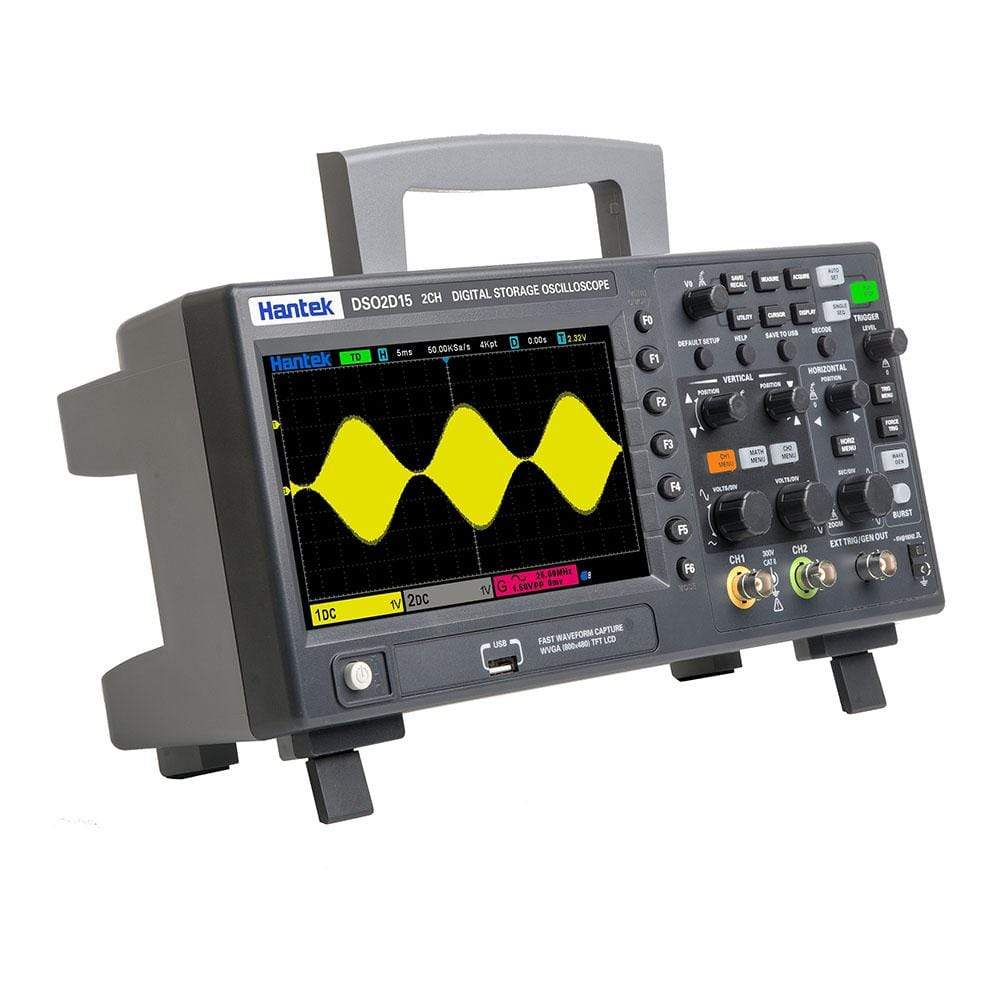

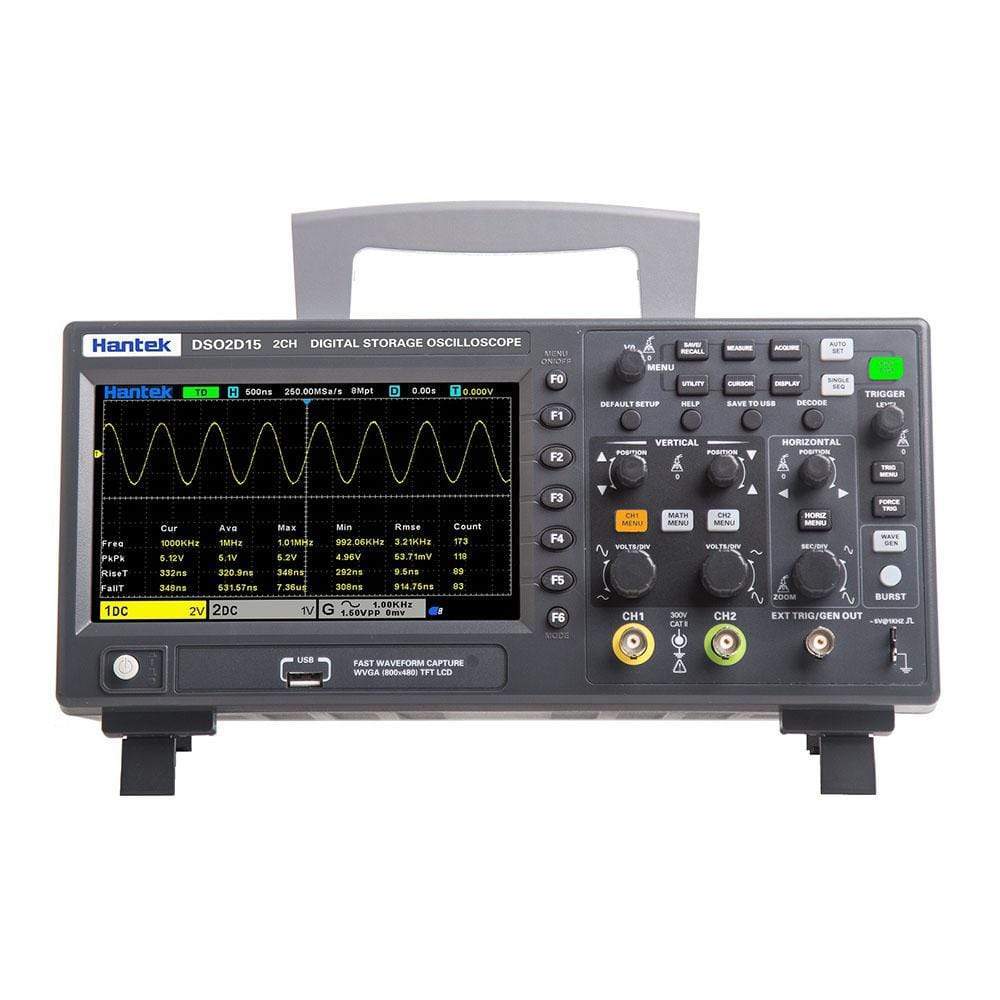

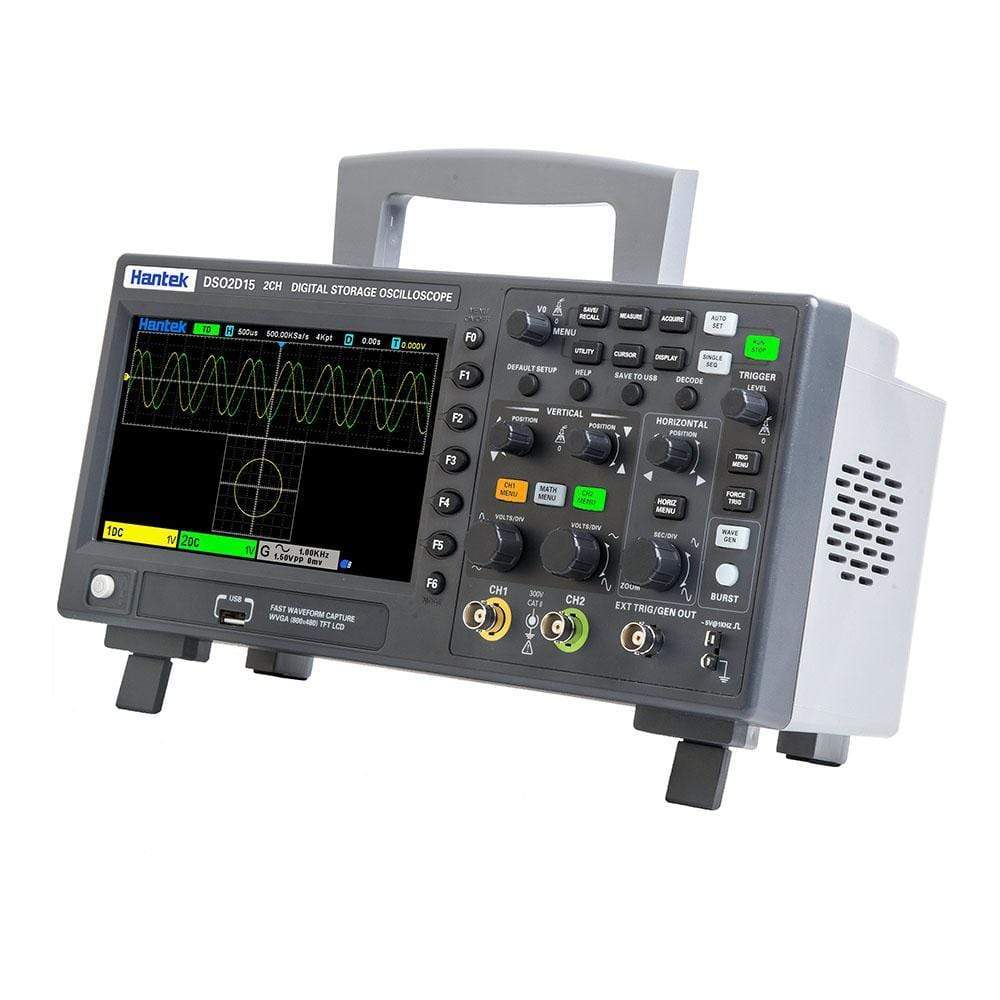

The new Hantek DSO-2D15 Digital Oscilloscope offers excellent value for money. Aimed at the amateur developer, it offers 2-Channels with 150MHz bandwidth and a 1GSa/s sample rate. It also includes serial decodes and triggers for UART, LIN Bus, CAN Bus, I2C and SPI Interfaces

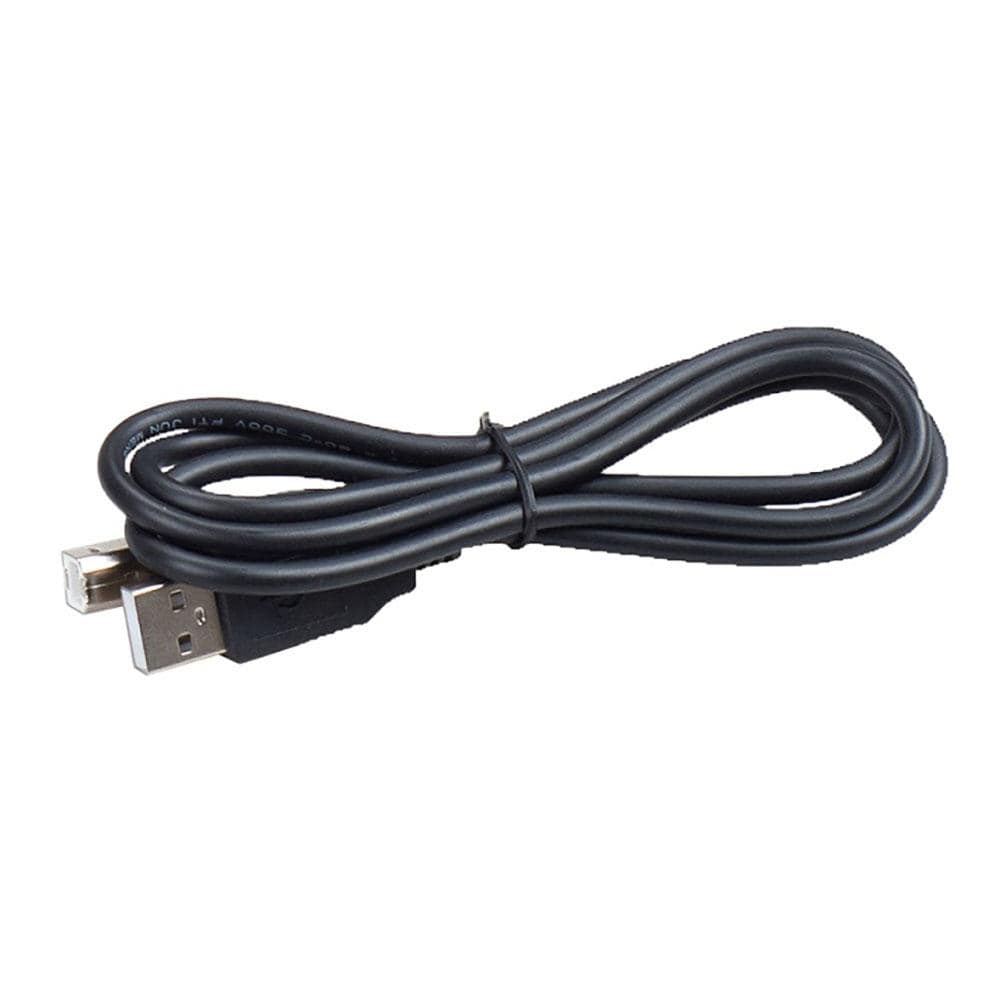

It also has a built-in 25MHz Waveform Generator together with a 3-digit Digital Voltmeter and Frequency Counter with 6-Digit Display. The oscilloscope can also be controlled by a host PC via a USB cable.
Features
Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
Specification
- 2 channels which are respectively controlled by independent knobs
- 100 MHZ and 150MHZ analogue channel bandwidth
- Sampling rate up to 1 GSa/s
- 8M memory depth
- Vertical range 2mV/div ~ 10V/div
- Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
- Vertical resolution: 8bit
- Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
- BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
- Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
- A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
- 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
- 2 sets of digital voltmeters
- Support threshold testing, free measurements within the screen
- Abundant SCPI remote command control
- USB Host/Device

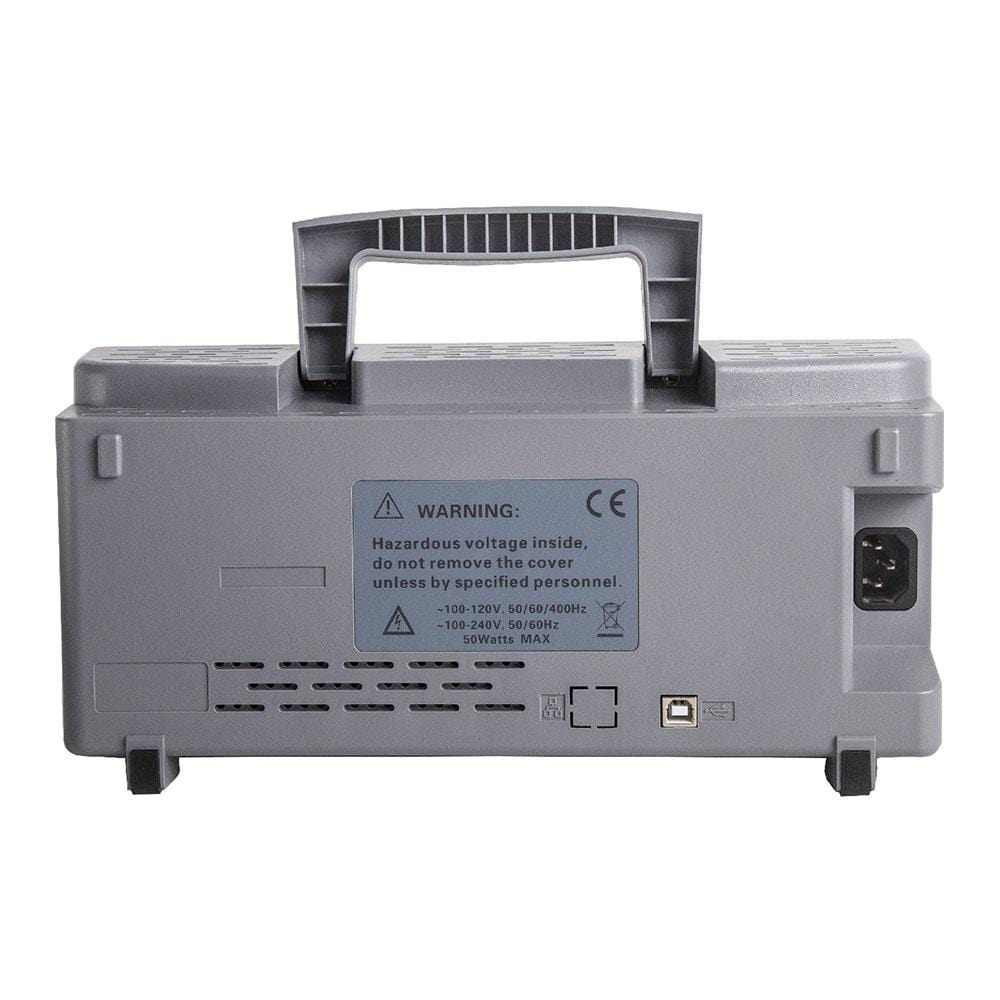

| Acquisition | |
|---|---|
| Bandwidth | 150 MHz |
| Analogue channels | 2 |
| Sample rate | 1 GSa/s (single channel); 500 MSa/s (two channels) |
| Memory depth | 8 Mpts; 4 Mpts maximum with two channels |
| Vertical resolution | 8 bits |
| Inputs | |
| Input impedance | 1 MΩ ±2% || 13 pF ±3 pF |
| Maximum input voltage | 300 Vrms (10X) |
| Display | |
| Display | 7 inch TFT LCD, 800 x 480 |
| Interfaces | |
| Interfaces | USB Host, USB Device |
| Power source | 100-120 V AC or 120-240 V AC (±10%), CAT II; below 30 W |
| Physical | |
| Dimensions | 318 x 110 x 150 mm (L x W x H) |
| Environmental | |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -40 to 71 °C |
| Humidity | ≤90% RH at ≤40 °C; ≤60% RH at 41 to 50 °C |
| Ordering information | |
| Part number (SKU) | DSO-2D15 |
| Manufacturer | Hantek Electronic Co Ltd |
| EAN | 5055383601189 |
| Warranty | 12 months |
| Shipping weight | 1.9 kg |
-
1 ×
Hantek DSO-2D15 2-Channel Digital Oscilloscope
Contact us to confirm the full contents of the box.
