It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.
Applications
The CC-65 Current Clamp is suitable for AC or DC power circuit measurement and malfunction analysis.
It is also suitable for use with motor drive and frequency converter measurements.
Oscilloscope Display
Specifications
DCA Range | 1 mV /10mA | ±(1.5%±5mA) 10mA ~ 20A |
1mV/100mA | ±(2%±20mA) 100mA ~ 40A; ±(4%±0.3A) 40A ~ 65A |
|
ACA Range | 1mV/10mA | ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz); ±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz); ±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz); ±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz) |
1mV/100mA | ±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz); ±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz); ±(6%±30mA) 200mA ~ 40A (2KHz ~ 5KHz); ±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz) |
|
Captured Conductor Size | 9mm maximum | |
Low Battery Indictor | Red LED | |
Operating Temperature | 0℃ to 50℃, 70% R.H. | |
Storage Temperature | -20℃ to +70℃, 80% R.H. | |
Battery Type | 9V DC, NEDA 1604, 6F22,0006P | |
Battery Life | 100 hours typical with alkaline | |
Weight | 250 gm typical | |
Dimensions | 195mm(H) x 70mm(W) x 33mm(D) | |
Output | Supplied with coil cable with a pair of colour-coded 4mm Plugs. |

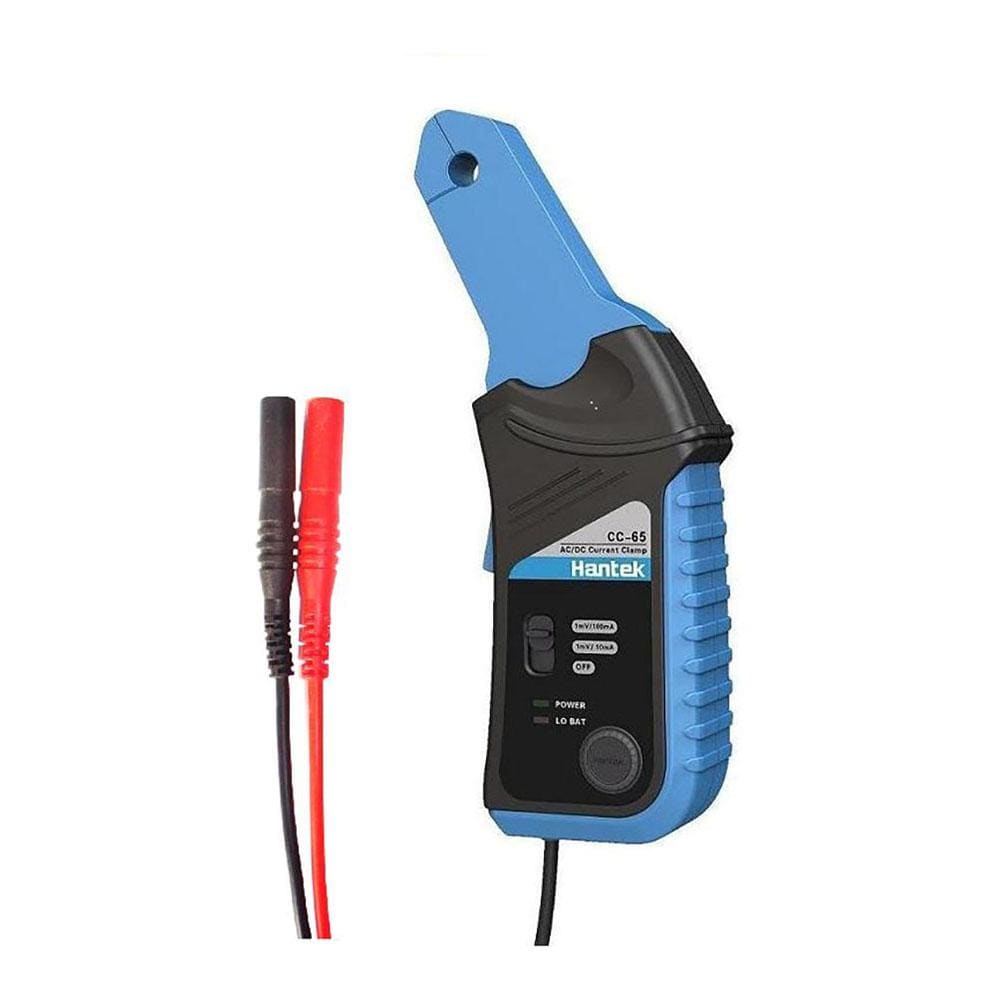

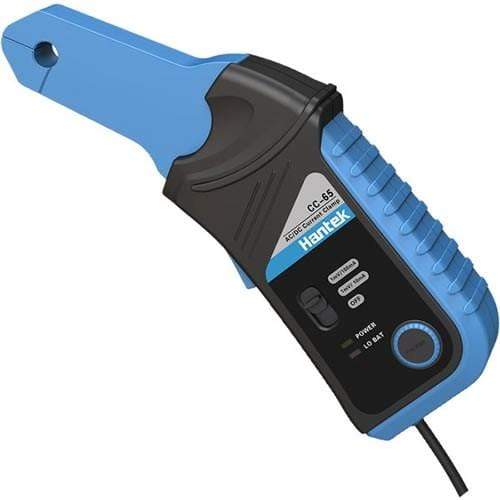

Hantek CC-65-4mm 65A AC/DC Current Clamp
