Hantek-6074BD 4-ch 70MHz. 1GSa/s, 64K USB Oscilloscope, Wave Gen
Hantek-6074BD 4-ch 70MHz. 1GSa/s, 64K USB Oscilloscope, Wave Gen
SKU: Hantek-6074BD
Payment methods
- Bank transfer
Couldn't load pickup availability
Overview

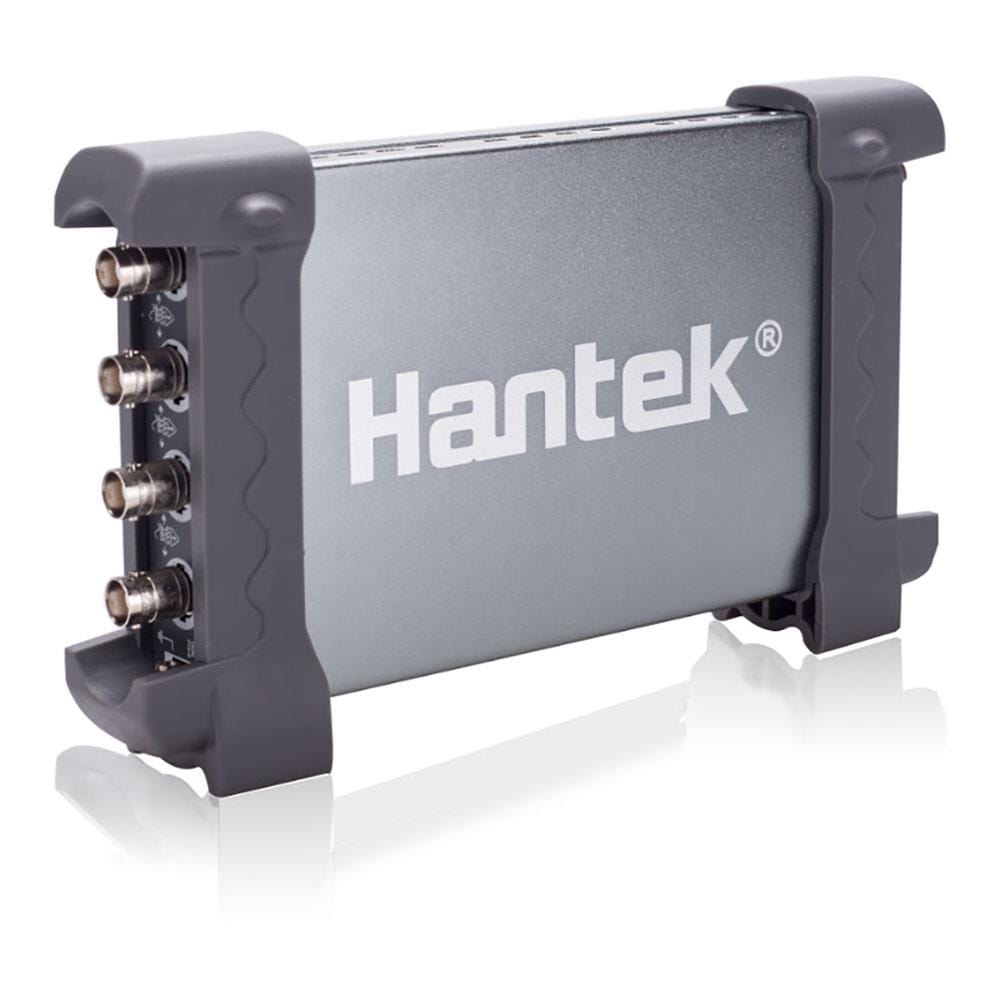

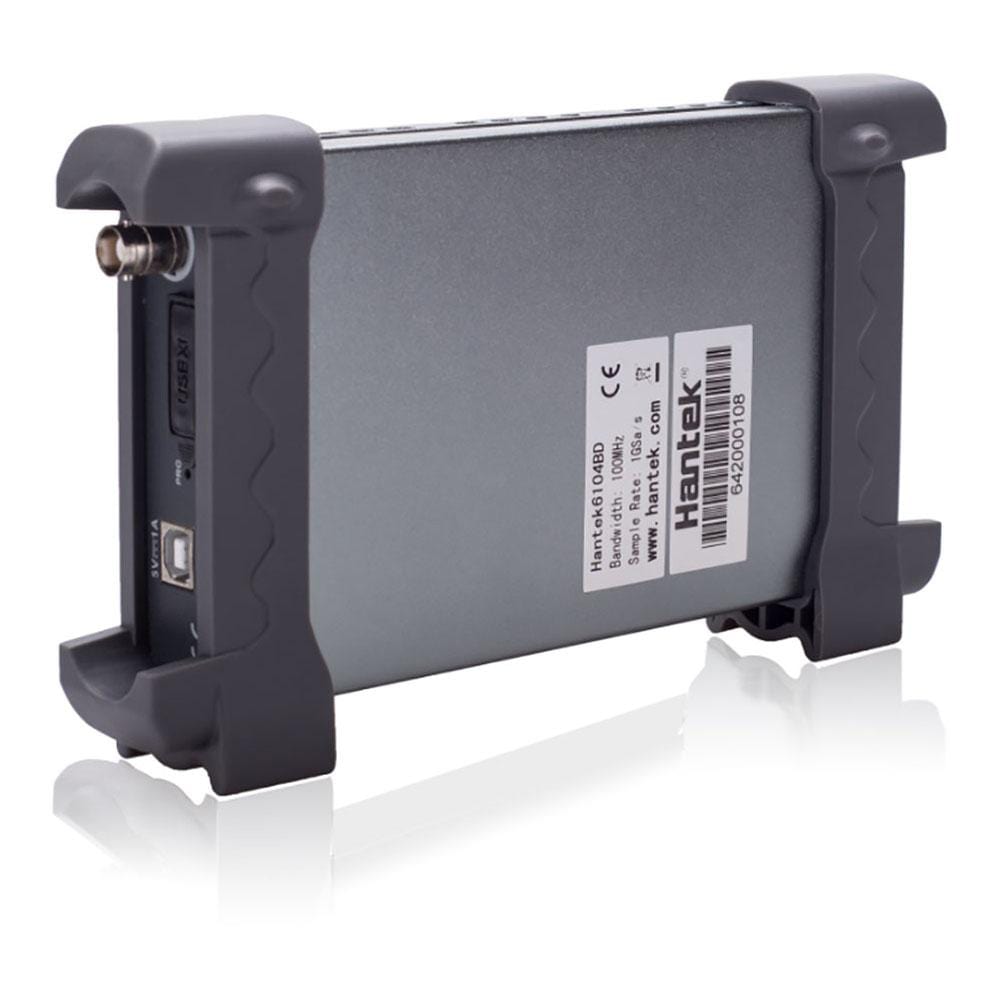

The Hantek-6074BD is a 4-channel usb oscilloscope & function/Arbitrary waveform generator.

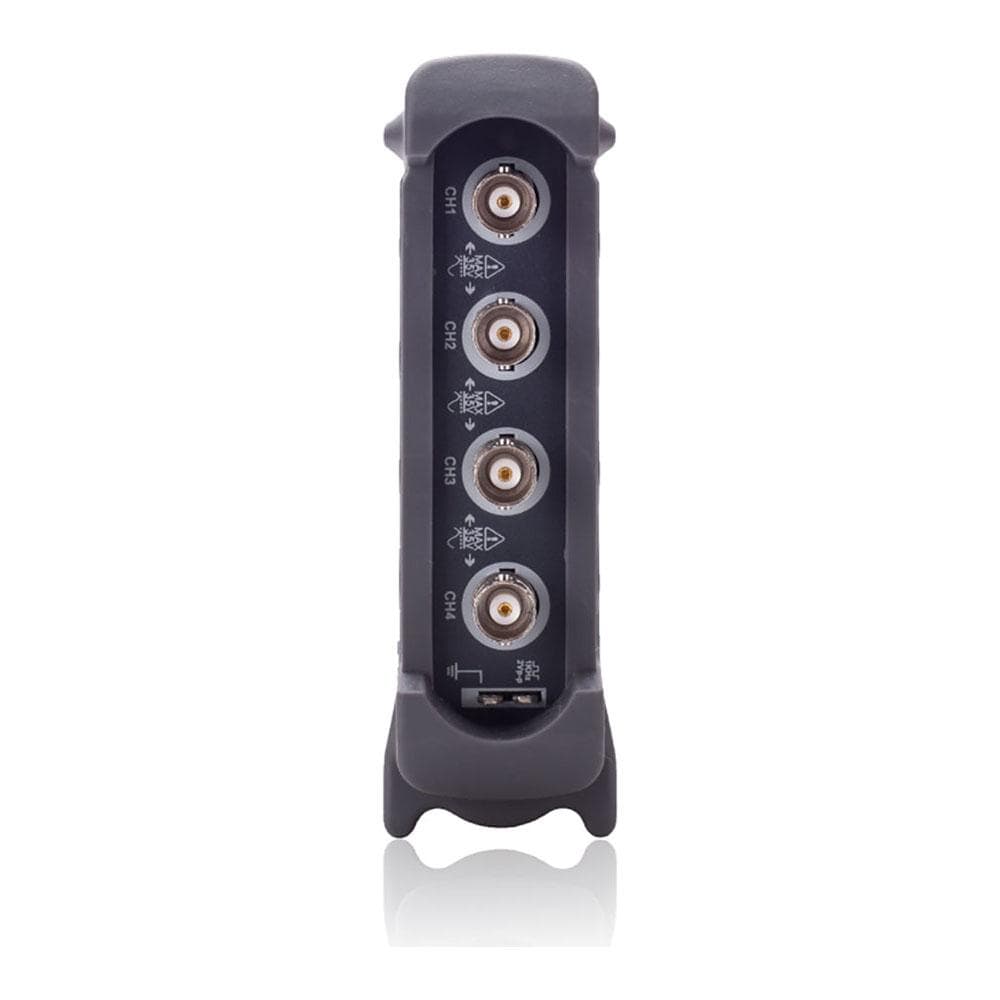

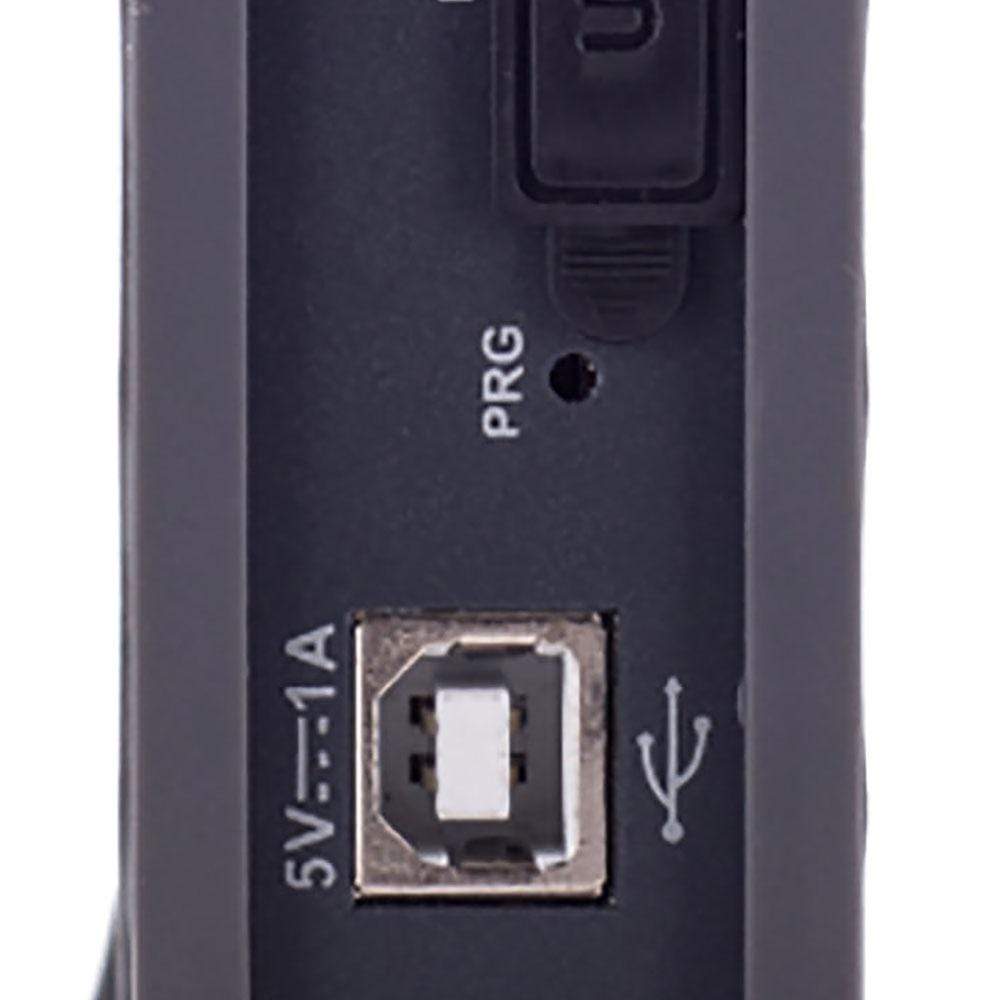

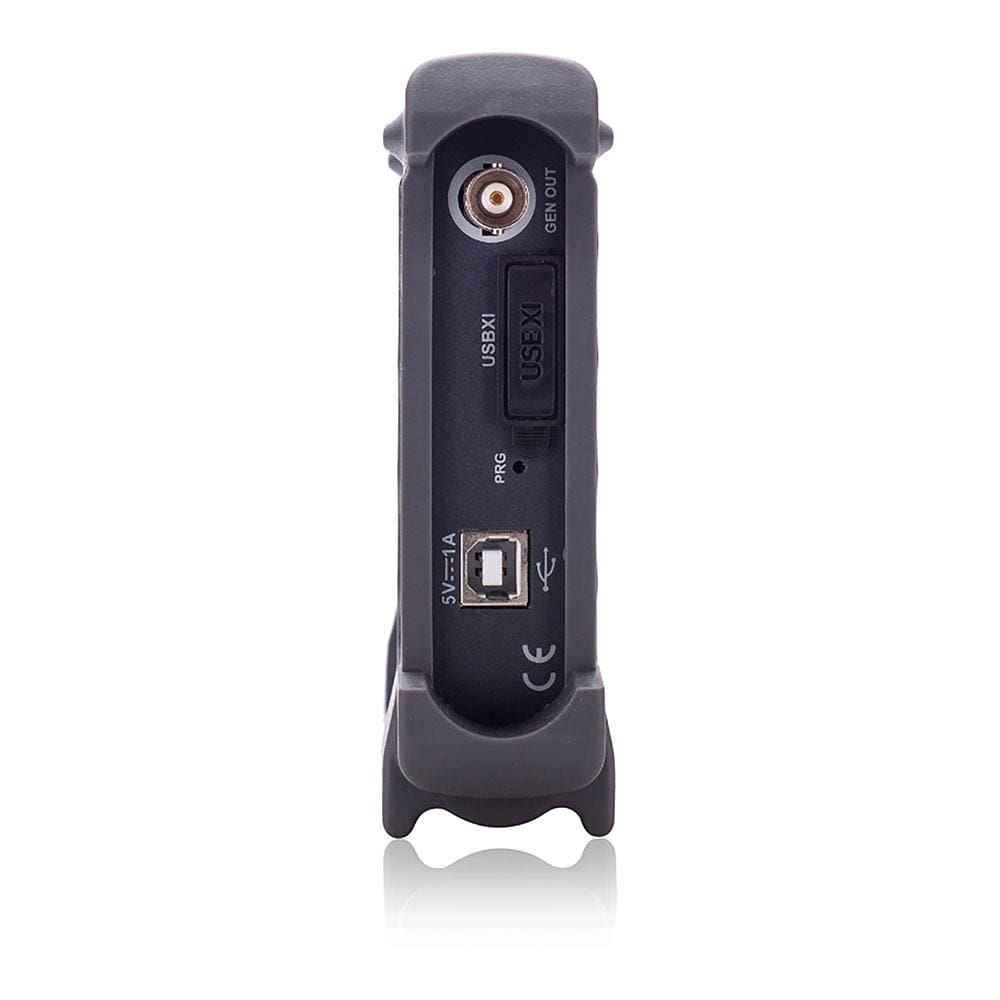

It has 4 independent, non-isolated analogue channels with a 1GSa/s real-time sampling rate and 2mV-10V/div input sensitivity The bandwidth of each channel is 70MHz bandwidth. An Arbitrary Waveform Generator is also built-in, making it ideal as a complete laboratory test instrument. It is powered by USB2.0 Interface as a plug and play device with small size, making it ideal for carrying about. The instrument offers excellent value, high-performance, a pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform recording and replay functions.
Downloads
User Manuals
Specifications
Model |
Hantek-6074BD / Hantek-6104BD / Hantek-6204BD / Hantek-6254BD |
Bandwidth |
70MHz / 100MHz / 200MHz / 250MHz |
Channel |
4-ch |
Real-time Sampling Rate |
1GSa/s |
Memory Depth |
64K |
Time Base Precision |
±50ppm |
Time Base Range |
2ns/div-1000s/div (1-2-4 sequences) |
Input Impedance |
1MΩ 25pF |
Input Sensitivity |
2mV/div～10V/div |
Vertical Resolution |
8Bit |
Vertical Displacement Range |
2mV～10V/div @ x1 probe; 20mV～100V/div @ x10 probe； 200mV～1000V/div @ x100 probe; 2V～10000V/div @ x1000 probe |
DC Gain Accuracy |
±3% |
Bandwidth Limit |
20MHz |
Trigger Mode |
Edge, Pulse, Video, Alternative |
Trigger Source |
CH1, CH2, CH3,CH4 |
Waveform Signal Process |
+,-,x,÷,FFT, Invert |
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
Arbitrary Waveform Generator Mode | |
Waveform Frequency |
DC~25MHz |
DAC |
2K~200MHz adjustable |
Frequency Resolution |
0.10% |
Channel |
1CH waveform output |
Waveform Depth |
2KSa |
Vertical Resolution |
12 bit |
Frequency Stability |
<30ppm |
Wave Amplitude |
±3.5V Max. |
Output Impedance |
50 Ω |
Output Current |
50mA, Ipeak=50mA |
System BW |
25M |
Harmonic Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
General Features | |
Volume |
175mm * 105mm * 25mm |
Weight |
0.9KG |
Accessory |
2 passive probes, 2 gator clip lines，1 BNC to BNC cord |
| Acquisition | |
|---|---|
| Bandwidth | 70 MHz |
| Analogue channels | 4 |
| Sample rate | 1 GSa/s |
| Memory depth | 64 kpts |
| Vertical resolution | 8 bits |
| Inputs | |
| Input impedance | 1 MΩ || 25 pF |
| Interfaces | |
| Interfaces | USB 2.0 |
| Power source | USB 2.0 bus-powered |
| Software | |
| Software | Windows 10, 8, 7 |
| Physical | |
| Dimensions | 175 x 105 x 25 mm |
| Ordering information | |
| Part number (SKU) | Hantek-6074BD |
| Manufacturer | Hantek Electronic Co Ltd |
| EAN | 5055383621095 |
| Warranty | 12 months |
| Shipping weight | 1.0 kg |
-
1 ×
Hantek-6074BD 4-ch 70MHz. 1GSa/s, 64K USB Oscilloscope, Wave Gen
Contact us to confirm the full contents of the box.
