Hantek 2D72 2-ch, 70MHz Scope/DMM/Waveform Generator
Hantek 2D72 2-ch, 70MHz Scope/DMM/Waveform Generator
with Multimeter and Waveform Generator
SKU: Hantek-2D72
Regular price
£222.00
inc VAT
£185.00
exc VAT
Regular price
Sale price
Unit price
per
£222.00
inc VAT
£185.00
exc VAT
Shipping calculated at checkout.
If no stock shown above, order NOW to ship within 10 working days
Couldn't load pickup availability
Overview

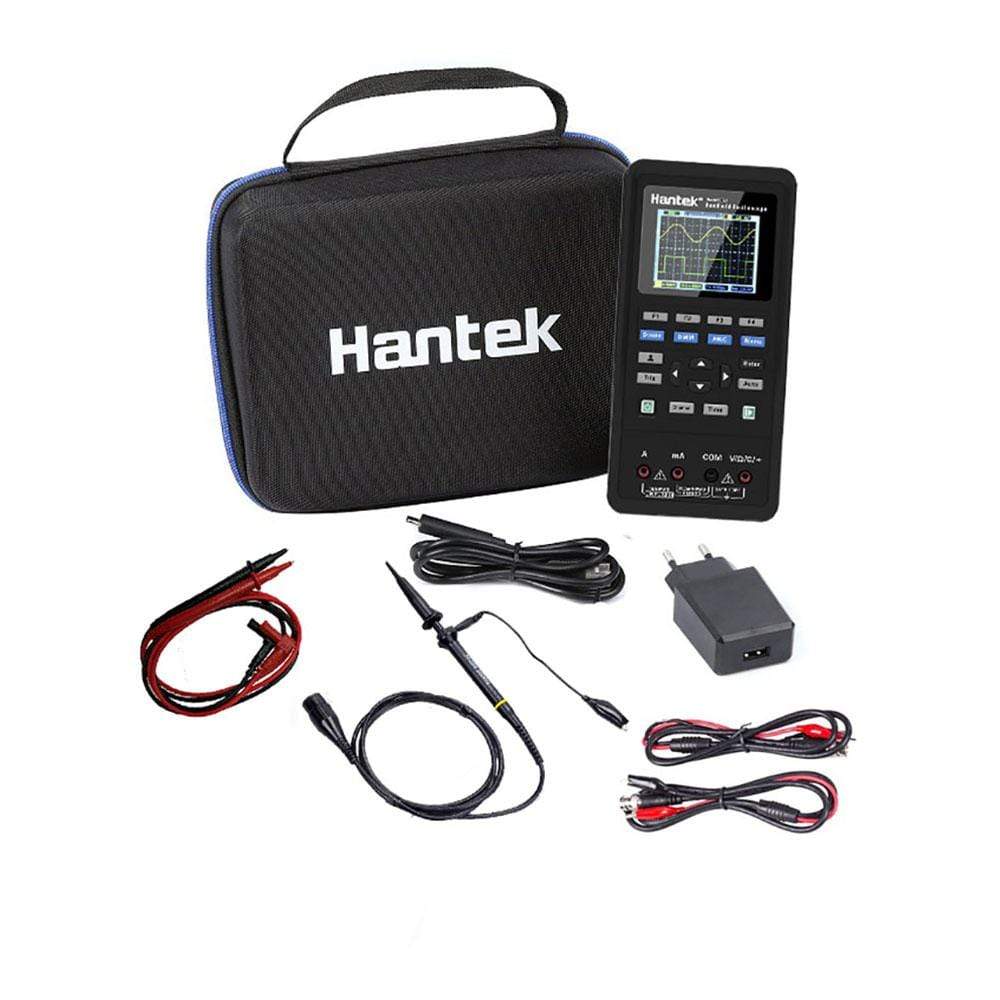

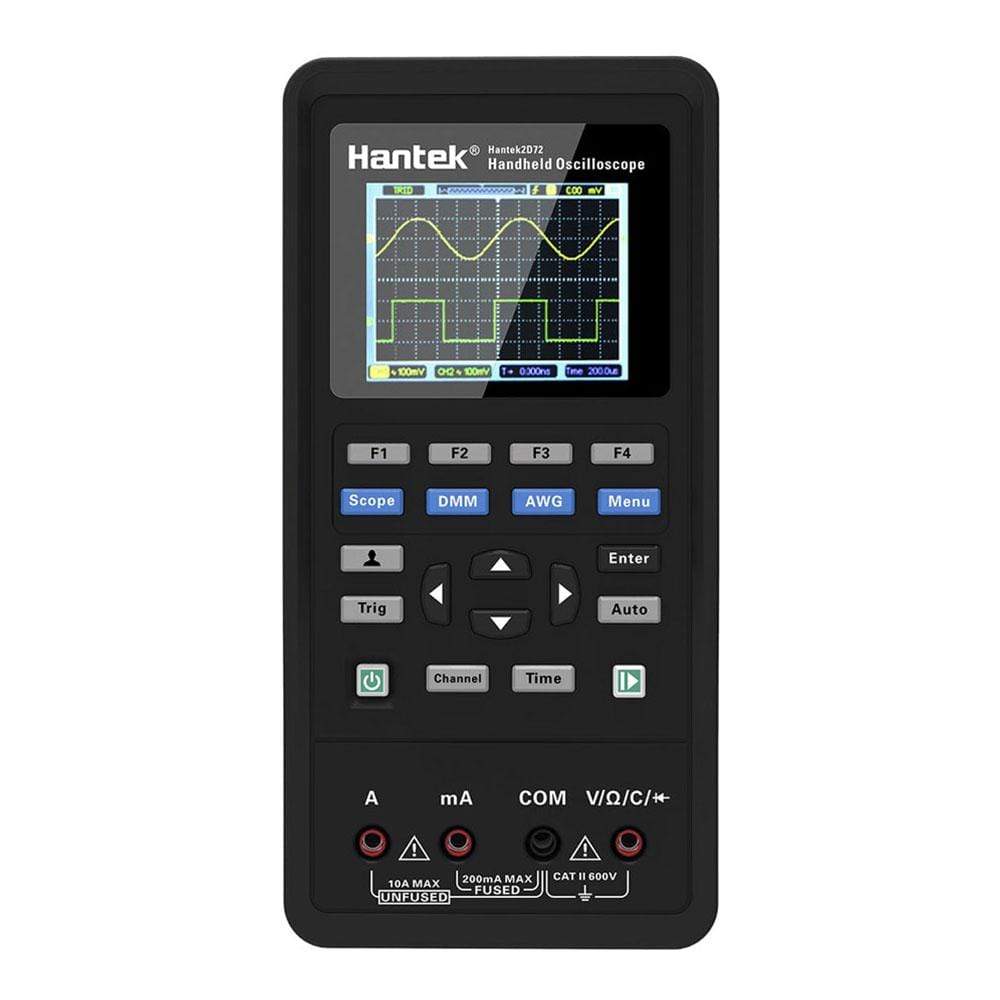

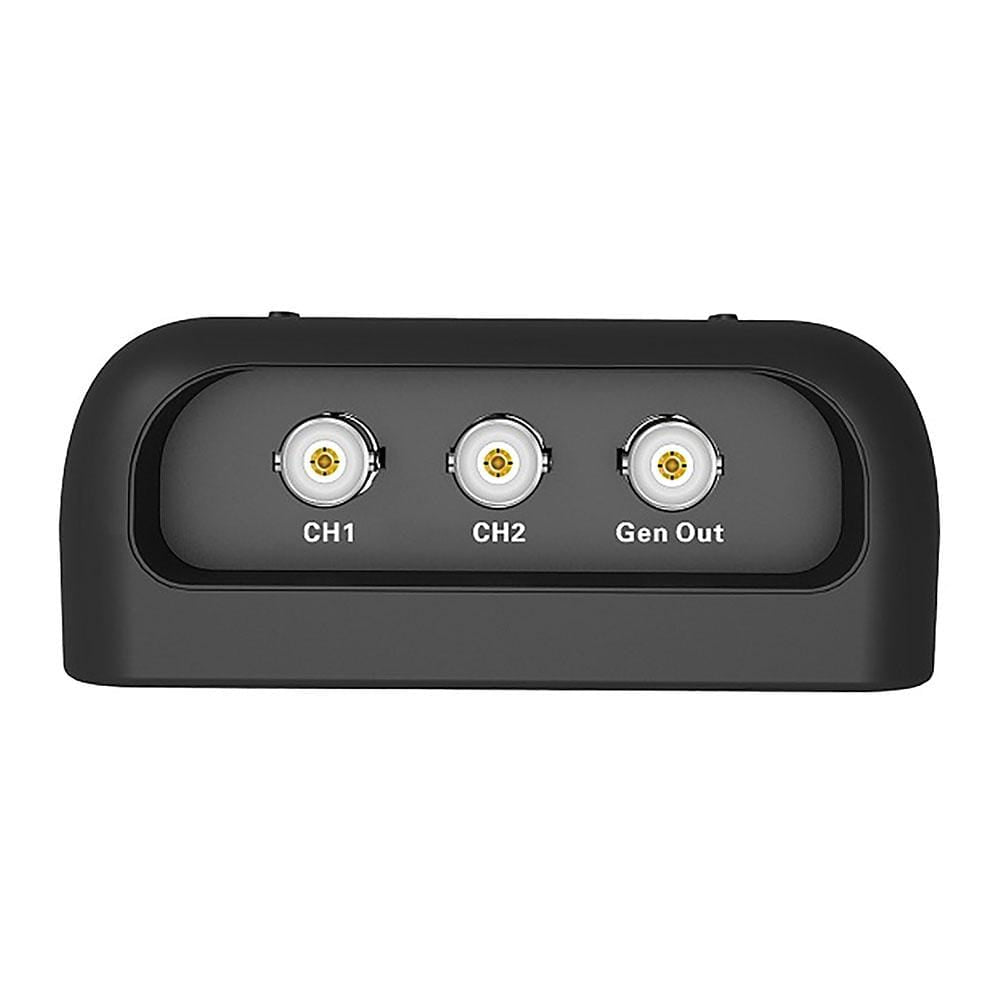

The Hantek 2D72 is a two-channel, 70MHz bandwidth, portable oscilloscope with a built-in four-digit Digital Multimeter and Waveform Generator. It features a 2.8-inch colour TFT display for maximum readability and is powered from an internal rechargeable battery or main power adapter.

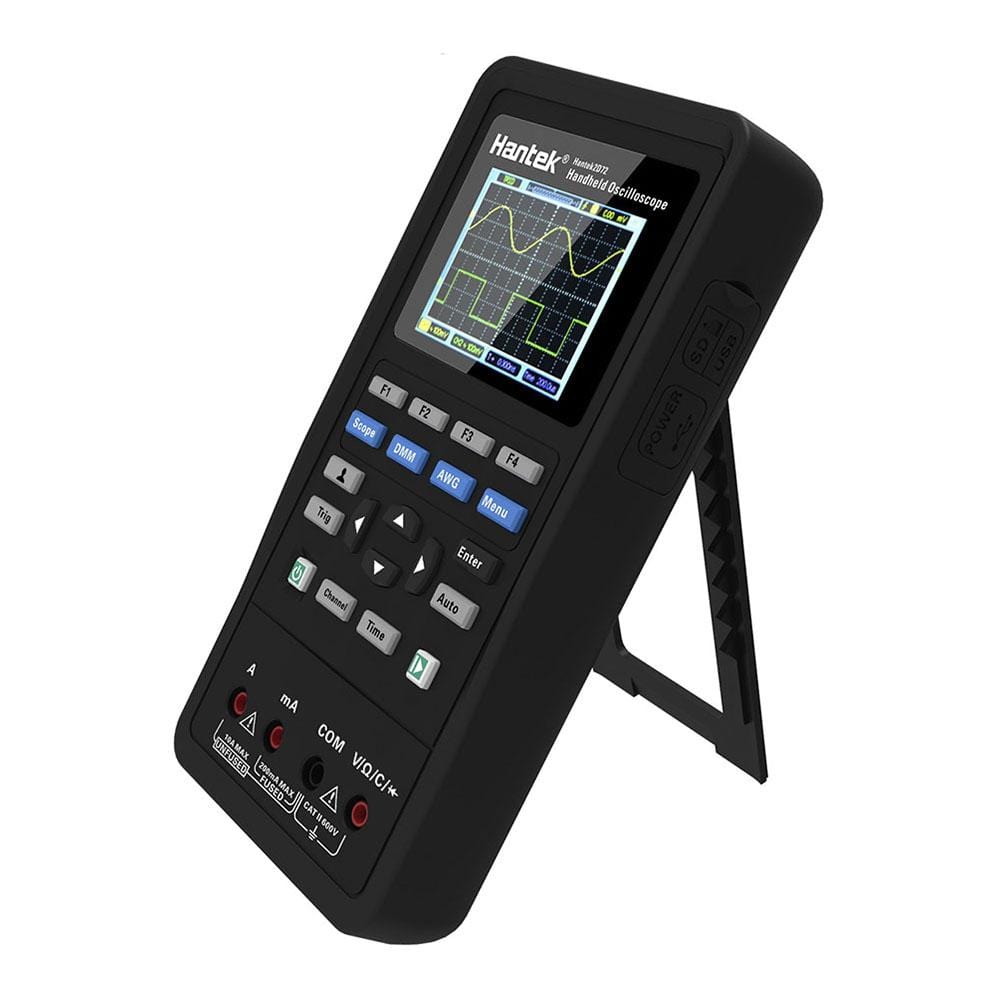

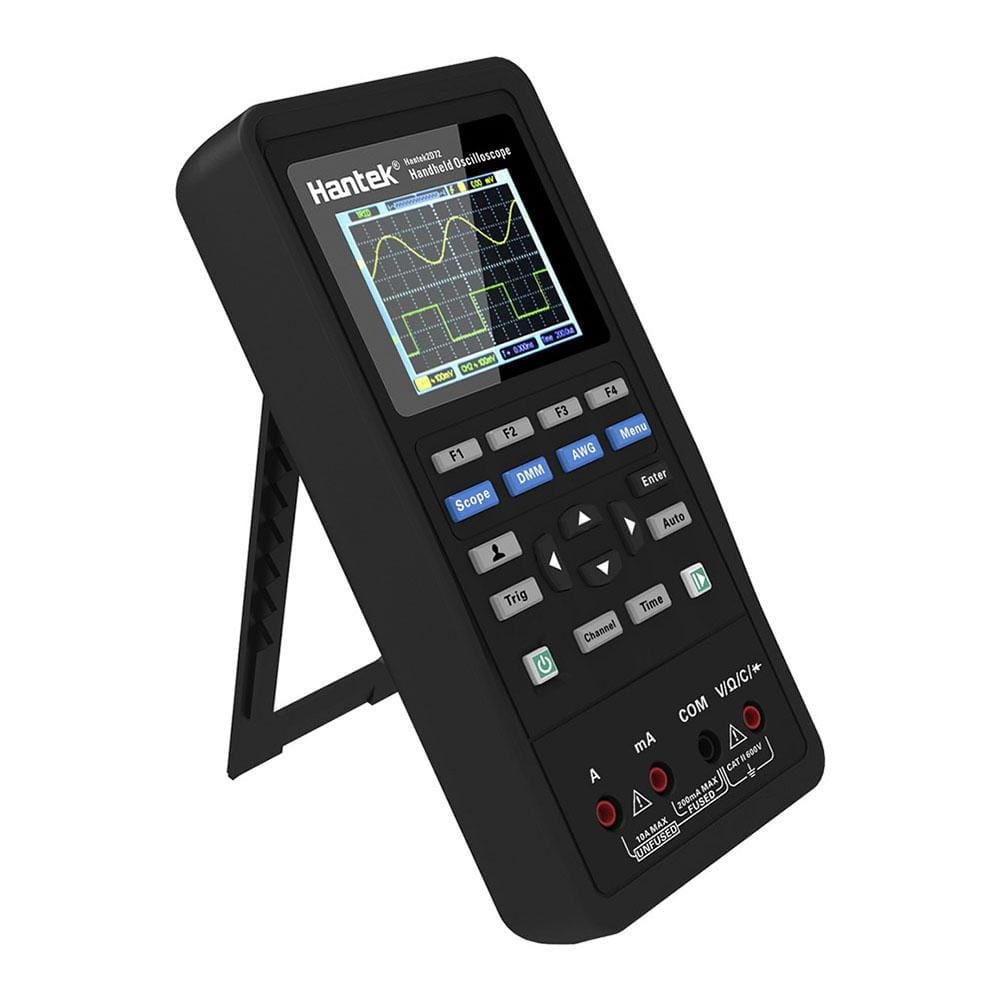

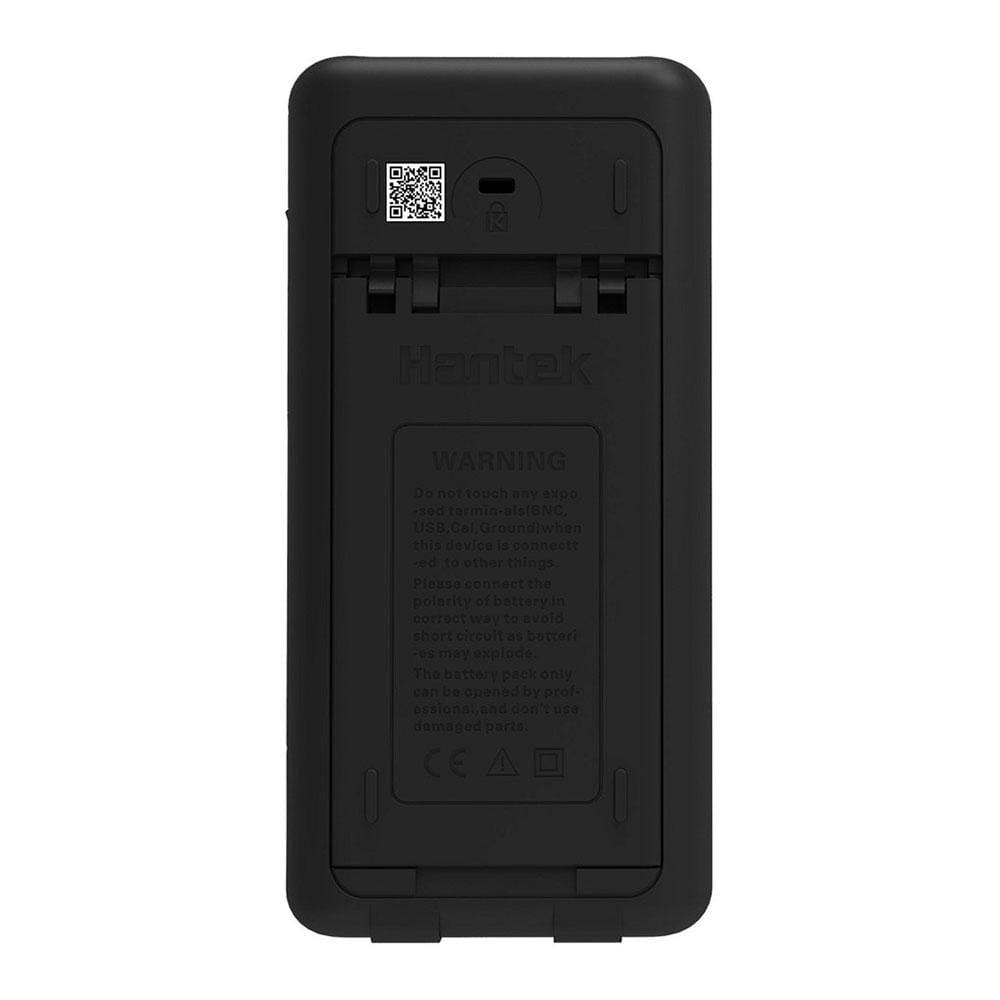

It is compact and portable making it ideal for use on a small table or propped against electronics in the field. The case has been designed to be impact resistant with a fine touch feeling and excellent heat resistance.
A 2-hour battery charge will keep the scope running continuously for a whole working day or 2 months on standby.
The instrument can be connected to a host supplied and is supplied with software for Win 7/8/9/10, 32 and 64-bit.
Specifications
| Model | Hantek-2D72 | Hantek-2D42 | Hantek-2C72 | Hantek-2C42 |
Oscilloscope | ||||
| Bandwidth | 70MHz | 40MHz | 70MHz | 40MHz |
| Channel | 2CH+DMM+AWG | 2CH+DMM+AWG | 2CH+DMM | 2CH+DMM |
Horizontal | ||||
| Sample Rate Range | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | |||
| Waveform Interpolation | (sin x)/x | |||
| Record Length | Max. 6K for single-channel; 3K samples per dual-channel | |||
| SEC/DIV Range | 5ns/div~500s/div 1, 2, 5 sequence | |||
Vertical | ||||
| A/D Converter | 8-bit resolution,each channel sampled simultaneously | |||
| VOLTS/DIV Range | 10mV/div~10V/divat input BNC | |||
| Bandwidth Limit, typical | 20MHz | |||
| Low Frequency Response (-3db) | ≤10Hz at BNC | |||
| Rise Time at BNC, typical | ≤5ns | |||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div | |||
| Note: Bandwidth reduced to 6MHz when using a 1X probe. | ||||
Acquisition | ||||
| Acquisition Modes | Normal | |||
Trigger | ||||
| Type | Edge | |||
| Mode | Auto, Normal, single | |||
| Level | ±4 divisions from center of screen | |||
| Trigger Level Accuracy | 0.2div × volts/div within ±4 divisions from center of screen | |||
| Slope | Rising, Falling, Rising & Falling | |||
| Source | CH1/CH2 | |||
Input | ||||
| Coupling | DC, AC or GND | |||
| Input Impedance, | 25pF±3 pF, 1MΩ±2% | |||
| DC coupled | ||||
| Probe Attenuation | 1X, 10X | |||
| Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X | |||
| Maximum Input Voltage | 150VRMS | |||
Measurement | ||||
| Cursor | Voltage difference between cursors: △V | |||
| Time difference between cursors: △T | ||||
| Automatic Measurements | Frequency, Amplitude | |||
Arbitrary Waveform Generator | ||||
| Waveform Frequency | Sine: 1Hz~25MHz | - | - | |
| Square: 1Hz~10MHz | - | - | ||
| Ramp: 1Hz~1MHz | - | - | ||
| EXP: 1Hz~5MHz | - | - | ||
| Sampling | 250MSa/s | - | - | |
| Amplitude | 2.5Vpp(50Ω) | - | - | |
| 5Vpp(High impedance) | - | - | ||
| Frequency Resolution | 0.10% | - | - | |
| Channel | 1CH waveform output | - | - | |
| Waveform Depth | 512Sa | - | - | |
| Vertical Resolution | 12 bit | - | - | |
| Output Impedance | 50 Ω | - | - | |
Multimeter | ||||
| Maximum Resolution | 4000 Counts | |||
| DMM Testing Modes | Voltage,Current,Resistance,Capacitance,Diode &On-Off | |||
| Maximum Input Voltage | AC:600V, DC: 600V | |||
| Maximum Input Current | AC: 10A, DC:10A | |||
| Input Impedance | 10MΩ | |||
| Measurement Term | Range | Accuracy | Resolution | |
| DC Voltage | 400.00mV | ± (0.8% + 5) | 100uV | |
| 4.000V | 1mV | |||
| 40.00V | 10mV | |||
| 400.0V | 100mV | |||
| 600.0V | ± (1% + 2) | 1V | ||
| Overload protection: 400mV: 250V, other: 600Vrms. | ||||
| AC Voltage | 4.000V | ± (1.2% + 5) | 1mV | |
| 40.00V | 10mV | |||
| 400.0V | 100mV | |||
| 600.0V | ±(1.5% + 5) | 1V | ||
| Frequency: 40Hz~400Hz; | ||||
| Frequency of 400V and 600V: 40Hz~100Hz | ||||
| DC Current | 40.00mA | ± (1% + 2) | 10uA | |
| 200.0mA | ± (1.5% + 2) | 100uA | ||
| 4.000A | ± (1.8% + 2) | 1mA | ||
| 10.00A | ± (3% + 2) | 10mA | ||
| Overload protection: | ||||
| self restoring fuse: 200mA/250V, 4A and 10A range no fuse. | ||||
| AC Current | 40.00mA | ± (1.3% + 2) | 10uA | |
| 400.0mA | ± (1.8% + 2) | 100uA | ||
| 4.000A | ± (2% + 3) | 1mA | ||
| 10.00A | ± (3% + 5) | 10mA | ||
| Frequency: 40Hz~400Hz; | ||||
| self restoring fuse: 200mA/250V, 4A and 10A range no fuse. | ||||
| Resistance | 400.0Ω | ±(1% + 3) | 0.1Ω | |
| 4.000KΩ | ±(1.2% + 5) | 1Ω | ||
| 60.00KΩ | 10Ω | |||
| 400.0KΩ | 100Ω | |||
| 4.000MΩ | 1KΩ | |||
| 40.00MΩ | ± (1.5%±3) | 10KΩ | ||
| Overload protection: 220Vrms | ||||
| Capacitance | 40.00nF | ±(3% + 5) | 10pF | |
| 400.0nF | 100pF | |||
| 4.000uF | 1nF | |||
| 40.00uF | 10nF | |||
| 100.0uF | 100nF | |||
| Overload protection: 220Vrms | ||||
| Diode | 0V~1.0V | |||
| On-Off | <50Ω | |||
General Specification | ||||
Display | ||||
| Display Type | 2.8 inch64K color TFT | |||
| Display Resolution | 320 horizontal by 240 vertical pixels | |||
| Display Contrast | Adjustable | |||
Power Supply | ||||
| Supply Voltage | 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A | |||
| Power Consumption | <2.5W | |||
| Fuse | T, 3A | |||
| Battery | 2600mA*2 | |||
Environmental | ||||
| Operating Temperature | 0~50 °C (32~122 °F) | |||
| Storage Temperature | -40~+71 °C (-40~159.8 °F) | |||
| Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | |||
| 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | ||||
| Cooling Method | Convection | |||
| Altitude | Operating and | 3,000m (10,000 feet) | ||
| Nonoperating | ||||
| Mechanical Shock | Random Vibration | 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis | ||
| Nonoperating | 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis | |||
| Operating | 50g, 11ms, half sine | |||
Mechanical | ||||
| Dimension | 199 x 98x 40mm (L x W x H) | |||
| Weight | 624g | |||
| Standard Accessories | Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 | Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 | Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 | Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 |
