Hantek 2D42 2-ch, 40MHz Scope/DMM/Waveform Generator

with Multimeter and Waveform Generator

SKU: Hantek-2D42

Product variants

£192.00 inc VAT

£160.00 exc VAT

£192.00 inc VAT

£160.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, Order NOW to ship within 10 working days

Order Quantity

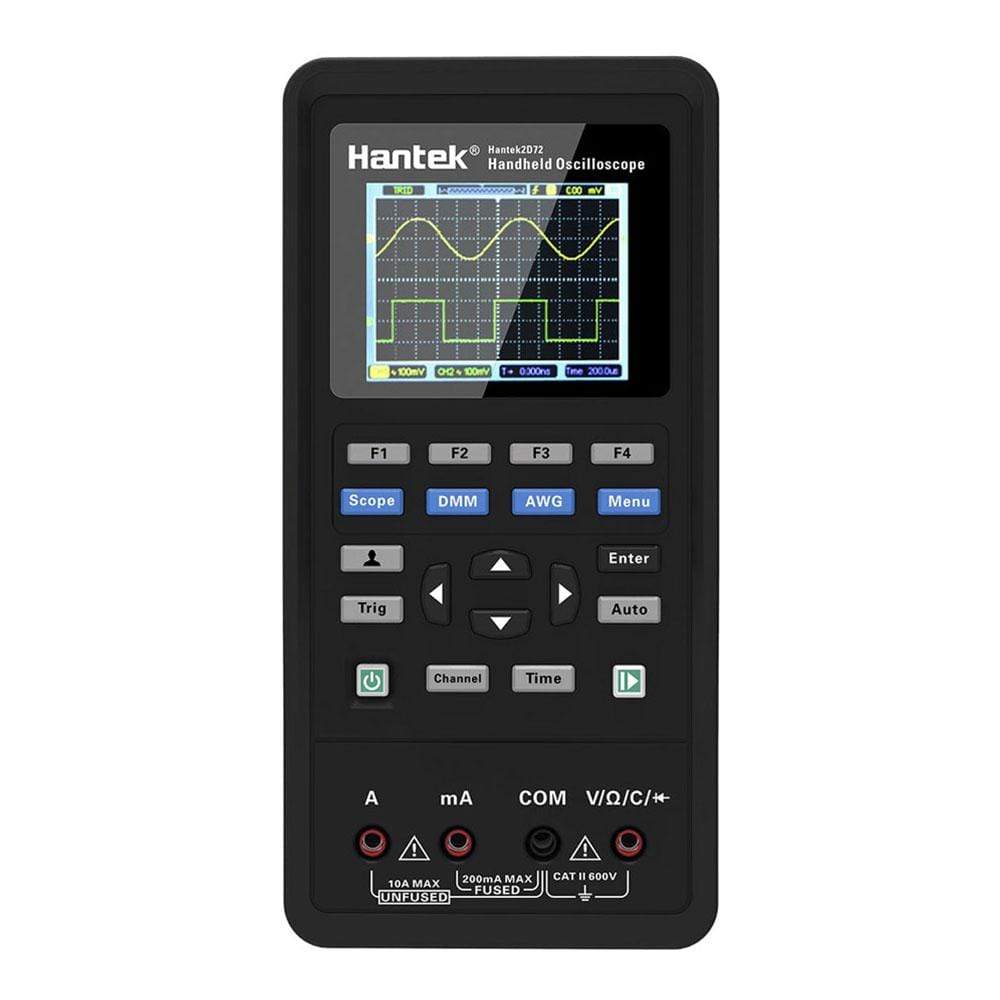

The Hantek 2D42 is a two-channel, 40MHz bandwidth, portable oscilloscope with a built-in four-digit digital multimeter and Waveform Generator. It features a 2.8-inch colour TFT display for maximum readability and is powered from an internal rechargeable battery or main power adapter.

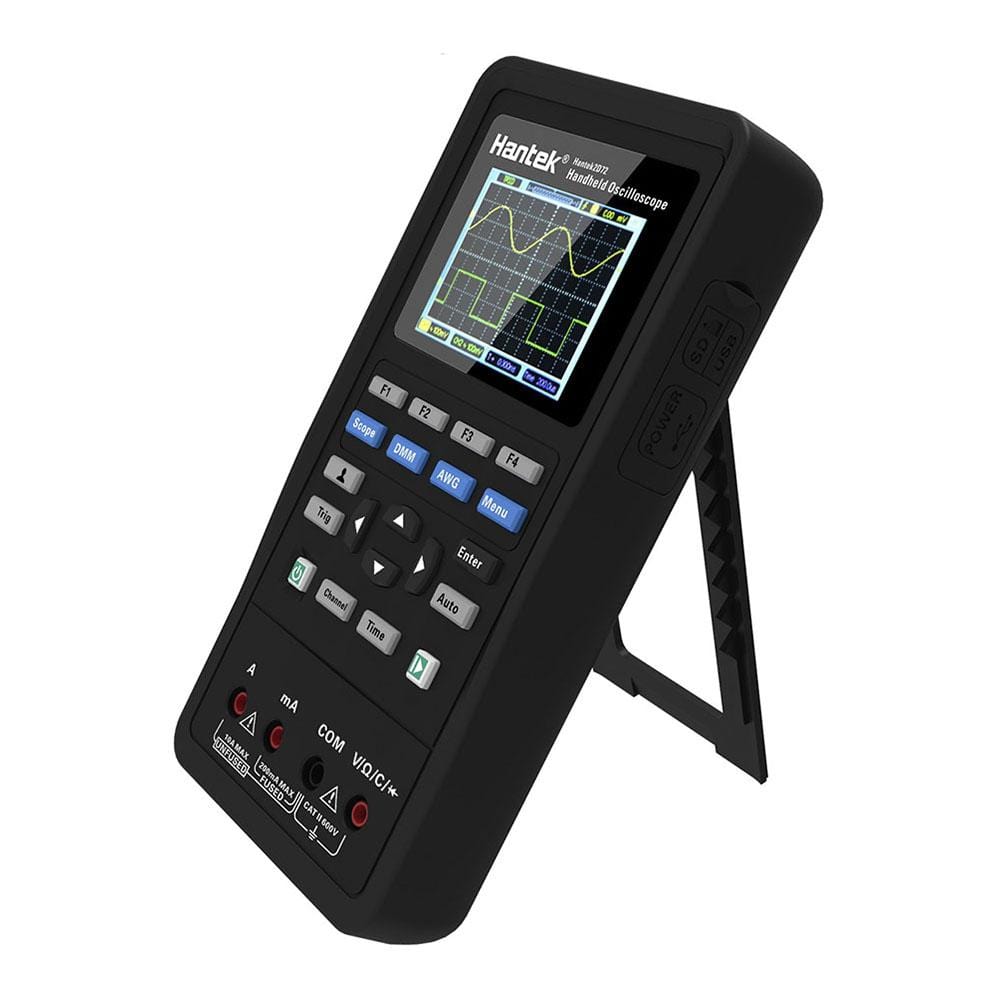

It is compact and portable making it ideal for use on a small table or propped against electronics in the field. The case has been designed to be impact resistant with a fine touch feeling and excellent heat resistance.

A 2-hour battery charge will keep the scope running continuously for a whole working day or 2 months on standby.

The instrument can be connected to a host supplied and is supplied with software for Win 7/8/9/10, 32 and 64-bit.

View full details

Quirky, but I love it

DMM great, AWG great, Scope is limited, but good enough for 90% of my uses
Great value for money and battery operation is excellent.
Perfect as a second scope. Handy multifunction tool.
What is not to like? - especially at this price

Thanks for the review Robin.
The 2D42 offers a lot for the price. It is not intended to be the main oscilloscope for the lab but it is handy when measurements need to be taken away from the lab.
I am pleased you like it.
John

Model	Hantek-2D72	Hantek-2D42	Hantek-2C72	Hantek-2C42
Oscilloscope
Bandwidth	70MHz	40MHz	70MHz	40MHz
Channel	2CH+DMM+AWG	2CH+DMM+AWG	2CH+DMM	2CH+DMM
					Horizontal
Sample Rate Range	250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation	(sin x)/x
Record Length	Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range	5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter	8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range	10mV/div~10V/divat input BNC
Bandwidth Limit, typical	20MHz
					Low Frequency Response (-3db)	≤10Hz at BNC
Rise Time at BNC, typical	≤5ns
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes	Normal
Trigger
Type	Edge
Mode	Auto, Normal, single
Level	±4 divisions from center of screen
Trigger Level Accuracy	0.2div × volts/div within ±4 divisions from center of screen
Slope	Rising, Falling, Rising & Falling
Source	CH1/CH2
Input
Coupling	DC, AC or GND
Input Impedance,	25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factors	1X, 10X, 100X, 1000X
Maximum Input Voltage	150V_RMS
Measurement
Cursor	Voltage difference between cursors: △V
	Time difference between cursors: △T
Automatic Measurements	Frequency, Amplitude
Arbitrary Waveform Generator
Waveform Frequency	Sine: 1Hz~25MHz		-	-
	Square: 1Hz~10MHz		-	-
	Ramp: 1Hz~1MHz		-	-
	EXP: 1Hz~5MHz		-	-
Sampling	250MSa/s		-	-
Amplitude	2.5Vpp(50Ω)		-	-
	5Vpp(High impedance)		-	-
Frequency Resolution	0.10%		-	-
Channel	1CH waveform output		-	-
Waveform Depth	512Sa		-	-
Vertical Resolution	12 bit		-	-
Output Impedance	50 Ω		-	-
Multimeter
Maximum Resolution	4000 Counts
DMM Testing Modes	Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage	AC:600V, DC: 600V
Maximum Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
Measurement Term	Range	Accuracy	Resolution
DC Voltage	400.00mV	± (0.8% + 5)	100uV
	4.000V		1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	± (1% + 2)	1V
	Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage	4.000V	± (1.2% + 5)	1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	±(1.5% + 5)	1V
	Frequency: 40Hz~400Hz;
	Frequency of 400V and 600V: 40Hz~100Hz
DC Current	40.00mA	± (1% + 2)	10uA
	200.0mA	± (1.5% + 2)	100uA
	4.000A	± (1.8% + 2)	1mA
	10.00A	± (3% + 2)	10mA
	Overload protection:
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current	40.00mA	± (1.3% + 2)	10uA
	400.0mA	± (1.8% + 2)	100uA
	4.000A	± (2% + 3)	1mA
	10.00A	± (3% + 5)	10mA
	Frequency: 40Hz~400Hz;
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance	400.0Ω	±(1% + 3)	0.1Ω
	4.000KΩ	±(1.2% + 5)	1Ω
	60.00KΩ		10Ω
	400.0KΩ		100Ω
	4.000MΩ		1KΩ
	40.00MΩ	± (1.5%±3)	10KΩ
	Overload protection: 220Vrms
Capacitance	40.00nF	±(3% + 5)	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	100.0uF		100nF
	Overload protection: 220Vrms
Diode	0V~1.0V
On-Off	<50Ω
General Specification
Display
Display Type	2.8 inch64K color TFT
Display Resolution	320 horizontal by 240 vertical pixels
Display Contrast	Adjustable
Power Supply
Supply Voltage	100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption	<2.5W
Fuse	T, 3A
Battery	2600mA*2
Environmental
Operating Temperature	0~50 °C (32~122 °F)
Storage Temperature	-40~+71 °C (-40~159.8 °F)
Humidity	≤+104℉(≤+40°C): ≤90% relative humidity
	106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling Method	Convection
Altitude	Operating and	3,000m (10,000 feet)
	Nonoperating
Mechanical Shock	Random Vibration	0.31g_RMS from 50Hz to 500Hz, 10 minutes on each axis
	Nonoperating	2.46g_RMS from 5Hz to 500Hz, 10 minutes on each axis
	Operating	50g, 11ms, half sine
Mechanical
Dimension	199 x 98x 40mm (L x W x H)
Weight	624g
Standard Accessories	Probe1,Clip Probe2, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe2, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe1, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe1, Type Charging Cable1, Power Adapter1, Multimeter Probe*1
