Mikroelektronika d.o.o.

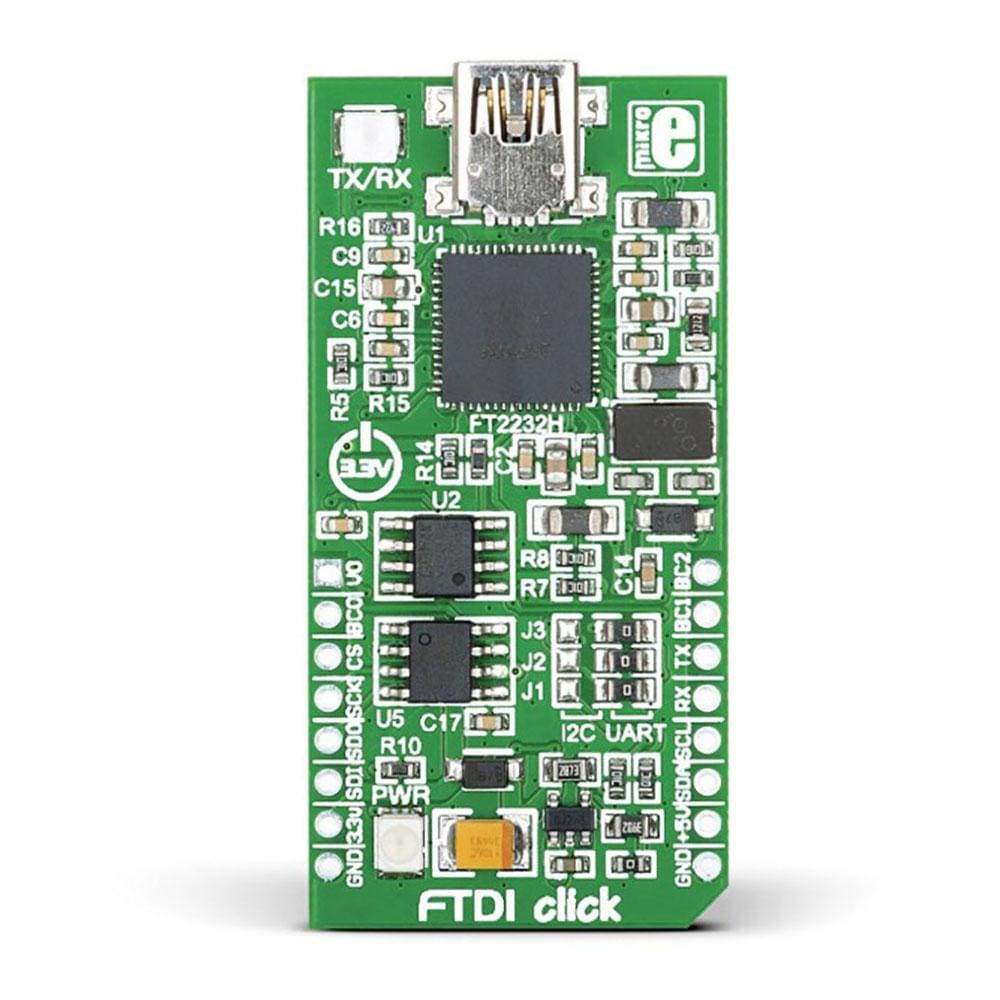

FTDI Click Board™

FTDI Click Board™

SKU: MIKROE-1421

Regular price
£35.00 exc VAT
£42.00 inc VAT
Regular price Sale price
£35.00 exc VAT
£42.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The MikroE FTDI Click Board™ is a communication accessory board that includes FT2232H IC, a dual high-speed USB to UART, I2C, SPI, and JTAG interface. It enables the user to connect PC and MCU applications using the preferred communication protocol.

What makes the FTDI Click Board™ ideal for a variety of USB applications like smart card readers, instrumentation, industrial control, etc.

IC/Module: FT2232H IC

FT2232H is a hi-speed dual USB UART/FIFO IC that belongs to FTDIs 5th generation of USB devices. This chip can be easily configured in different industry standard serial or parallel interfaces. It features two multi-protocol synchronous serial engines (MPSSEs) for simultaneous communication using JTAG, I2C and SPI interfaces on two channels.

SMD Jumpers

Depending on the position of the J1, J2 and J3, the FTDI Click Board™ communicates with the target microcontroller. The SMD jumpers allow the user to select I2C or UART communication interface (in UART position by default).

Ideal Choice for USB Applications

In FDTI Click Board™, as the entire USB protocol is handled on the FT2232H chip. The chip does not require any specific USB firmware programming, which makes it a favourable choice for a range of USB applications, including digital camera interface, MP3 player interface, smart card readers, etc.

Overview
CategoryUSB
ApplicationsBoard is ideal for USB applications: smart card readers, instrumentation, industrial control, MP3 player interface, digital camera interface, etc.
Key components
On-board modulesFT2232H - dual high speed USB 2.0 to UART/I2C/SPI serial interface converter
Features
Key featuresSingle chip USB to dual channel UART, SPI, I2C and JTAG interace
Interfaces
InterfaceSPI, GPIO, I2C, UART, USB
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1421
ManufacturerMikroelektronika d.o.o.
EAN8606015074504
Warranty12 months
Shipping weight0.035 kg
  • 1 × FTDI Click Board™

Contact us to confirm the full contents of the box.
