Mikroelektronika d.o.o.

Fan Click Board™

Fan Click Board™

SKU: MIKROE-2004

Regular price
£12.00 exc VAT
£14.40 inc VAT
Regular price £12.00 GBP Sale price
£12.00 exc VAT
£14.40 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

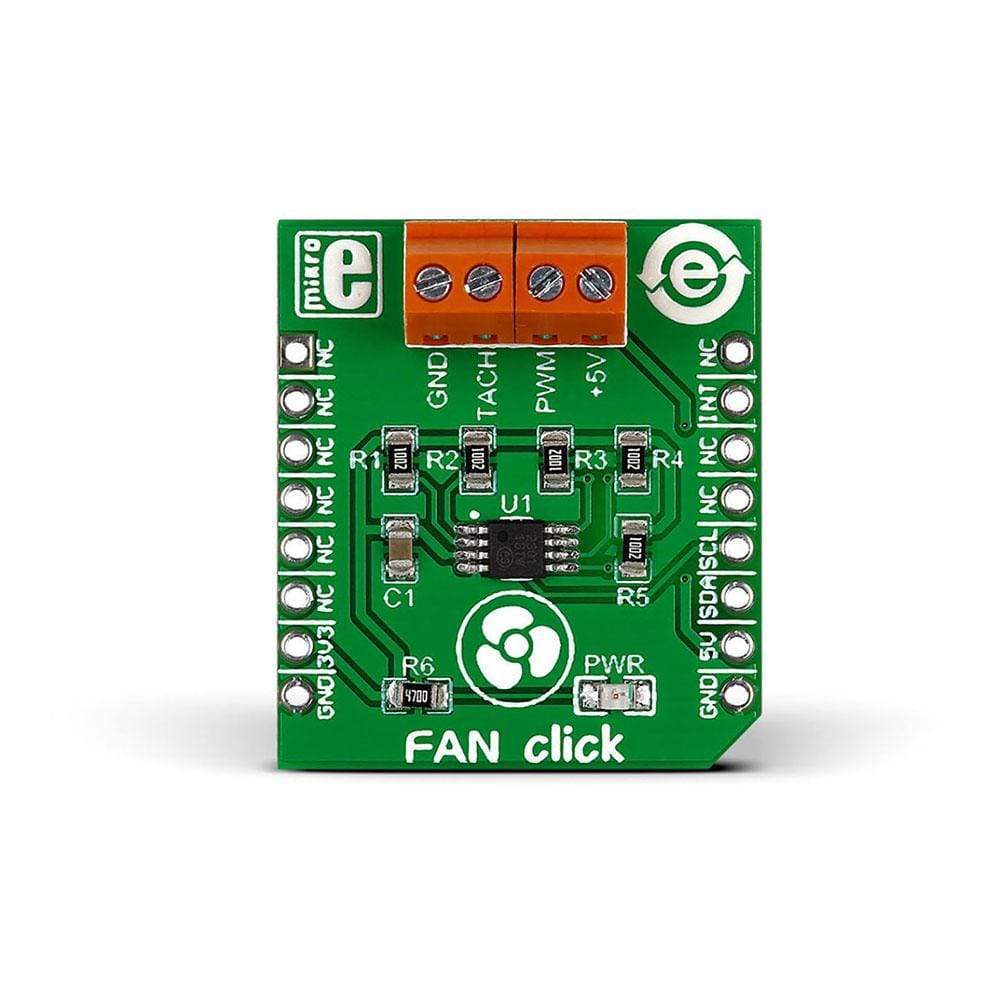

The Fan Click Board™ carries an EMC2301 controller for powering and regulating the operation of 5V four-wire fans, which are commonly utilized as coolers in computers and other electronics.

Videos

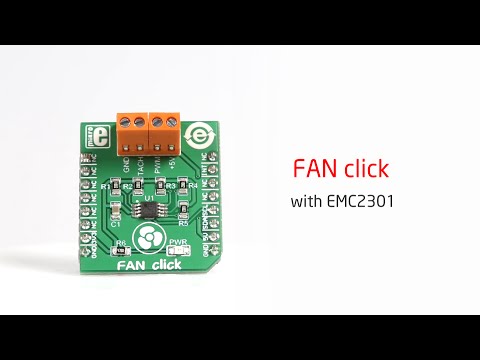

Fan Click Example

MikroElektronika · 1:18 · 2015

Video notes

Fan Click carries the EMC2301 controller for driving and regulating four-wire 5V fans, with speed feedback and stall alerts. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

IC/module: EMC2301 RPM-Based PWM Fan Controller

The EMC2301 module is a programmable fan control circuit designed for powering and regulating the operation of 5V four-wire fans. Controlled by a programmable frequency PWM driver and Fan Speed Control algorithm, it operates in either a closed loop fashion or as a directly PWM-controlled device. It has the capability to detect aging fans and alert the system. It is an ideal option for optimal performance in large distributed systems.

RPM-based Fan Speed Control Algorithm (FSC)

Fan Click Board™ includes a manually controlled RPM-based Fan Speed Control Algorithm. The FSC algorithm automatically approaches and maintains the systems required fan speed using Proportional, Integral, and Derivative terms. It provides accuracy directly proportional to the accuracy of the clock source.

Power Supply Selection

Fan Click Board™ is designed to use a 3.3V power supply only. However, the pins on the board are both 3.3V and 5V tolerant, and hence, it can use both logic levels.

Overview
CategoryBrushless
ApplicationsControlling 4-wire fans inside various electronics
Key components
On-board modulesEMC2301 controller
Features

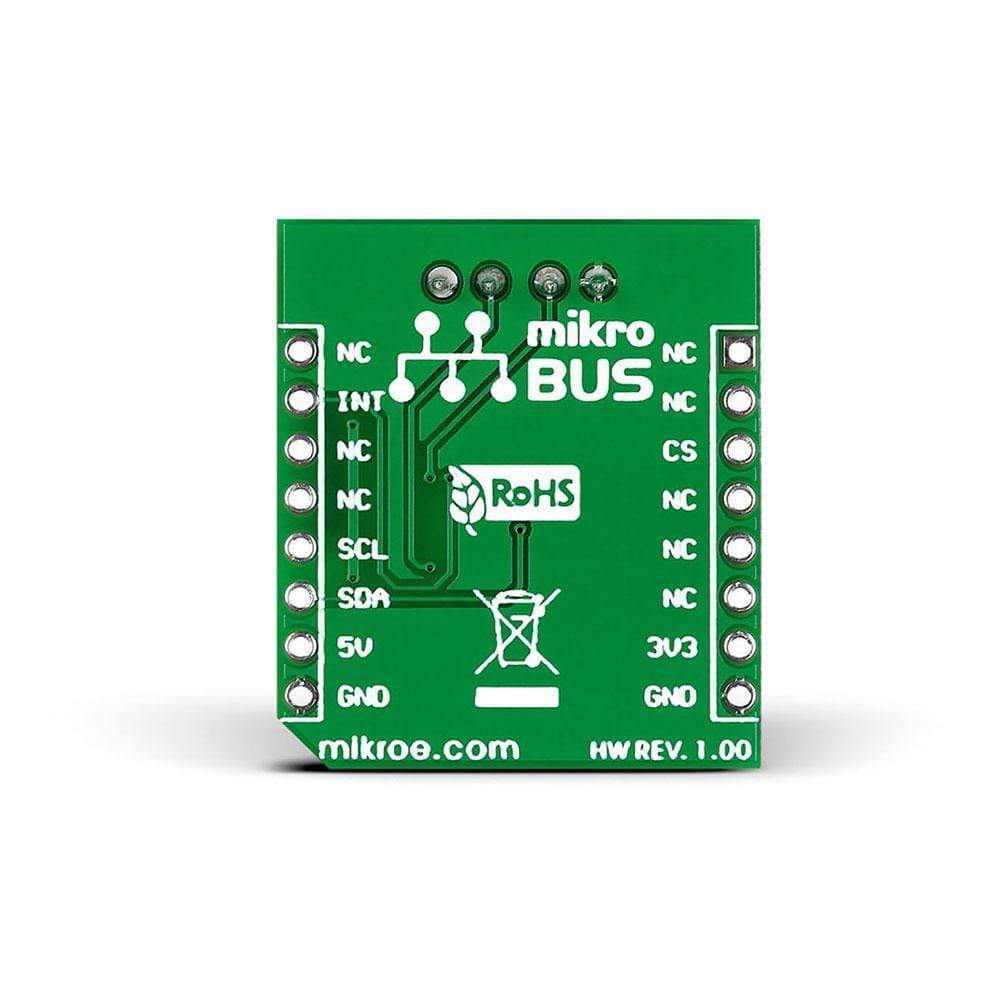

Key featuresFor controlling 5V 4-wire fans. Interrupt pin for alerting of stalled and stuck fans. Internal clock for regulating RPM of fan
Interfaces
InterfaceI2C, GPIO

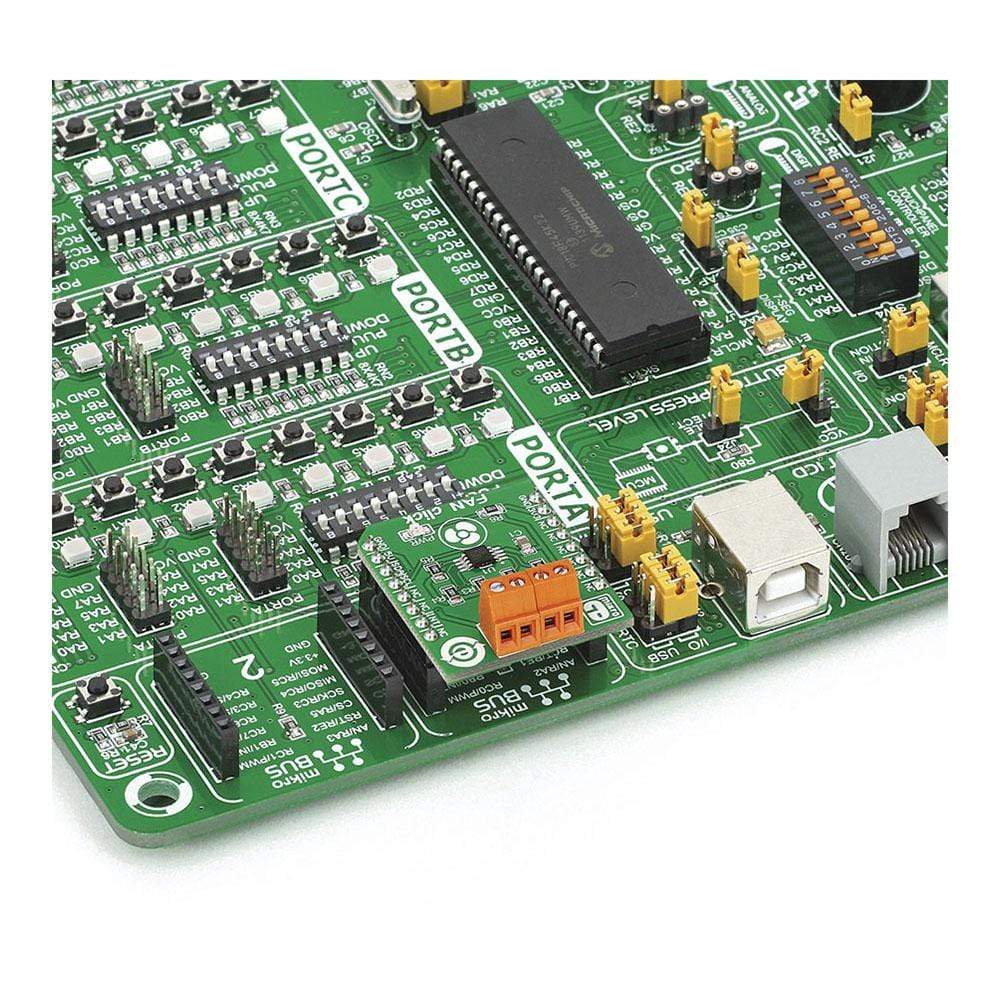

CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical

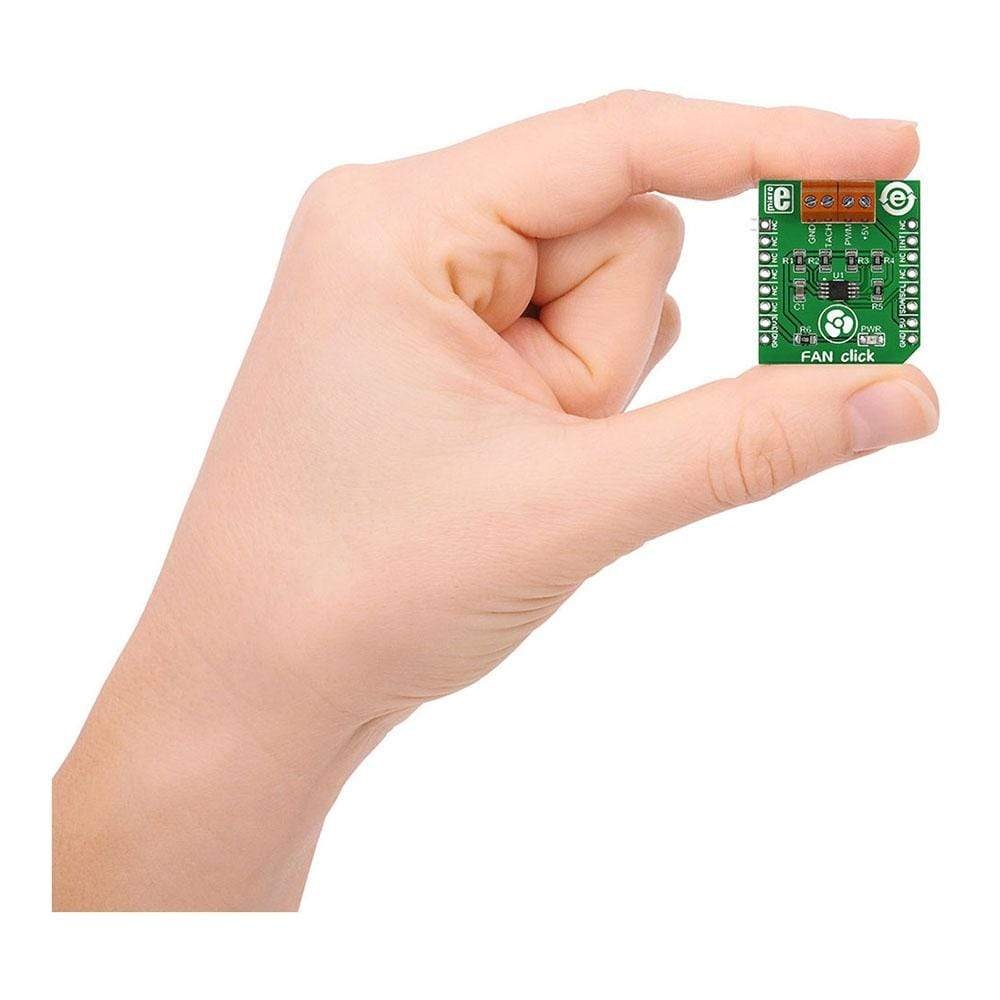

Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2004
ManufacturerMikroelektronika d.o.o.
EAN8606015077079
Warranty12 months
Shipping weight0.025 kg
  • 1 × Fan Click Board™

Contact us to confirm the full contents of the box.
