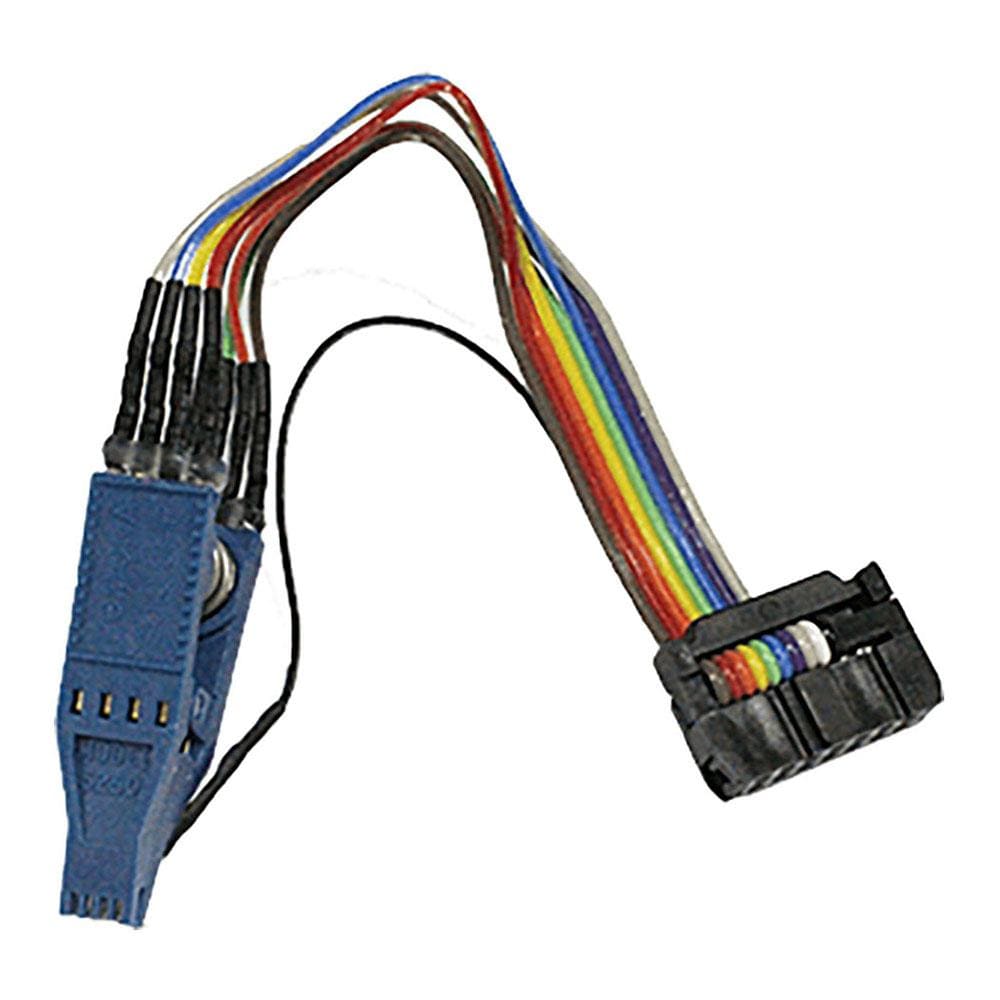

Dediprog EE-TC-8 ISP Testclip (SO8)

The EE100 ISP SO8 Test Clip is used to connect the ISP EE100 programmer to the Main EEPROM soldered on board offering the possibility to update directly the EEPROM content if no ISP connector is mounted on board. The ISP updating method must only be used if supported by your application or controller.

• Compatible with SO8N (150mils) and SO8W (200 mils) package
• The system can be reset automatically during the update by connecting the additional wire to the System reset signal.
