Mikroelektronika d.o.o.

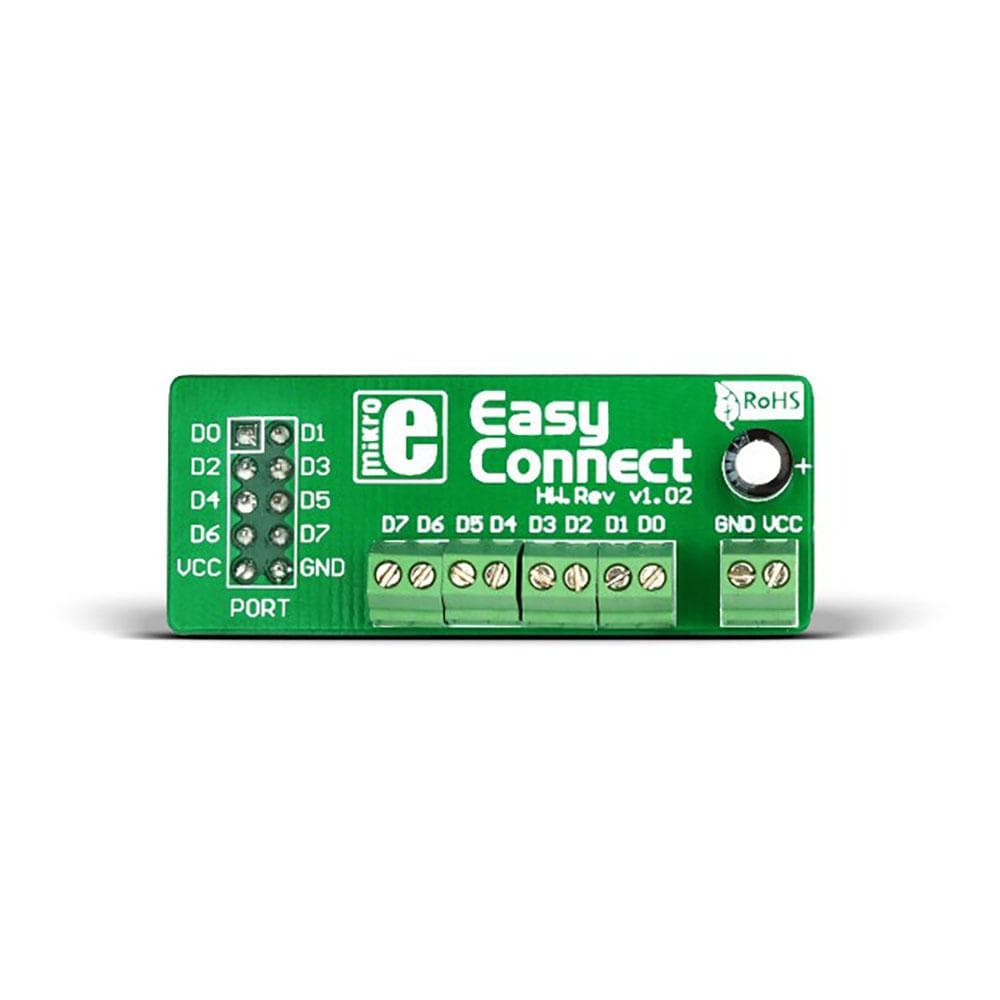

EasyConnect2 Board

EasyConnect2 Board

SKU: MIKROE-194

Regular price
£3.60 exc VAT
£4.32 inc VAT
Regular price Sale price
£3.60 exc VAT
£4.32 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The EasyConnect 2 Board is an accessory board that provides easy access to the MCU pins via screw terminals. This additional board features on-board small screw-terminated connectors that can handle solid and stranded wires. These connectors enable eight wires to be easily connected or removed. Featuring modular configuration, it permits several wires to be connected or removed with one operation.

The EasyConnect2 Board has a female IDC10 connector that provides an easy way to connect the peripheral devices to the development system. This additional board is designed to operate in a wide range of power supply range (from 2.7V to 5V). Featuring compatible headers already installed on MikroElektronika.

The EasyConnect 2 Board is an accessory board that provides an easy access to the MCU pins via screw terminals. This additional board features on-board small screw-terminated connectors that can handle solid and stranded wires. These connectors enable eight wires to be easily connected or removed. Featuring modular configuration, it permits several wires to be connected or removed with one operation.

The EasyConnect2 Board has a female IDC10 connector that provides easy way to connect the peripheral devices to the development system. This additional board is designed to operate in a wide range of power supply range (from 2.7V to 5V). Featuring compatible headers already installed on MikroElektronika.

Overview
ApplicationsBoard enables simple connectivity of surrounding electronics through screw terminals with development boards that contain IDC10 headers
Product typeAdapter
Key components
On-board modulesScrew-terminated connectors
Features
Key featuresTen screw terminals, one for each pin of IDC10 connector
Key benefitsFemale IDC10 connector is compatible with mikroE development boards
Interfaces
InterfaceGPIO
CompatibilityIDC10
Electrical
Power supply3.3V or 5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-194
ManufacturerMikroelektronika d.o.o.
EAN8606015070742
Warranty12 months
Shipping weight0.006 kg
  • 1 × EasyConnect2 Board

Contact us to confirm the full contents of the box.
