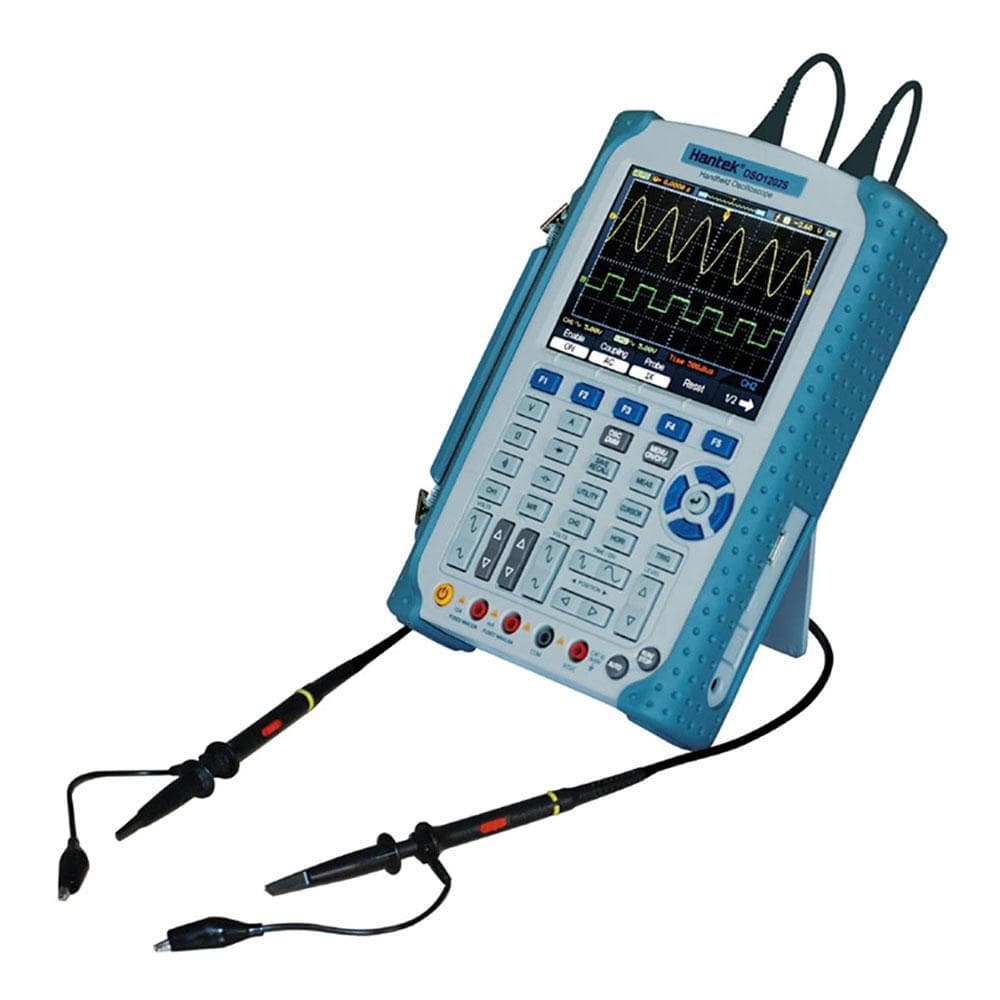

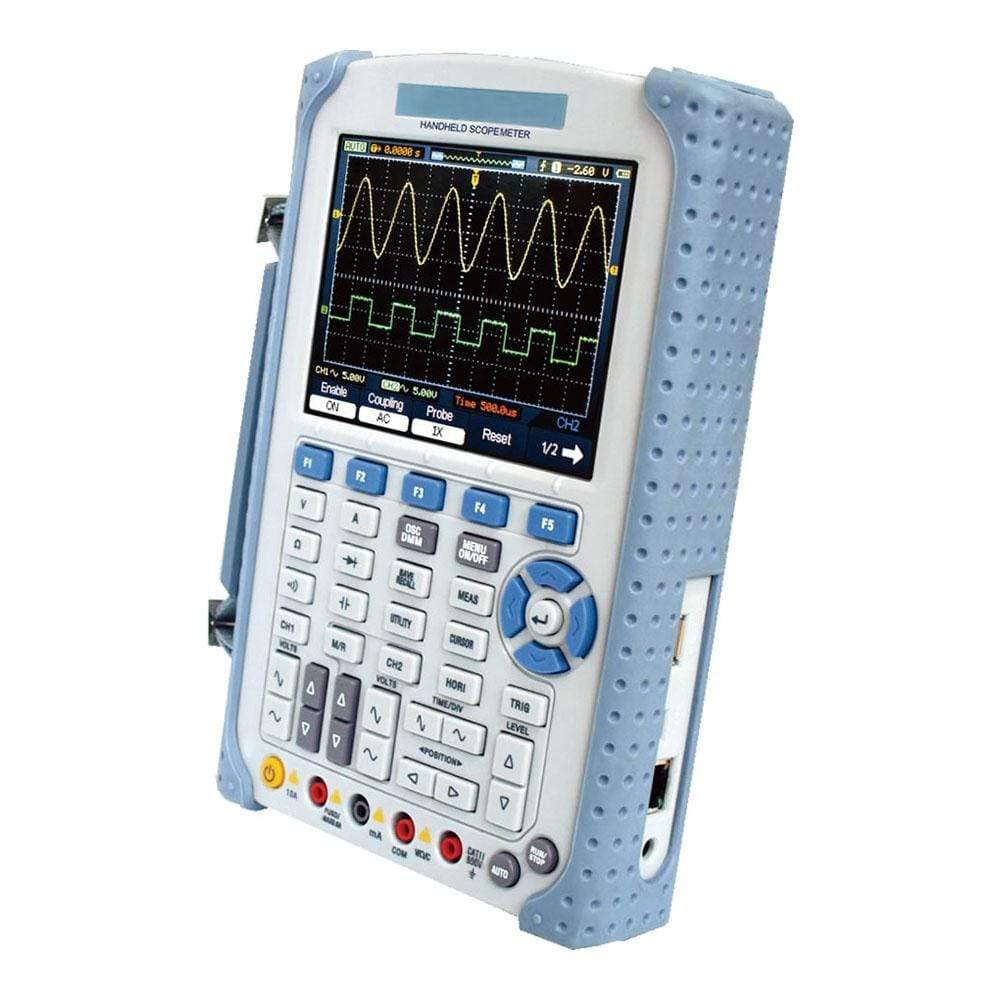

The Hantek DSO-1122S is a dual-channel, 120MHz bandwidth hand-held oscilloscope with isolated inputs and a digital multimeter with a built-in colour LCD.
Isolated level: 1000V CATII, 600V CATIII
60MHz-200MHz Bandwidth Oscilloscope
1GSa/s sample rate,1M Memory Depth, and 6000 Counts DMM with analog bar-graph
5.6 inch TFT Color LCD Display, high resolution(640*480).
FAQs
Hantek DSO-1122S 2-ch, 120MHz Isolated LCD Oscilloscope
Frequently Asked Questions
Product Description
Product Description
Specifications
| Model |
DSO-1202S |
DSO-1152S |
DSO-1122S |
DSO-1062S |
| Bandwidth |
200MHz |
150MHz |
120MHz |
60MHz |
| Channel |
2 |
| Actual Sample Rate |
1GSa/s |
| Equivalent Sample Rate |
25GSa/s |
| Record Length |
1M |
| Rise time |
≤1.7ns / ≤2.3ns / ≤2.9ns / ≤5.8ns |
| Timebase Accuracy |
±50ppm |
| Time Base Range |
2ns/div-2000s/div |
2ns/div-2000s/div |
2ns/div-2000s/div |
4ns/div-2000s/div |
| Video Help |
-- |
| SD Card |
-- |
| Input Impedance |
1MΩ |
| Volts/div Range |
2mV/div～5V/div |
| A/D Converter |
8-bit |
| Position Range |
±50V (5V/div), ±40V (2V/div～500mV/div),
±2V (200mV/div～50mV/div), ±400mV (20mV/div～2mV/div). |
| DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
| Bandwidth Limit |
20MHz |
| Trigger Types |
Edge, Video, Pulse, Slope, Over time, Alternative |
| Trigger Source |
CH1, CH2 |
| Math |
+,-,x,÷,FFT |
| Cursor Measurement |
Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT); |
| Auto Measurement |
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF |
| The float voltage between BNC and Ground |
600V CATIII, 1000V CAT II |
| The float voltage between each Channel |
600V CATIII, 1000V CAT II |
| The float voltage between Multimeter and Ground |
1000V |
| between input Ports directly |
400V CAT II |
| Input by 10:1 probe |
600V CATIII, 1000V CAT II |
| DMM Max. Resolution |
6,000 Counts |
| Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode & Continuity |
| Max. Input Voltage |
AC: 600V, DC: 800V |
| Max. Input Current |
AC:10A , DC: 10A |
| Max. Input Impedance |
10MΩ |
| Display |
5.6" TFT 16K Colour Display, 640*480 dots |
| Size |
245mm x 163mm x 52mm |
| Weight |
1.3Kg (without packaging) |
| Standard Probe |
2x PP-200 |
2x PP-150 |
2x PP-150 |
2x PP-80 |
