Overview
The Clicker Board™ for CEC1702 is a compact development board with two MikroBUS sockets for Click Board™ connectivity. With more than 355 Click Boards™ so far, you can combine different functionalities and create without limitations. The board carries the CEC1702, a 32-bit ARM Cortex -M4 Processor Core, with strong cryptographic support.
Clicker 2 Board™ for CEC1702 - the Possibilities are Endless..
A compact development board with two mikroBUS sockets and your favourite microcontroller. Unleash your imagination.
The board carries the CEC1702 from Microchip, a 32-bit ARM Cortex -M4 Processor Core, with strong cryptographic support.
Everything you Need to Get Started

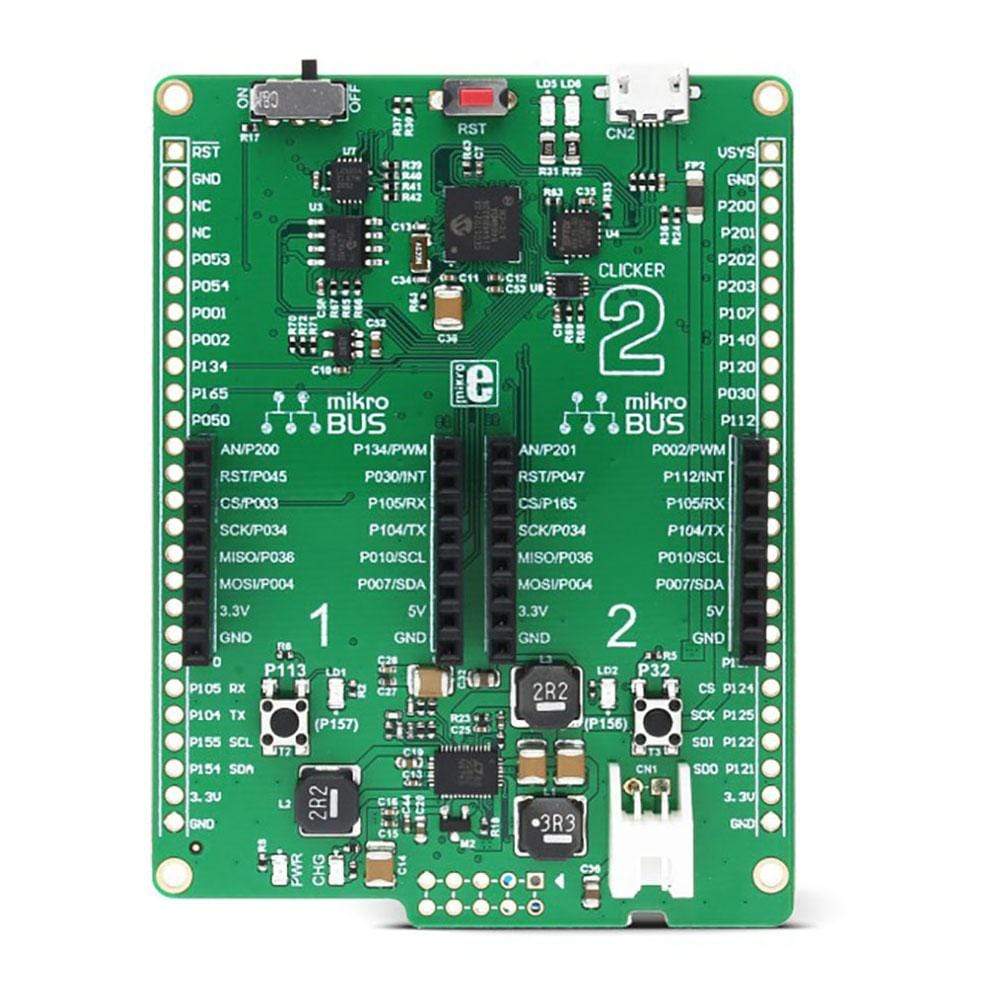

The board features everything you need to get started: a 32-bit CEC1702 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
CEC1702 Microcontroller
The CEC1702 is a full-featured ARM Cortex-M4-based microcontroller with a complete hardware cryptography-enabled solution in a single package. This low-power but powerful, programmable 32-bit microcontroller offers easy-to-use encryption, authentication, private and public key capabilities and allows customer programming flexibility to minimise customer risk.
Strong Cryptographic Support
The CEC1702 provides a high level of security features, its a microcontroller with a complete hardware cryptography-enabled solution. It delivers a multi-dimensional defence against attacks, including: .
Pre-boot authentication of system firmware: Providing an immutable identity and a root of trust to ensure that the firmware is untouched and hasnt been corrupted.
Firmware update authentication: Verifying that the firmware update has not been corrupted and is from a trusted source.
Authentication of system critical commands: Attesting that any system-critical command is from a known source with authorisation to make the given change, preventing potentially devastating actions.
Protection of secrets with encryption: Safeguarding code and data to prevent theft or malicious activities.

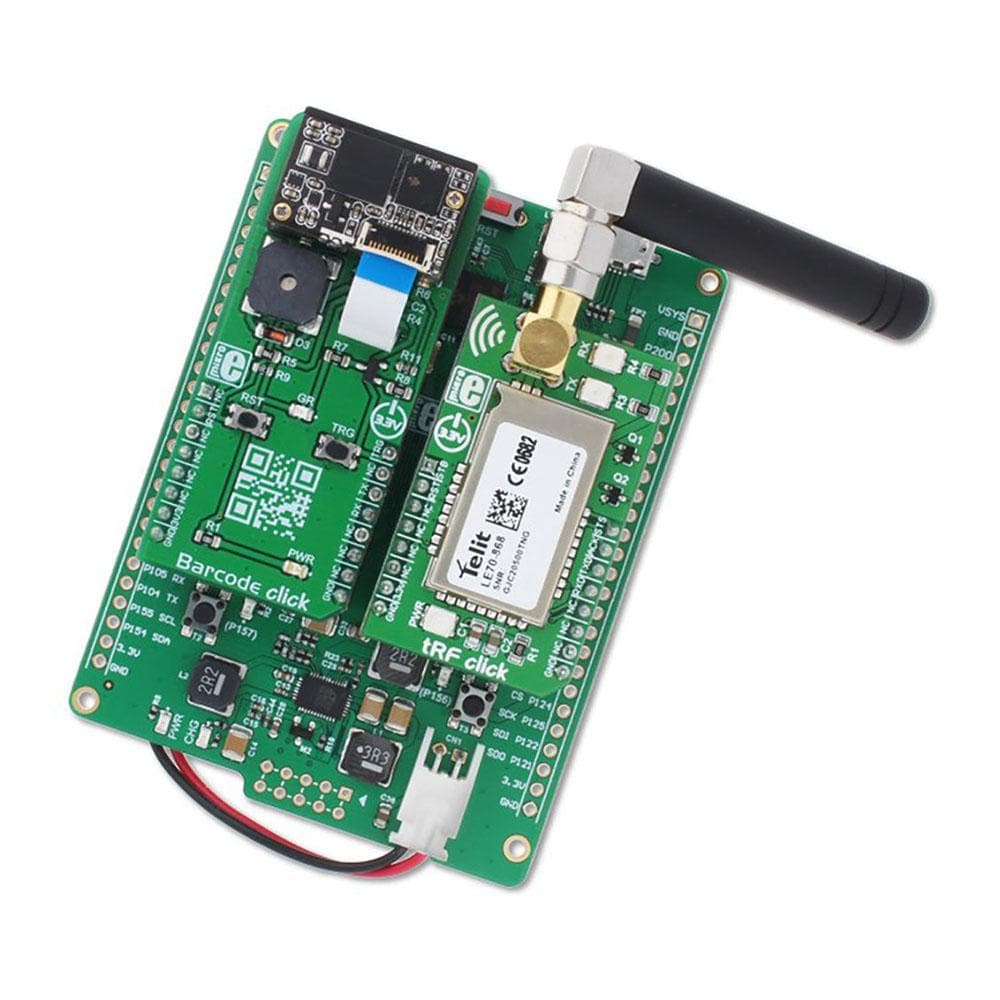

Open up Hundreds of Possibilities with Click Board™s
With more than 355 Click Board™s available, and the number rising every day, the combinations of functionalities is enormous. Choose two Click Board™s that suit your project the most, and youre half-way done. Have fun and play, mix and match. We do the hard work, to bring your ideas to life.
Compatible with mikroMedia™ Shields
The Clicker 2 Board™ for CEC1702 is compatible with mikroMedia™ shields letting you expand your device any way you want. It has the same pair if 1x26 connection pads as mikroMedia™ boards.
Programming
Clicker 2 Board™ for CEC1702 is shipped without the Bootloader and the appropriate eFUSE settings (factory default). To be able to program Clicker 2 Board™ for CEC1702 follow the steps explained on CEC1702 Specifics in the Help section of the ARM compilers, under "OTP Programming the CEC1702 device".
Power Management
The Clicker 2 Board™ for CEC1702 features LTC3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC3586 also enables battery charging over a USB connection.
You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.
| Overview | |
|---|---|
| Applications | This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas |
| Architecture | ARM (32-bit) |
| Key components | |
| MCU | CEC1702 |
| MCU memory | 480KB of SRAM |
| On-board modules | 2 x LEDs, 2 x push buttons, 1 x reset button |
| Features | |
| Expandability | 2 x mikroBUS™ sockets, two 1x26 mikromedia-compatible headers |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2067 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015079288 |
| Warranty | 12 months |
| Shipping weight | 0.04 kg |
-
1 ×
Clicker Board 2 for CEC1702
Contact us to confirm the full contents of the box.
