Overview

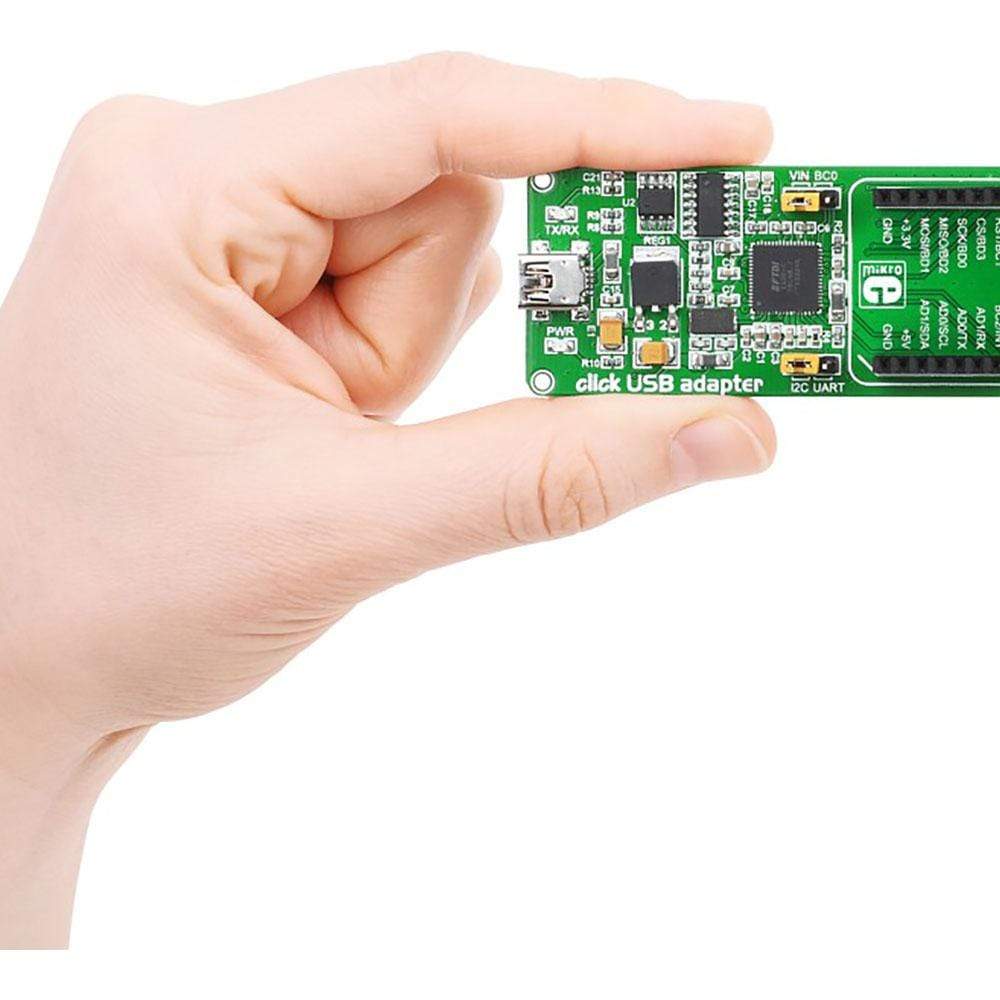

The Click Board™ USB Adapter board provides the necessary interface for connecting Click Board™ add-on boards to your PC through the USB connection. It features FT2232H dual high-speed USB to multipurpose IC, AD converter, EEPROM memory and mikroBUS host socket.

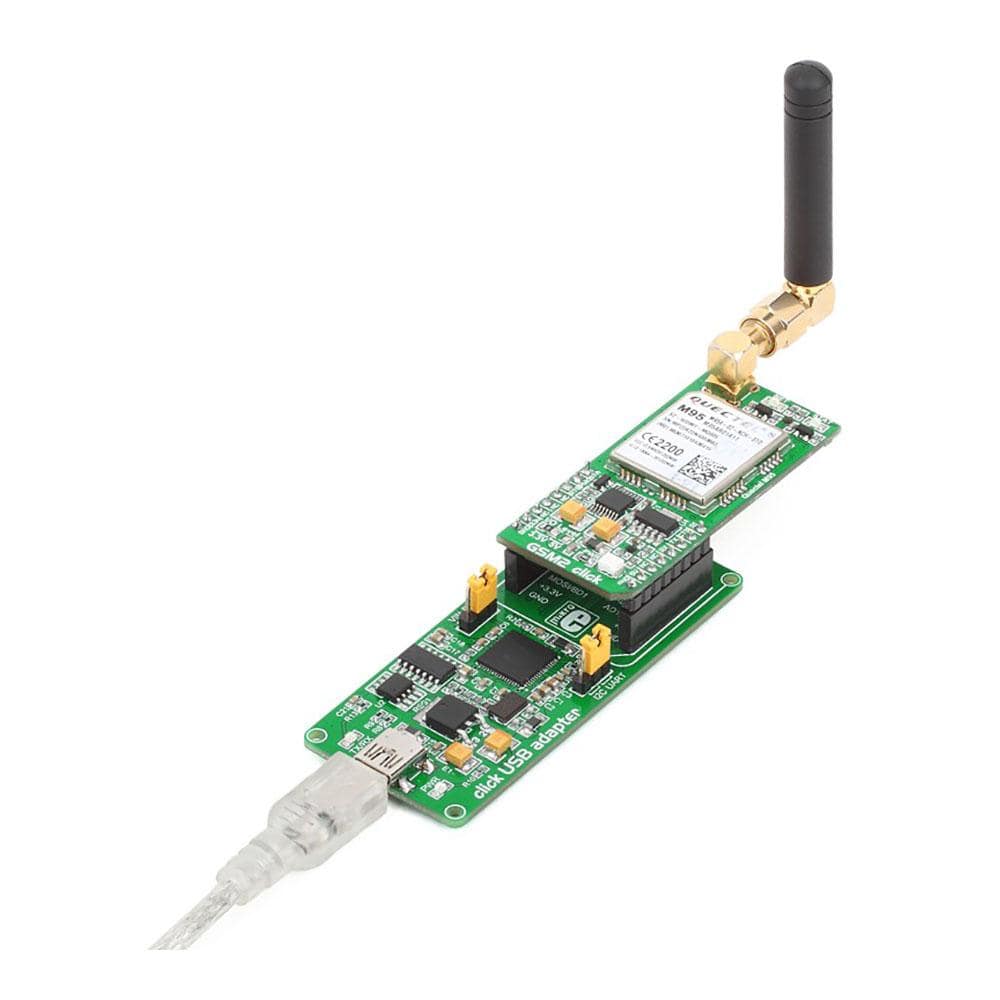

The Click Board™ USB Adapter provides the necessary interface for connecting Click Board™ add-on boards to your PC through high speed USB connection, without the need for microcontroller as a mediator. It features FT2232H dual high speed USB to multipurpose IC, Analog-to-Digital converter, EEPROM memory and a single mikroBUS host socket.

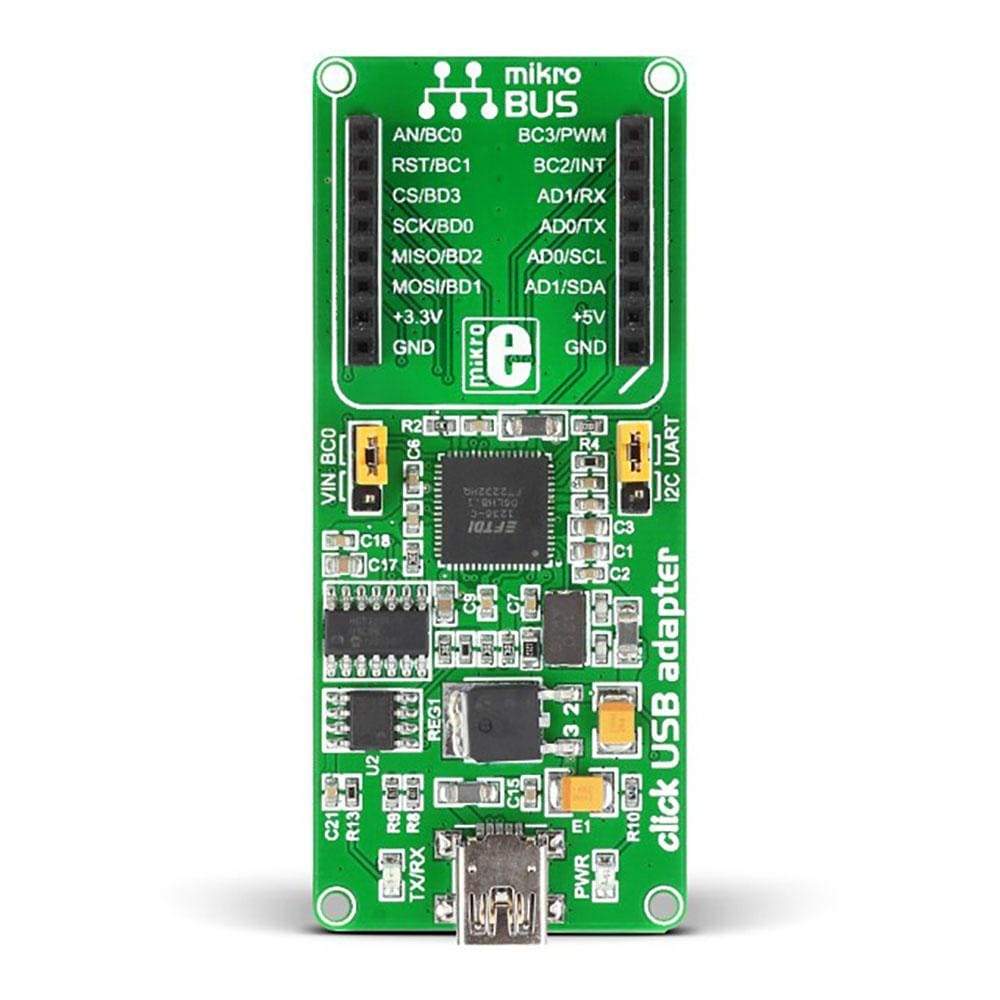

The Click Board™ USB Adapter can be powered through USB cable only. Two jumpers are provided on board. J1 jumper is used to select whether UART or I2C will be used. J2 selects whether AN pin on mikroBUS socket will be GPIO pin, or connected to MCP3204 AD converter circuit.
| Overview | |
|---|---|
| Applications | This board allows developers to use the power and flexibility of click boards in their PC applications, without any microcontrollers as mediators |
| Key components | |
| On-board modules | FT2232H dual high speed USB to multipurpose IC, Analog-to-Digital converter, EEPROM memory and a single mikroBUS™ host socket |
| Features | |
| Key features | MCP3204 AD converter brings support for analog input. Power and RX/TX LEDs on-board |
| Key benefits | Single mikroBUS™ socket for adding Click additional boards. Mounting holes simplify integration |
| Interfaces | |
| Interface | UART |
| Compatibility | mikroBUS™ |
| Electrical | |
| Power supply | 3.3V or 5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1433 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074603 |
| Warranty | 12 months |
| Shipping weight | 0.011 kg |
-
1 ×
Click Board™ USB Adapter
Contact us to confirm the full contents of the box.
