C Meter Click Board™

C Meter Click Board™

SKU: MIKROE-2376

Regular price
£11.00 exc VAT
£13.20 inc VAT
Regular price £11.00 GBP Sale price
£11.00 exc VAT
£13.20 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The C Meter Click Board™ is a mikroBUS add-on board with circuitry for measuring the value of capacitors. The design is based on a NE-555 timer/square-wave generator.

Videos

C Meter Click Example

MikroElektronika · 1:11 · 2016

Video notes

C Meter Click measures capacitor values with an NE-555 oscillator whose output frequency changes with the part under test. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

The C Meter Click Board™ is a mikroBUS add-on board with circuitry for measuring the value of capacitors. The design is based on a NE-555 timer/square-wave generator.

The chip is implemented in an astable multivibrator circuit with fixed resistors and adjustable capacitors.

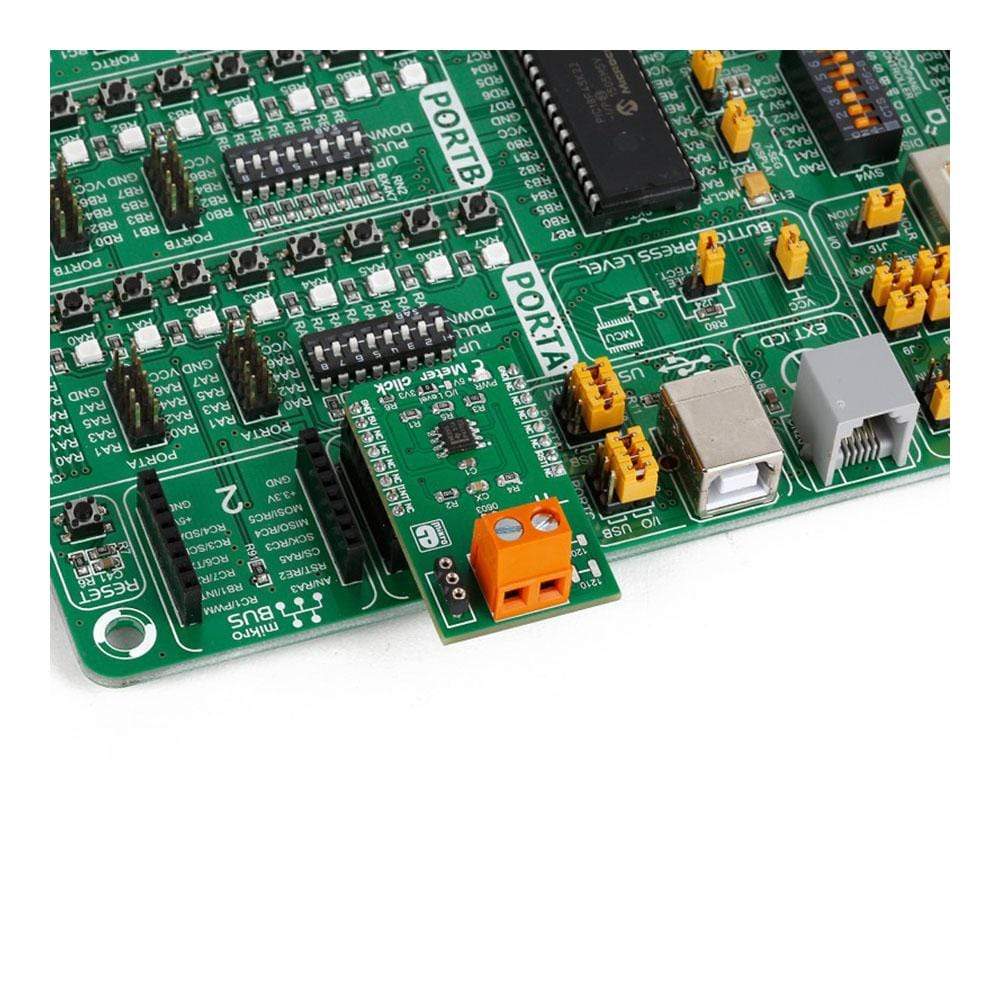

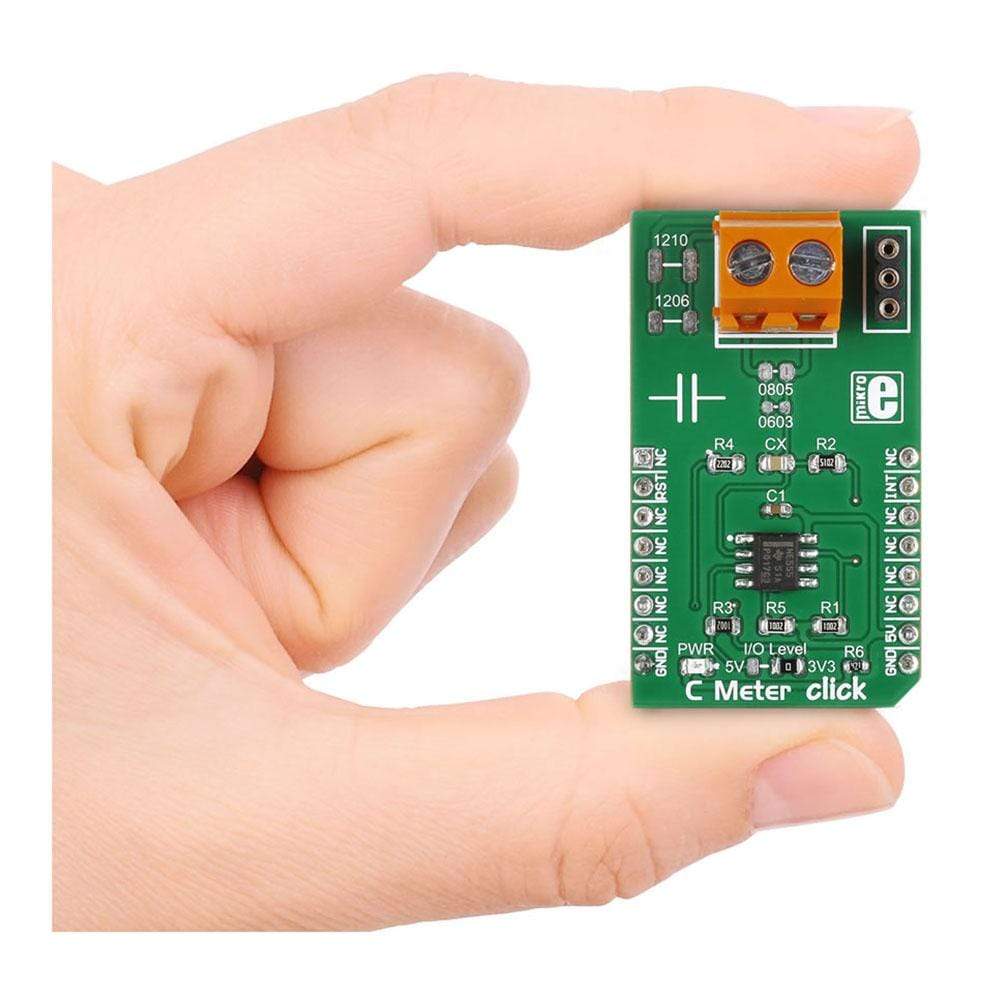

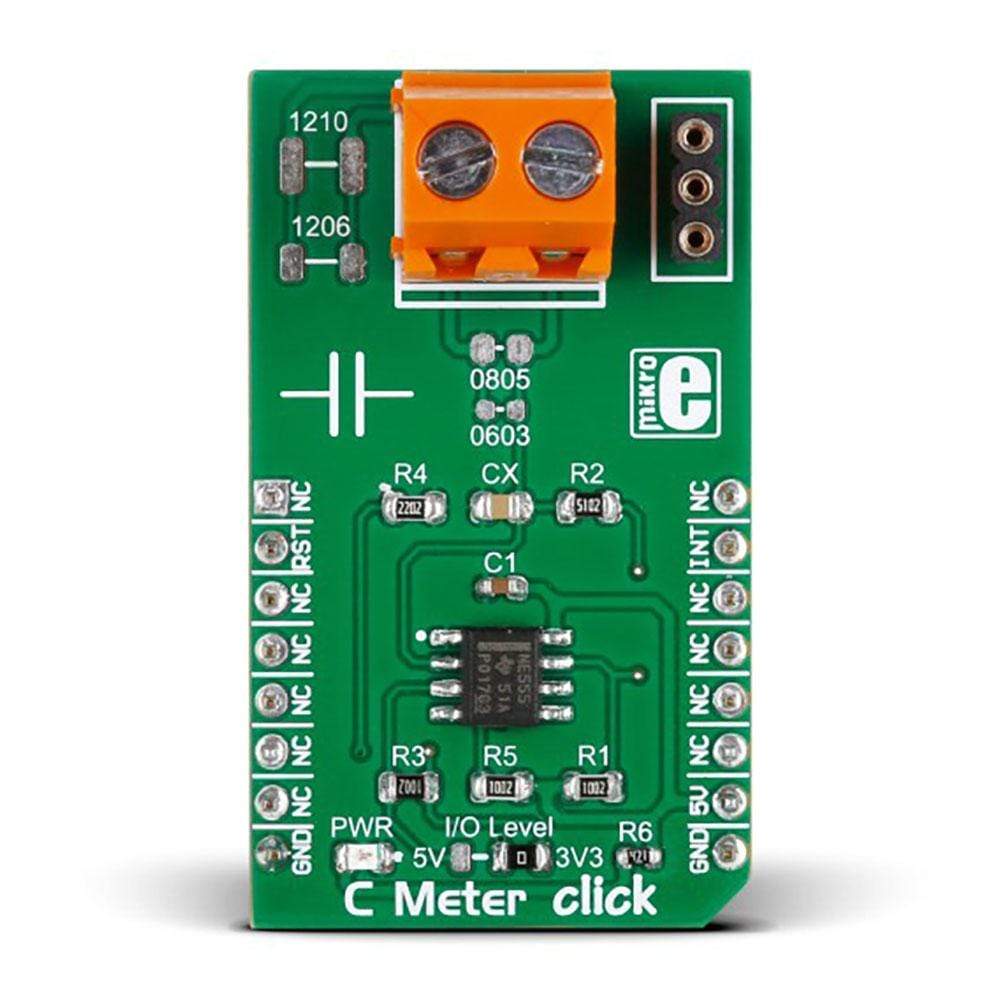

The board has four different-sized plates for placing SMD capacitors (covering standard SMD packaging dimensions) as well as a socket for inserting a thru hole capacitor.

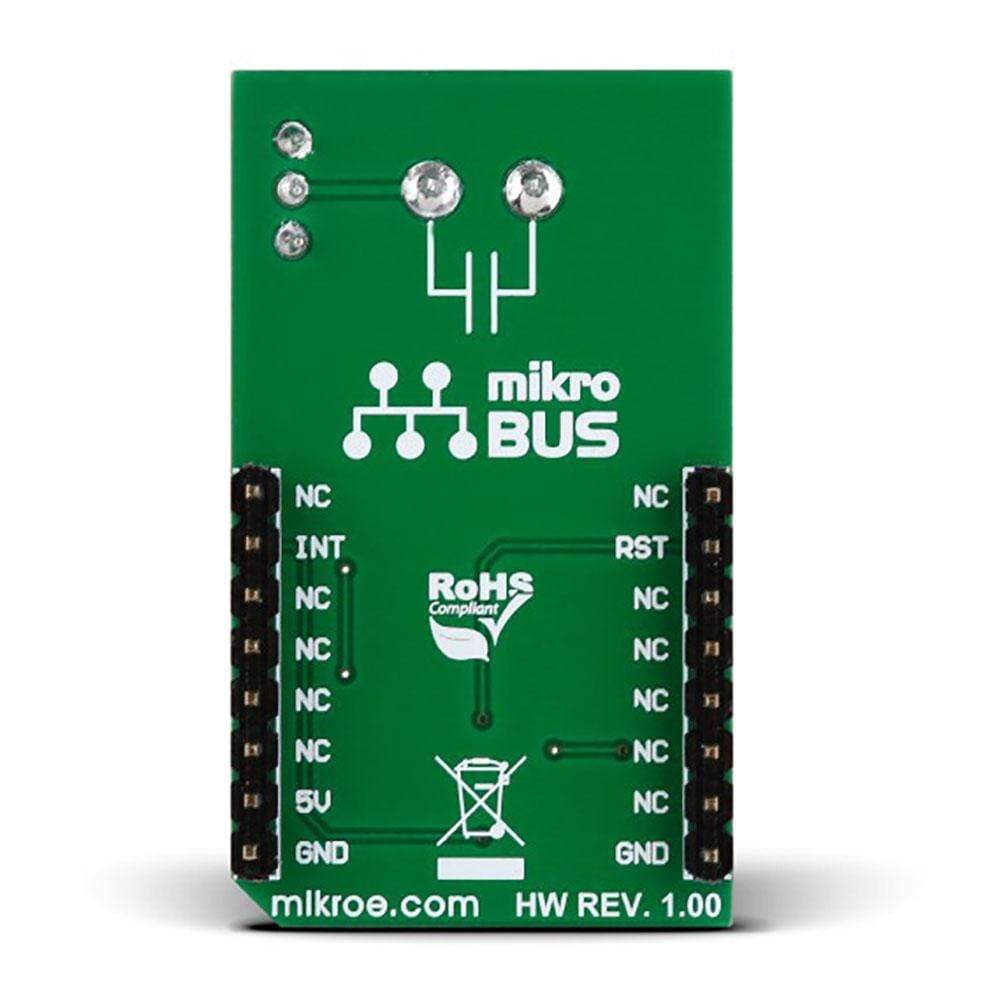

The board outputs a square wave frequency through the INT pin. Depending on the capacitor placed on the board, the value of this frequency changes. The value of a capacitor can be inferred using a simple algorithm (shown in the Libstock code example).

Onboard screw terminals are placed to allow the C Meter Click Board™ to be used with multimeter probes.

C Meter click is designed to use a 5V power supply, but can work with either 3.3V or 5V logic levels.

Overview
CategoryMeasurements
ApplicationsCapacitance measurement tool
Key components
On-board modulesNE-555 timer/square-wave generator
Features
Key featuresPlates and sockets for placing capacitors
Interfaces
InterfaceGPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeM (42.9 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2376
ManufacturerMikroelektronika d.o.o.
EAN8606015078496
Warranty12 months
Shipping weight0.022 kg
  • 1 × C Meter Click Board™

Contact us to confirm the full contents of the box.
