Overview

A new add-on board for communication, the MikroE BEE Click Board™ employs the Microchip MRF24J40MA 2.4 GHz IEEE 802.15.4 radio transceiver module. MRF24J40MA module includes integrated crystal, internal voltage regulator, matching circuitry and PCB antenna. It operates in the 2.4 GHz frequency band and is FCC, IC and ETSI compliant. BEE Click Board™ is an ideal solution for wireless networks, smart home and building automation, and other electronic applications that require wireless communication. The board is connected to the microcontroller through an SPI interface and is provided with a 3.3V power supply only.

The BEE Click Board™ supports ZigBee, MiWi, MiWi P2P and proprietary wireless networking protocols with data rates of 250 kbps (IEEE 802.15.4) and 625 kbps (Turbo mode).

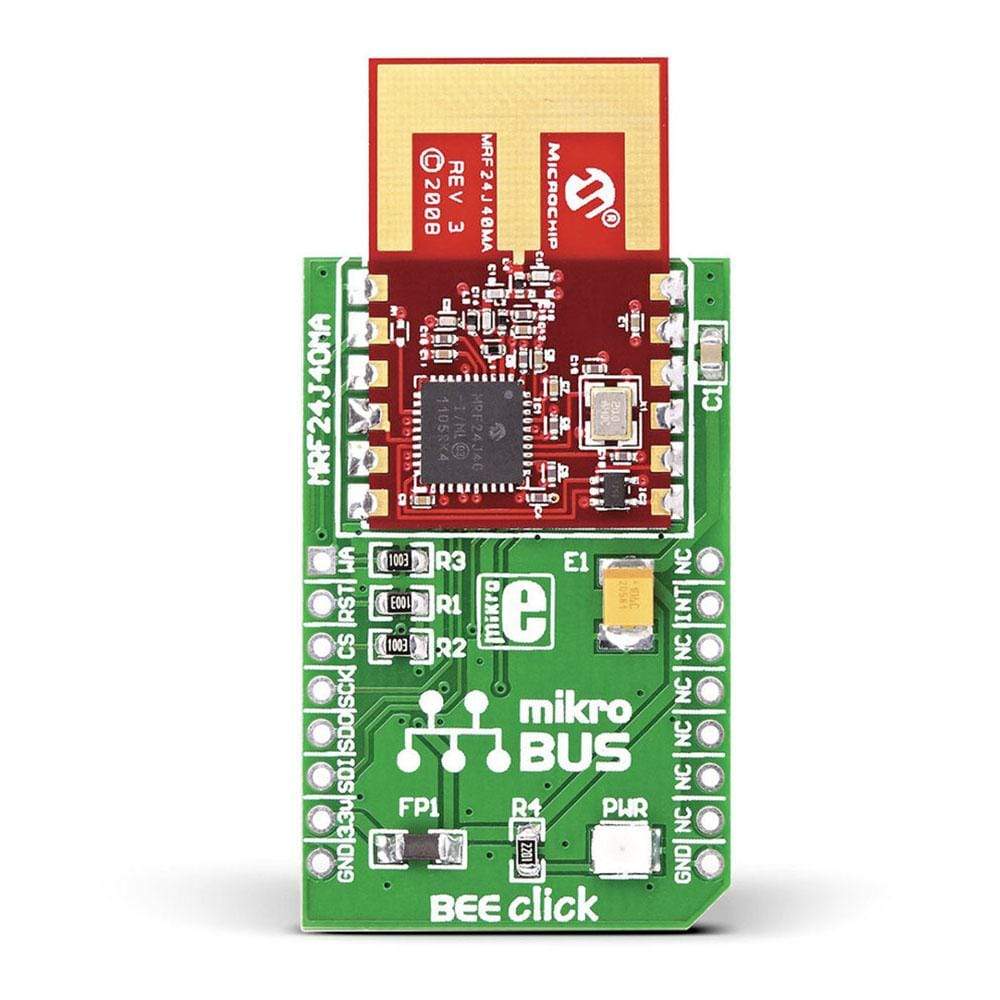

The BEE Click Board™ features MRF24J40MA 2.4 GHz IEEE 802.15.4 radio transceiver module from Microchip. The click is designed to run on 3.3V power supply only. It communicates with the target microcontroller over an SPI interface.

The BEE Click Board™ is an ideal solution for wireless networks, smart home and building automation, and other electronic applications that need wireless communication.

MRF24J40MA Module

MRF24J40MA is IEEE 802.15.4™ standard compliant RF transceiver. It supports ZigBee®, MiWi™, MiWi P2P and proprietary wireless networking protocols with data rates of 250 kbps (IEEE 802.15.4).

PCB Antenna

This module includes an integrated PCB antenna and matching circuitry and is connected to the microcontroller via an SPI interface.

Power Supply

The board is designed to use 3.3V power supply only. If you need to add ZigBee™ feature to your 5V prototype or development board, we recommend you to use other boards such as the EasyBee 3 board.

Key Features

  • PCB antenna
  • MRF24J40MA module
    • Low current consumption (Tx 23mA, Rx 19mA, Sleep 2µA)
    • ZigBee stack
    • MiWi™ stack
  • Interface: SPI
  • 3.3V power supply
Overview
CategoryZigBee
ApplicationsBEE click is a great choice for building automation & monitoring, Industrial monitoring, Automated meter reading, Security, Inventory management and more.
Key components
On-board modules2.4 GHz IEEE 802.15.4 radio transceiver module MRF24J40MA
Features
Key featuresIntegrated 20 MHz and 32.768 kHz Crystal Oscillator Circuitry.
Interfaces
InterfaceSPI, GPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V
Physical

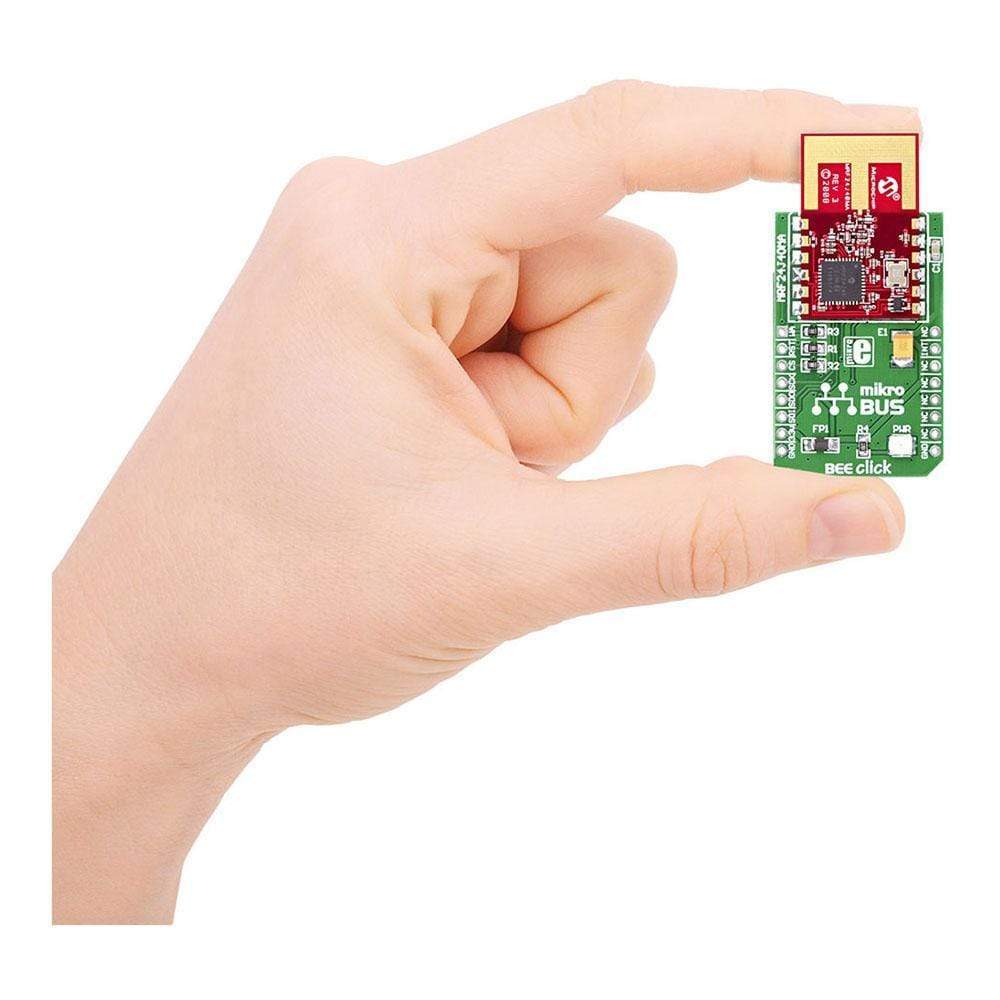

Click board sizeM (42.9 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Additional specifications
Data rate250 kbps (IEEE 802.15.4); 625 kbps (Turbo mode)
Ordering information
Part number (SKU)MIKROE-987
ManufacturerMikroelektronika d.o.o.
EAN8606015073521
Warranty12 months
Shipping weight0.03 kg
  • 1 × BEE Click Board™

Contact us to confirm the full contents of the box.
