Debug USB with the Total Phase Beagle USB 5000 v2 SuperSpeed Protocol Analyzer
Video notes
The Beagle USB 5000 v2 SuperSpeed Protocol Analyzer and Data Center Software monitor traffic between a USB 3.0 flash drive and a host PC in real time.
Total Phase, Inc

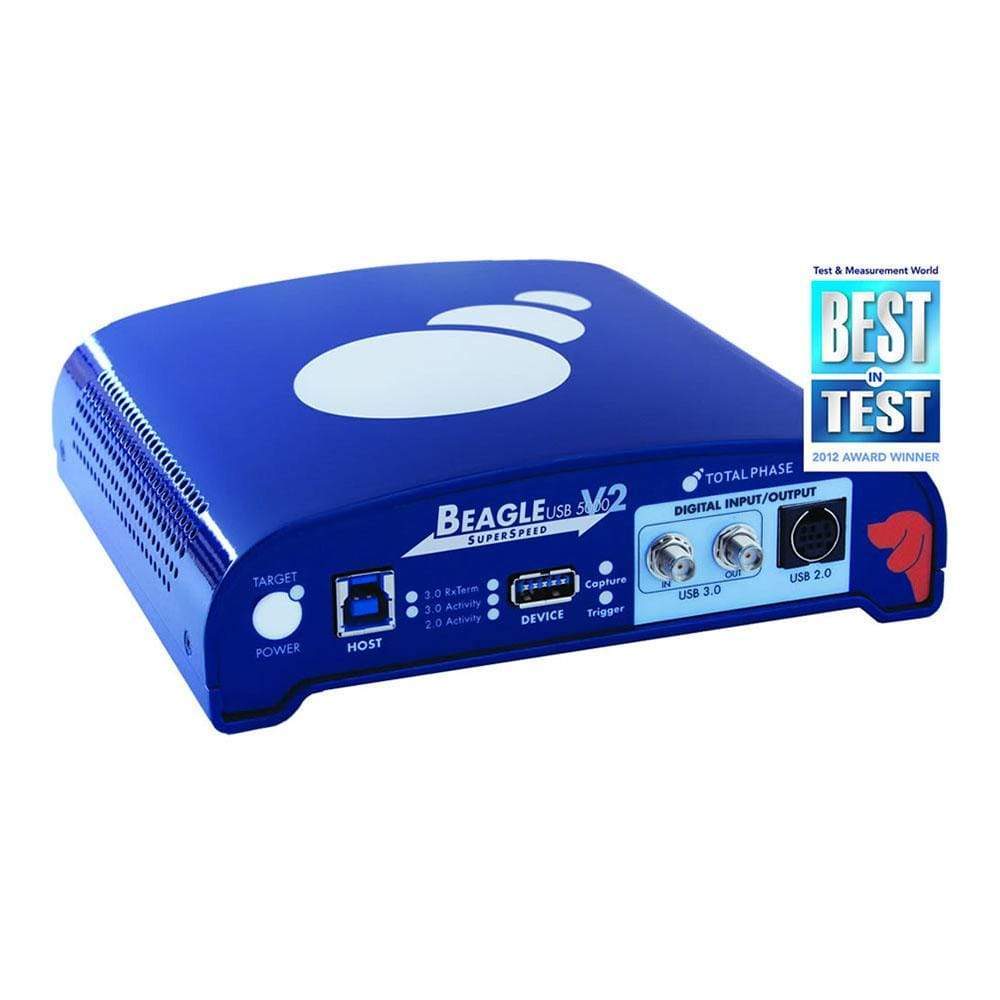

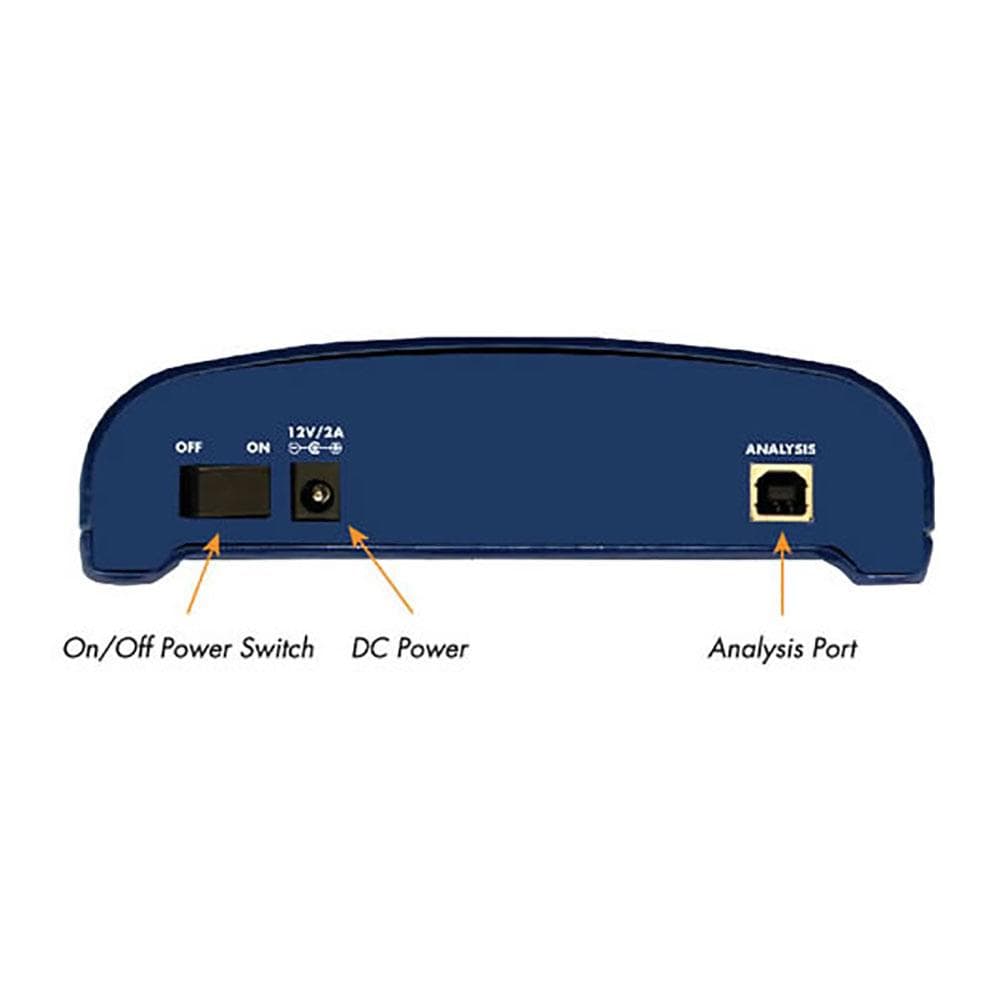

Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition
Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition
SuperSpeed USB 2.0 & 3.0 Protocol Analyser
SKU: TP322610
Regular price
£6,696.00
inc VAT
£5,580.00
exc VAT
Regular price
Sale price
Unit price
per
£6,696.00
inc VAT
£5,580.00
exc VAT
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 5 working days.
Couldn't load pickup availability
Key Features
Real-Time Non-Intrusive USB 3.0/2.0 Monitoring
LiveDisplay Technology with 2ns Timing Resolution
Advanced State-Based Triggering System
USB 3.0 SuperSpeed Downlink
Cross-Platform Data Center Software
Hardware-Based Packet Suppression
Unlimited Capture Sizes with 4GB Buffer
Overview
The Beagle USB 5000 v2 SuperSpeed Ultimate Edition is an advanced USB protocol analyzer designed for real-time capture and analysis of USB 3.0 and USB 2.0 data. It stands out as a top-tier tool in the field, offering unparalleled performance and flexibility.
Key Features and Benefits:
- Real-time interactive capture and analysis of USB 3.0 and USB 2.0 traffic at speeds up to 5 Gbps.
- Enhanced with a USB 3.0 downlink and multi-analyzer synchronization for faster and more precise monitoring.
This ultimate edition of the Beagle USB 5000 v2 pushes the boundaries of USB analysis tools, catering to the needs of even the most experienced USB developers. Its user-friendly design, combined with free Data Center Software and cross-platform support for Windows, Linux, and Mac OS X, makes it a versatile and essential tool for engineers working with USB 3.0 or USB 2.0 protocols.
Engineered to meet the demanding requirements of modern USB communication, the Beagle USB 5000 v2 SuperSpeed Ultimate Edition guarantees accurate and detailed insights into USB data exchanges. Stay ahead in USB development with this cutting-edge protocol analyzer that offers superior performance and exceptional functionality.
Downloads
Datasheets
User Manuals
Total Phase Beagle Protocol Analyzer
Details
Total Phase Beagle USB 5000 4GB Memory Installation Guide
Details
Total Phase Data Center Software v6.73 Protocol AnalyzerComplete user manual for Total Phase Data Center v6.73.000 software - graphical interface for Beagle analyzers, Power Delivery analyzers, Promira...
Details
Total Phase Data Center Software
Details
White Papers
Videos
Videos are hosted on YouTube and load only when you press play.
True Interactive Real-Time Performance
The Beagle™USB 5000 v2 Ultimate is a great analyser tool that non-intrusively monitors the USB 2.0 or USB 3.0 and allows you to interact and analyse the data as and when it is captured on the bus. You do not have to wait for the data to be downloaded and parsed, just connect Beagle™ to the USB port of your computer and see the data transfer immediately.
Fast Data Analysis
Filter and quickly search for data of interest while the capture is still running. Utilize the real-time statistics function of the Data Center Software to view packets and errors on the bus.
Event-based Triggering
The Beagle™USB 5000 v2 allows you to create flexible, state-based event triggers with a maximum of 8 independent states and 6 matches for each state for USB 2.0 captures. Match/Action triggering and filtering function allow you to trigger the capture, filter data, or set external triggers by matching data patterns, packet types, error types, and more.
Unlimited Capture Sizes
Although the on-board buffer memory of 2GB of allows you to store a lot of data on the analyser, the actual amount of data that you can capture depends on the buffer of computer under analysis. As USB traffic is transmitted in bursts, the Beagle™ analyser easily catches up with USB traffic and frees the buffer memory for capturing more analysis data.
Multi-Analyser Functionality
Some applications require multiple analysers for monitoring the data transfer across the system. For such cases you can simply take advantage of the advanced sync feature and create a multi-analyser scenario to measure the latency across the system with utmost precision, which was reviously impossible to attain.
Real-Time USB Class-level Decoding with the Data Center Software
This analyser comes with a Data Center Software that allows you to analyse data in real-time, while the capture is still running. This software also provides Class-level data decoding that makes understanding the USB data easier. Although the Data Center Software supports a number of USB classes, if you are using a class that is not specified in the list, you can save the USB configuration and apply decoding after capturing the data completely. The Data Center Software also allows you to easily share the data you captured with your colleagues all over the world.
How the Beagle 5000 USB Analyzer Monitors Low-Level Events
The Beagle USB 5000 v2 standard analyzer can capture, decode, and debug low-level bus events and errors, as well as high-traffic data.
- Low-level bus events include K/J chirps, Reset, Suspend, Resume, In/NAKs, SOF.
- Beagle USB 5000 v2 analyzer also provides visibility into the USB 3.0 bus, detecting low-level bus events including link training, LFPS polling, training sequences.
- Sometimes, the cause is also a PHY error which is a special-case bus event and can also occur due to electrical inconsistencies.
The Beagle USB 5000 v2 standard analyzer should help you determine to the cause of issues you described.
Advanced Features for USB Troubleshooting and Analysis
For more advanced features, consider the Beagle USB 5000 v2 SuperSpeed Protocol Analyzer - Ultimate Edition. The Beagle USB 5000 v2 ultimate analyzer supports everything that the standard edition provides, plus the following:
- Simultaneous Capture Option for USB 3.0 and 2.0 Monitoring
- SuperSpeed Downlink Upgrade
- Advanced USB 3.0 Triggers (only USB 2.0 Included with Standard)
- USB 3.0 Advanced State-Based Matching Option
- Multi-Analyzer Synchronization Option
| Ordering information | |
|---|---|
| Part number (SKU) | TP322610 |
| Manufacturer | Total Phase, Inc |
| EAN | 5055383696628 |
| Warranty | 2 years |
| Shipping weight | 2.0 kg |
-
1 ×
Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition
Contact us to confirm the full contents of the box.
Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition compared with Total Phase Beagle USB 12 Analyser , Total Phase Beagle USB 480 Analyser and Total Phase Beagle USB 480 Power - Ultimate on 8 specifications.
| Specification | This product
Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate EditionTP322610Available to order |
Total Phase Beagle USB 12 AnalyserTP320221In stock |
Total Phase Beagle USB 480 AnalyserTP320510Available to order |
Total Phase Beagle USB 480 Power - UltimateTP323610In stock |
|---|---|---|---|---|
| USB speeds captured | Low / Full / High / SuperSpeed (5 Gbps) | Low (1.5 Mbps) / Full (12 Mbps) | Low (1.5 Mbps) / Full (12 Mbps) / High (480 Mbps) | Low (1.5 Mbps) / Full (12 Mbps) / High (480 Mbps) |
| On-board capture buffer | 4 GB, plus Host PC streaming | Host PC only | 64 MB, plus Host PC streaming | 256 MB, plus Host PC streaming |
| Timing resolution | USB 3.0: 2 ns / USB 2.0: 16.7 ns | 21 ns | 16.7 ns | 16.7 ns |
| USB class-level decoding | Full class-level decoding | Descriptor parsing only | Full class-level decoding | Full class-level decoding |
| Advanced triggers | Up to 8 states; 6 matches (USB 2.0), 3 per stream (USB 3.0) | Not listed | Not listed | Up to 8 states, 6 matches per state |
| Digital I/O | 4 in / 4 out (Mini-DIN 9); 1 in / 1 out (SMA) | Not listed | 4 in / 4 out (Mini-DIN 9) | 4 in / 4 out (Mini-DIN 9) |
| VBUS current & voltage monitoring | Not listed | Not listed | Not listed | Supported (peak 3 A, 20 V transient) |
| Power source | External AC adapter | USB bus powered | USB bus powered | USB bus powered |
| Price | £5,580 | £540 | £1,375 | £2,680 |
Engineer Q&A
11 questionsQuestions and Answers
-
How Does the Beagle 5000 USB Analyzer Monitor Low-Level Events?
The Beagle USB 5000 v2 standard analyser captures, decodes and debugs low-level bus events and errors, as well as high-traffic data.
Low-level bus events include K/J chirps, Reset, Suspend, Resume, In/NAKs and SOF. On the USB 3.0 bus it also detects link training, LFPS polling and training sequences.
PHY errors are a special-case bus event and can be caused by electrical inconsistencies.
-
What Low-level USB Protocol Analysis Capabilities Does the Beagle USB 5000 Provide?
The analyser captures these low-level events:
- USB 3.0 link training sequences
- LTSSM (Link Training and Status State Machine) transitions
- LFPS polling
- USB 2.0 chirp patterns
It automatically handles data scrambling, spread spectrum clocking, polarity inversion and receiver detection. It detects protocol violations such as invalid PIDs, CRC errors, timeout conditions and frame sequence errors. The LTSSM graphical view shows USB 3.0 power state transitions in real time.
-
How Does the Multi-analyser Synchronisation Feature Enhance System-level Debugging?
Multi-analyser synchronisation coordinates several Beagle analysers so you can make precise latency measurements across a USB system. You can monitor traffic at different points at the same time and track data flow through USB hubs, bridges or multi-port devices. This helps find bottlenecks and timing issues.
-
What Are the Practical Benefits of the Beagle USB 5000's Unlimited Capture Size Capability?
The 4GB on-board buffer, combined with continuous streaming to the analysis PC, allows captures of more than 25GB while keeping real-time performance. This suits long-term protocol compliance testing, finding intermittent errors and characterising a system over long periods. The analyser streams data during USB traffic bursts to manage buffer space, so the buffer is continually emptied during long captures.
-
How Does the LiveFilter and LiveSearch Functionality Improve Debugging Efficiency?
LiveFilter filters captured data in real time by endpoint, device address, packet type, data pattern and error condition, without stopping the capture. LiveSearch finds specific hexadecimal patterns, ASCII text or protocol events within the captured data. Together they cut analysis time while keeping the full capture history for context.
-
What Makes the Beagle USB 5000's Data Center Software Superior to Competitor Analysis Packages?
Data Center gives true real-time analysis with LiveDisplay technology, so there's no wait for post-capture analysis. Data Center includes USB class decoders at no extra cost:
- Audio
- CDC
- DFU
- HID
- Hub
- Mass Storage
- UAS
- Video
Data Center is a native 64-bit application.
-
How Does the Total Phase Beagle USB 5000 Compare with Other USB Protocol Analysers?
The Beagle USB 5000 includes Total Phase's Data Center software at no extra cost, with real-time capture, display, filtering and searching, and it runs on Windows, Linux and macOS.
-
How Does the Beagle USB 5000's Real-time Performance Compare to Traditional "capture-download-parse" Analysers?
The Beagle USB 5000 is much faster thanks to its LiveDisplay technology. In Total Phase's example, a typical capture-download-parse analyser makes you wait nearly 2 minutes before you can view a 512MB USB 2.0 capture, while the Beagle USB 5000 displays results in less than 1 second. It uses an optimised USB 3.0 downlink and processes data in real time rather than in a batch after capture.
-
Can the Beagle USB 5000 Monitor Both USB 3.0 and USB 2.0 Simultaneously?
Yes, the Ultimate Edition captures and analyses USB 3.0 SuperSpeed and USB 2.0 High-Speed traffic simultaneously, in real time. This lets you see fallback behaviour, speed negotiation and cross-protocol interactions that single-protocol analysers can't. It detects and manages the different USB speeds automatically.
-
What Advanced Triggering Capabilities Does the Beagle USB 5000 Offer for Complex Debugging Scenarios?
The Beagle USB 5000 has state-based triggering with up to 8 independent states, with 6 matches per state for USB 2.0 and 3 matches per stream per state for USB 3.0. You can build "if-then" trigger sequences based on data patterns, packet types, error conditions and bus events. The Match/Action system triggers on endpoint behaviour or protocol violations, while hardware filtering reduces the volume of captured data.
-
How Does the Beagle USB 5000's Cross-platform Support Benefit Development Teams?
The Beagle USB 5000 works the same on Windows, Linux and Mac OS X through its native Data Center software. Most competing analysers are Windows-only, so your team can use whichever operating system they prefer. Data Center is the same on every platform, which makes collaboration easier and cuts training.
