The Artila Matrix-505 is an ARM9-based Linux-based computing platform designed for unmanned 24/7/365 continuously running industrial applications.
FAQs

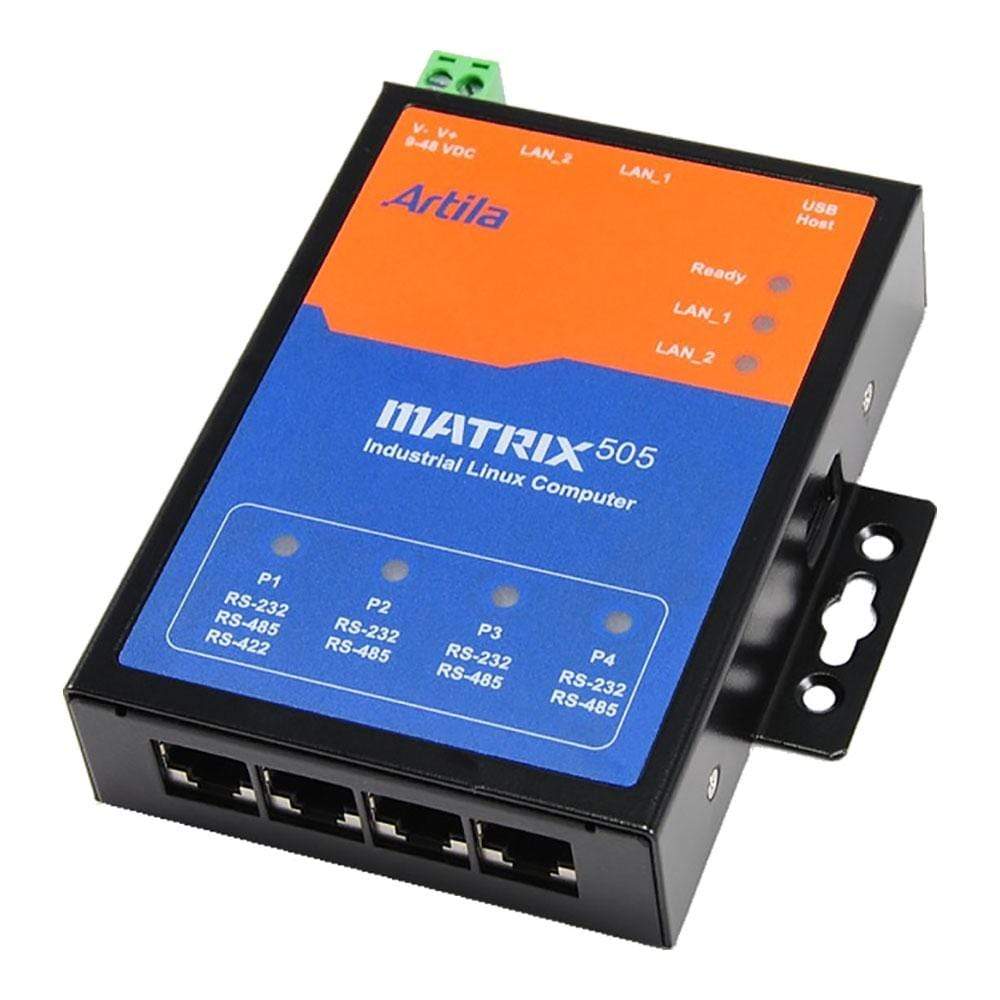

Artila Matrix-505 Automation Controller
Frequently Asked Questions
Product Description
Product Description
It comes equipped with a 400MHz ARM CPU, 128MB NAND Flash, 64MB SDRAM, 2x 10/100M Ethernet port, 4x serial ports, 2x USB 2.0 host ports and 1x real-time clock. NAND-based Storage and Failover Mechanism The Matrix-505 uses NAND Flash for its file system. NAND Flash provides reliable bad sector management over NOR Flash. A brand new Matrix-505 provides more than 90MB storage space for user files. If the NAND Flash file system does crash for certain reason, the Matrix-505 will automatically boot up from its on-board 2MB Data Flash (read only). This failover mechanism provides a convenient way for system recovery. Ideal for Network-centric Applications The Matrix-505 provides ready-to-use Web server, Telnet server and FTP server. Its comprehensive network capabilities make the Matrix-604 an ideal platform for developing remote device monitoring/control application. Also, the Matrix-505 supports the Microsofts Remote Display Control for WinCE utility, which allow users to operate/configure the Matrix-505 in an UI-based environment. Application Development Users can develop the Matrix-604s application using VB.Net, C# or C/C. It is recommended to use Microsofts Visual Studio 2005 IDE for application development. The Matrix-505 provides its own SDK for C/C programming language.
