The SKU-075-01 PCI/PCIe Extension Backplane from Amfeltec is a universal expansion board for computers and laptops that allows additional PCI boards to be added to the system. This board comes with four PCI board slots and two dedicated PCI Express board slots.

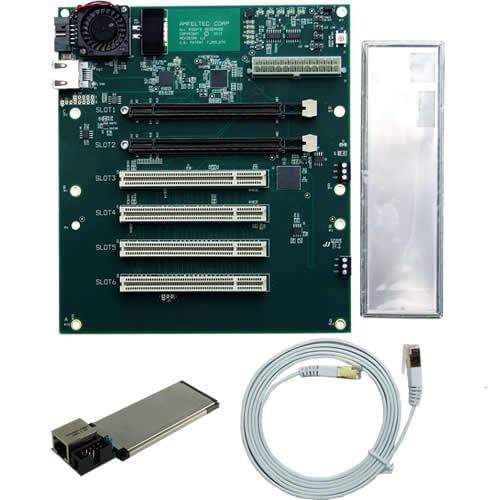

This backplane easily fits into any conventional computer cabinet designed to conveniently work with any general-purpose computer and connects via a Cat6 Ethernet cable and a 10-wire flat cable. This expansion backplane includes a PCI/PCI Express Expansion Backplane, one PCI Express host board and 1.5m (5 foot) Cat6 and flat control cables.
FAQs
Amfeltec SKU-075-01 PCI/PCIe PCI/PCIe Extension Backplane, 5ft, x1 PCIe Host
Frequently Asked Questions
Product Description
Product Description

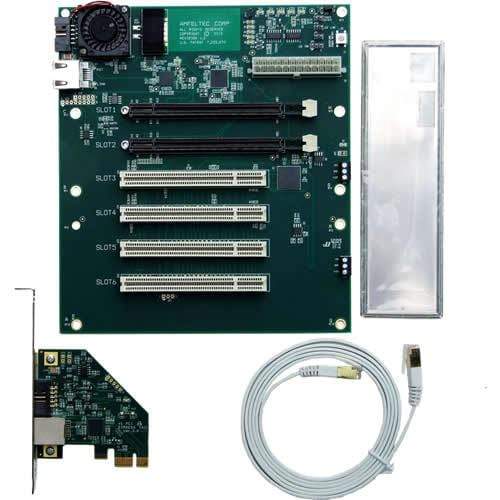

The SKU-075-01 PCI / PCIe Expansion Backplane comes with four 32-bit PCI and two x16 PCI express slots. The connection between the host computer and the expansion backplane is established via a standard 1.5m (5-foot) Cat 6 cable, a 10-wire flat cable and one x1 PCI express host board. The PCI express host board connects to the PCI express connector on the motherboard of the host computer.
Use in a Computer Case
Thanks to the ATX Specification 2.0, the standard mounting holes provided on the backplane are perfectly sized that allows fitting of this backplane in any general purpose computer chassis. Due to the power load circuit provided on the backplane, it can be powered by any ATX power supply without minimum power load limitation. The x16 PCI Express connector provided on the backplane features one PCI Express lane.
Use FreeStanding
The backplane can be operated without computer chassis as well. To allow this both the x16 PCI Express connectors have support spacers that aid mechanical stabilization of add-in x1 PCI express boards (U.S. Patent 7,255,750). The backplane features LEDs mounted on its surface and provide an easy visual check for the main powers (+5V, +12V, +3.3V, -12V, +5VSB), backplane operation status and status of the upstream PCI express connection.
