SKU: 102/002Aaronia SPECTRAN V6 PLUS 500XA-6 Spectrum Analyser

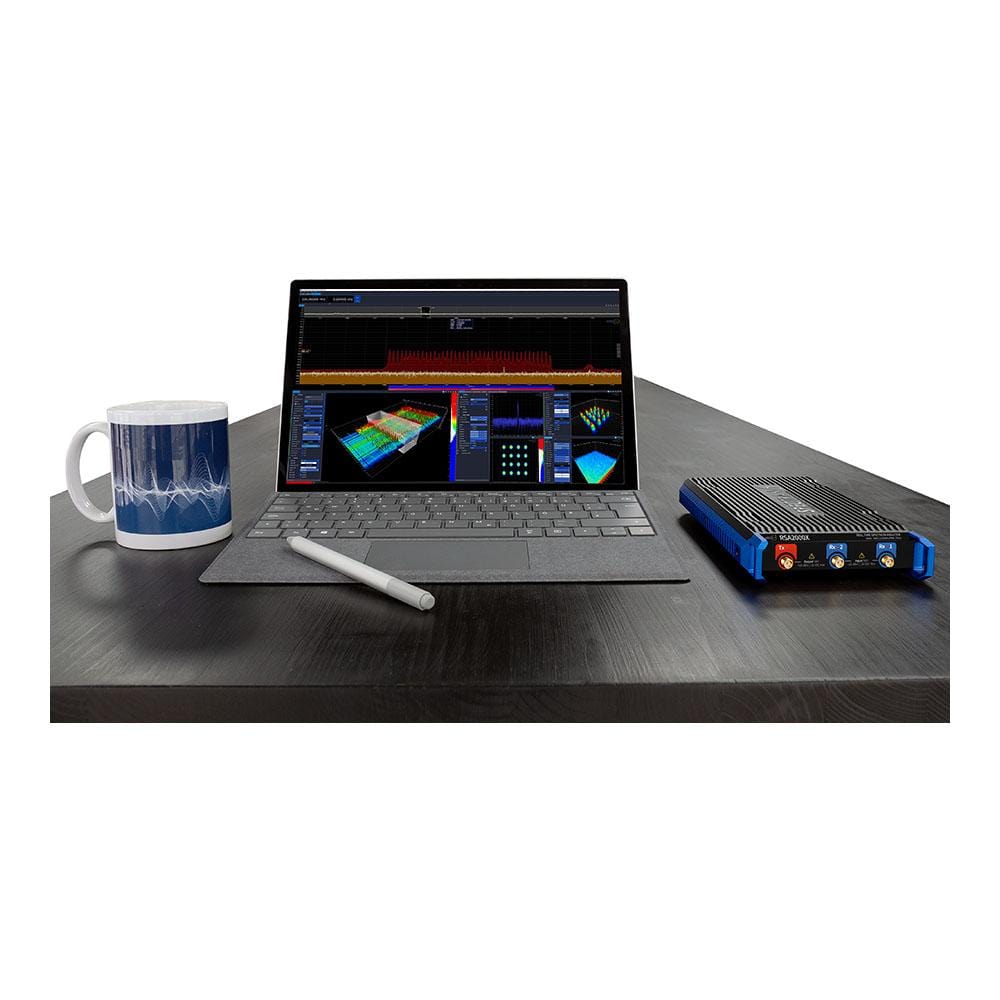

Aaronia SPECTRAN V6 PLUS 500XA-6 Spectrum Analyser
Couldn't load pickup availability
The SPECTRAN V6 RSA500X is one of Aaronia's latest generation of high-performance real-time spectrum analyzers. The SPECTRAN V6 RSA500X comes with 300/440GHz/s sweep speed. Any number of devices can be cascaded to achieve an even higher real-time bandwidth. Thus, by using only four SPECTRAN V6 instruments, real-time bandwidth of 480MHz is already achieved!
The included software RTSA-Suite PRO is precisely tailored to the powerful and robust hardware and supports the use of multiple SPECTRAN V6. The stackable aluminium housing facilitates the parallel use of several units.
The SPECTRAN® V6 X is Aaronia's latest generation of high-performance real-time spectrum analyzers. With a sweep speed of over 1 THz/s it sets new standards in the USB compact class. Any number of devices can be cascaded to achieve an even higher real-time bandwidth. Thus, by using only four SPECTRAN® V6 X, a real-time bandwidth of 1 GHz is already achieved!
The included software RTSA-Suite PRO is precisely tailored to the powerful and robust hardware and supports the use of multiple SPECTRAN® V6 X. The stackable aluminum housing facilitates the parallel use of several units.
The SPECTRAN® V6 X is available in three versions: V6-RSA250X, V6-RSA500X and V6-RSA2000X - with a max. instantaneous bandwidth (complex I/Q) of up to 245 MHz (via 2 x USB). The analyser is compatible to all common Aaronia antennae.
Highlights
• Frequency range: 10 MHz up to 8 GHz (Basic version 6 GHz)
• Instantaneous bandwidth (complex I/Q) of up to 245 MHz
• Unlimited continuous true I/Q streaming over up to 2 x USB 3.0
• I/Q vector signal generator bandwidth of up to 245 MHz
• Sweep speed up to 1 THz/s
• Several devices can be cascaded!
• Parallel measurement of several frequency bands
• World's first and only Dual USB true I/Q streaming up to 784 MBytes/s
• POI up to 97 ns (FFT based)
• POI up to 10 ns (I/Q based)
• Exceptional dynamic range through the use of a 16-bit ADC with 2GSPS (Giga Samples per Second)
• Sample rate: 500 MSPS (16 Bit Dual 256 MSPS I/Q-Data)
• FPGA: 930 GMAC/s
• FFT rate: 960 million FFT points/s (120 million FFTs/s)
• Full MATLAB support
• Stackable accessories
• Light and compact
• Including the software RTSA-Suite PRO with daily updates
• German Designed and manufactured
For more detailed information and news, you can visit our SPECTRAN® V6 Forum.
Housing

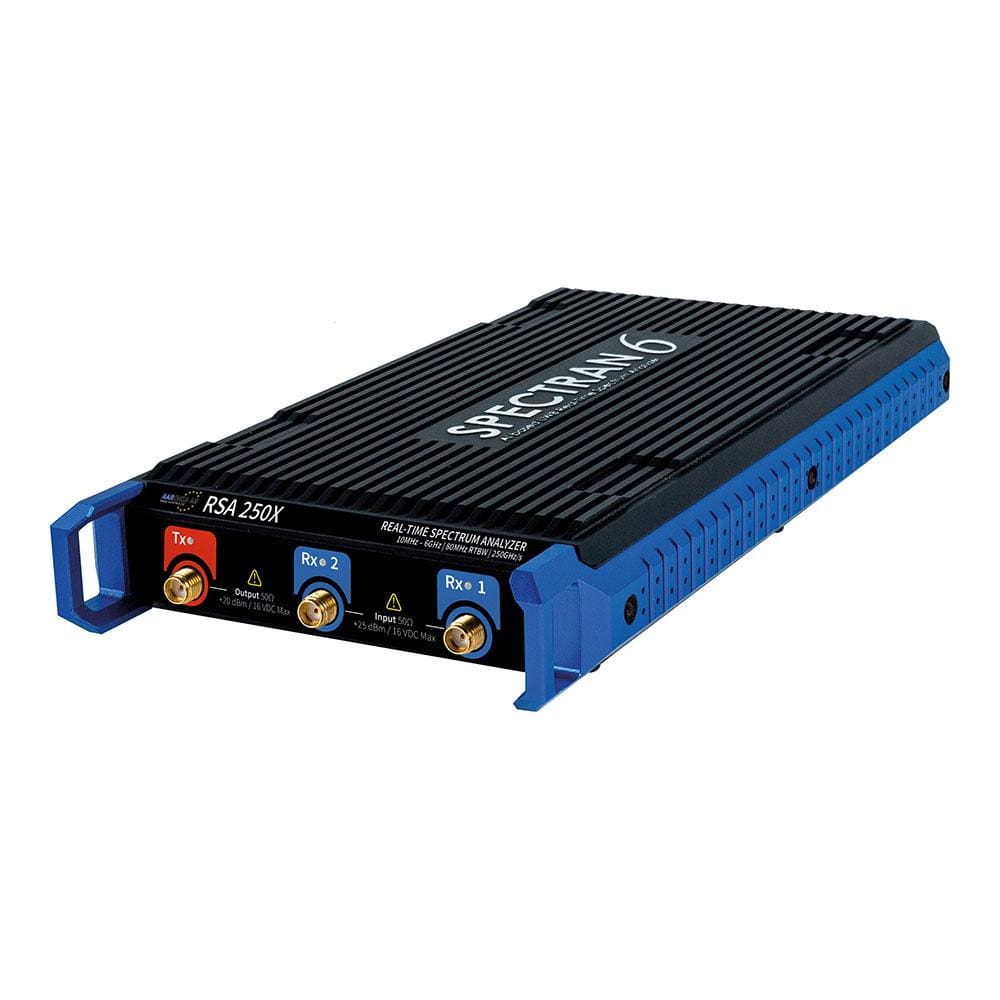

The high-quality black anodized housing is machined from a solid aluminium block. Thus the SPECTRAN® V6 X achieves an optimal shielding and cooling for the internal components. At the same time, the housing construction ensures maximum robustness. The integrated fan is speed- and temperature-controlled and thus generates only minimal noise.
USB
Depending on the version, the SPECTRAN® V6 X has one or two USB 3.0 ports for data transfer. A further USB port can optionally be used as power supply. A 26,800 mAh power pack with the same form factor is available separately and allows operation without the strain on the laptop battery.
Options / Extensions
- Frequency extension 6 ‐ 8 GHz for WiFi 6E
- OCXO time base - 5 ppb with extremely high shock and vibration resistance (±0.1 ppb/g)
- 120 MHz RTBW (for V6-RSA250X & V6-RSA500X)
- 245 MHz RTBW (only for V6-RSA2000X - via 2 x USB)
- 120 MHz Vector Signal Generator (only for V6-RSA250X, already integrated in the higher versions)
- Extremely low-noise preamplifier with 20 dB gain
- Internal GPS (Includes spoofing detection and active GPS antenna with SMB cable)
- RF over Fiber
- 4-way Splitter
- 26800 mAh Powerbank
- Large selection of compatible Aaronia antennas
Software
The spectrum analyzer is supplied with the latest version of the RTSA-Suite PRO software.
It is the most powerful and versatile spectrum analysis software solution on the market. The RTSA-Suite PRO allows signals to be displayed and analyzed in real time in many different ways. The software is constantly being developed and expanded. In the download section we provide daily updates. In the SPECTRAN® V6 Forum you will find all the latest information about our software.
What is Included?
The SPECTRAN® V6 X is supplied with all necessary USB cables and also the RTSA-Suite PRO software with manuals on USB a stick. A waterproof and shockproof transport case is available as an option.
Made in Germany
Like all instruments of the SPECTRAN® series, the SPECTRAN® V6 X spectrum analyzer is completely developed and manufactured in Germany. Therefore the hardware meets the highest quality standards.
Specifications
| V6-RSA250X | V6-RSA-500X | V6-RSA-2000X | |
|---|---|---|---|
| Frequency Range (min) | 10 MHz | ||
| Frequency Range (max) | 8 GHz (Basic version 6 GHz) | ||
| Real-Time Bandwidth | 80 MHz/opt. 120 MHz | 80 MHz/opt. 120 MHz | 160 MHz/opt. 245 MHz* |
| Sweep speed | 300/440 GHz/s | 300/440 GHz/s | 730/1100 GHz |
| Signal Generator | - / opt. 120 MHz | 120 MHz | 120 MHz |
| I/Os | 1 Rx (opt. 1 Tx) | 1 Rx & 1 Tx | 2 Rx & 1 Tx |
| Real-time bandwidth Rx | Up to 245 MHz (I/Q - via 2 x USB)* |
| Real-time bandwidth Tx | 120 MHz (opt. 245MHz) |
| POI (FFT-based) | Up to 97 ns |
| POI (I/Q-based) | Up to 10 ns |
| Max. power Rx | +23 dBm |
| Max. power Tx | +20 dBm |
| DANL (internal pre-amp on) | Typ. -170 dBm/Hz |
| Amplitude accuracy (typ.) | Typ. +/- 0,5 dB (compensated by FIR filter) |
| USB streaming connection | One or two USB 3.0 (USB 3.1 Gen1; USB 3.2 Gen1) |
| USB bandwidth | Up to 784 MBytes/s sustained throughput to PC (dual USB 3.0) |
| Frequency reference accuracy | 0,5 ppm (5 ppb via OCXO option) With GPS Disciplined Time Base: 5 ppm (optional 200 ppb) |
| RBW (resolution bandwidth) | 62 mHz to 200 MHz |
| Measurement units | Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²) |
| Detector | Min, Max, AVG, Peak, QPeak |
| Attenuator range | 50 dB / 70 dB (0,5 dB steps) |
| Traces | Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK) |
| Measurement modes | True IQ or Power/Frequency data |
| Trigger | Cursor, Measurement, Density |
| ADC | Dual 2GSPS 16 Bit |
| DAC | 2GSPS 14-Bit |
| GPS | GPS/QZSS, GLONASS, BeiDou and Galileo (concurrent reception) |
| GPS synchronisation | +/- 10ns timestamping in each data packet |
| External Frequency Reference Input | typ. 10MHz, 3,5VRMS into 50 Ohm (SMB-connector) |
| FPGA | XC7A200T-2 |
| DSP processing | 930 GMACs |
| SDRAM | 2 GB |

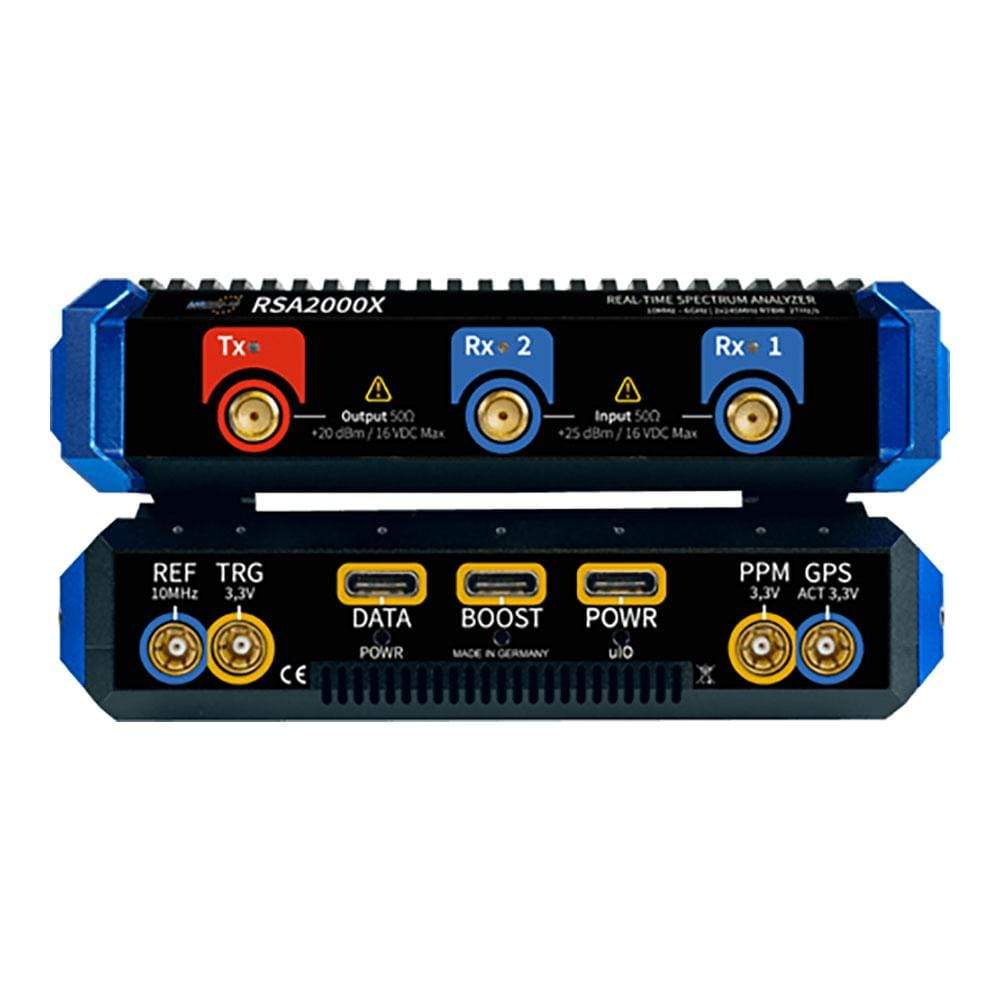

| RF connectors | SMA (Rx,Tx), SMB (Trigger, Refclock, GPS, PPM). All 50 Ohms. |
| Temperature range (operation) | 0 °C to +50 °C (extended -40 to +75 °C) |
| Dimensions | 210 x 115 x 30 mm |
| Weight | 850 g |
| Power | USB 3.2 Gen 1 Type-C PD 3.0 |
| Power consumption | Typical 15 W |
| Country of origin | Germany |
| Recommended calibration interval | 2 years |
