Mikroelektronika d.o.o.

7x10 R Click Board™

7x10 R Click Board™

SKU: MIKROE-1993

Regular price
£18.00 exc VAT
£21.60 inc VAT
Regular price £18.00 GBP Sale price
£18.00 exc VAT
£21.60 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

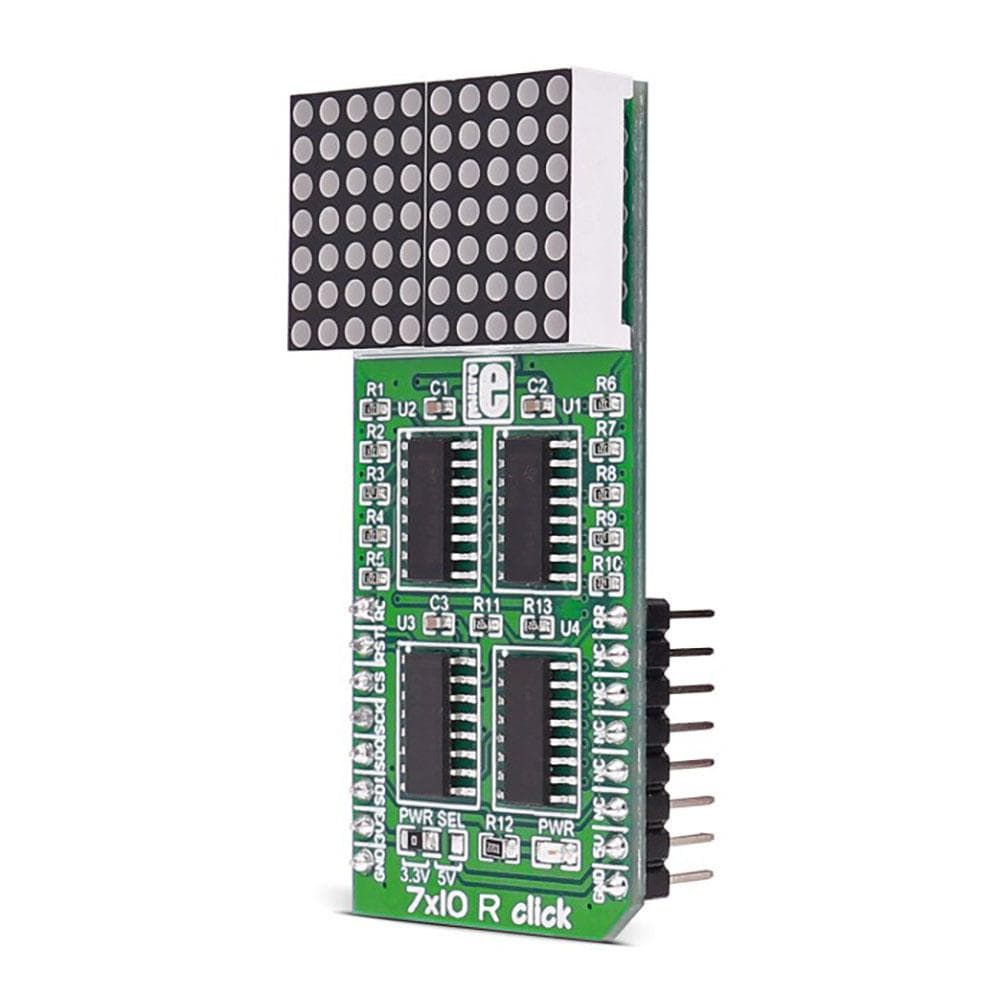

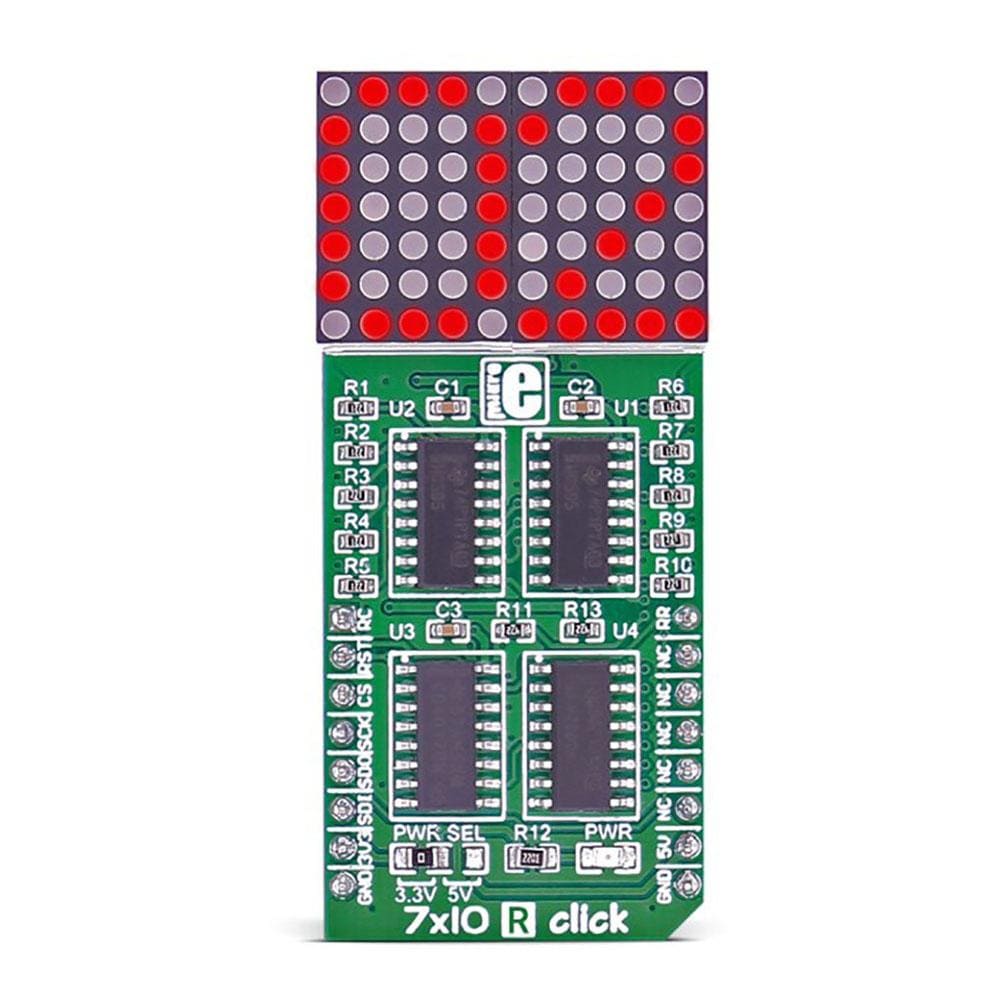

The 7x10 R Click Board™ is a display add-on board that serves as an essential dual-character display capable of showing letters in more readable typefaces compared to a 14-segment display that supersedes the 7x5 standard resolution meant for displaying ASCII characters. The 7x10 R Click Board™ is capable of carrying a matrix of 70 red LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter.

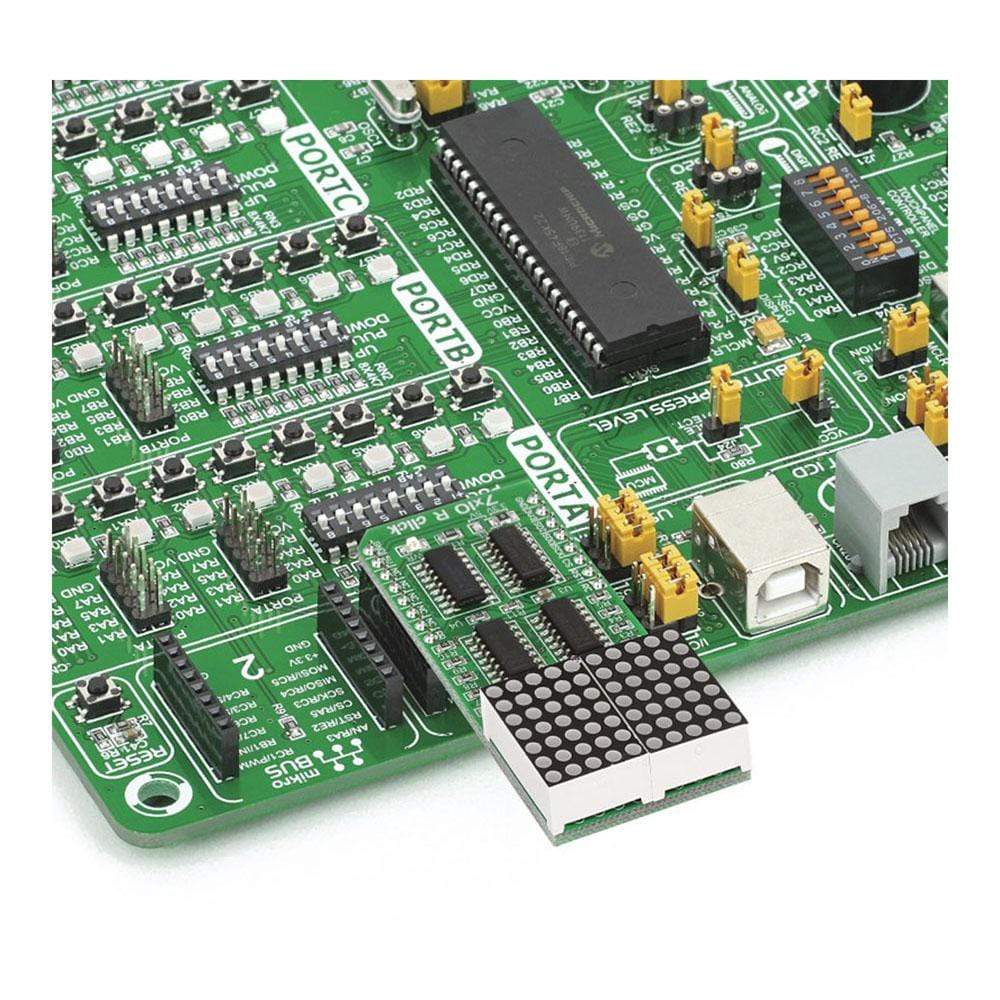

Apart from providing the user with a dual- character display, the 7x10 R Click Board™ also maintains the scope of providing a four-character display in case of doubling up on a board with two adjacent MikroBUS sockets, such as [Clicker Board 2][3] or [Flip & Click Board™][2]. It is designed to use either a 3.3V or 5V power supply.

A Multi-Faceted Display

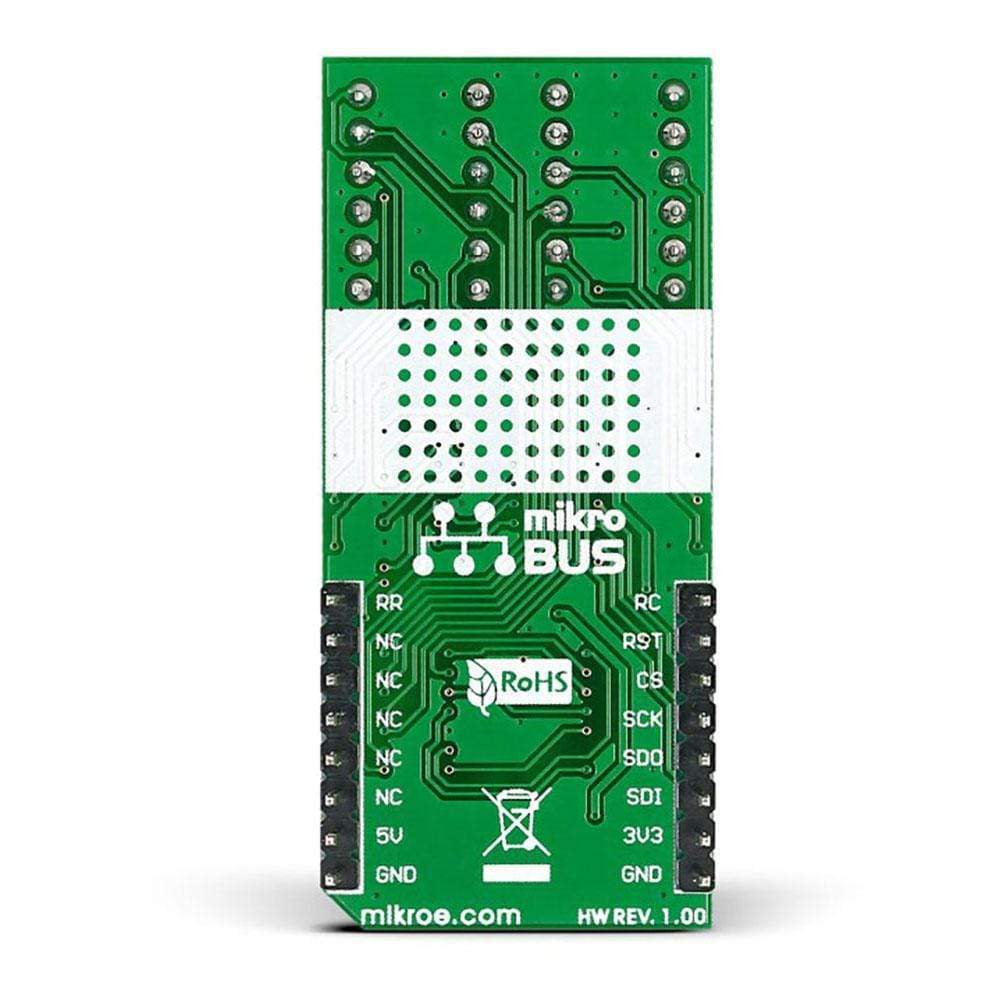

The 7x10 R Click Board™ performs the operation of carrying a matrix of 70 red LEDs driven by a pairs of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter. It communicates with the target MCU through the mikroBUS SPI interface (SCK, SDO, SDI), with additional functionality provided by R CLK, MR#, LATCH and R RST pins.

The display is driven by four different chips-a pair of serial-in parallel-out shift register that take the input from an MCU through the mikroBUS SPI interface and a Darlington transistor array that amplifies the current enough for lighting up the LEDs. The 7x10 R Click Board™ is also equipped with Johnson counter IC which does the LED multiplexing, turning LEDs on and off rapidly.

Overview
CategoryLED Matrix
Applications7x10 G click can be used for graphical display of information, such as public clock displays, temperature displays, text scrollers and similar applications that display clearly visible low-resolution graphics or text
Key components
On-board modules7x5 dot matrix LED display, 74HC595, an 8bit shift register, CD4017, a 5-stage Johnson counter, ULN2003, a Darlington transistors array
Features
Key featuresHigh degree of readability, fluid and clean display of text and graphics, provided software libraries offer functions for easy text scrollers
Interfaces
InterfaceGPIO, SPI
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1993
ManufacturerMikroelektronika d.o.o.
EAN8606015077024
Warranty12 months
Shipping weight0.029 kg
  • 1 × 7x10 R Click Board™

Contact us to confirm the full contents of the box.
